3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board

3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board

$37.99
$37.99 $50.99
Skip to product information
3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
  • 3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board

3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board

$37.99
$37.99 $50.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

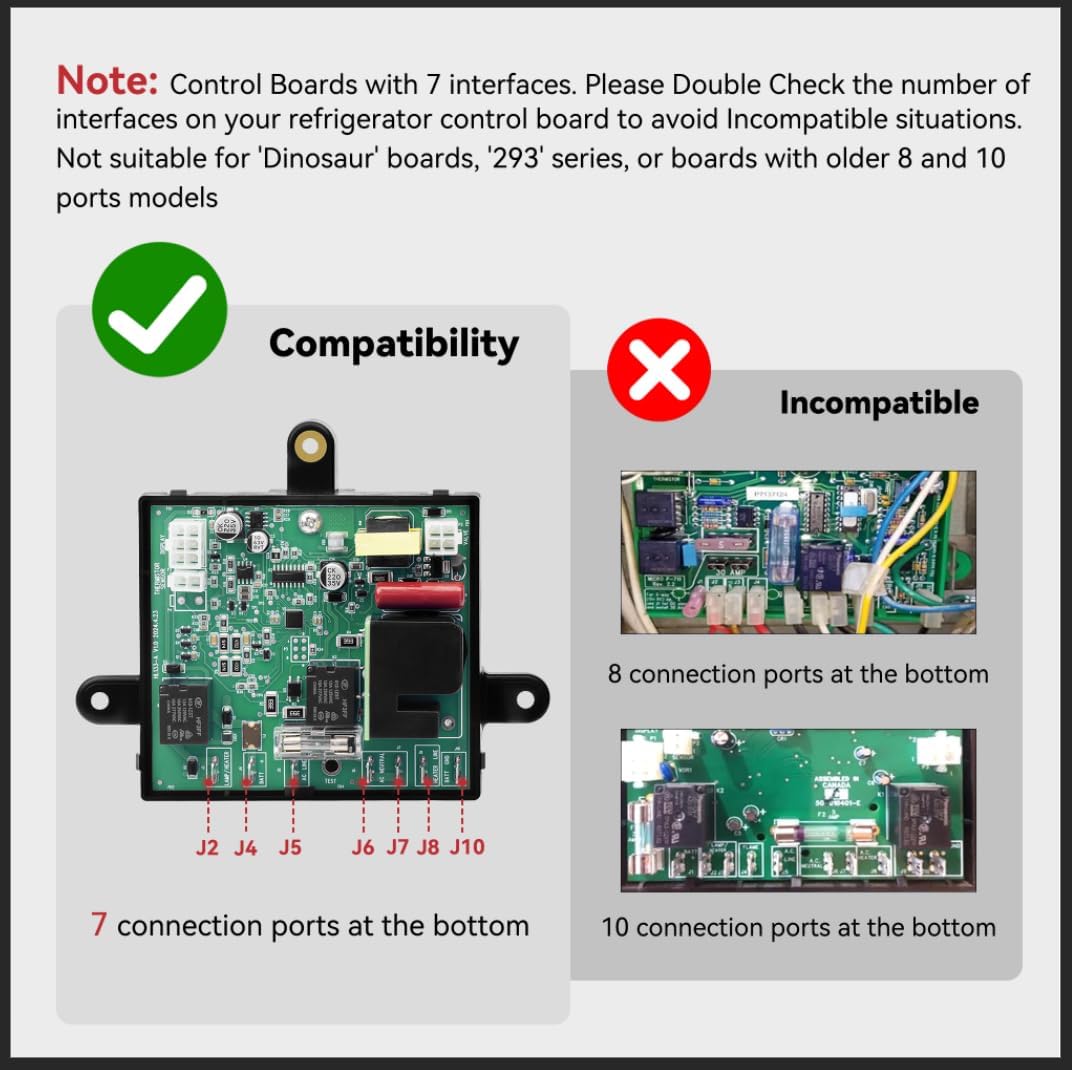

  • Note:Our Control Boards has upgraded with 7 interfaces. Please Double Check the number of interfaces on your refrigerator control board to avoid Incompatible situations. Note: Not suitable for 'Dinosaur' boards, '293' series, or boards with older 8 and 10 ports models
  • Compatible With: 3316348.9003316348.000 RV Refrigerator/Fridge Circuit Board Compatible with most Dometic power module board models - DM2652, RM2652, DM2662, DM2672, DM2682, DM2663, DM2852, DM2862, DM2872, DM2882, DM3862, DM2852lbx, DM2862rbx, RM2807, RM2351, RM2354, RM2451, RM2454, RM2551, RM2554, RM2620, RM2662, RM2820, RM2852, RM2862, NDM1062, NDR1062, DMA4061, DMA4064

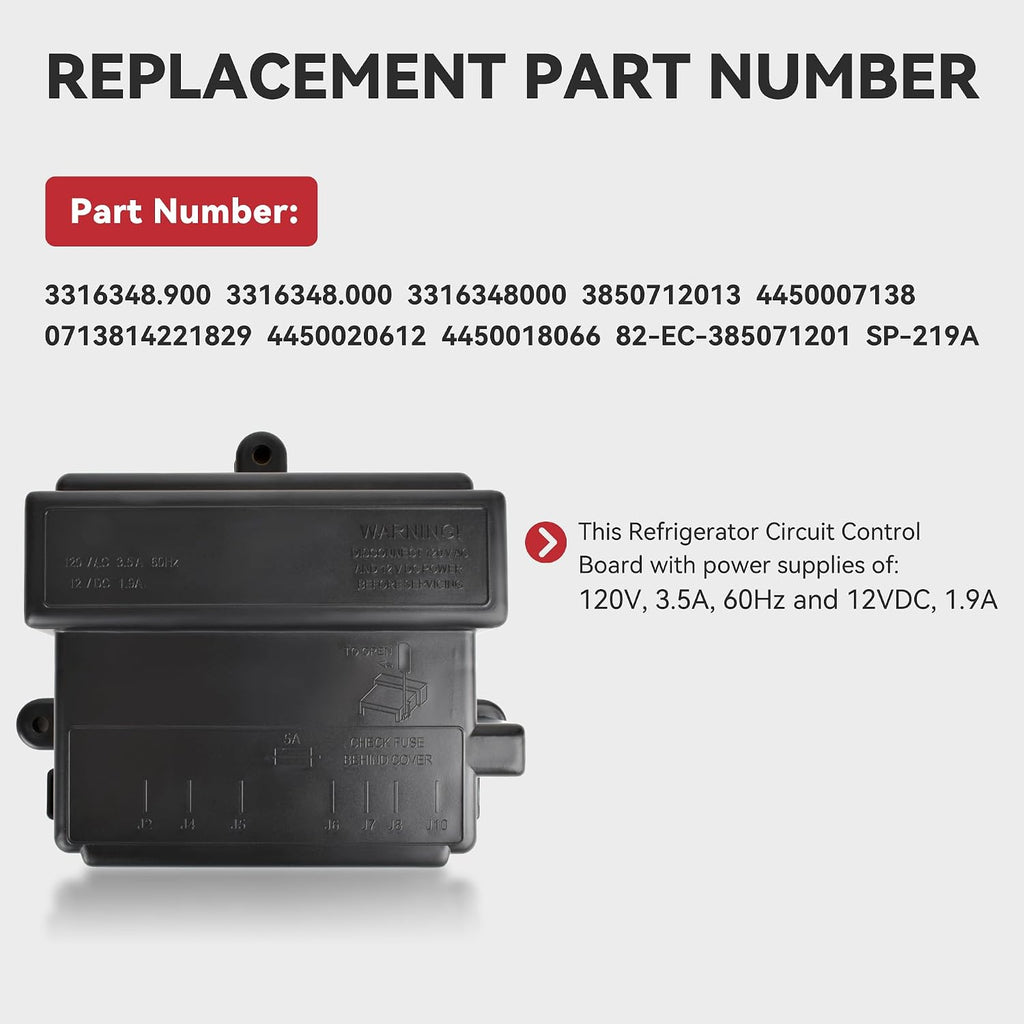

  • REPLACEMENT PART NUMBER: The RV Fridge Circuit Control Board replace part numbers: 3316348900, 3316348.000, 3316348000, 0713814221829, 3850712013, 4450007138, 4450020612, 4450018066, 82-EC-385071201, SP-219A

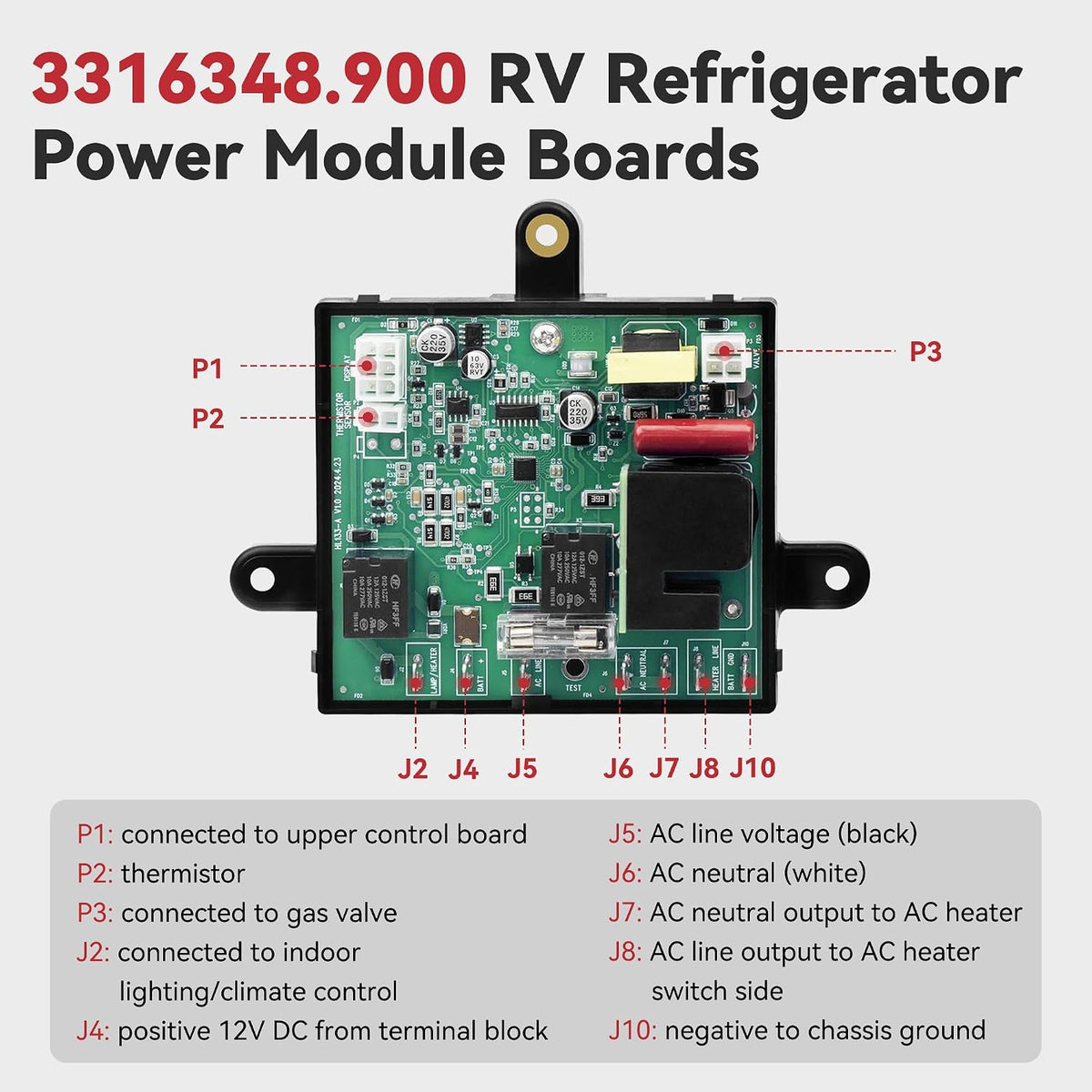

  • Product Description: Fuse back cover: P1: connected to upper control board, P2: thermistor, P3: connected to gas valve, J2: connected to indoor lighting/climate control, J4: positive 12V DC from terminal block, J5: AC line voltage (black), J6: AC neutral (white), J7: AC neutral output to AC heater, J8: AC line output to AC heater switch side, J10: negative to chassis ground
  • Details: 3316348.900, 3316348.000 Power Module Circuit Board is designed with an integrated propane function igniter. Power Supplies: 120V, 3.5A,60Hz and 12VDC, 1.9A
  • Customer Support: If you have any questions before or after purchasing, please feel free to contact us. We offer a one-year guarantee on Control Board to address defects or issues that arise during normal use

3316348.900 3316348.000 RV Fridge Control Board Compatible with Dometic DM2652 DM2852 RM2652 NDM1062 RM2852 RM2351 RM2354, Seven Ports bottom. Not Replace The Bottom Eight Or Ten Ports old board
