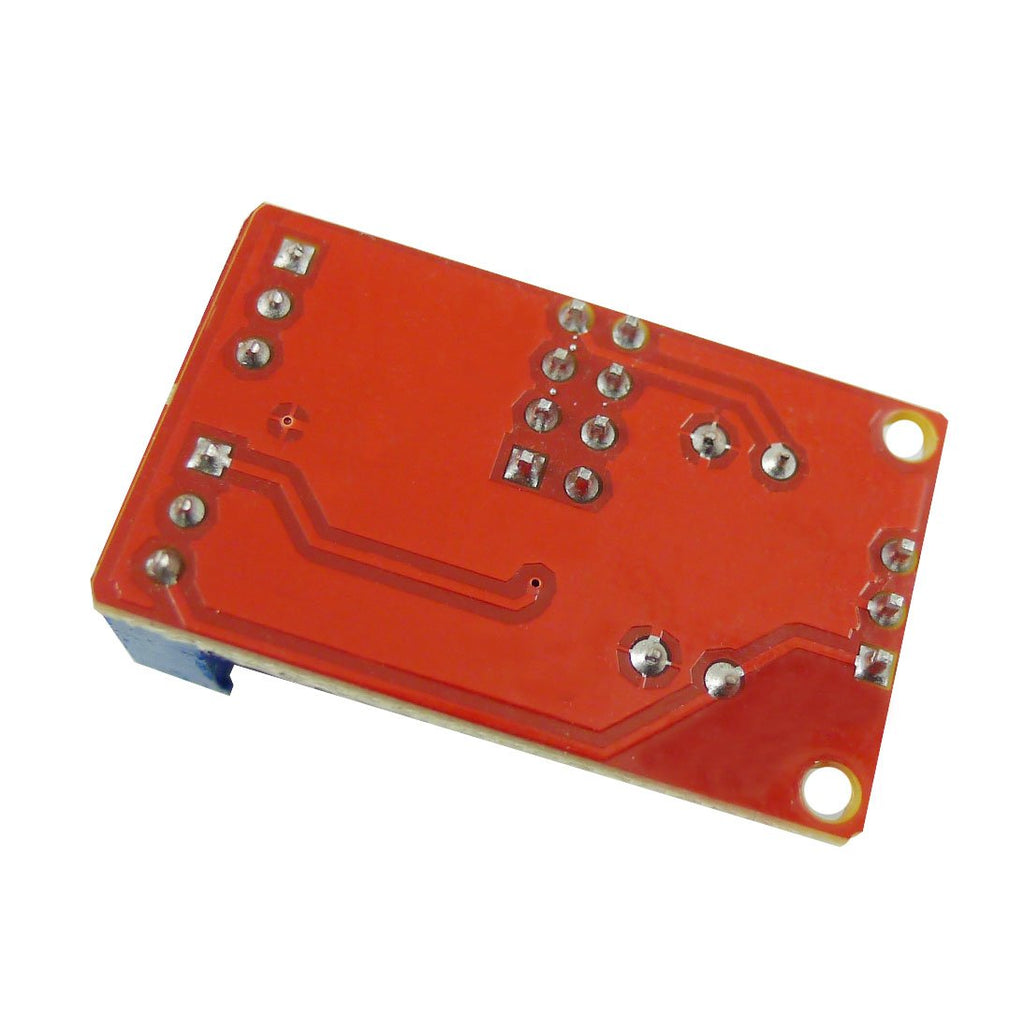

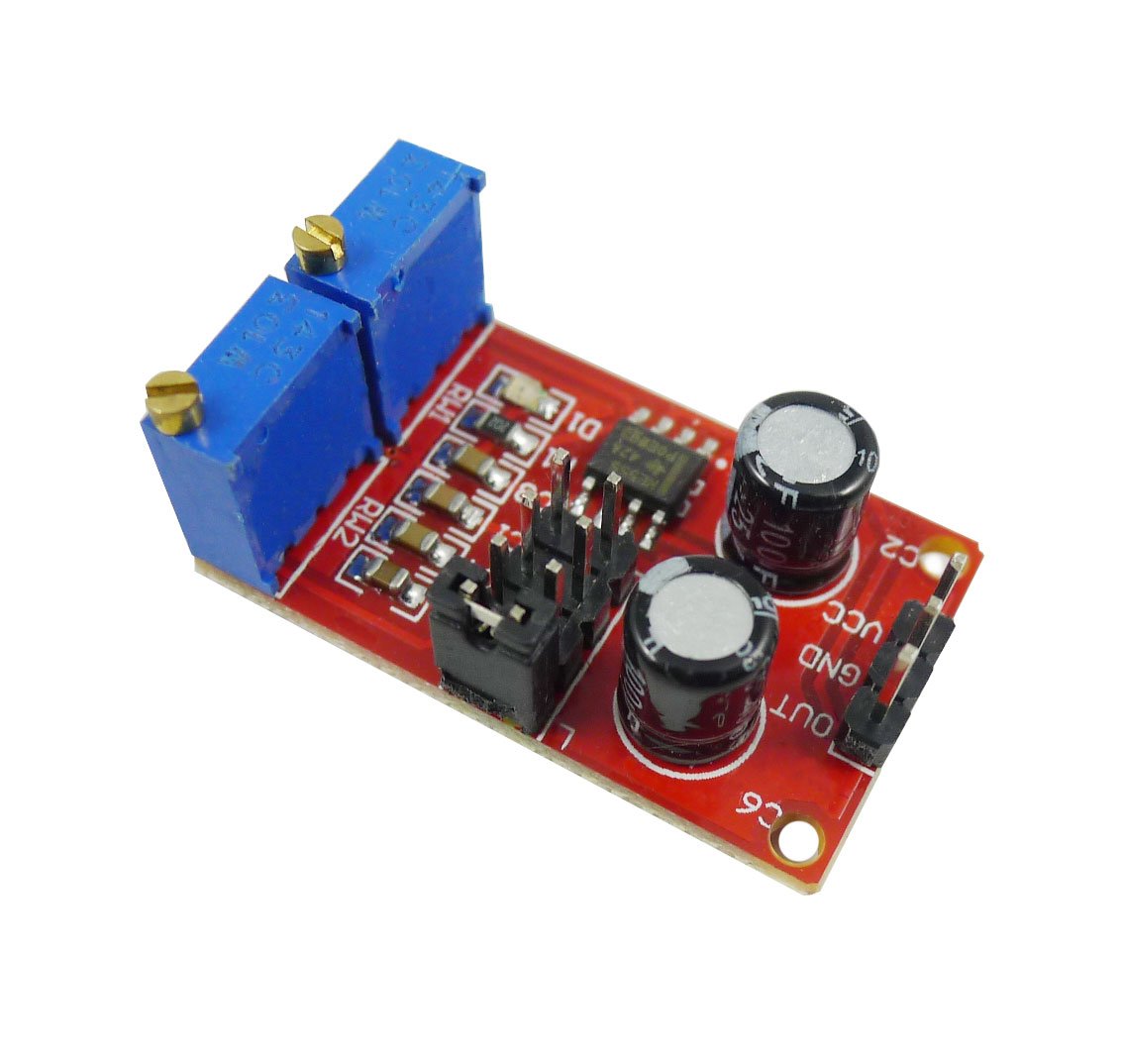

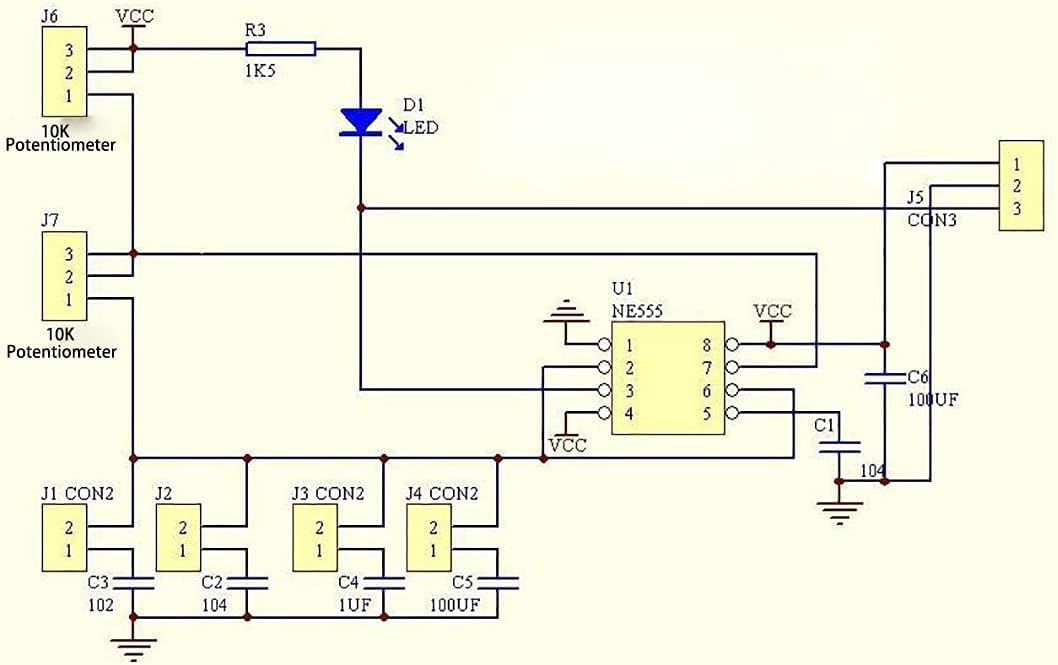

3PCS NE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Stepper Motor Drive Module Board
3PCS NE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Stepper Motor Drive Module Board
Key features
- Main chip: N5555; Input voltage: DC 5V-15V; Input current: ≥ 100MA; Output amplitude: 4.2V V-PPto 11.4V V-PP(Depending on the input voltage, the output amplitude will be different); Output frequency 1Hz-50Hz, 50Hz-1KHz, 1KHz-10KHz, 10KHz-200KHz Four Optional;
- There are 4 jumpers and 2 variable resistors on the module, users can adjust the output wave with these components, to get their ideal wave easily.
- Output LED indicator,: low-level LED light, high-level LED off, the frequency is low when the LED flashes.
- Capacitive capacity determines the frequency range, the user can calculate the adjustment according to their own needs.
- The output duty cycle can fine-tune. Duty cycle and frequency is not separately adjustable, adjusting the duty cycle will change the frequency.
Feature: 1.Scope of application of this module: (1). Used as a square wave signal generator to generate square wave signals for experimental development. (2). Used to generate square wave signals to drive stepper motor drivers. (3). Generate adjustable pulses for MCU use. (4). Generate adjustable pulses to control related circuits. 2. Brief description: (1). Size: 31x22mm (2). Main chip: NE555; (3). Input voltage: 5V-15VDC. When powered by 5V, the output current can be around 15MA; when powered by 12V, the output current can be around 35MA; (4). Input current: ≥100MA (5). Output amplitude: 4.2V V-PP to 11.4V V-PP. (The output amplitude will be different depending on the input voltage) (6). Maximum output current: ≥15MA (5V power supply, when V-PP is greater than 50%), ≥35MA (12V power supply, when V-PP is greater than 50%) 3. advantages and features: (1). The output has LED indication, and it is directly clear whether there is output (the LED is bright when the level is low, the LED is off when the frequency is high, and the LED flashes when the frequency is relatively low); (2). The output frequency range is optional, making the output frequency more continuously adjustable; Low
