4 Axis Nema23 Stepper Motor Driver USB Mach3 CNC Motion Controller Kit 24V

4 Axis Nema23 Stepper Motor Driver USB Mach3 CNC Motion Controller Kit 24V

Key features

• Model: 23HS8430 Nema23 Stepper Motor; Holding Torque: 270oz-in 180N.cm; Motor Size:57x57x76mm; Phase: 2 phase; 1.8° Step Angle; Type:Hybrid; Shaft: Dia 8mm Single shaft; Wiring: A+: Red; A-: Green; B+: Yellow; B-: Blue

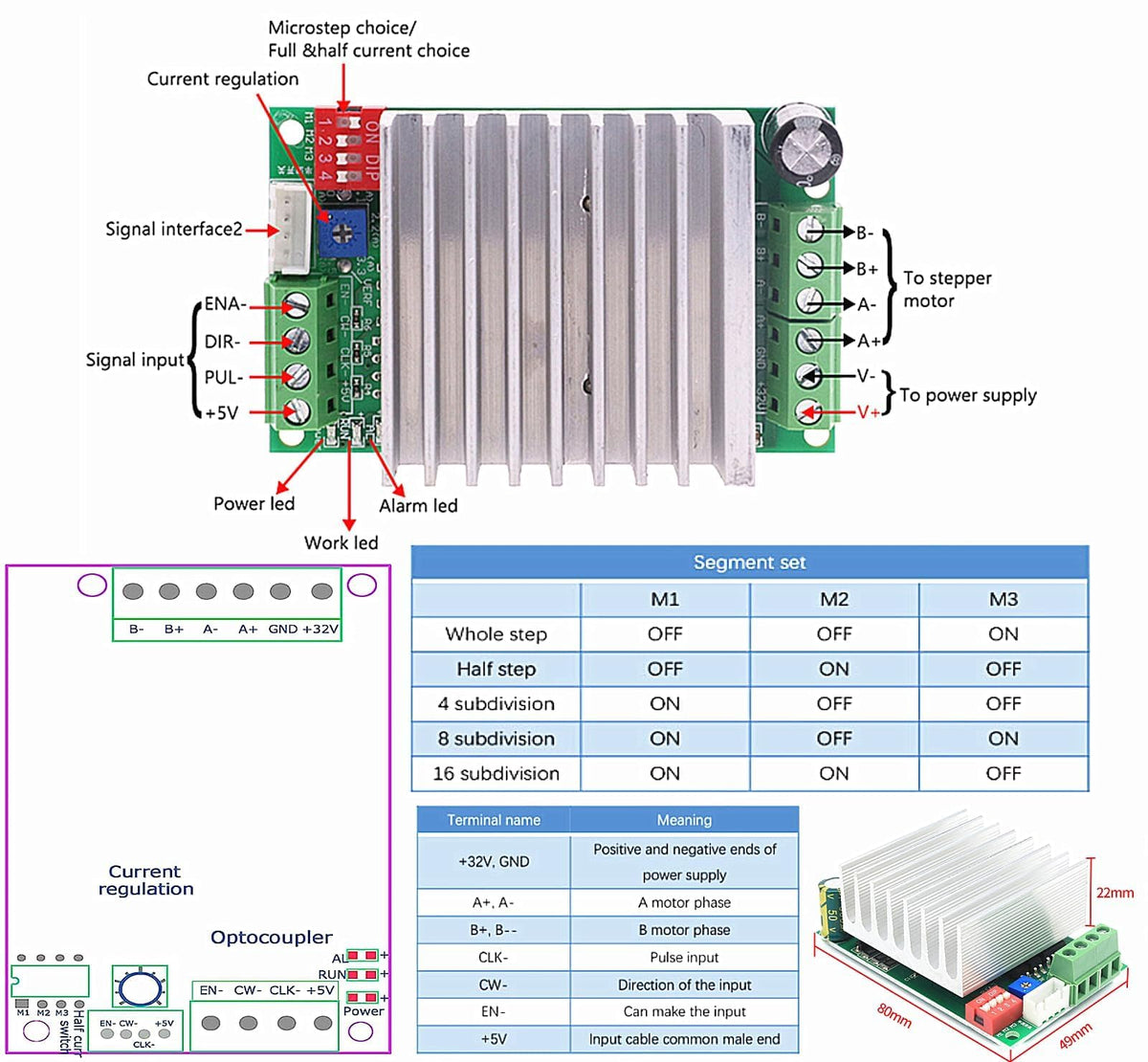

• Driver: TB6600 driver Voltage: DC 10V-45V; Current: rated maximum output reaches: ±4.5A; Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, maximum 16 subdivisions
• 4 Axis USB Mach3 Motion Control Board: USB port is applicable to any netbook, notebook, desktop, tablet and other PC compatible computers with USB interface.This control board does not require any drivers to be installed. As long as Mach3 can run, the control card can be used; Support computer system:Windows 2000/ XP / Windows 7/8/10

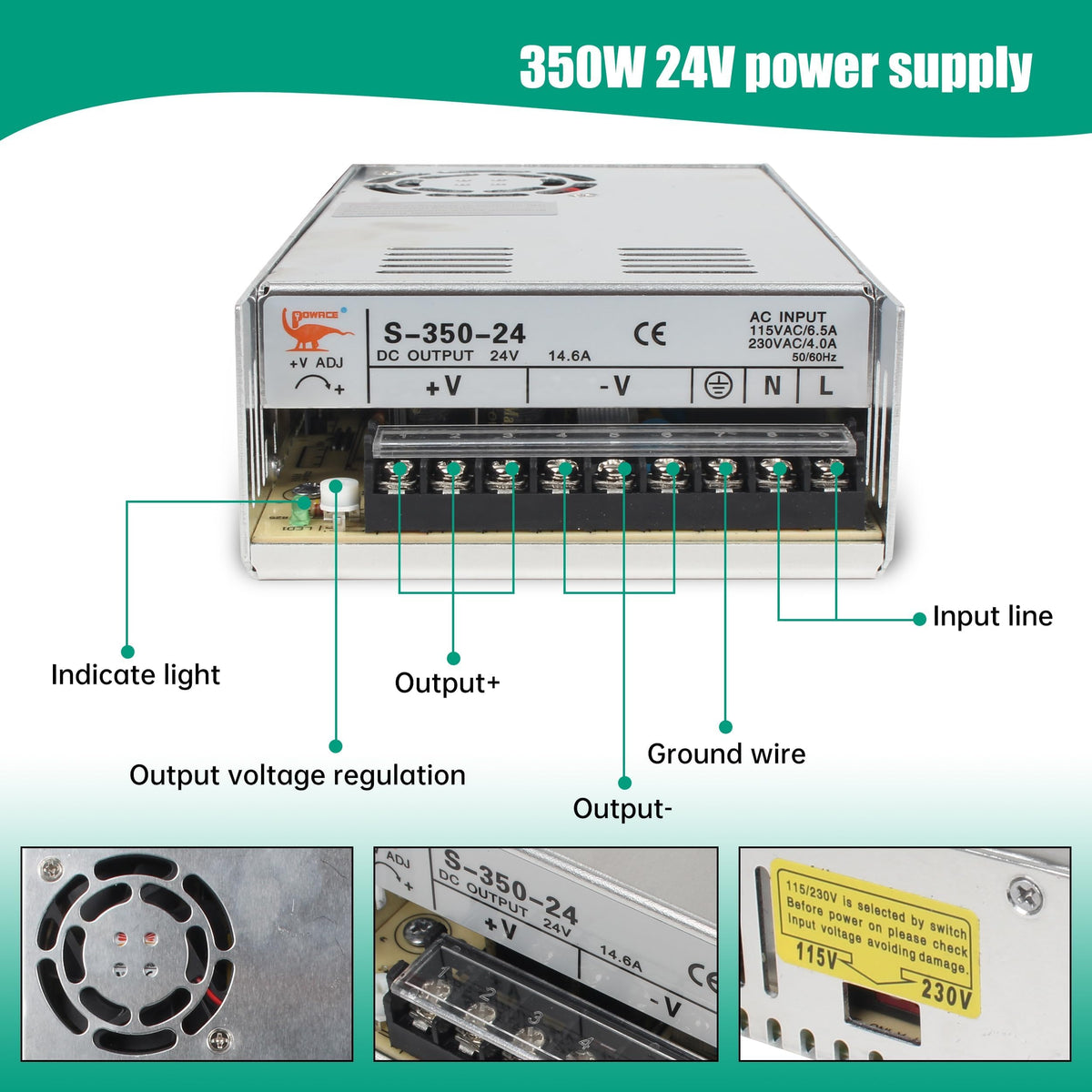

• 350W 24V DC Switching Power Supply: AC input voltage range: 110V-120V AC or 220V-240V AC; selected by switch to choose input voltage
• Functions of the Mach3 Control Board: It supports 4-axis linkage control at most; Max step-pulse frequency is 100KHz;Support probe tool,E-stop input,Limit switches;Support for electronic handwheel; Support spindle control PWM and relay mode
