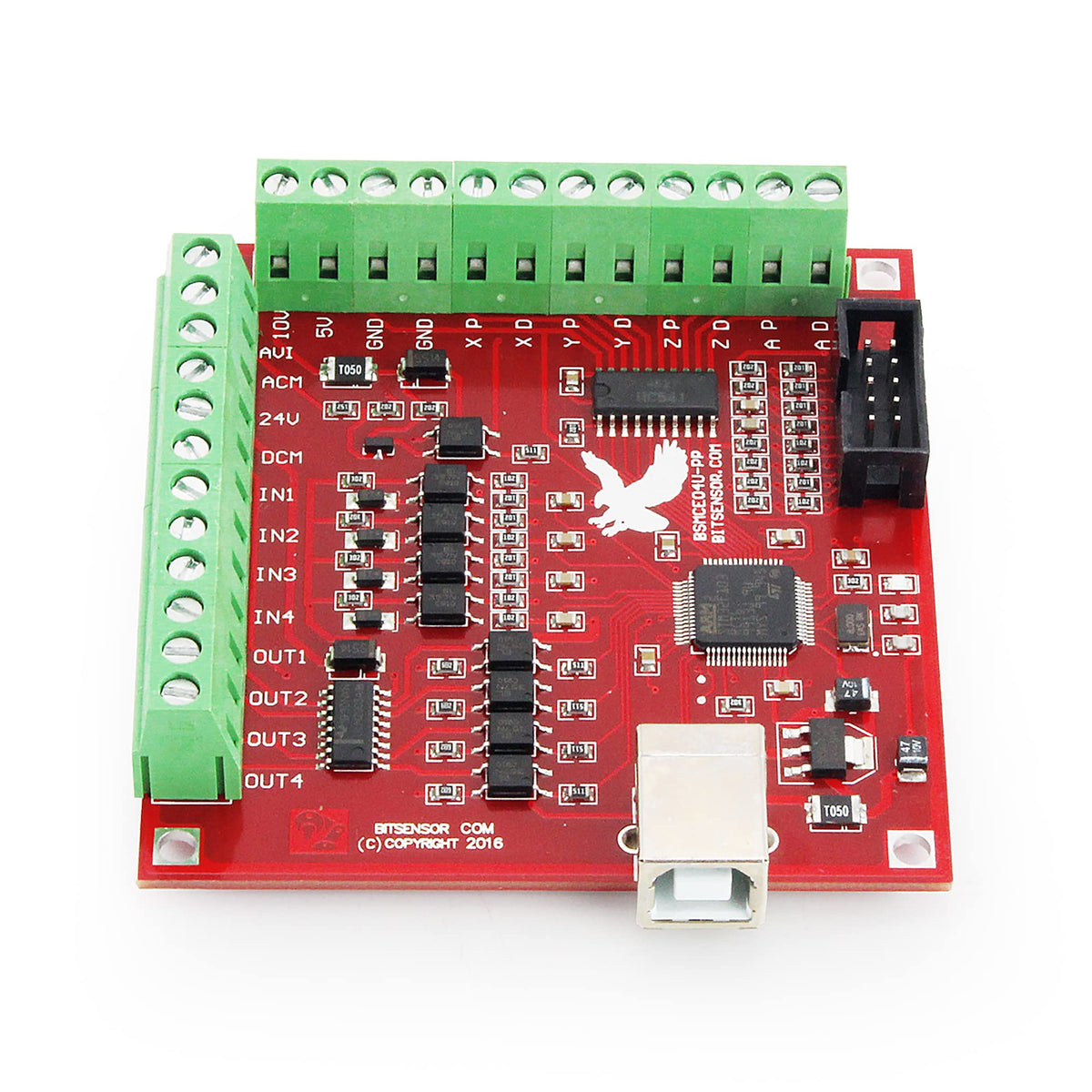

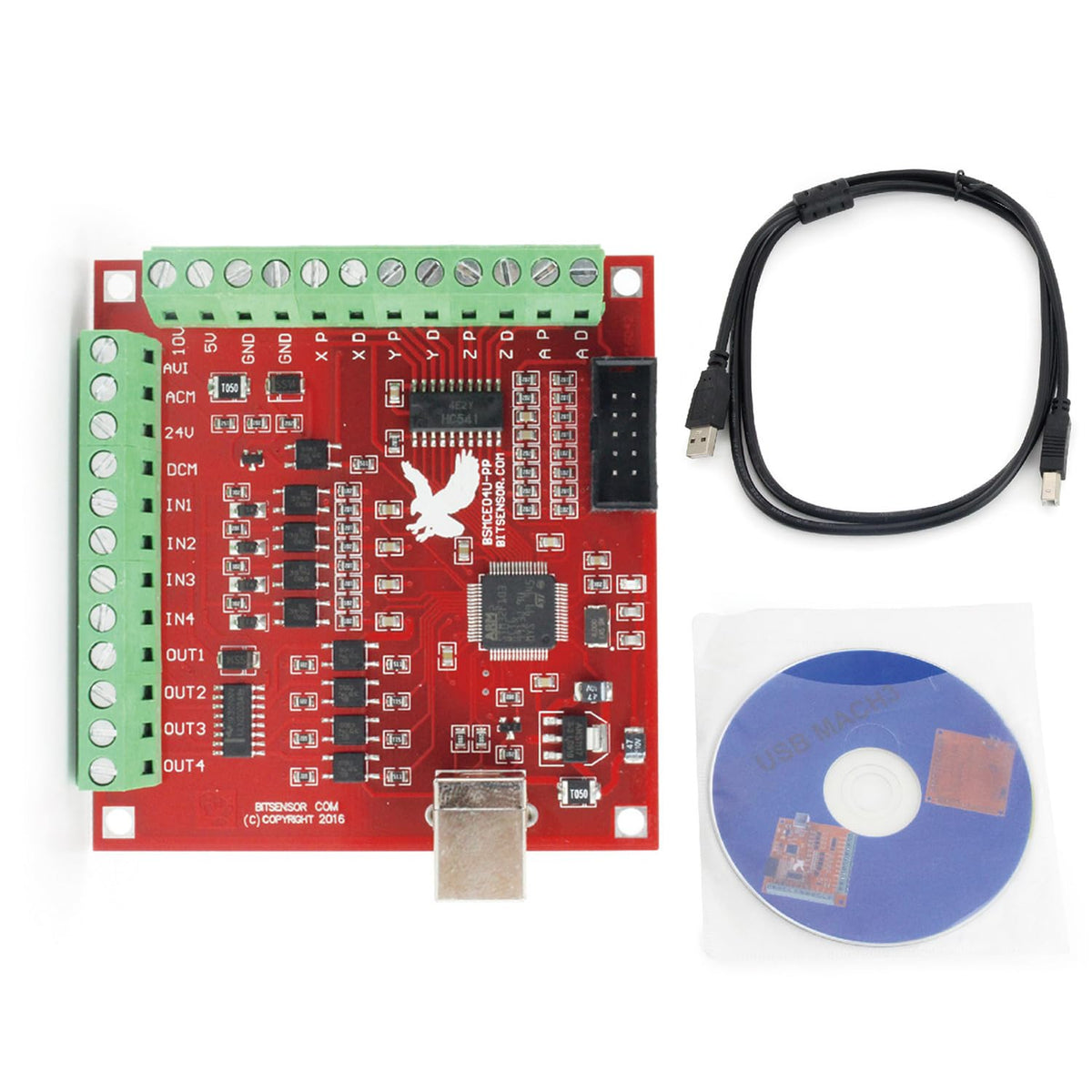

4 Axis USB Mach3 Motion Control Card, Stepper Motor CNC Controller Board

4 Axis USB Mach3 Motion Control Card, Stepper Motor CNC Controller Board

Key features

• Product: 4 Axis USB Mach3 Control Board; Port:USB interface is applicable to any netbook, notebook, desktop, tablet and other PC compatible computers with USB interface; As long as Mach3 can run,the control card can be used; Support computer system:Windows XP/7/8/10
• 4 Axis Linkage:Support for 4 Axis linkage, you can connect four stepper motor drives or servo drives; Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor; One status LED, indicate connection status on the board

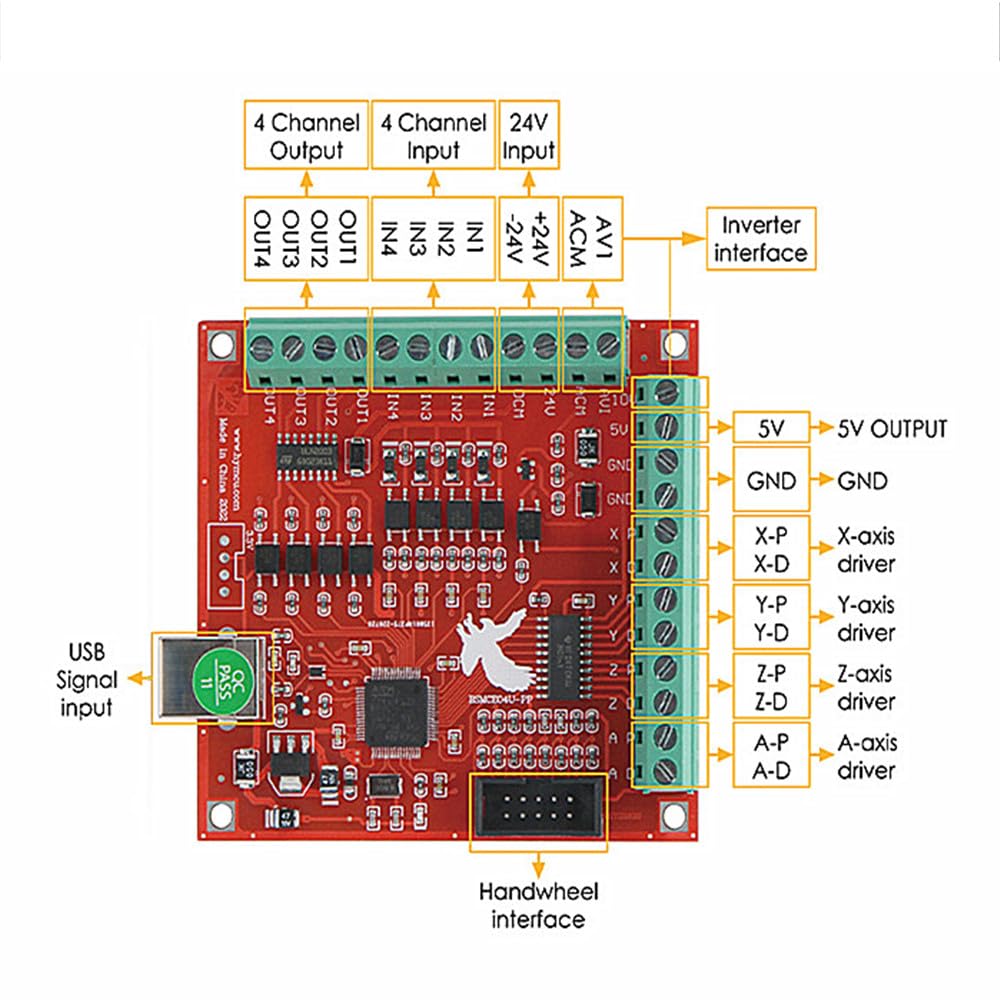

• Output Signal Ports:Have 0-10V signal output,you can use mach3 software to control the spindle motor speed; 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device; Support for connecting electronic handwheel; Handwheel interface: 2x5P row needle
• Input Signal Ports:4 general-purpose inputs, you can connect the limit switch, estop switch, probe, back to zero and other device; Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable
• Applications:CNC Router,Milling Machine,Engraving Machine,Carving Machines,Cutting industry,Medical equipment,industrial equipment and automation devices etc
