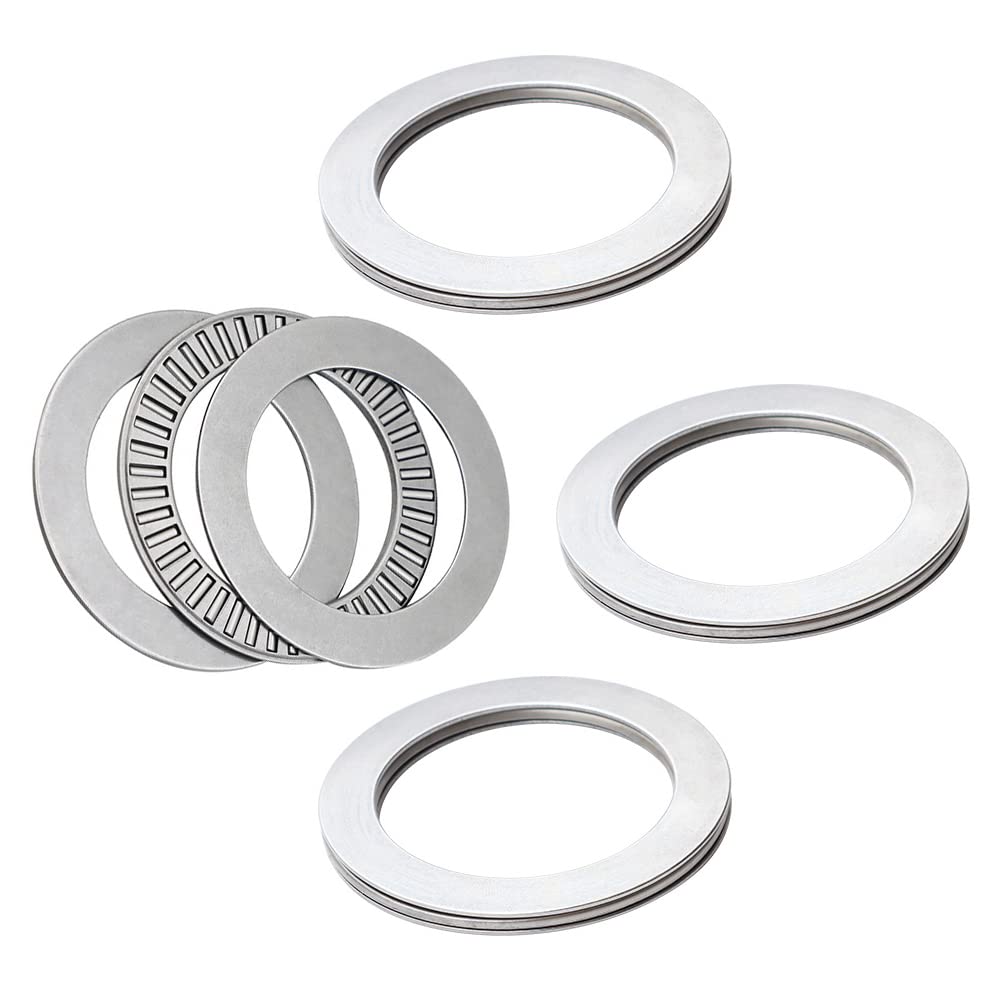

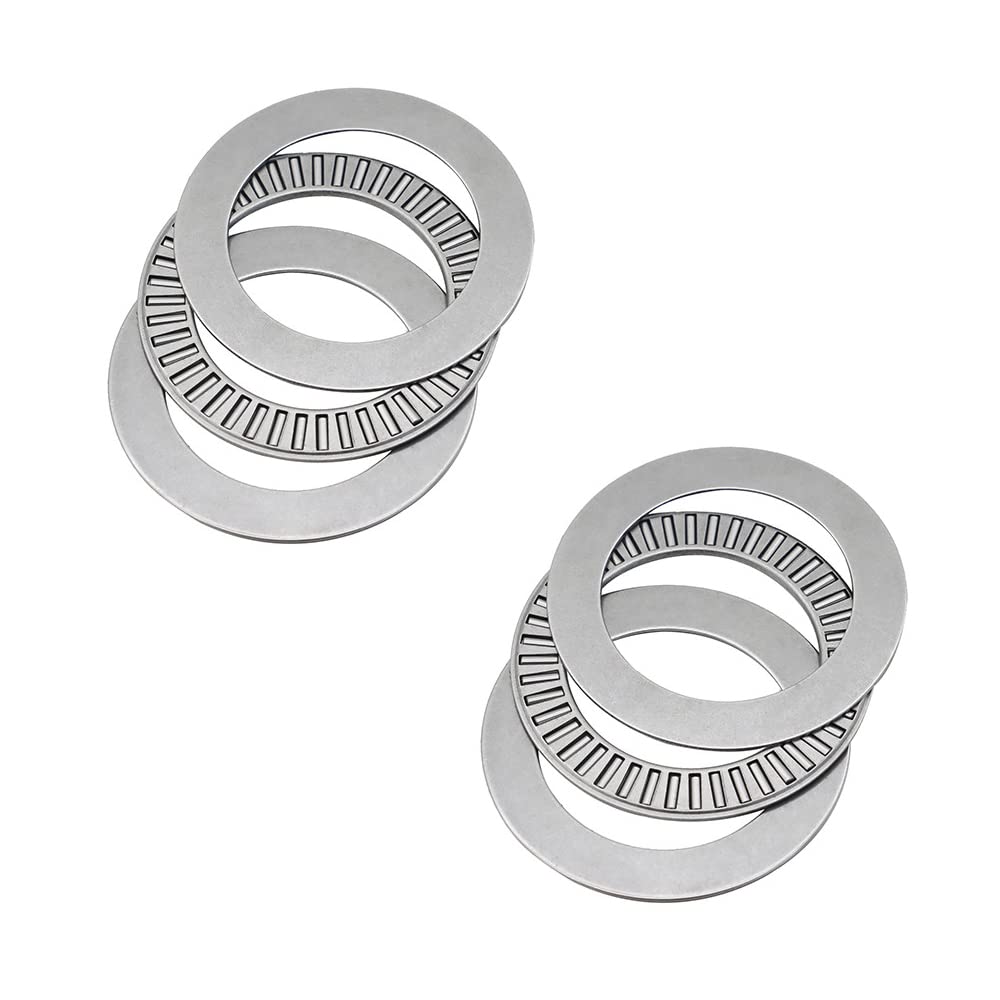

4 Sets NTA1220 +2TRA Thrust Needle Roller Bearings with Washers, 3/4" Bore, 1-1/4" OD, 5/64" Width
4 Sets NTA1220 +2TRA Thrust Needle Roller Bearings with Washers, 3/4" Bore, 1-1/4" OD, 5/64" Width
Key features

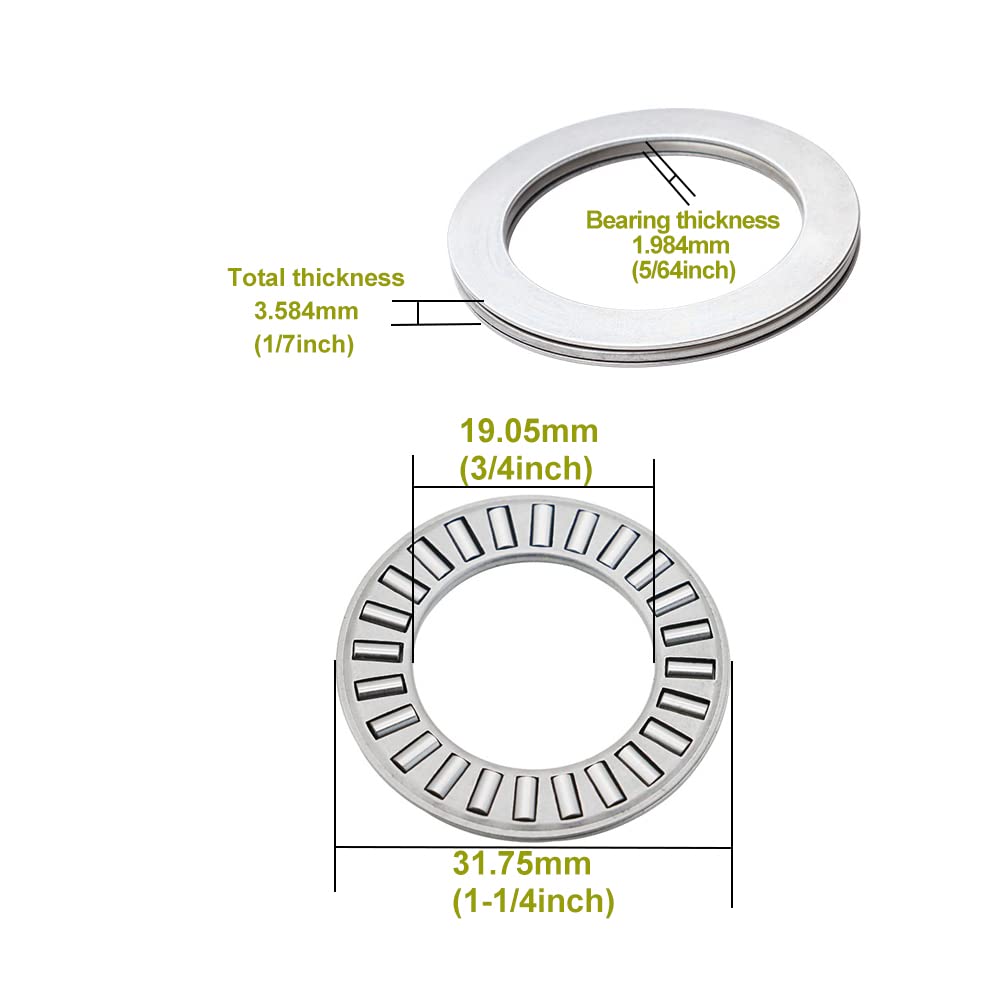

- SizeBearing Model: NTA1220+2TRA. Bore Diameter about: 3/4" (19.05mm); Outside Diameter about: 1-1/4" (31.75mm); Bearing Thickness about: 5/64" (1.984mm); Washer Thickness about: 0.8mm.
- MaterialThrust Needle Roller Bearings are made of high temperature resistant bearing steel, sturdy and heat tolerance.
- Capability27.08kN Static Load Capacity, 7.87kN Dynamic Load Capacity, 14000RPM Maximum Rotational Speed.
- FeaturesNeedle Roller Thrust Bearings can accommodate axial loads in one direction only. Combined with 2 washers for applications where adjacent machine components cannot serve as raceways.
- Wide ApplicationRolling bearings are suitable for gricultural machinery to conveying equipment, robots, elevators, rolling mills, rudder shafts, aggregate crushers, ect.
Description: Thrust Needle Roller Bearings are made of high temperature resistant bearing steel,sturdy heat tolerance. Rolling bearings are suitable for gricultural machinery to conveying equipment, robots, elevators, rolling mills, rudder shafts, aggregate crushers, ect. Specification: Package contents: Bearing x 4Pcs, bearing washers x 8Pcs Model: Bearing Model: NTA1220+2TRA Material: Steel Size Bore Diameter about: 3/4" (19.05mm) Outside Diameter about: 1-1/4" (31.75mm) Bearing Thickness about: 5/64" (1.984mm) Washer Thickness about: 0.8mm Total thickness: 3.584mm Capability: Dynamic Load Capacity (Cr) : 7873N; Static load capacity (Cor): 27088N; Maximum speed (oil): 14000rpm Customer Service: After-sale service for Needle Roller Thrust Bearings, any problems happened, just let we know, we will provide you with satisfactory service as we can.
Free shipping included. 30-day hassle-free returns.
