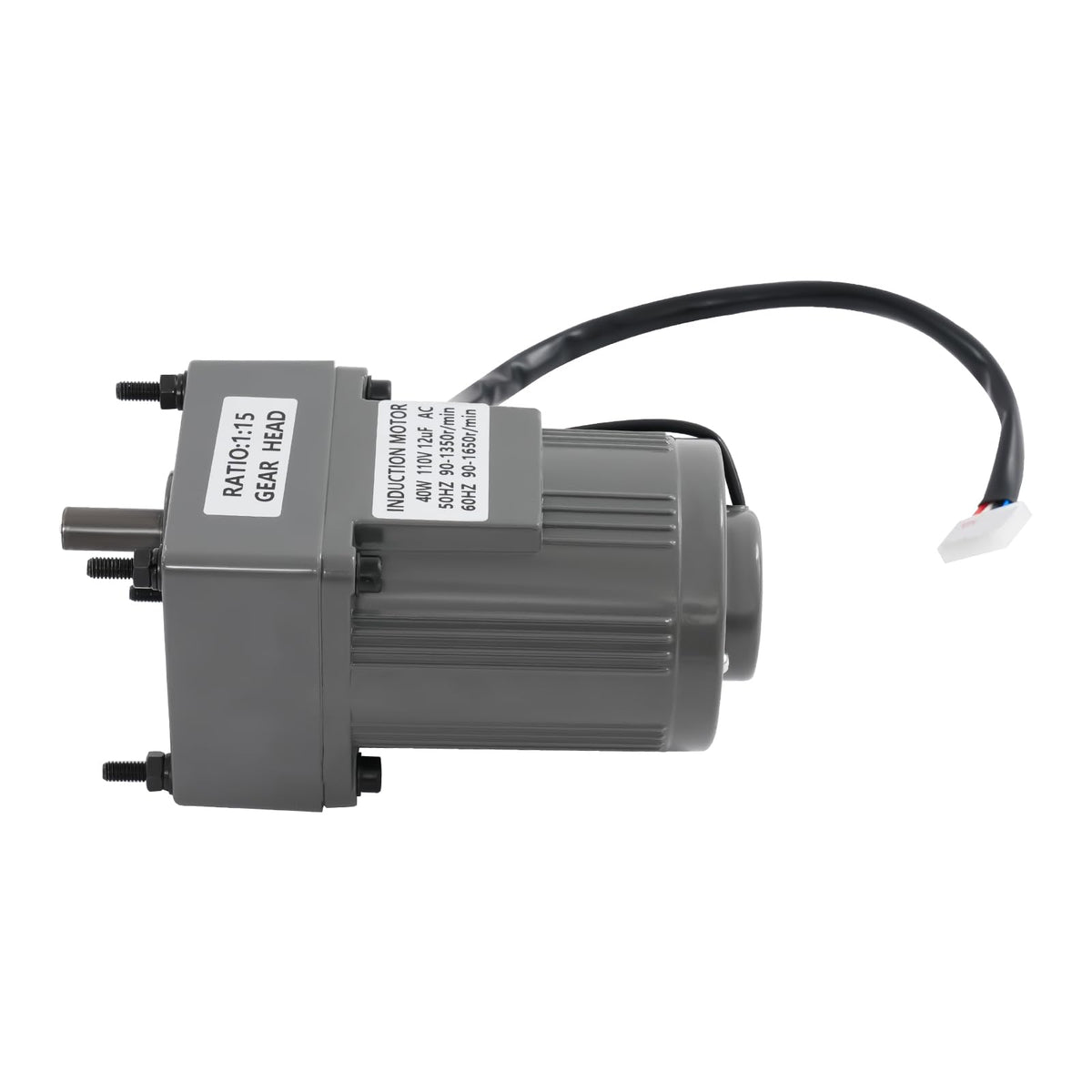

40W AC Variable Speed Motor with Speed Controller, Gear Reducer Motor 110V
40W AC Variable Speed Motor with Speed Controller, Gear Reducer Motor 110V
Key features
- Stable Gear Reduction Output: This gear motor delivers 40W power with a 1:15 reduction ratio and 90RPM output. Dual ball bearings and reversible rotation ensure smooth, consistent torque for precision applications
- Precision Speed Control Unit: This ac motor speed controller enables accurate speed adjustment for flexible operation. Designed for 110V US standard, it arrives pre-wired for easy plug-and-play setup and daily use
- Efficient Cooling System: Large cooling holes and built-in cooling fan provide rapid heat dissipation. This electric motor maintains steady performance and extends service life even during extended duty cycles
- Durable Alloy Construction: This variable speed motor features aluminum alloy and 40Cr alloy steel. Corrosion and impact resistant, it has rear cooling vents and a built-in fan for steady long-term industrial operation
- Strong 3.8N·m Torque: Delivers 3.8N·m of torque at low speeds with IP54 protection against dust and water. This gear reduction motor ensures smooth startups and stable operation under load for precision-driven applications
This 40W 110V AC gear motor delivers 0-90 RPM output with 15K reduction ratio and 3.8N·m torque. Includes speed controller for precise adjustment. IP54 rated, compact design. Ideal for conveyors, packaging, CNC, and automation. ★Details Indicator Light – Shows power status for easy working condition monitoring. Color-Coded Wires – Distinct markings and matched tips simplify correct connections. Compact Footprint – Space-saving design fits into confined installations. ★Specifications Material: Aluminum Alloy, 40cr Alloy Steel Process: Thermal Refining, Fine Finish, Nitrogen Treatment Reduction Ratio: 1: 15(15K) Speed Controller Speed: 0-90r/min Motor Speed: 50Hz 90-1350r/min; 60Hz 90-1650r/min Torque: About 3.8nm Power: 40W Voltage: 110V Motor Type: Gear Motor Protection Class: IP54 Noise: Around 60dB Package Size: 25*25*13cm/9.84*9.84*5.12in Base Width: 90mm/3.54in Motor Hight:117mm/4.61in Reducer Hight:41mm/1.61in Mounting Hole Distance: 73.5mm/2.89in Disk Size(D*H):34*4mm/1.34*0.16in Shaft Thickness: 12mm/0.47in Shaft Height: 28mm/1.1in Gross Weight: 4kg/8.82in Net Weight: 3.2kg/7.05lbs ★Package Included 1* Gear Motor 1* Reducer 1* Speed Controller ★Notes 1. Please check the
Free shipping included. 30-day hassle-free returns.
