4PCS DB9 Male Female Solderless Connector in One Breakout

Key features

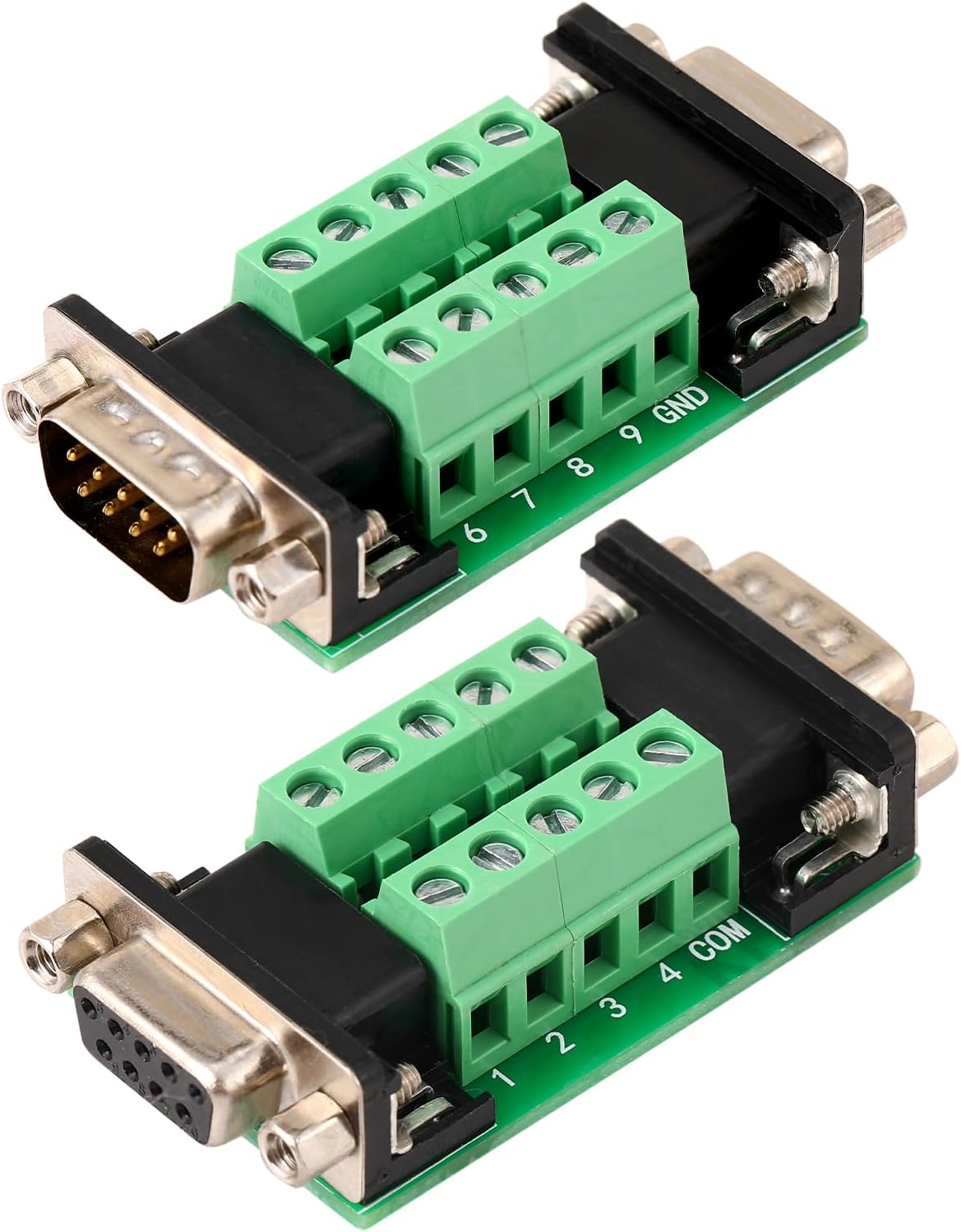

• This breakout board with both DB9 male and female connectors allows you to easily interface with devices that have either a DB9 male or female port. Making it more versatile and user-friendly for serial communication applications.
• DURABLE: Pure copper nickel plated joint, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life.

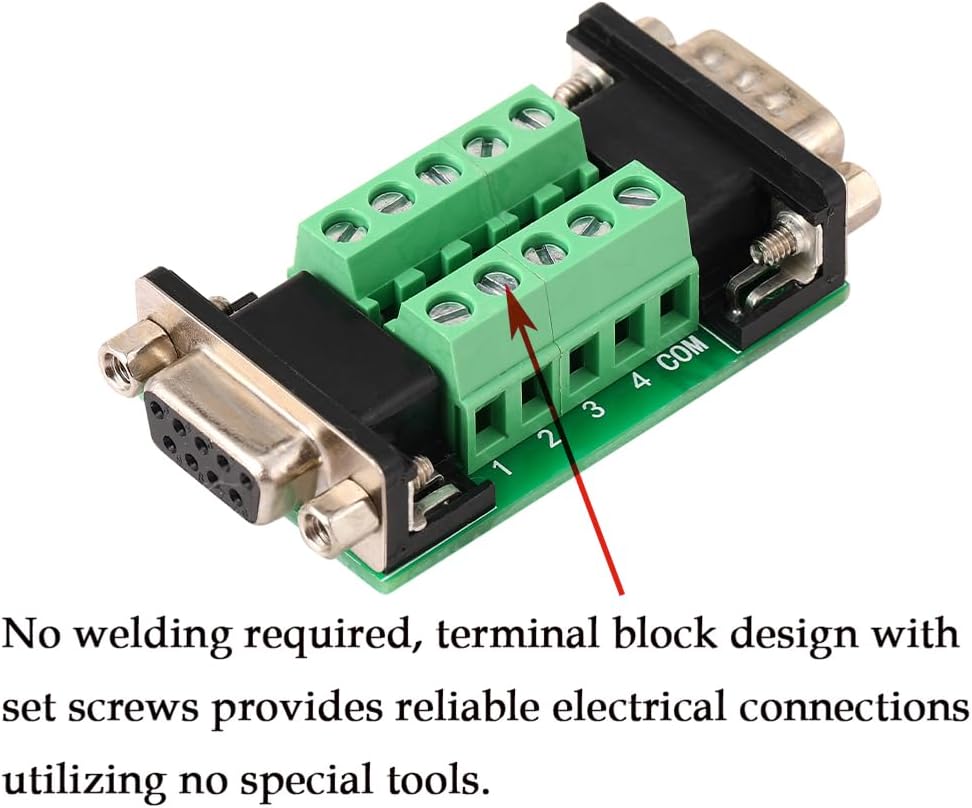

• EASY TO USE: No welding required, terminal block design with set screws provides reliable electrical connections utilizing no special tools, no need for soldering iron and cumbersome tools, easy wiring.
• REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.
• WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.

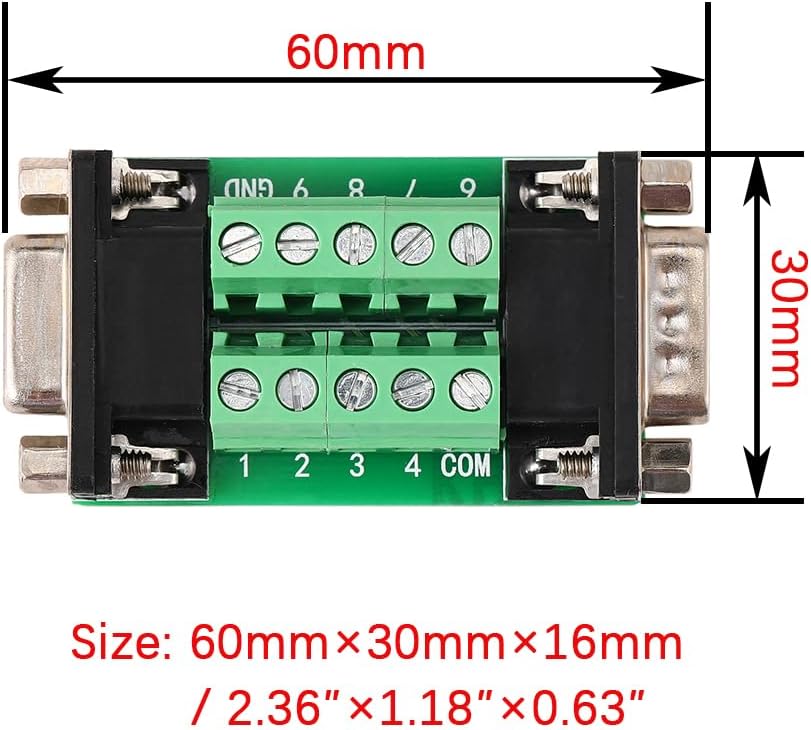

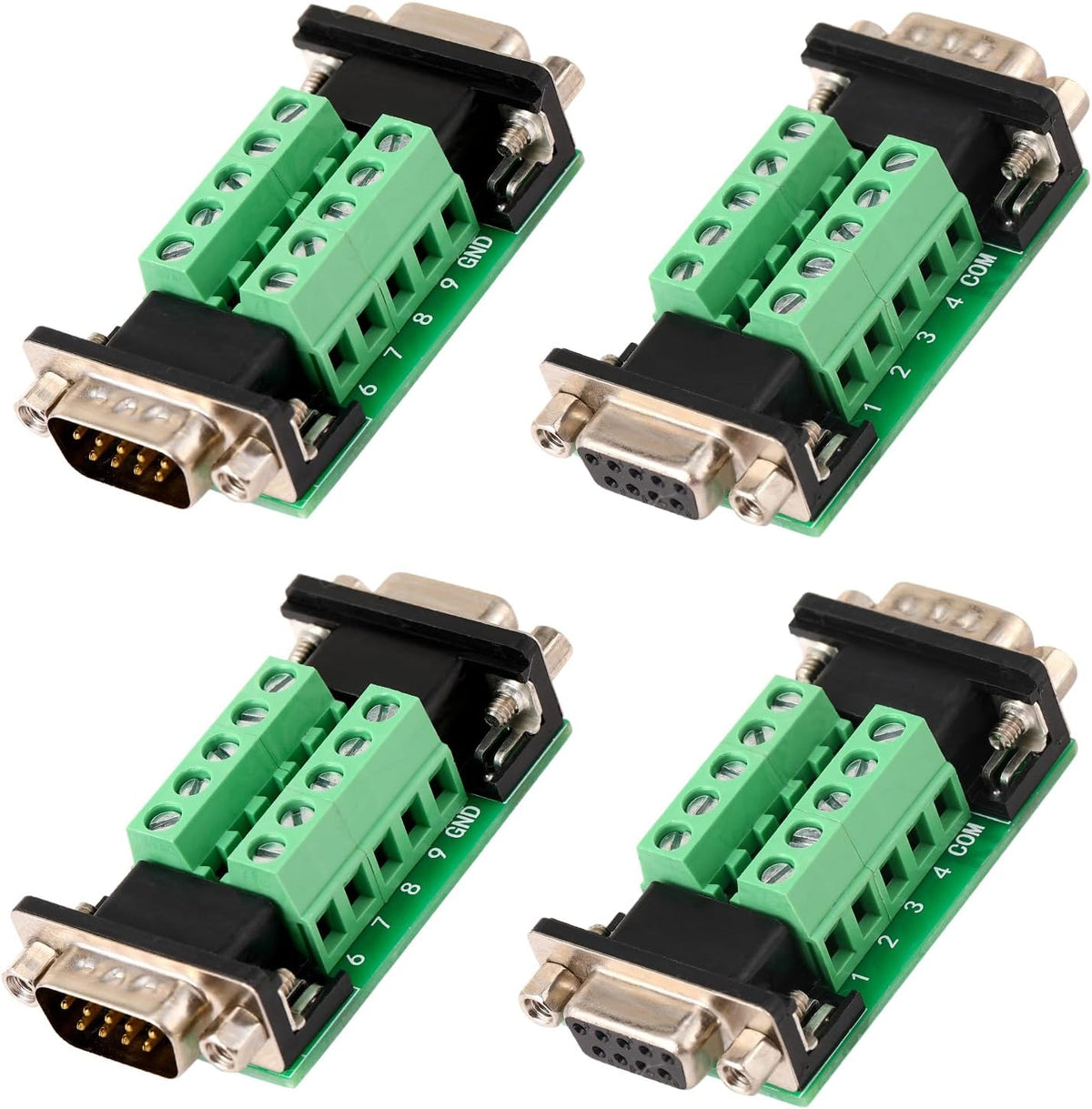

These DB9 Male/Female Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life. Technical Specifications: Name: DB9 Male Female solderless module Plug type: One Male, one Female Connector material: pure copper plated joint Contact Material: Copper Pin Pitch: 5.08mm/0.2in Strip length:7-8mm Wire range: 28-12AWG Torque: 0.4Nm (3.5Lb-In.) Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc. Size: 60mm×30mm×16mm/ 2.36″×1.18″×0.63″ Package includes: 4 PCS DB9 Female and Male Connector in One Breakout Board
