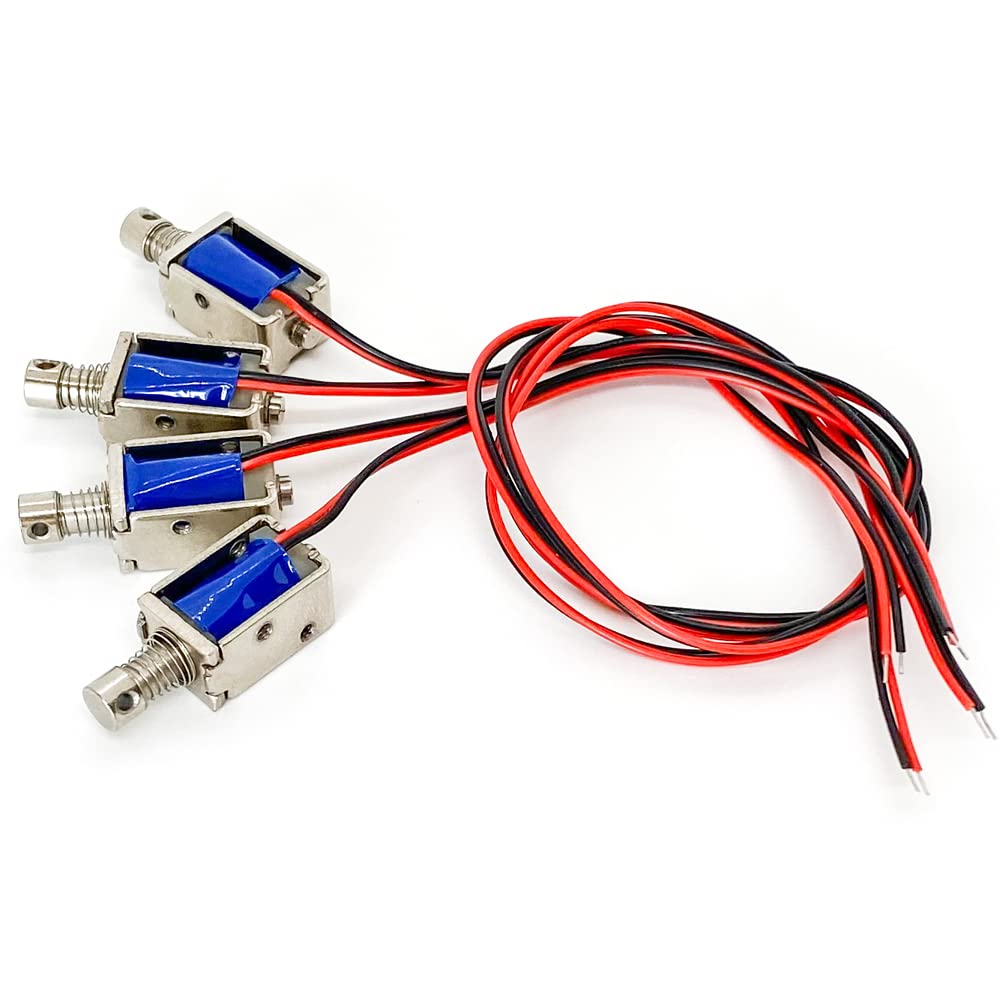

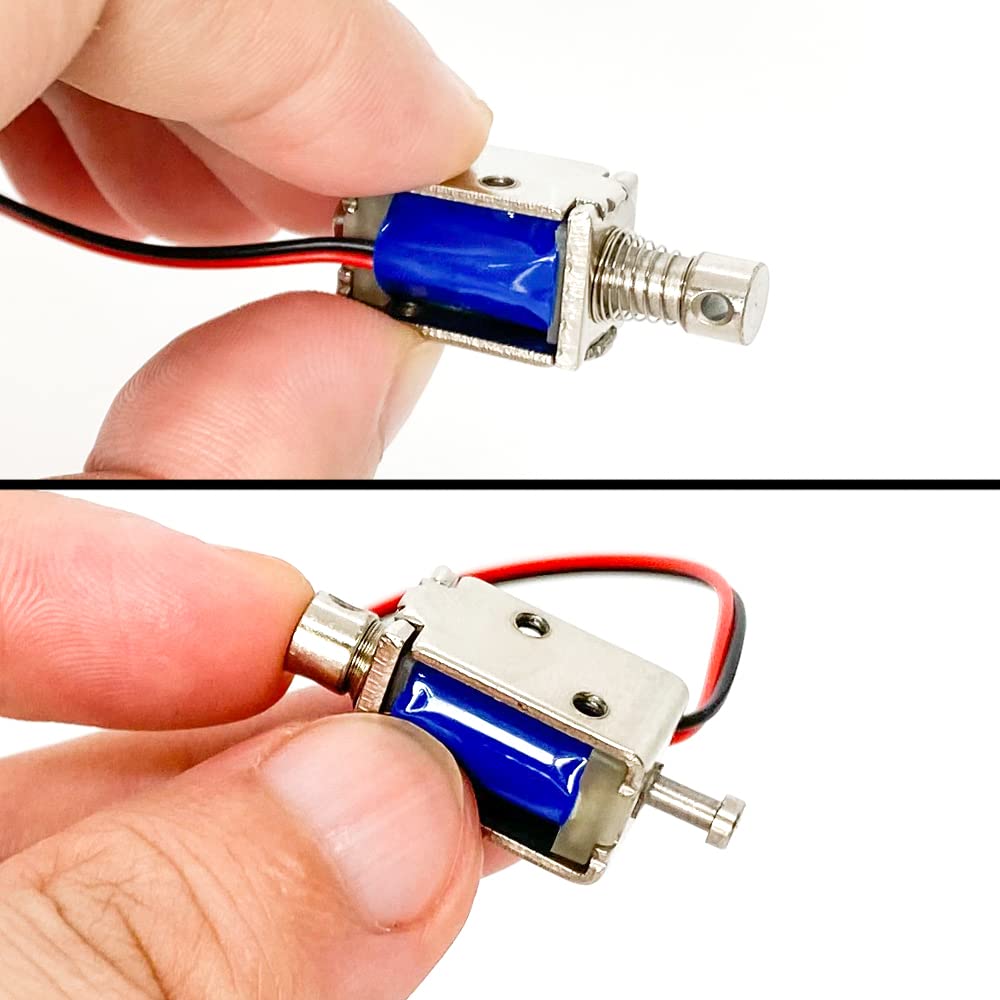

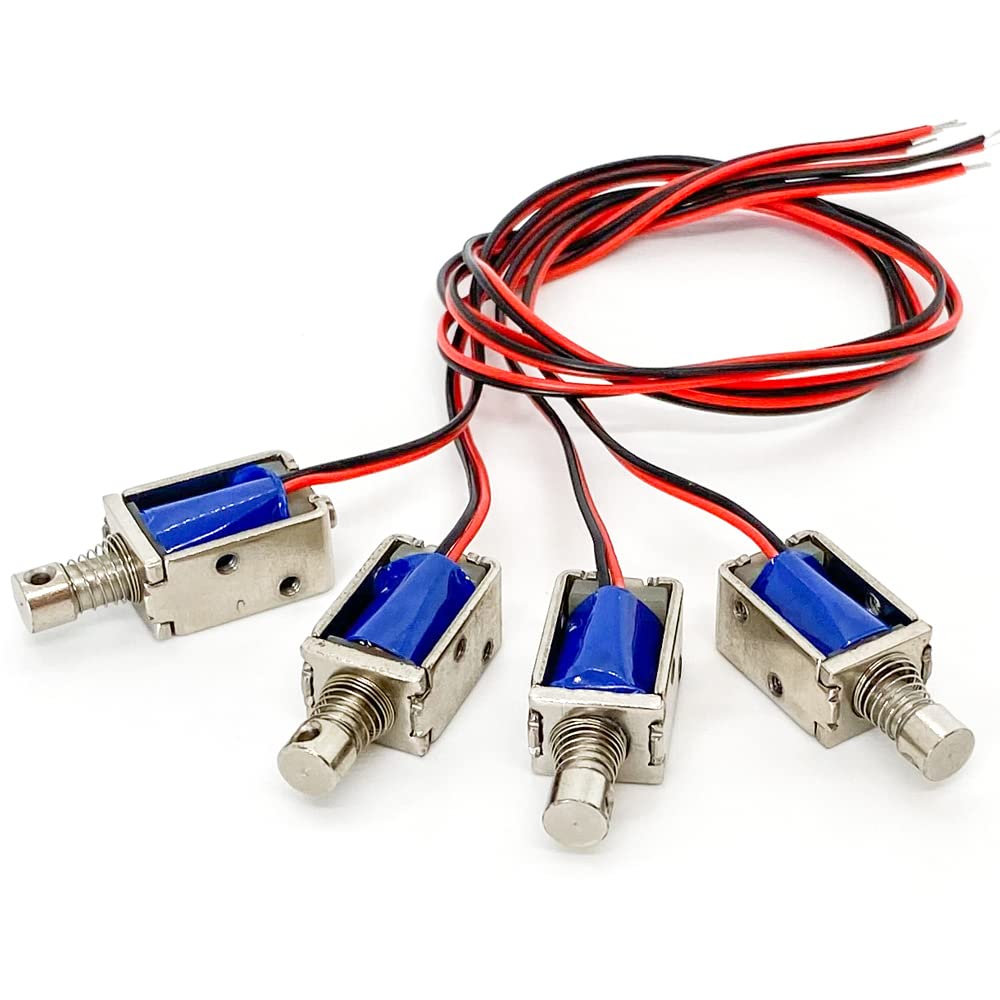

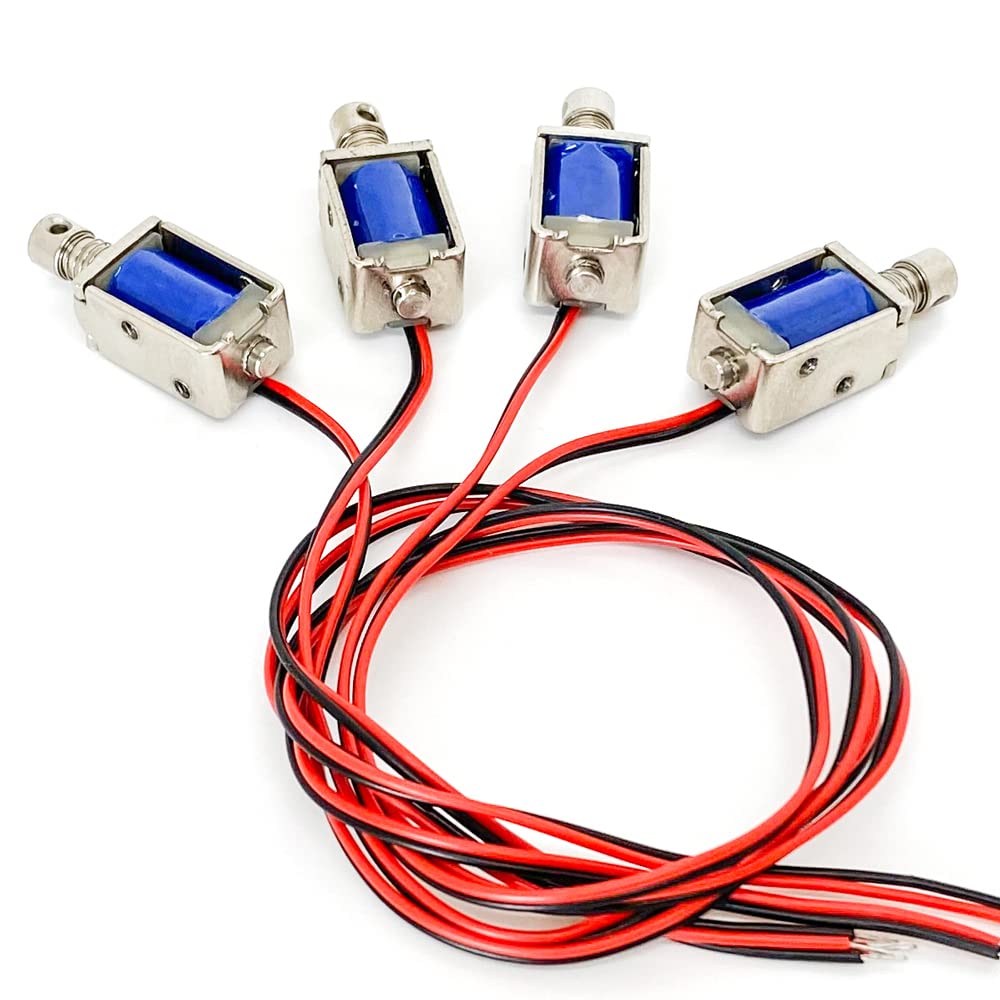

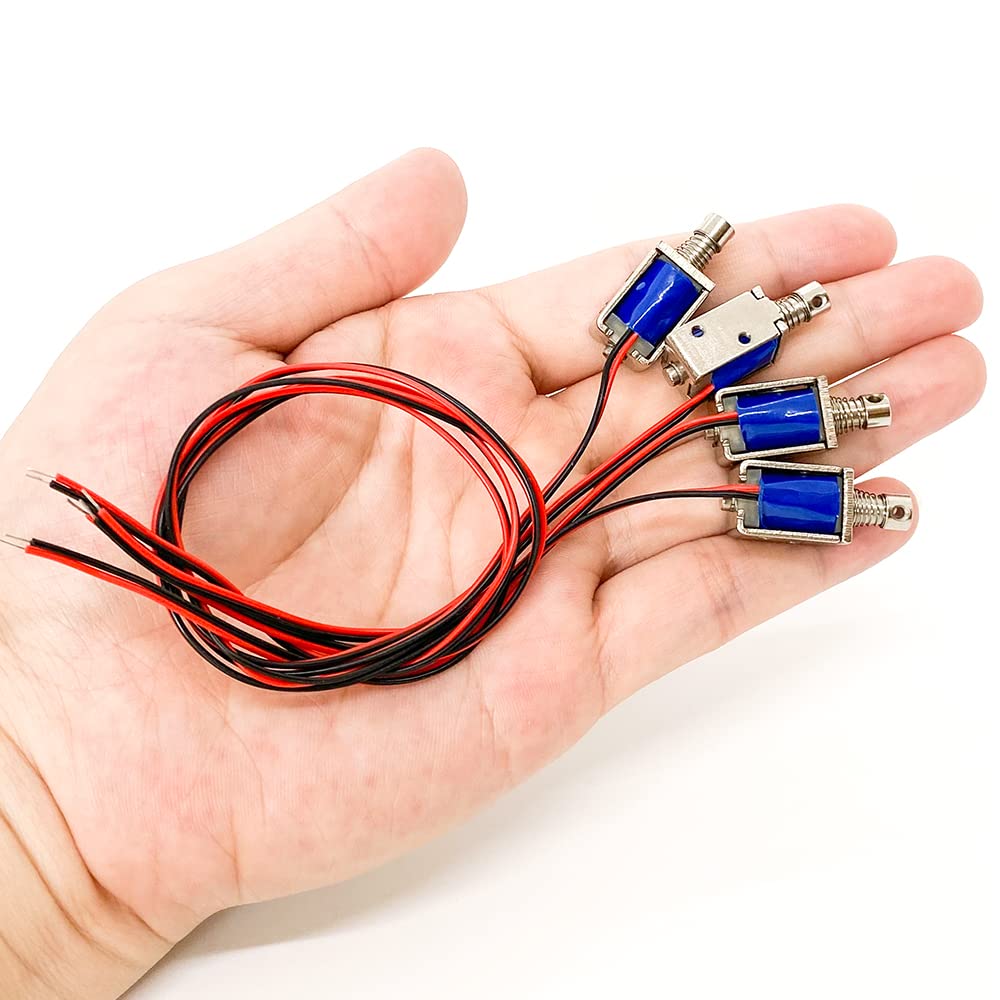

4Pcs DC 12V Micro Push Pull Solenoid Electromagnet Linear Actuator

Key features

• Product Specifications: 12V Micro DC Solenoid Electromagnet made of metal and electric magnets electronic parts; Note: The product wire color is random, does not distinguish between positive and negative poles
• Electrical Characteristics: Rated Voltage DC 12V with approximately 5.5W power consumption; Push Pull Type with load current 460mA; Coil Resistance approximately 26ohm; Initial Thrust (pull) ranges from 0.15N to 0.2N
• Important Usage Warning: Due to its small size and large working current, this solenoid generates significant heat and is not suitable for long-term power-on operation. It is recommended that the power-on time does not exceed 1 minute and is suitable for instant power-on use only

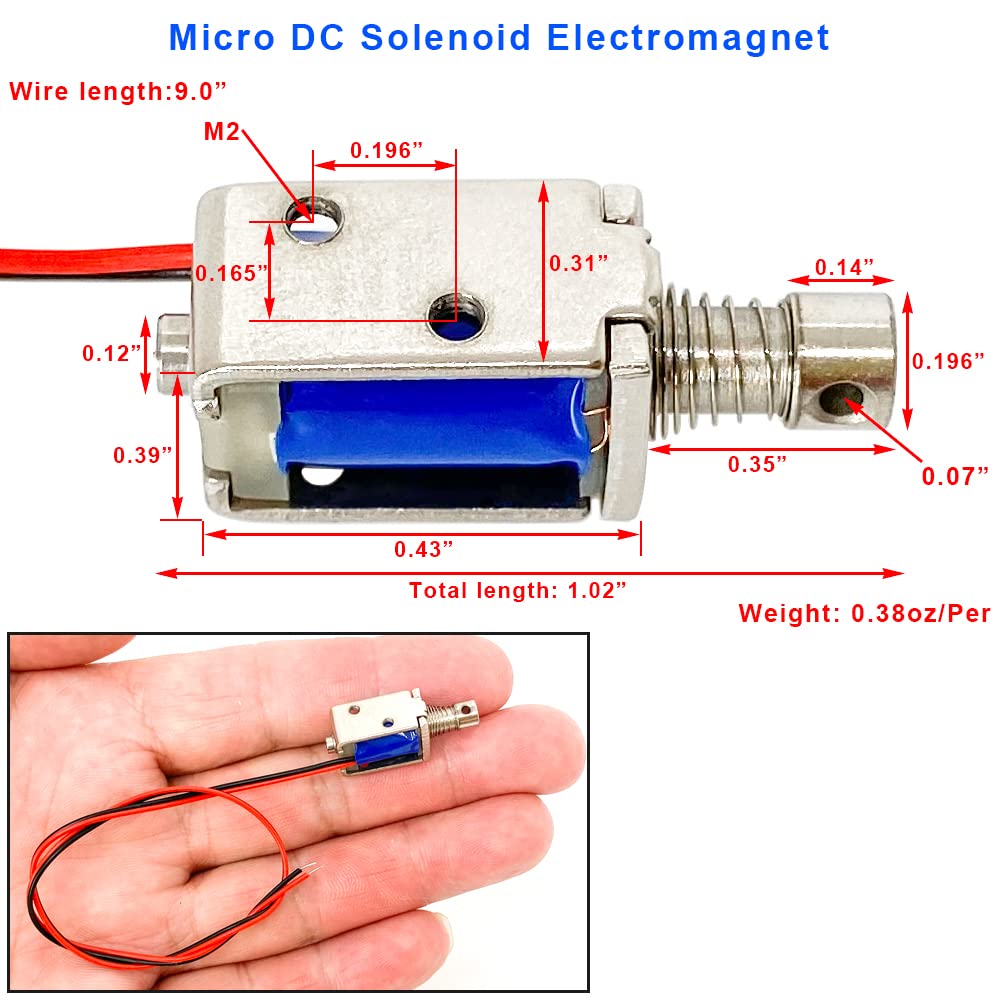

• Precise Dimensions: Stroke of 4mm/0.157inch; Body Size 1.02x0.39x0.31inch (Including prominent parts); Head Shaft Length 0.35inch (thick head length 0.137inch); Head shaft diameter 0.196inch (Head hole diameter 0.07inch); Tail shaft diameter 0.12inch; Cable Length 230mm/9.0inch (No distinction +/-); Body fixed hole diameter M2 x4
• Package Contents and Weight: Includes 4 Push Pull Type DC Solenoid Electromagnets; Each piece weighs 0.26oz providing lightweight construction for various applications
