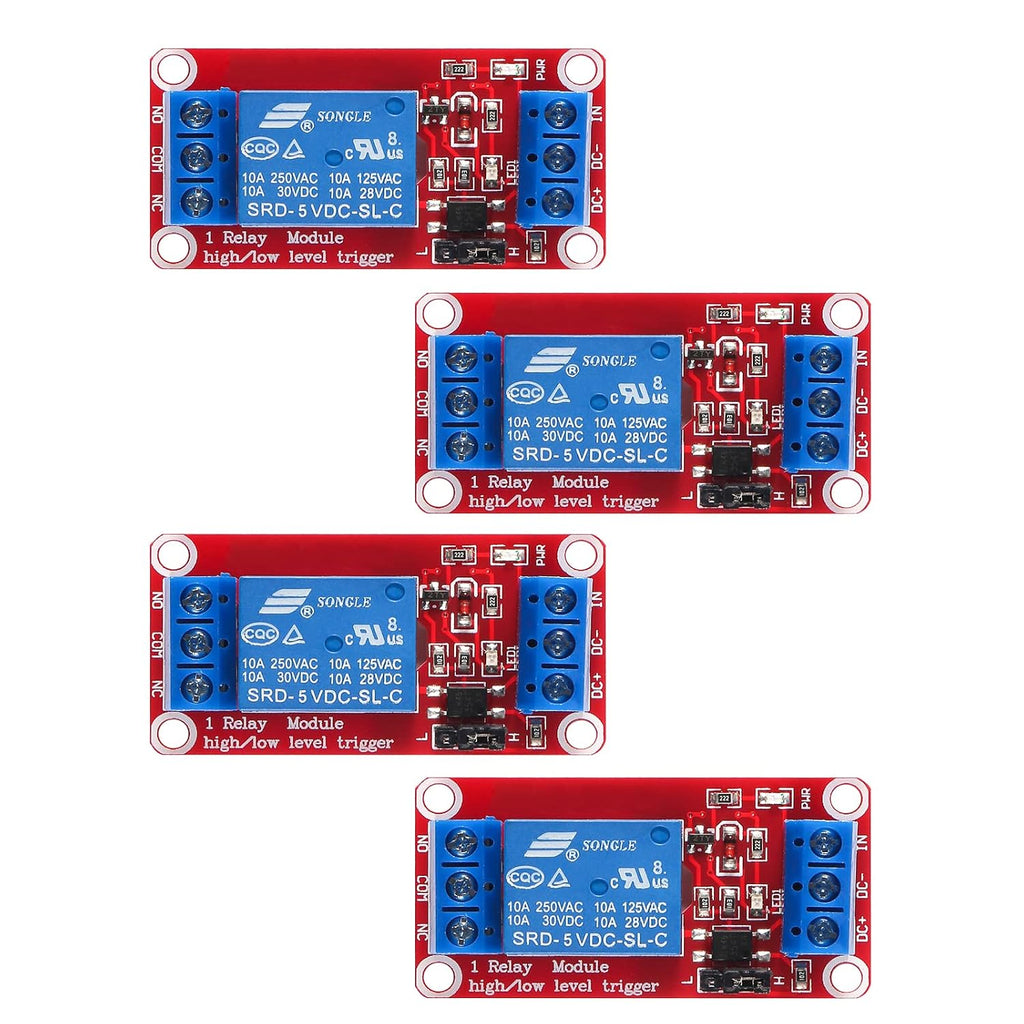

4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger

4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger

$12.99
$12.99 $19.99
Skip to product information
4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
  • 4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger
4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger

4pcs DC 5V Relay Module - 1 Channel Relay Switch Board with Optocoupler Isolation, High or Low Level Trigger

$12.99
$12.99 $19.99
FREE shipping on orders over $35· add $22.01 moreShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • 5V Relay Module: Working Voltage: DC 5V; Maximum Load: AC 250V/10A, DC 30V/10A; Trigger Current of Opto-Isolator: 5mA
  • Fault-Tolerant Design: Fault Tolerant Design, Even if the Control Line is Broken, the Relay will not Operate;All Interfaces of Relay can be Wired Out Through the Terminals Directly,Normally Open and Normally Closed
  • Optocoupler Isolation:1 Channel Relay Board use Optocoupler Isolation that has Strong Driving Ability and Stable Performance ,The Isolation Circuit Prevent Damages to I / O Port by Relay Switch Current

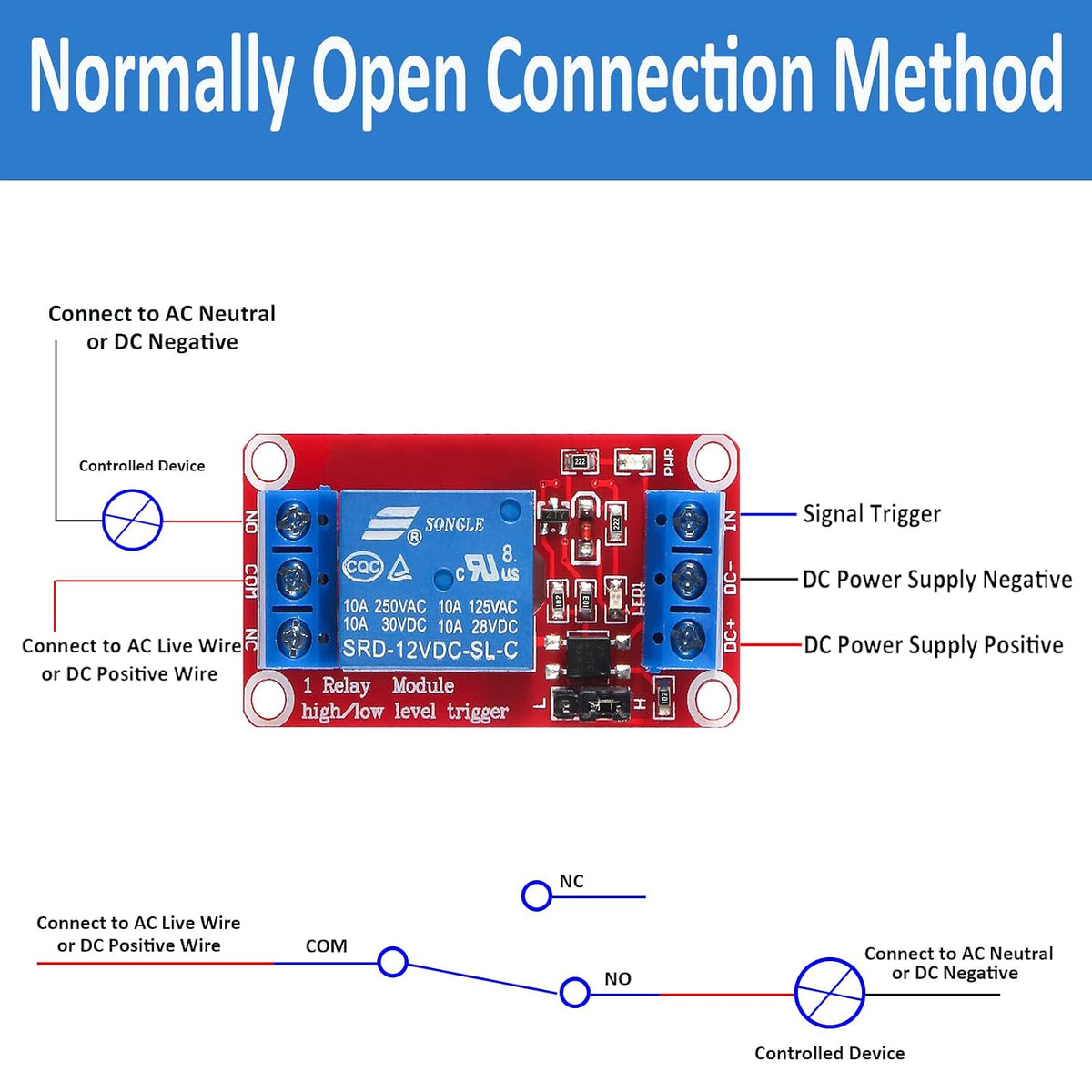

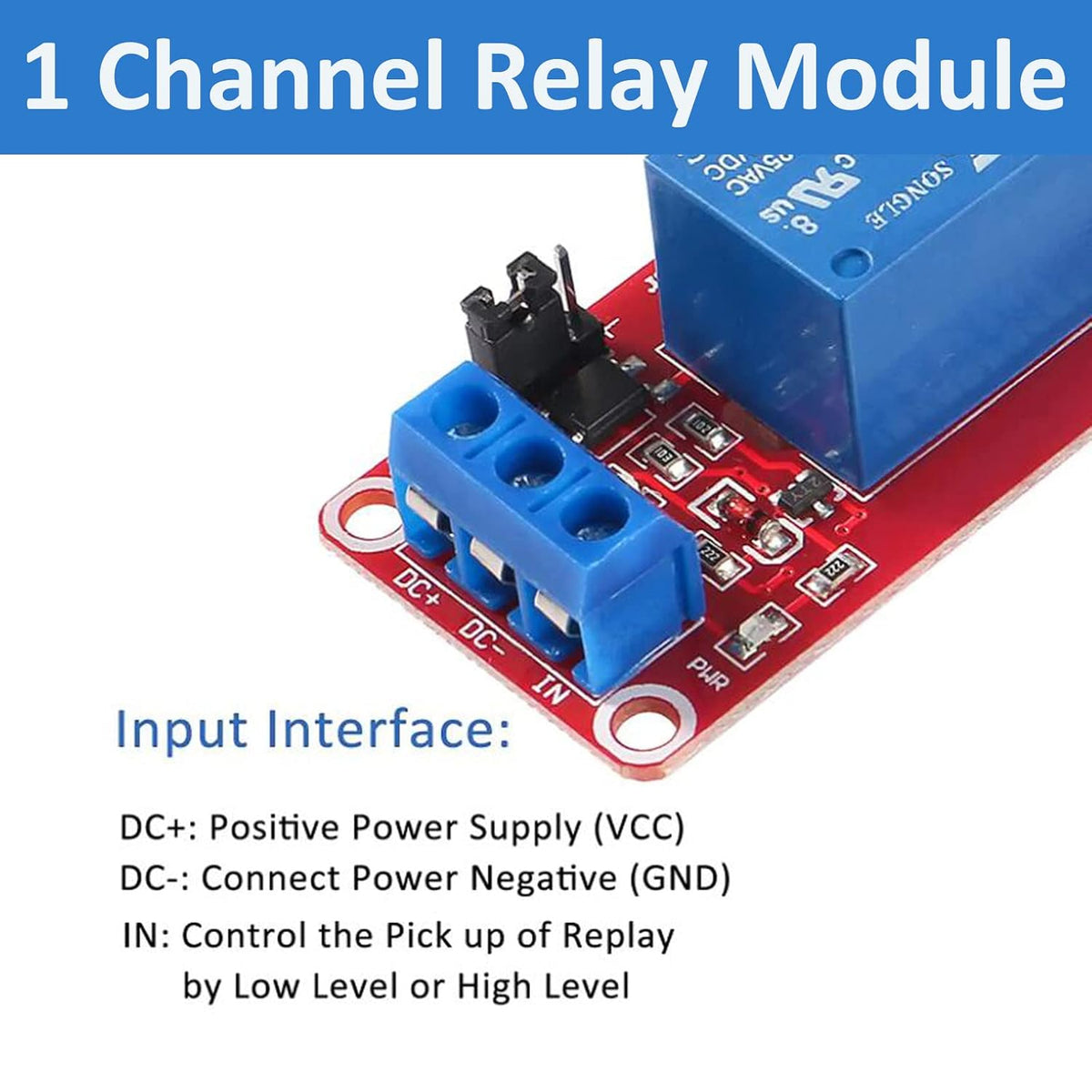

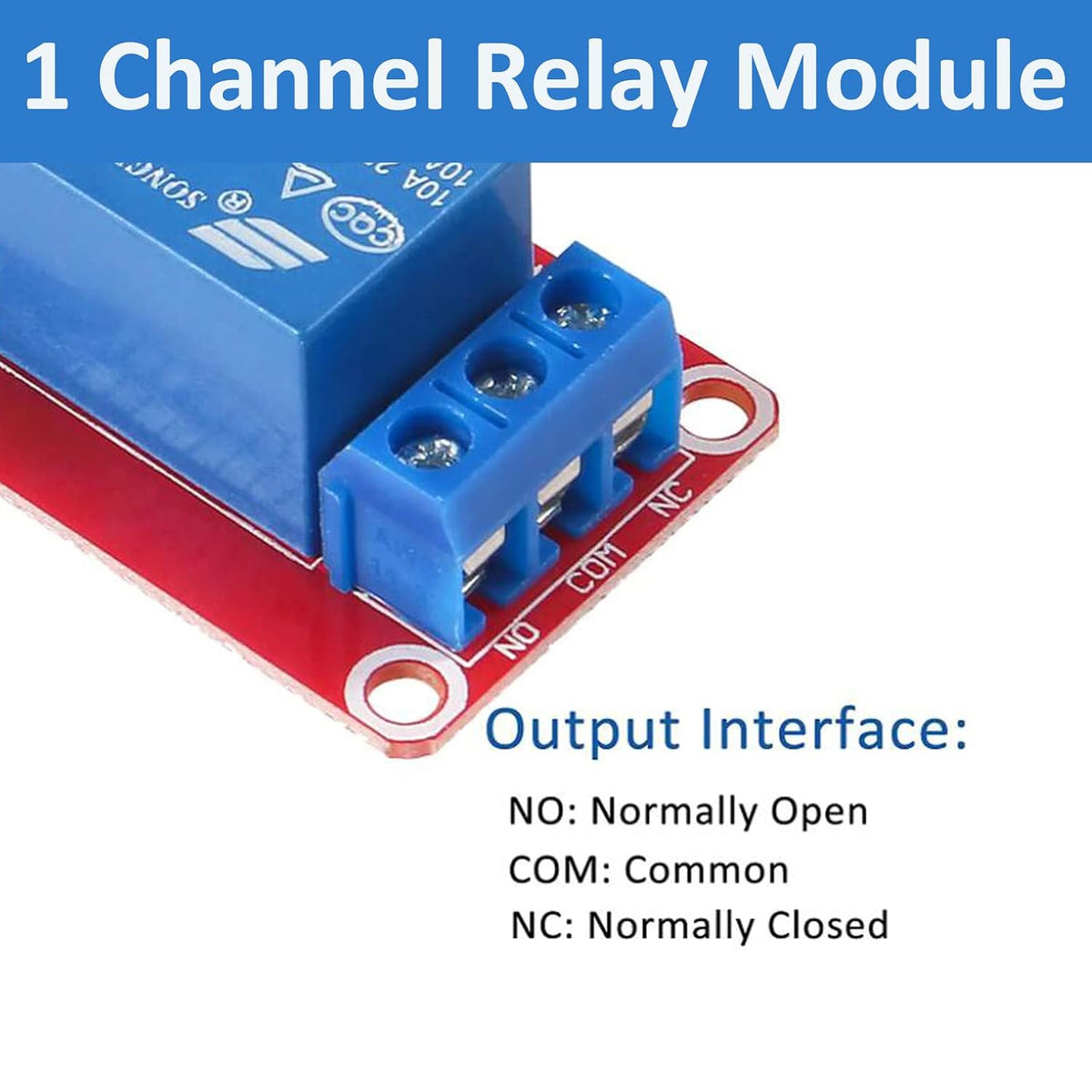

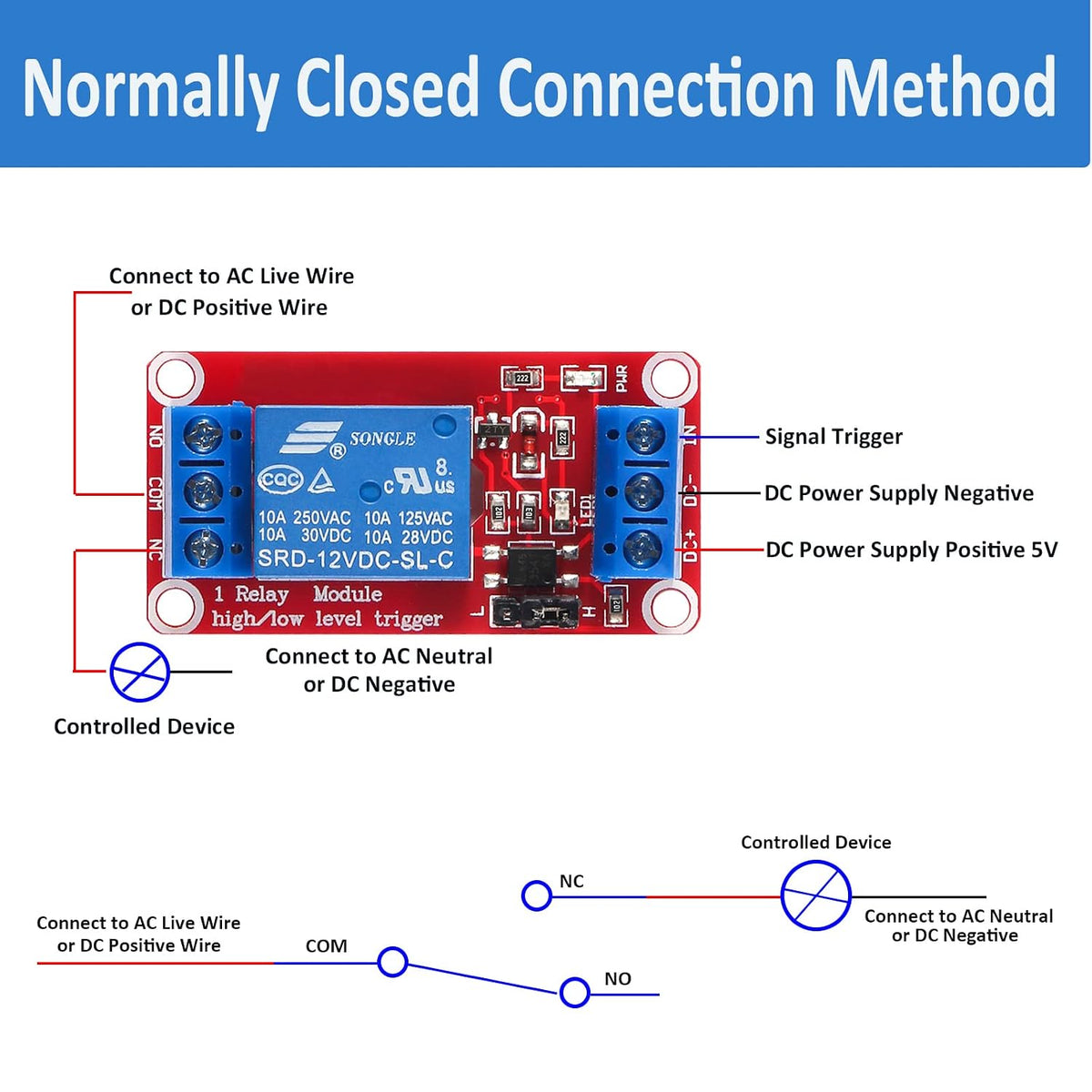

  • Jumper Design: The Relay Module has a Jumper That You Can Set Rather the Unit State Changes with High or Low Signal. Has Screw Terminals for Relay (NC,C,NO) and for Input; Coil +, Coil - and Trigger.

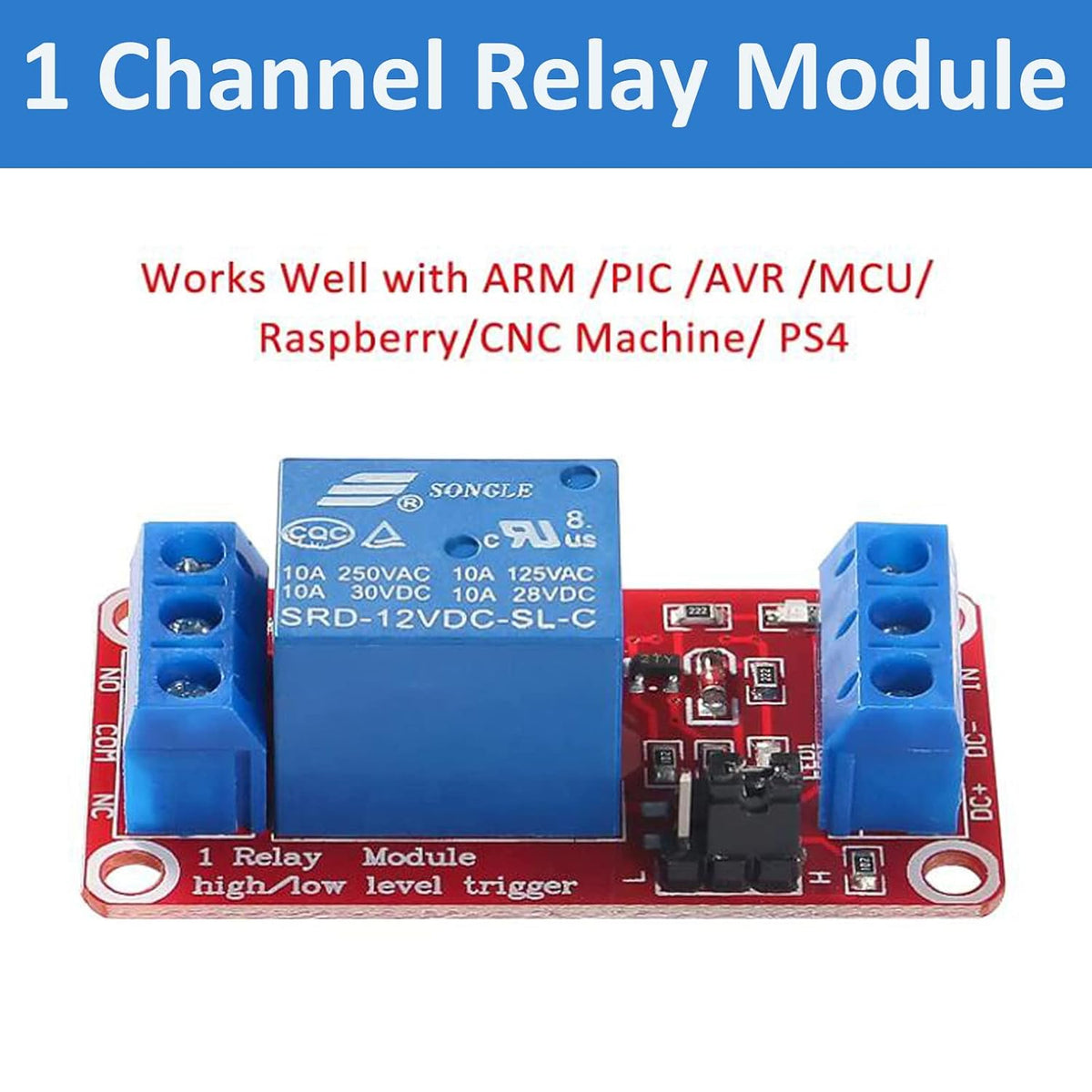

  • Wide Application: DC 5V Relay Module Works Well with ARM /PIC /AVR /MCU/Raspberry/CNC Machine/ PS4 etc.

Free shipping included. 30-day hassle-free returns.
