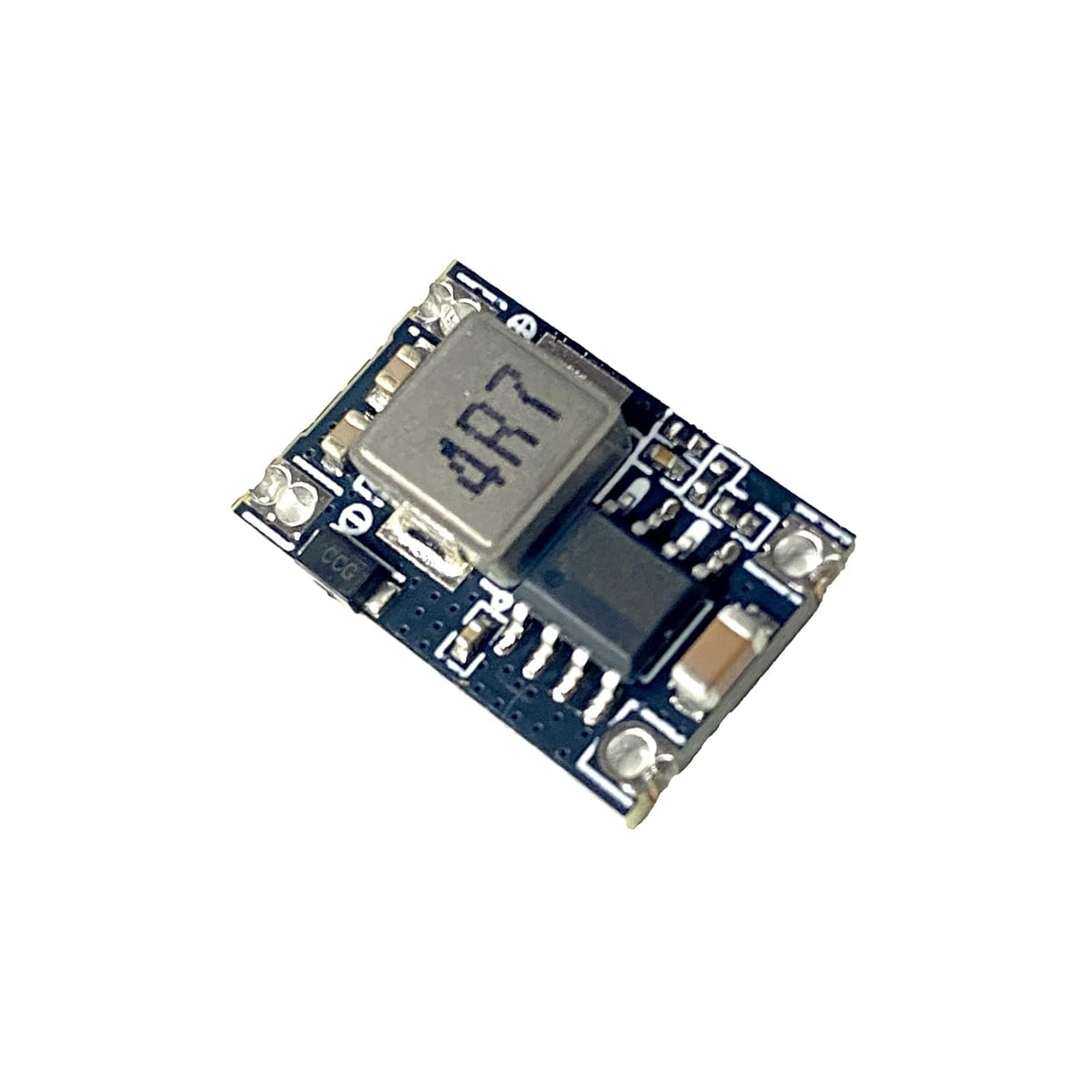

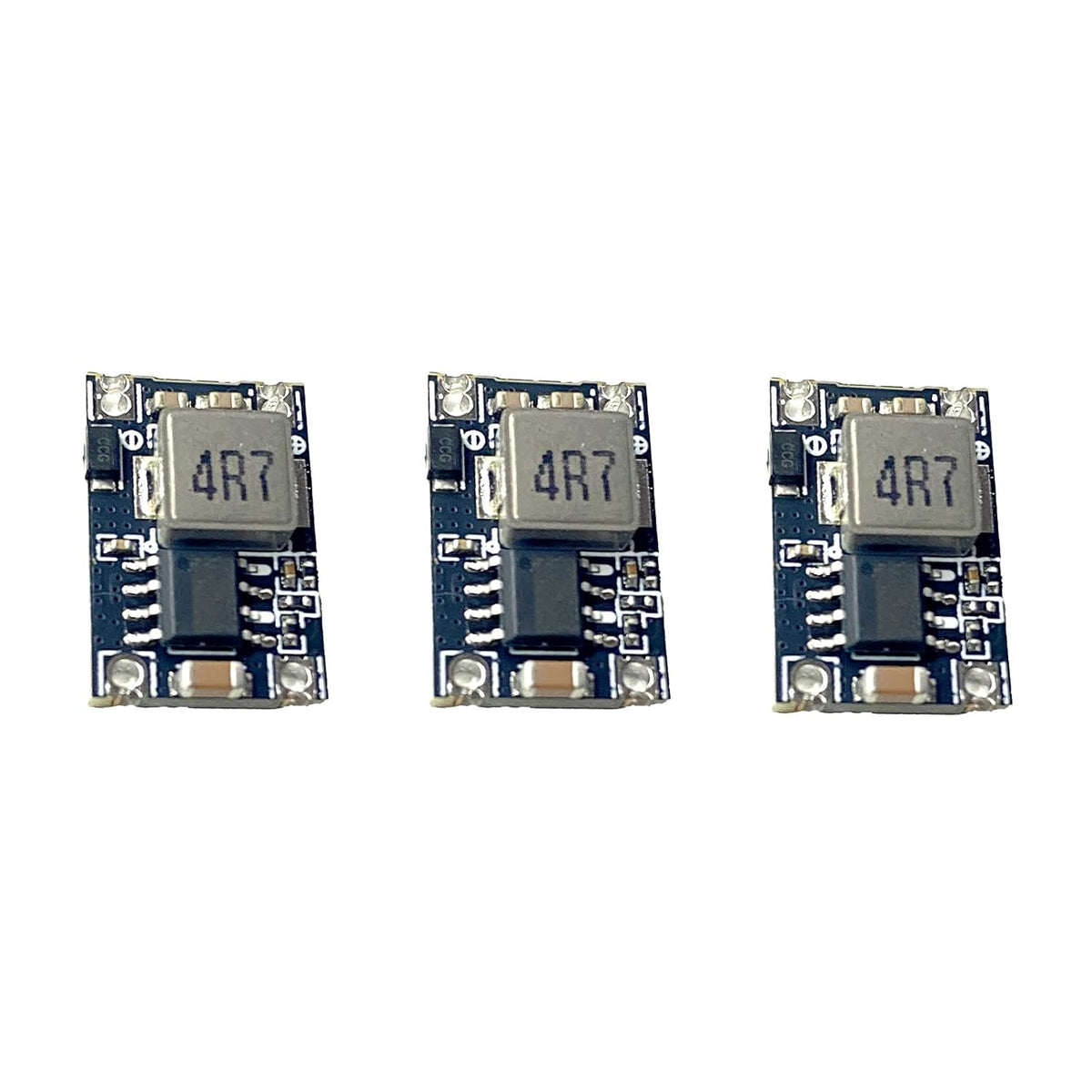

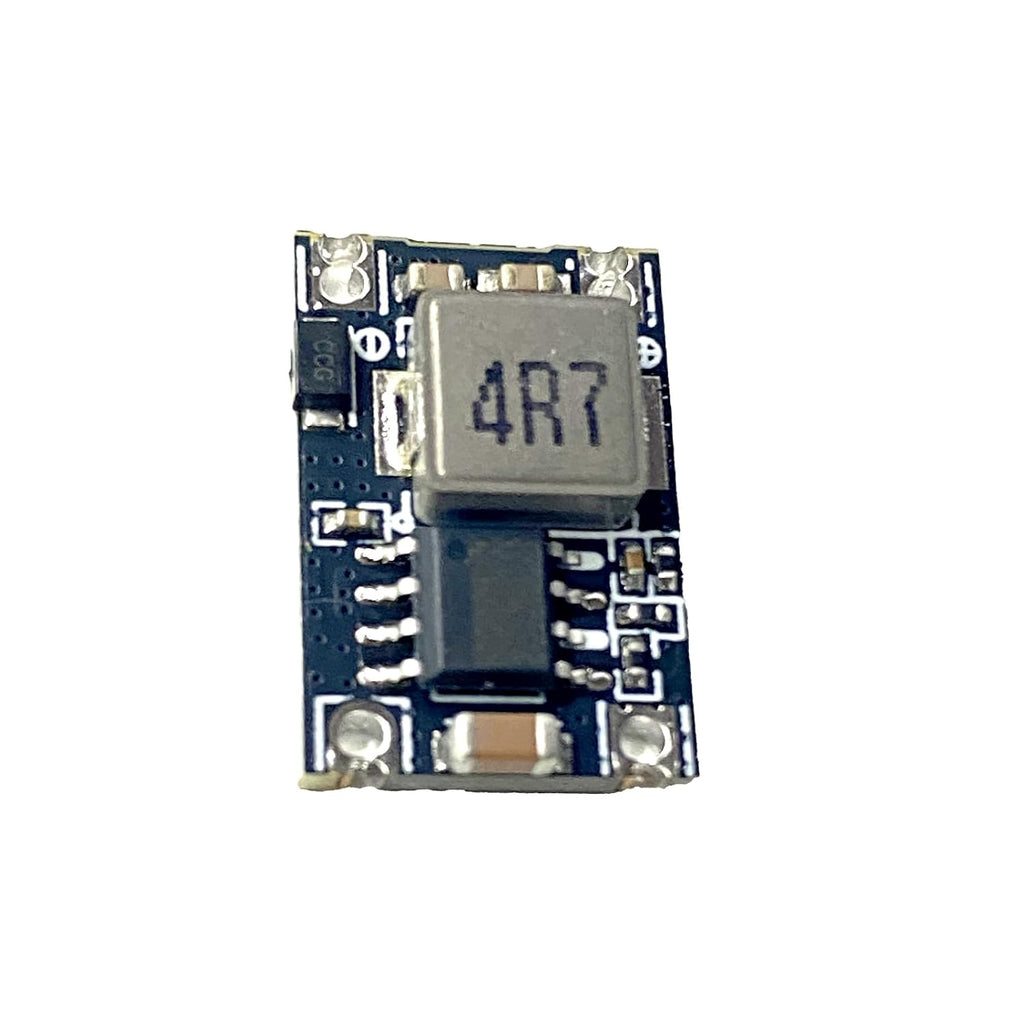

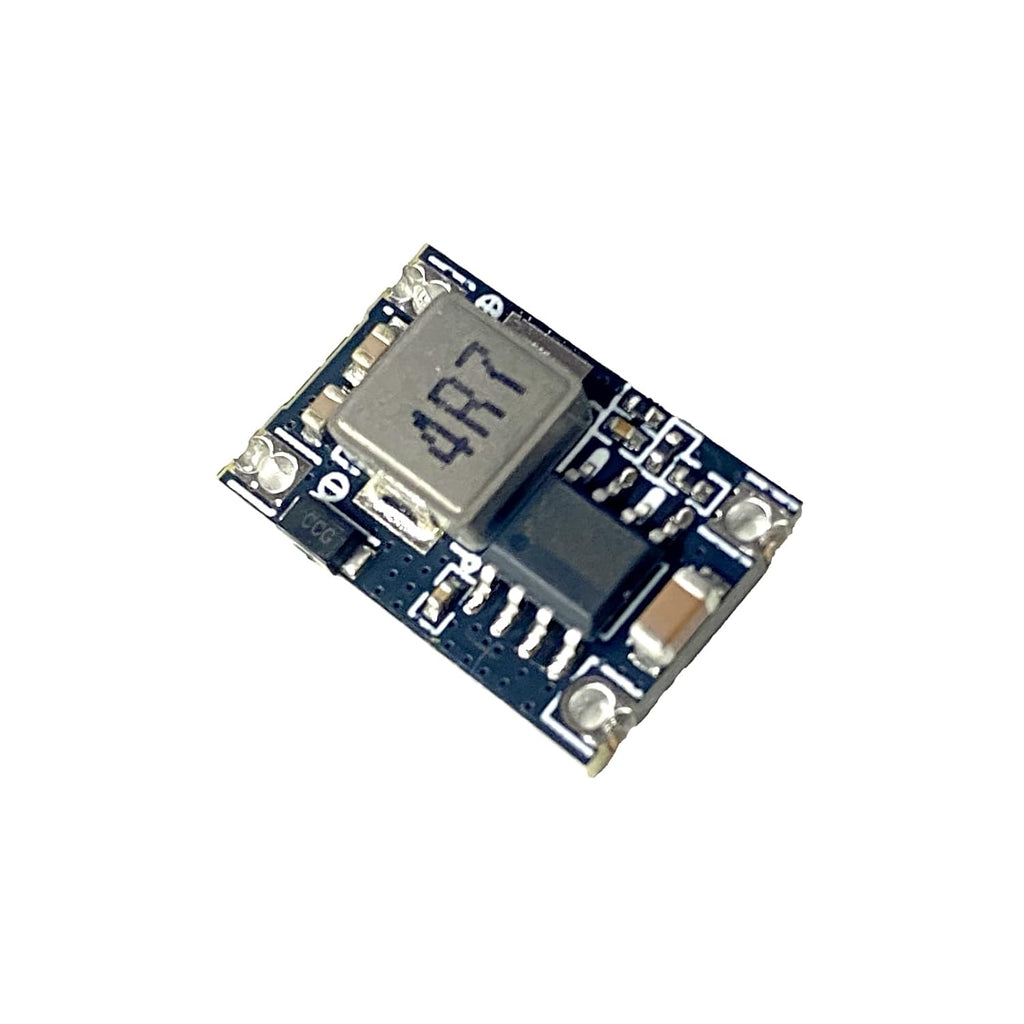

5-Pack MP1584EN Buck Converter Module, Mini360, 5V/1.8A

Key features

• Dimensions The module has a very small size with dimensions of 17.5 * 12.3 * 4.3 mm (length * width * height).
• Input and Output It has an input voltage range of 5V - 28V and a fixed output voltage of 5V. The maximum output current can reach 1.8A. When the output current is 1.5A, the output voltage is 4.6V.
• Output Ripple The output ripple is less than 30 mV.
• Switching Frequency The switching frequency is up to 1.5 MHz (maximum), usually around 1 MHz.
• Protection in Inductive load When using this module in an inductive load, pay attention to the protection of the rear - stage current. For example, when using a steering wheel or motor, large ripples may be generated, which could affect the chips in the back - end circuit. You can add zener diodes and capacitors for protection.
