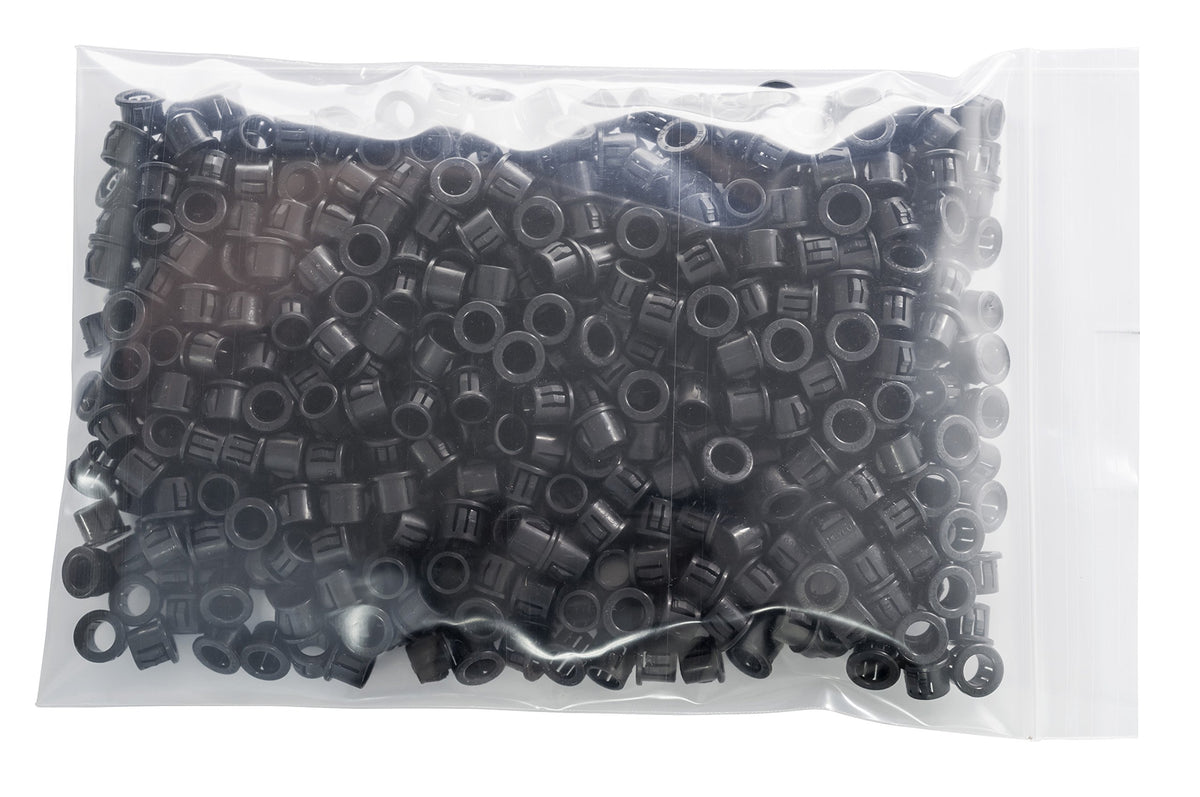

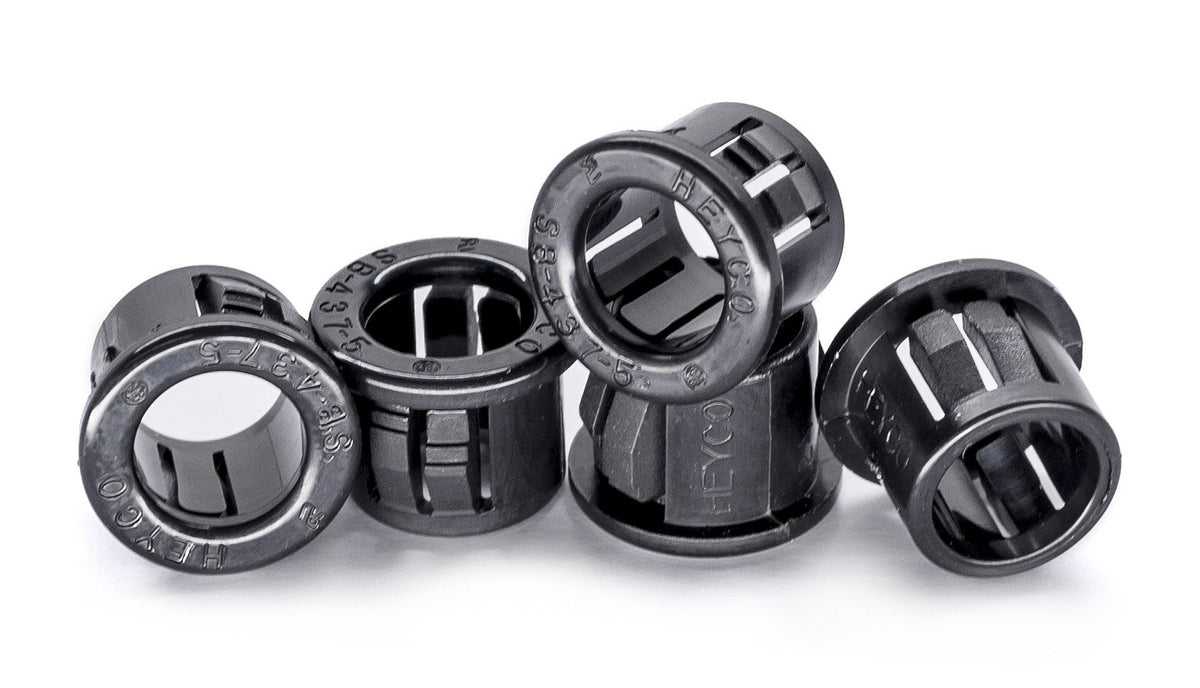

500 PCS HEYCO #2043 SB 437-5 BLACK SNAP BUSHING, for 7/16" Hole, Cable Mounting & Accessories, UL Recognized Component
500 PCS HEYCO #2043 SB 437-5 BLACK SNAP BUSHING, for 7/16" Hole, Cable Mounting & Accessories, UL Recognized Component
Key features
- Heyco Snap Bushings Convert raw-edged holes to smooth, neat, insulated holes
- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines
- Locking fingers snap into holes with fingertip pressure
- Locking fingers in fractional increments up to the maximum panel thickness
- UL Listed and CSA Certified Component

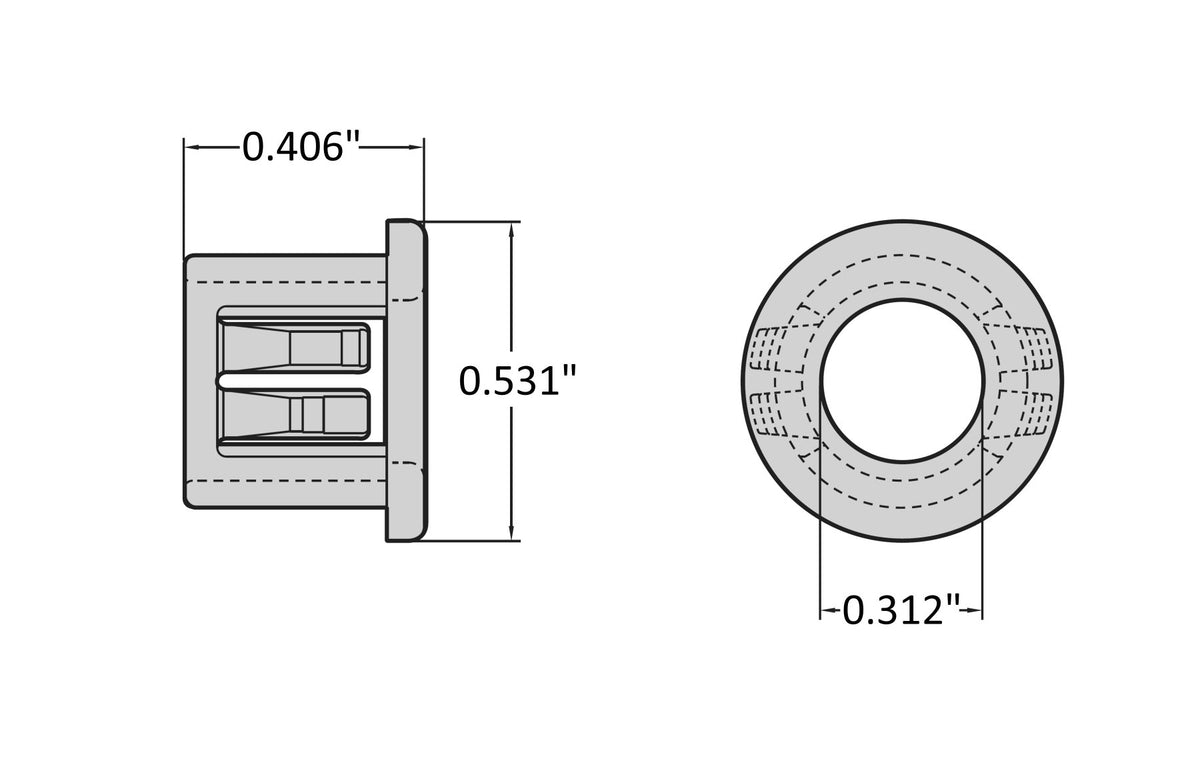

7/16'' HEYCO SNAP BUSHING, UL and CSA Certified Component Multiple Locking Steps for Panel Thickness up to 1/8'' Package bag of 500 pcs. PRODUCT FEATURES: Convert raw-edged holes to smooth, neat, insulated holes. Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines. Locking fingers snap into holes with fingertip pressure. Withstand a push back force of 35 pounds. Temperature Range -0.4°F (-18°C) to 221°F (105°C) Tough, UL 94V-2 Flame Retardant Nylon 6/6 will not crack or break, even when applied to maximum wire combinations under extreme pressure PRODUCT DIMENSIONS: Overall Dimensions: 0.53'' (13.46mm) D x 0.41'' (10.41mm) H Inside Diameter: 0.31'' (7.88mm) Head Diameter: 0.53'' (13.46mm) Mounting Hole Dia: 0.437'' (11.10mm) CERTIFICATIONS: UL Recognized under the Component Program of Underwriters' Laboratory File E15331 CSA Certified by the Canadian Standards Association File 8919 AMAZON Protected Money-Back Satisfaction Guaranteed
Free shipping included. 30-day hassle-free returns.
