500N/112Lbf Digital Push Pull Force Gauge with Lever Test Stand

Key features

• 500N CAPACITY AT 0.5% ACCURACY - Reads up to 500N (112 lbf / 51 kgf) at 0.1N resolution, so small changes in pull or push load are easy to see. Real-time, PEAK and AUTO-PEAK modes cover how you actually test. Going over permanently damages the sensor
• LEVER TEST STAND, NOT HAND PULLING - The lever drives the gauge through a smooth 70mm (2.8 in) stroke so two operators get the same curve on the same part. A 12kg base on a 155 x 240 x 420mm footprint plus a mounting plate with 3.9-12.6 in of travel keep the load in line up to 500N

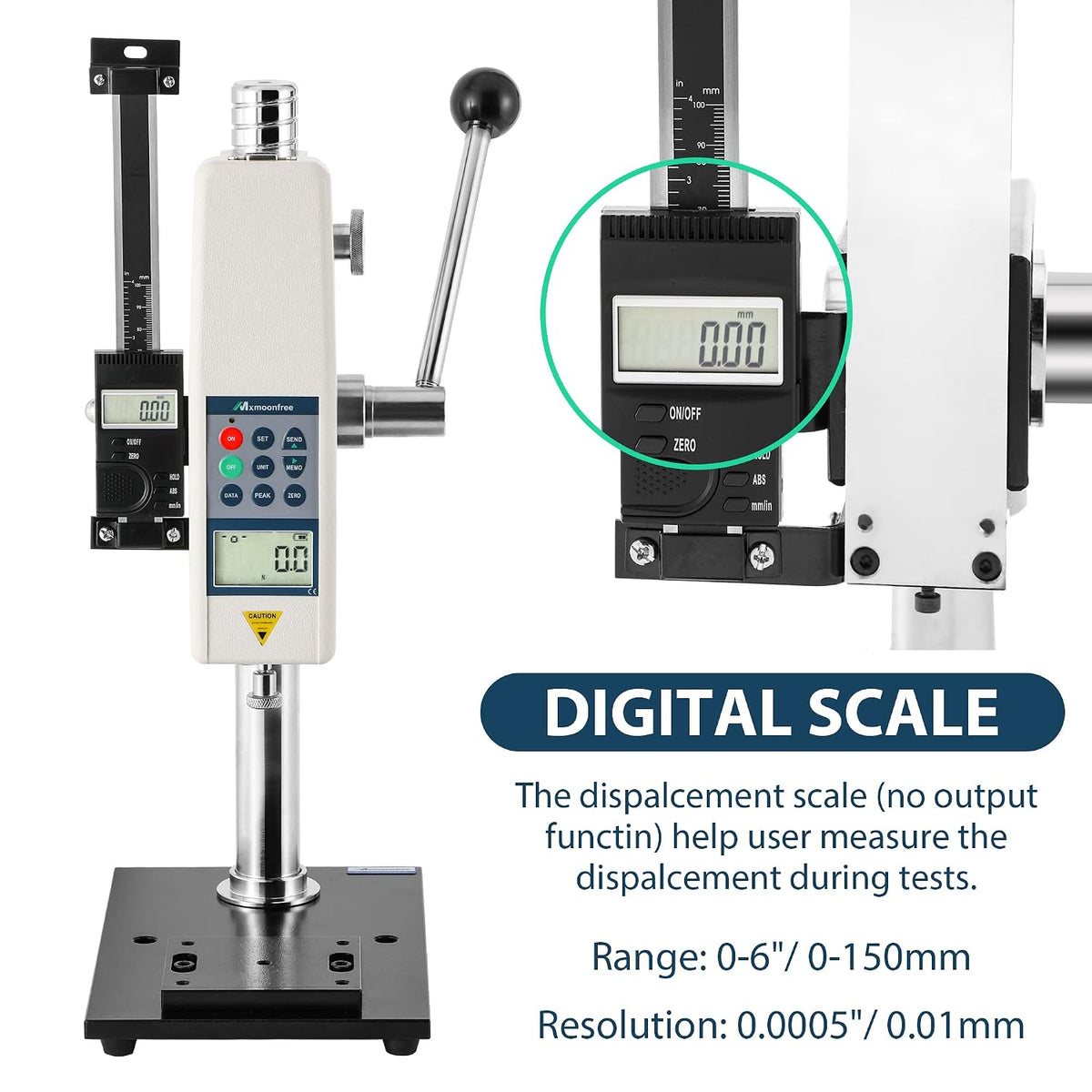

• BUILT-IN DISPLACEMENT SCALE - The scale on the side of the stand measures how far the sample travels during a test, from 0-150mm (0-6 in) at 0.01mm resolution. Log the travel that goes with each peak force instead of guessing it. The scale reads on its own display and has no data output

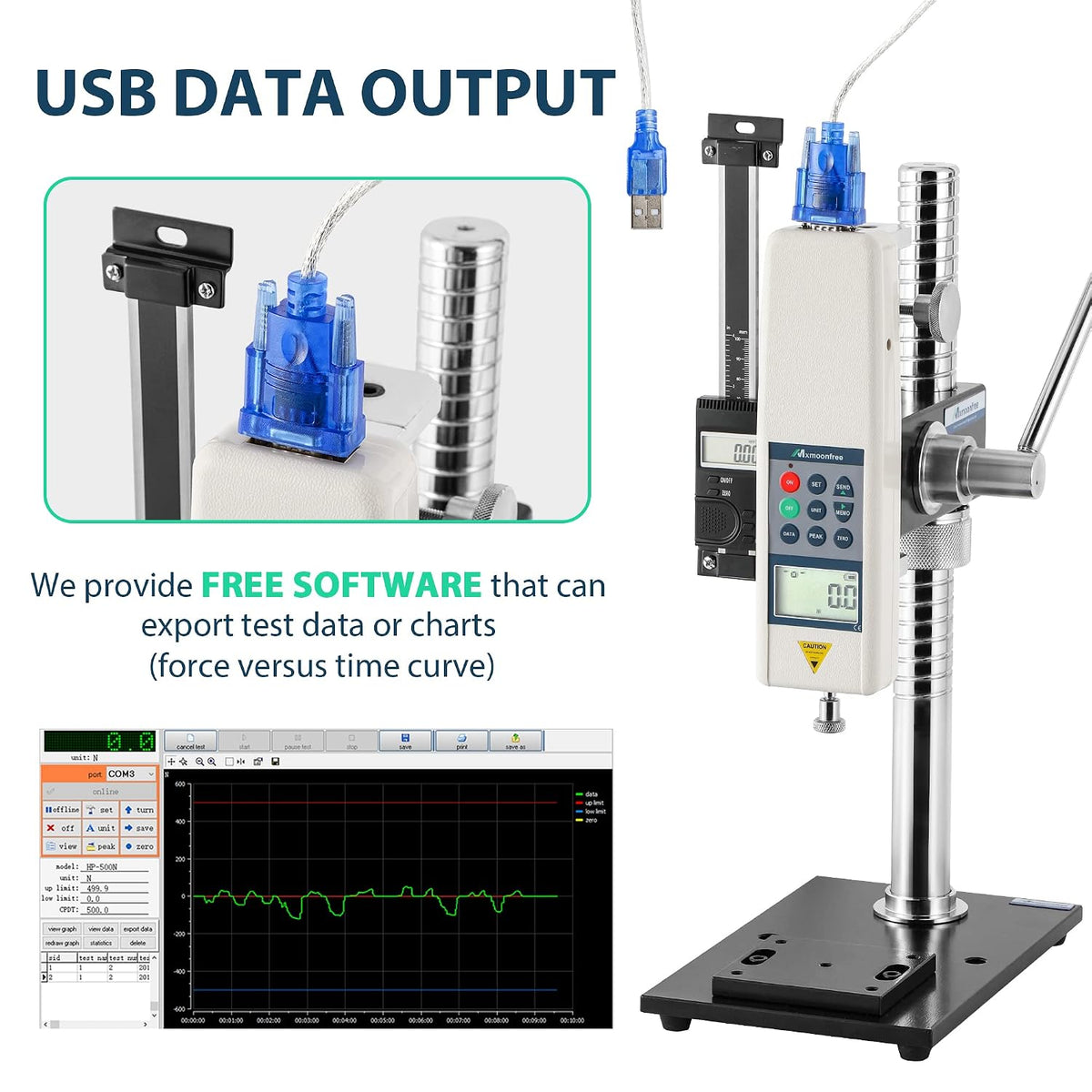

• 999 READINGS AND USB OUTPUT - Store up to 999 sets of peak readings, then move them to a Windows PC over the RS-232 to USB cable and export CSV, Excel or PDF. The USB port transfers data only and does not charge it, use the supplied adapter (100-240V in, DC 5V 0.5A out). C 5V 0.5A out). Battery runs about 6 hours per charge.

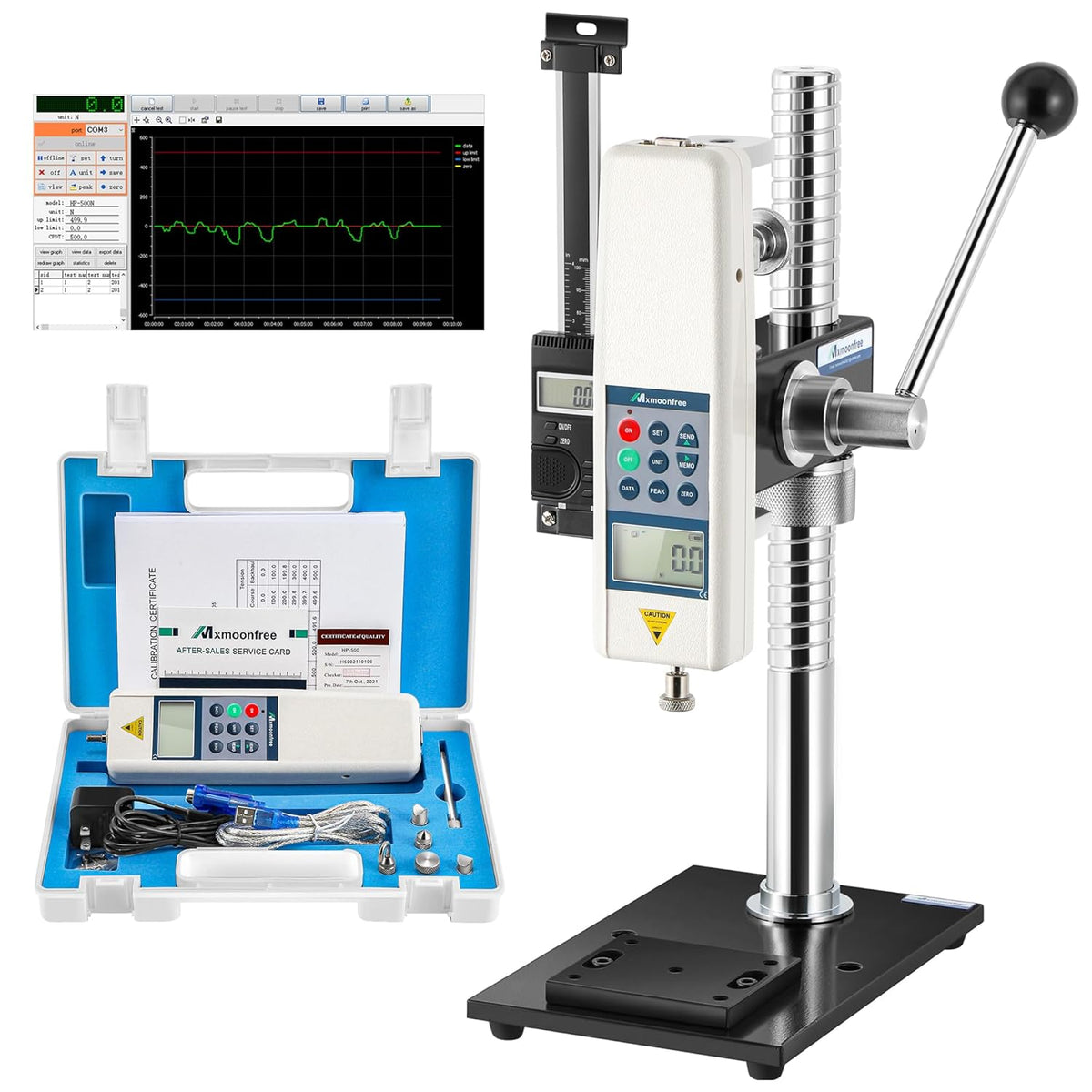

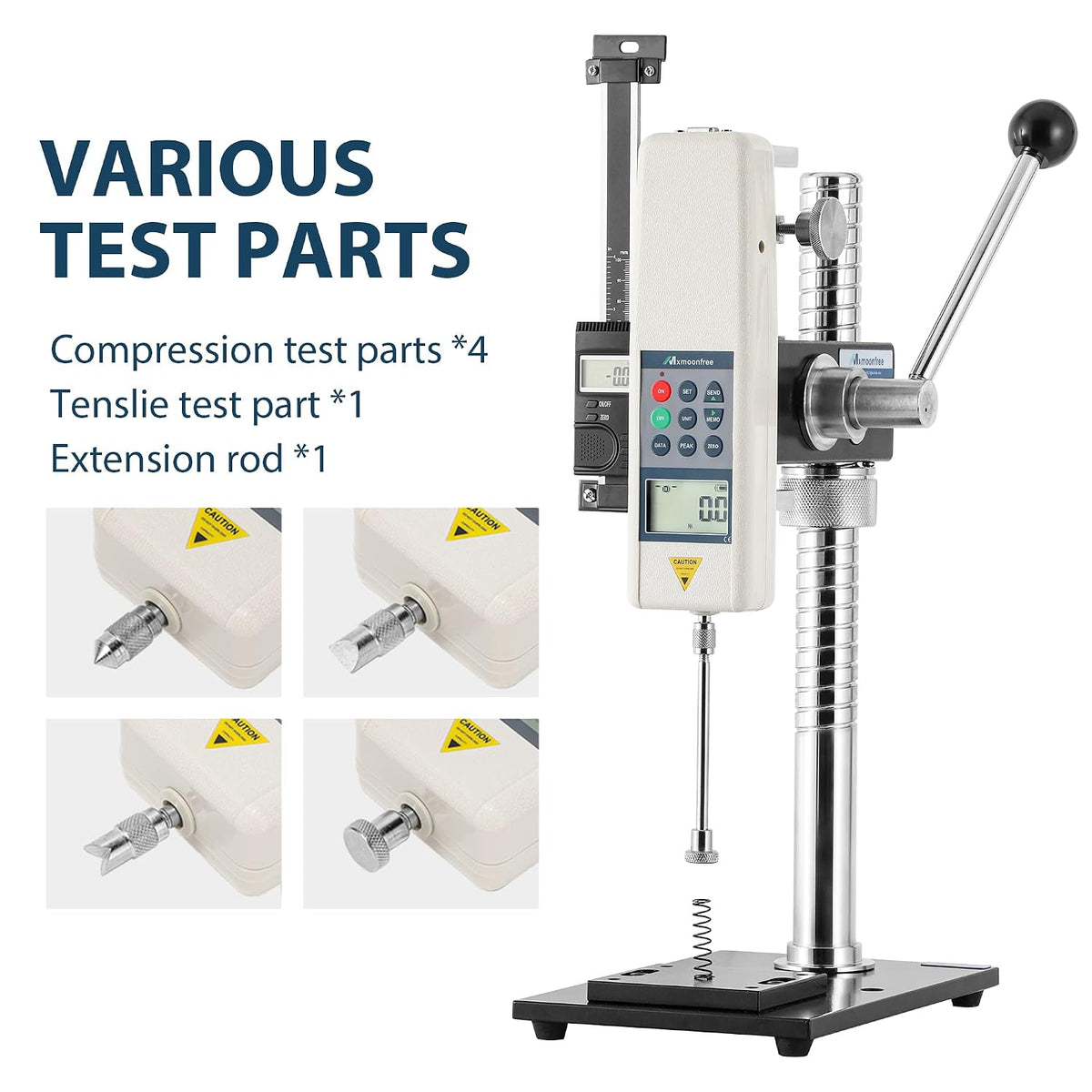

• COMPLETE KIT, READY TO TEST - HP-500N gauge, HPB stand, HJJ-001 clamp with M6 thread, 0-3.5mm (0.14 in) jaw opening and 14mm jaw width, 4 compression fixtures, 1 tension fixture, 1 extension shaft, RS-232 to USB cable, AC adapter and a fitted carrying case. The M6 thread also fits other fixtures
