50A55-843 Furnace Control Board Replacement For White-Rodgers

Key features

• Adaptation Models: 50A55-843 Furnace Control Board Replacement For White-Rodgers, Compatible with Lennox Gas Furnaces

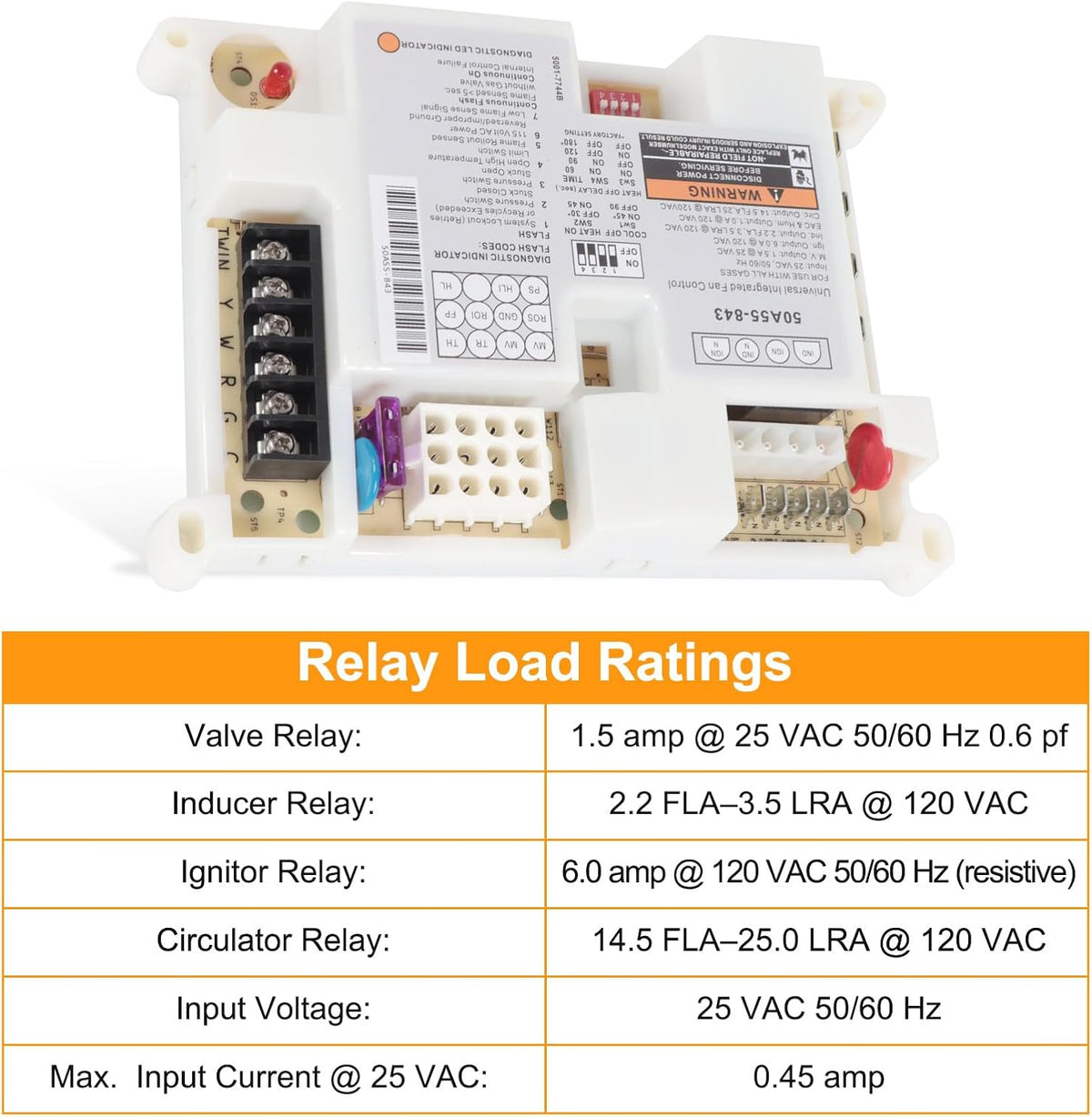

• Relay Load Ratings: Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 PF, Inducer Relay: 2.2 FLA–3.5 LRA @ 120 VAC, Ignitor Relay: 6.0 amp @ 120 VAC 50/60 Hz (Resistive), Circulator Relay: 14.5 FLA–25.0 LRA @ 120 VAC, Input Voltage: 25 VAC 50/60 Hz, Max. Input Current @ 25 VAC: 0.45 amp
• Features: The 50A55-843 Furnace Control Board is a gas automatic shut-off ignition controller that utilizes a microprocessor to monitor, analyze, and control the proper operation of gas burners, inductors, and fans
• Wide Application: Used in household gas heating furnaces to provide stable heating during cold seasons. Made from ABS material, it offers excellent mechanical properties and heat resistance
• Friendly Service: If you have any problems, we will solve them for you in time

50A55-843 Furnace Control BoardAdaptation Models: Replacement For White-Rodgers, Compatible with Lennox Gas FurnacesRelay Load Ratings:Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pfInducer Relay: 2.2 FLA–3.5 LRA @ 120 VACIgnitor Relay: 6.0 amp @ 120 VAC 50/60 Hz (resistive)Circulator Relay: 14.5 FLA–25.0 LRA @ 120 VACInput Voltage: 25 VAC 50/60 HzMax. Input Current @ 25 VAC: 0.45 amp
