50PCS 5.08mm 0.2" Pitch PCB Mount Screw Terminal Block Connector

Key features

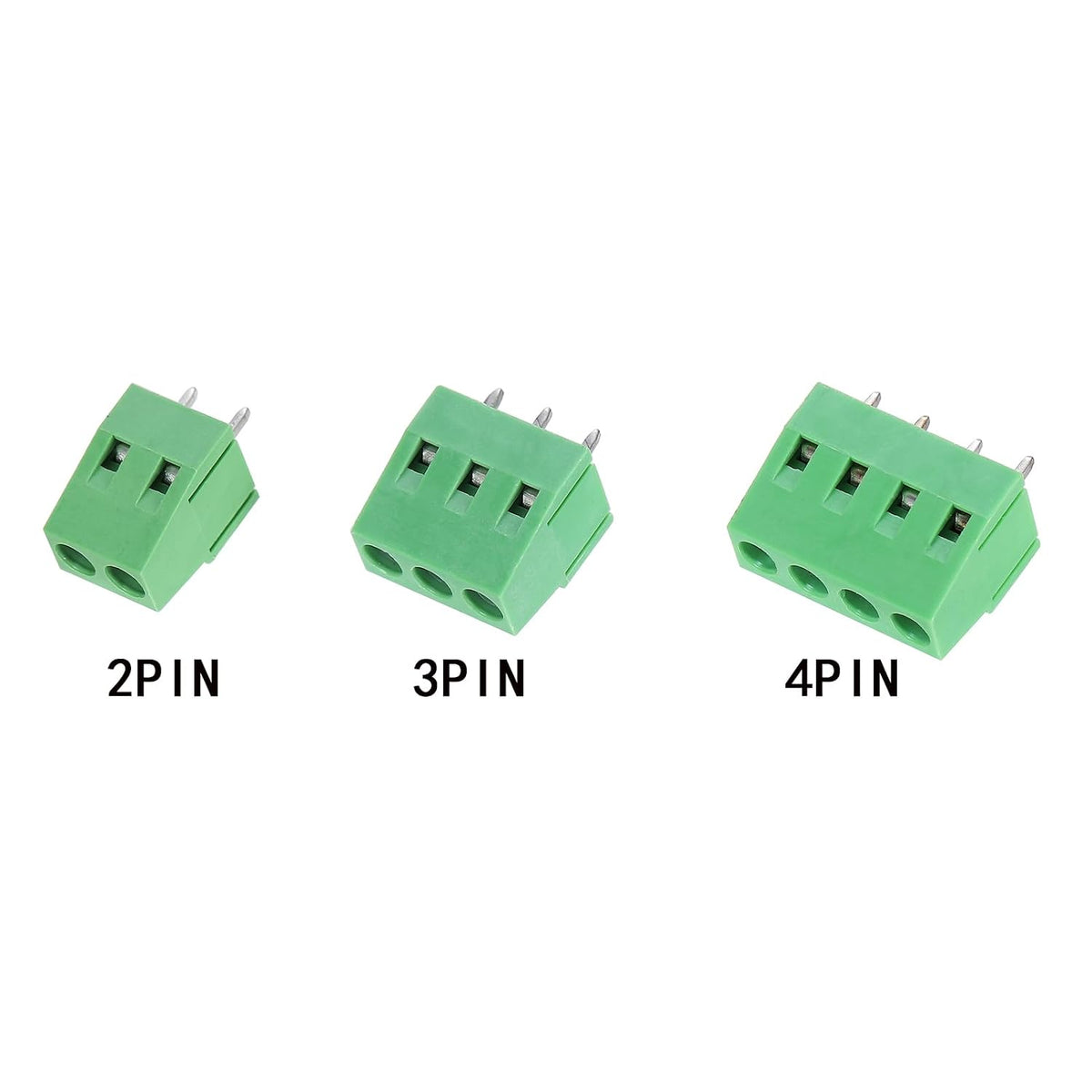

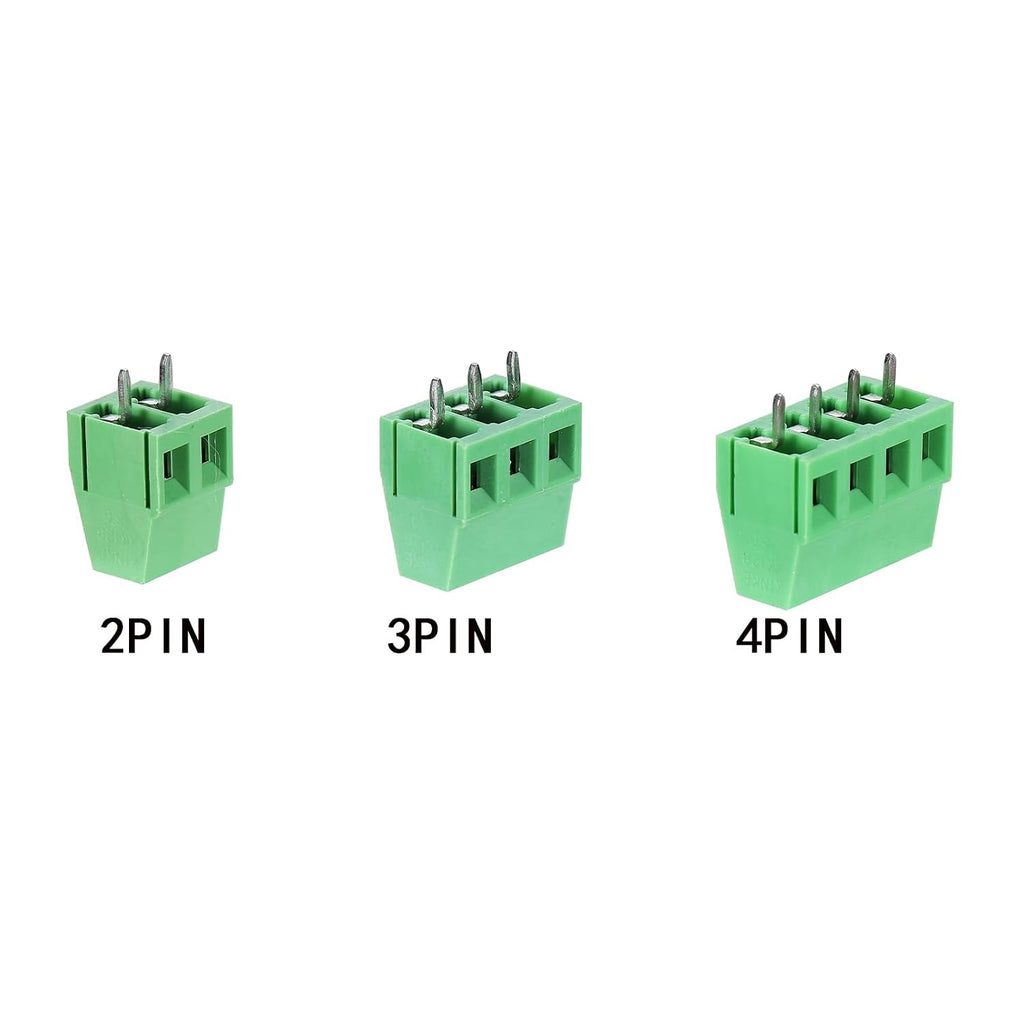

• 2 Pins 3Pins 4Pins 0.2" Pitch Screw Terminal Block Connector.
• Rated Voltage: 300V; Rated Current: 10A.
• Screw terminals accomodate wire sizes from 22AWG to 12AWG.
• Quick Connection: Screw Terminal on header provide secure connection and quick disconnection.
• Widely Applications: It is well-suited for interfacing with I/O cards, data acquisition (DAQ) equipment, and any other device that uses a 5.08mm/0.2in header connector. Applications include the Raspberry Pi A+, B+, 2B, and 3B boards, Arduino, all of which use a 0.2" pitch pin header for their GPIO expansion ports.

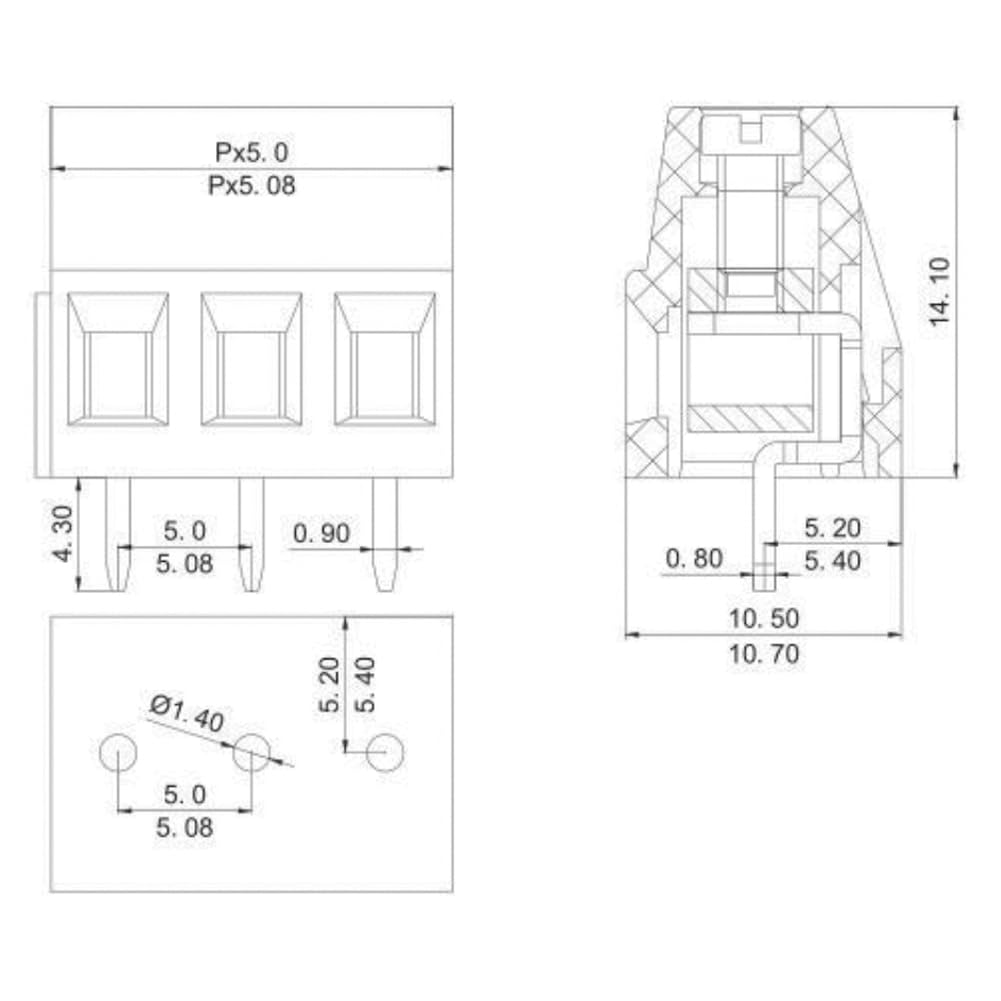

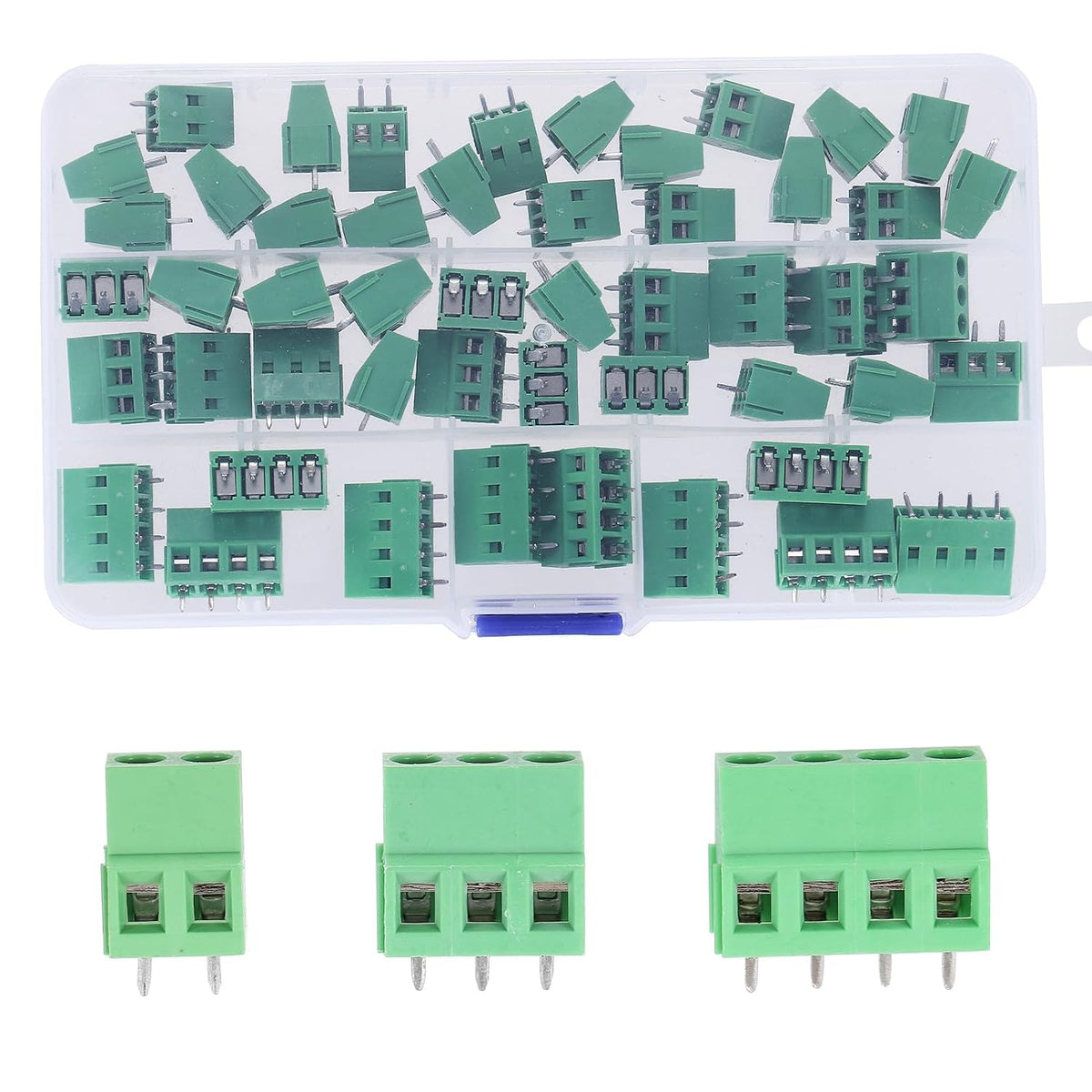

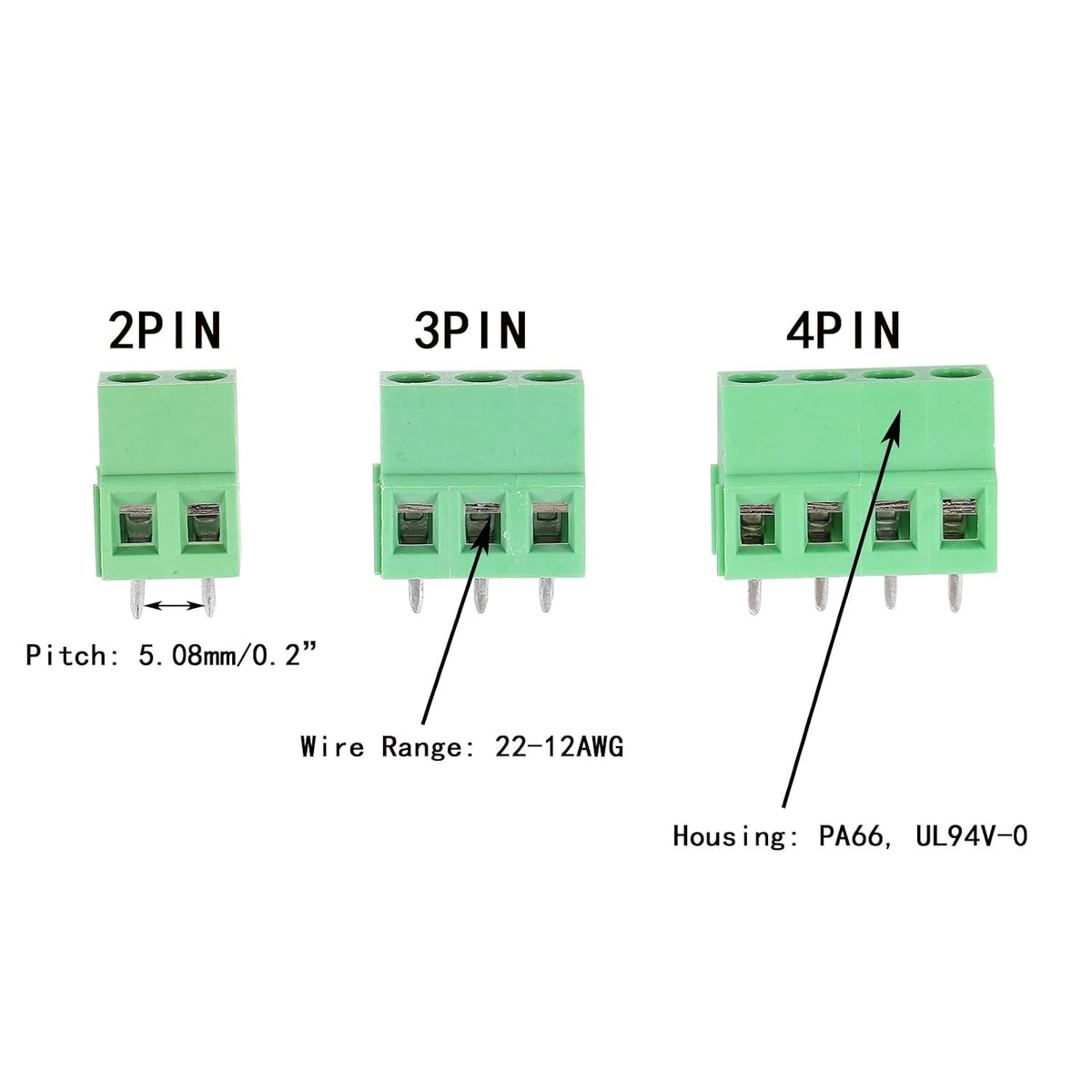

Specifications: Pitch: 5.08mm/0.2” PIN: 2P, 3P, 4P Pin Header: Brass, Tin plated Screw: M2.5, steel, tin plated Clips: Stainless Steel Housing: PA66, UL94V-0 Rated Voltage: 300V Rated Current: 10A Withstanding Voltage: AC 1500V/ 1Min Contact resistance: 20mΩ Insulation resistance: 5000MΩ Wire Range: 22-12AWG(UL) Wire Range: 2.5mm2(IEC) Color: Green Temperature Range: -40° ~ +105° Stripping length: 6-7mm Maximum tightening torque: 0.4Nm(3.6lb-in) Package List: 20PCS 2P Terminal Block 20PCS 3P Terminal Block 10PCS 4P Terminal Block 1PCS plastic box

Free shipping included. 30-day hassle-free returns.
