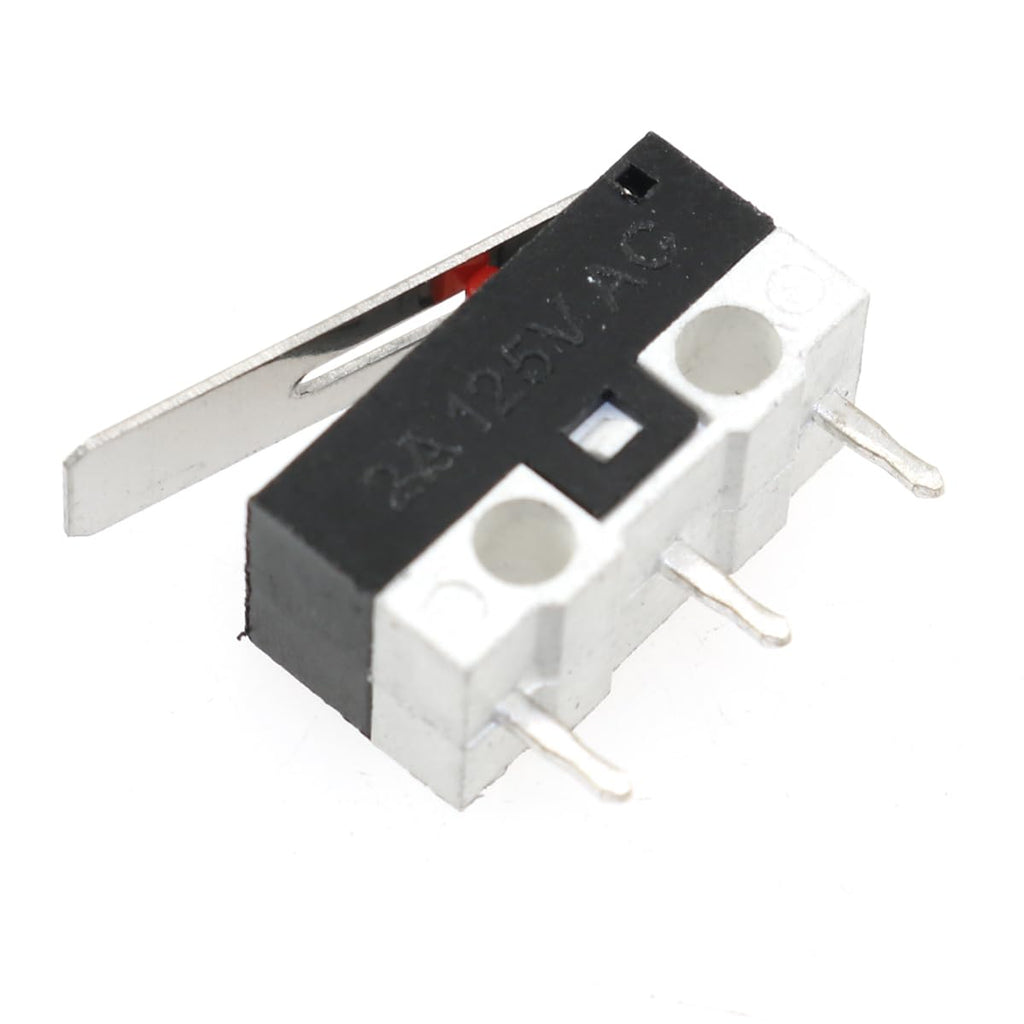

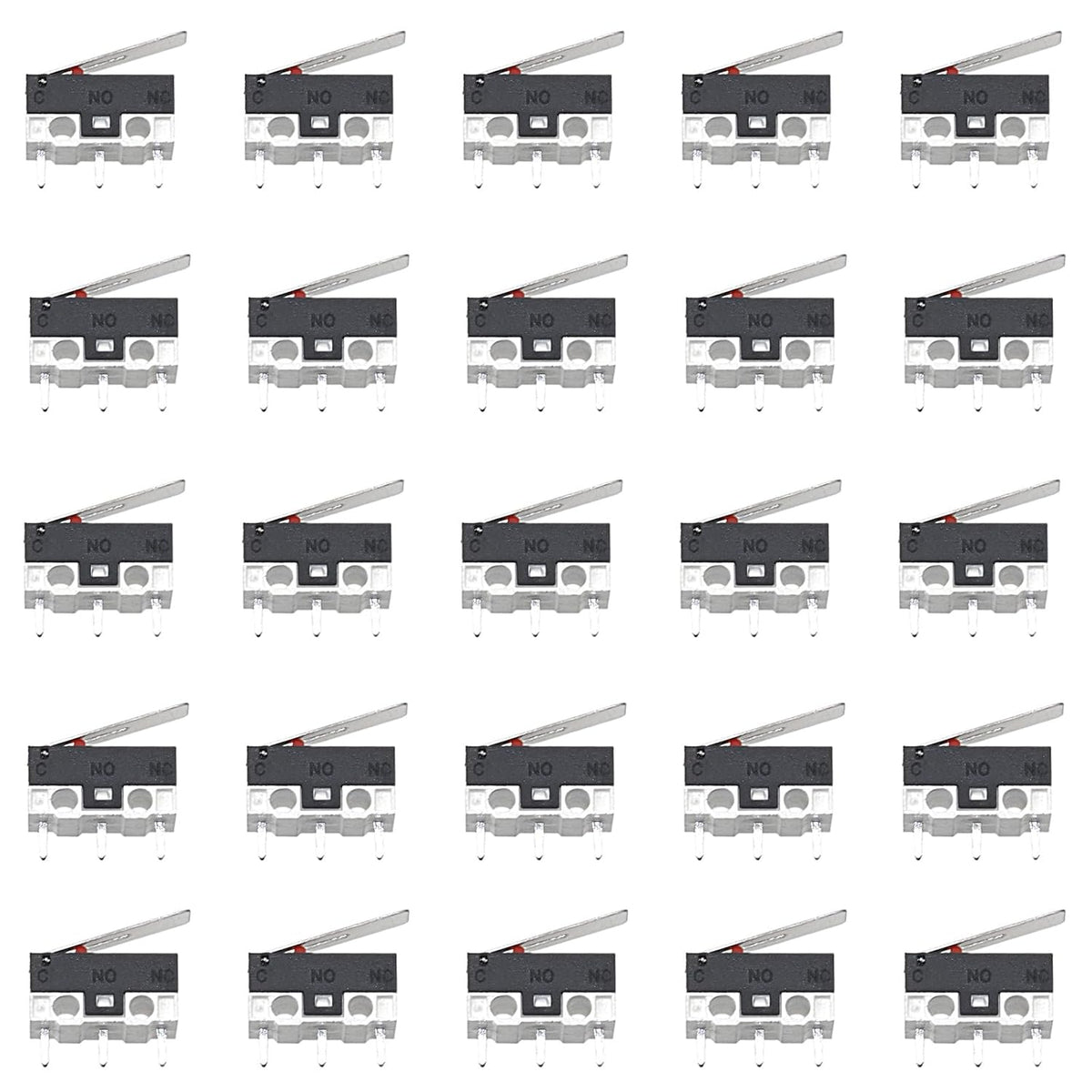

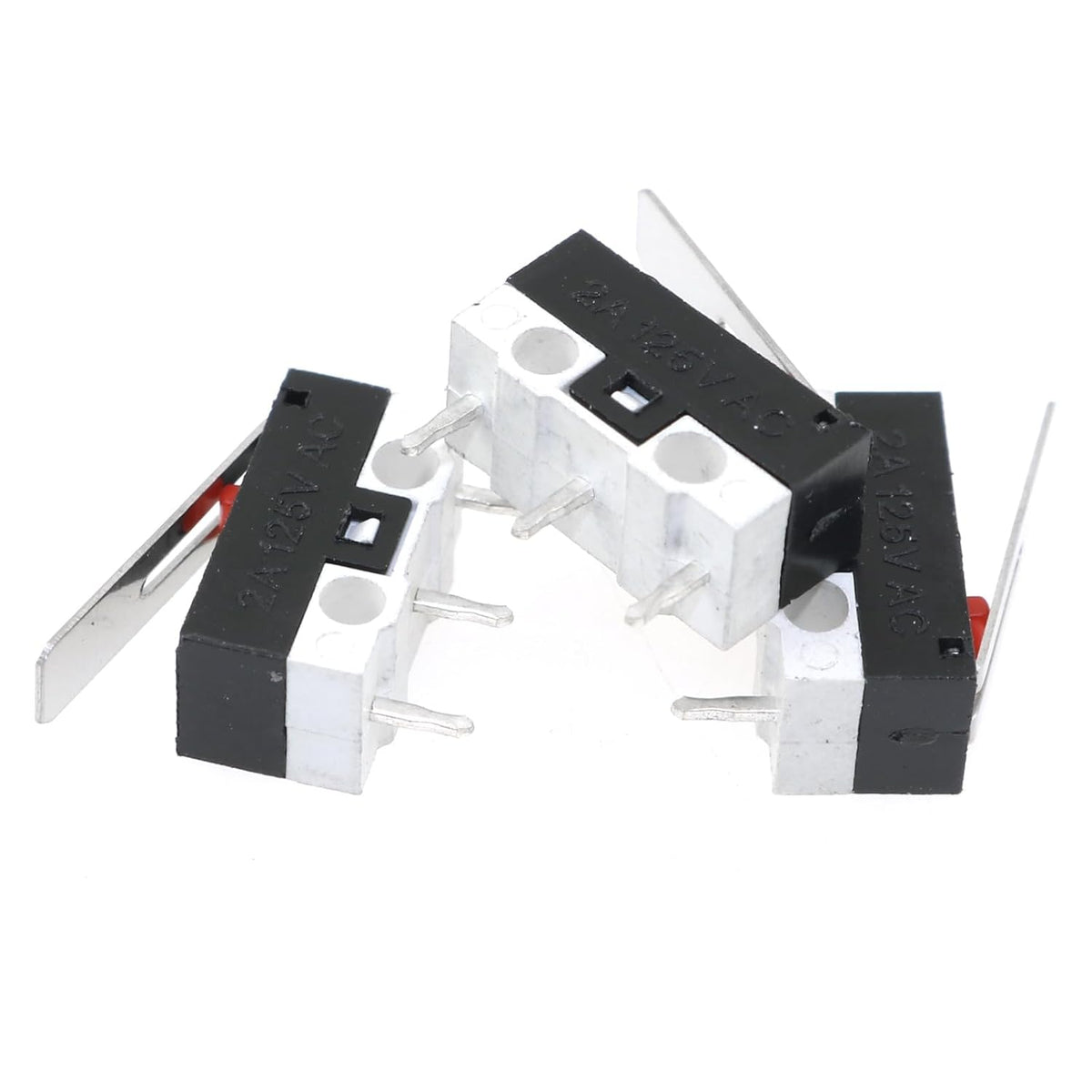

50PCS Micro Limit Switch AC 125V 3Pin with Lever 13.5MM Momentary Push Button

Key features

• Insulation Resistance: Greater Than or Equal To 100 Megaohm Test Insulation Resistance Between Adjacent Legs Pins and Housing
• Voltage Tester No Insulation Damage Abnormal Conditions Include Input Voltage AC300V 50Hz to 60Hz for 1 Minute Leakage Current 2mA Adjacent Edge Test
• Terminal Strength No Abnormality Such As Falling Off Fracture or Looseness Terminal Applied Force 0.5kg in Initial Direction for 1 Minute
• Excellent Touch Switch with Plastic Pin Package Prevents Rosin Penetration Long Service Life
• Expected Lifespan Over 500000 Times Continuous Operation Frequency Less Than 60 Times Per Minute Working Condition DC 40V 50mA

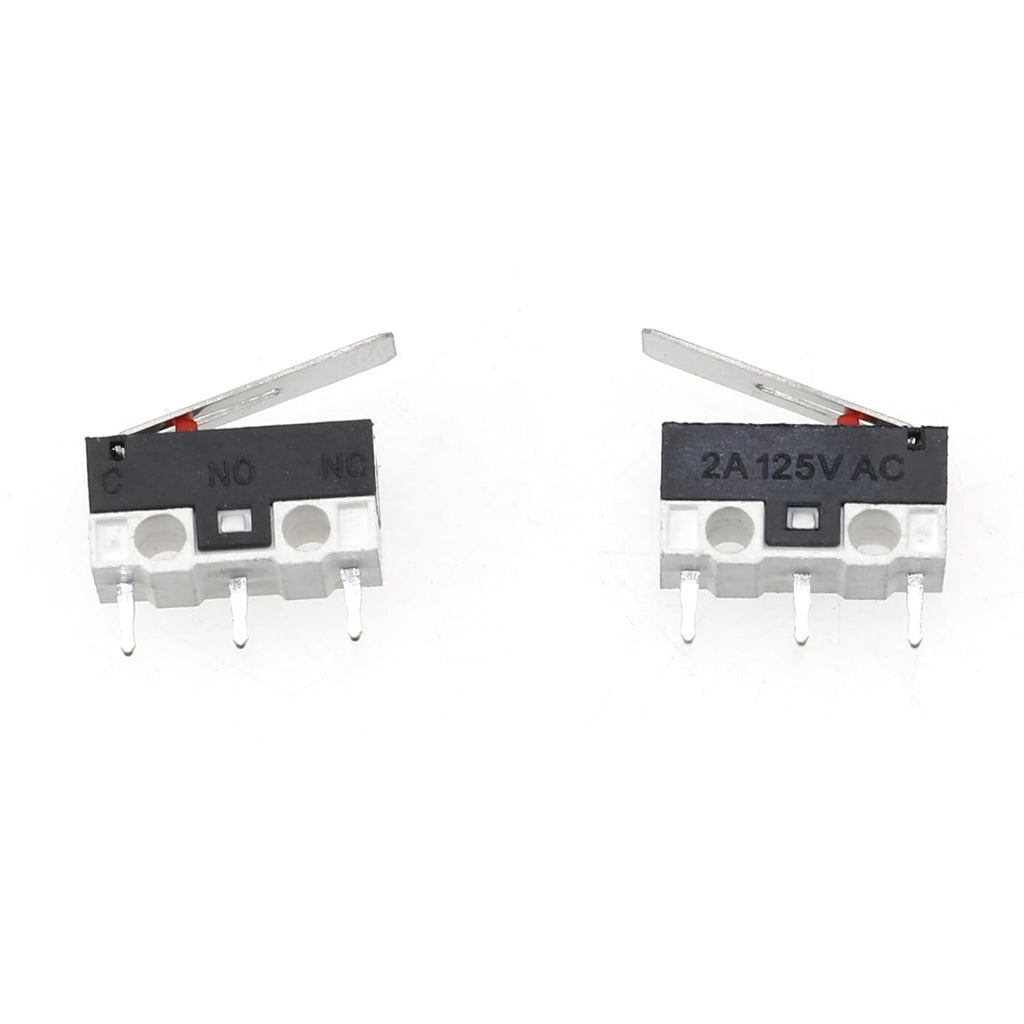

Name: Micro Switch AC 125V 3 Pin with Lever 13.5MM Material: Plastic plus Metal Lever Size: 12.6x6.5x5.7MM / 0.49x0.26x0.22Inches Lever Arm Size: 13.5x4MM / 0.53x0.16Inches Length Width Working Current: 2A Working Voltage: 125V AC Contact Resistance: Less Than or Equal To 100 Megaohm Insulation Resistance: Greater Than or Equal To 100 Megaohm Operating Temperature: -25 to +64 Degree Celsius Dielectric Strength: AC100V Per Minute Pin Description: C Common Pin NO Normally Open Pin NC Normally Closed Pin Note: Pictures Are For Shooting Effect Only Manual Measurement Has 0.5-1MM Error Subject To The Actual Product
