51180 Echo Mobile Bluetooth Trailer Brake Controller, 7-Way, 1-2 Axles

Key features

• PORTABLE — Echo installs between compatible vehicle and trailer 7-way RV blade connectors and easily transfers between vehicles without under-dash wiring. The vehicle 7-way must provide active +12V power, ground and turn-signal circuits; a vehicle brake-output circuit is not required. Echo uses the 7-way +12V connection to power the trailer brakes, and this circuit should be fused at 30 amps. Some vehicles require tow/haul mode or trailer load detection before 7-way power activates.

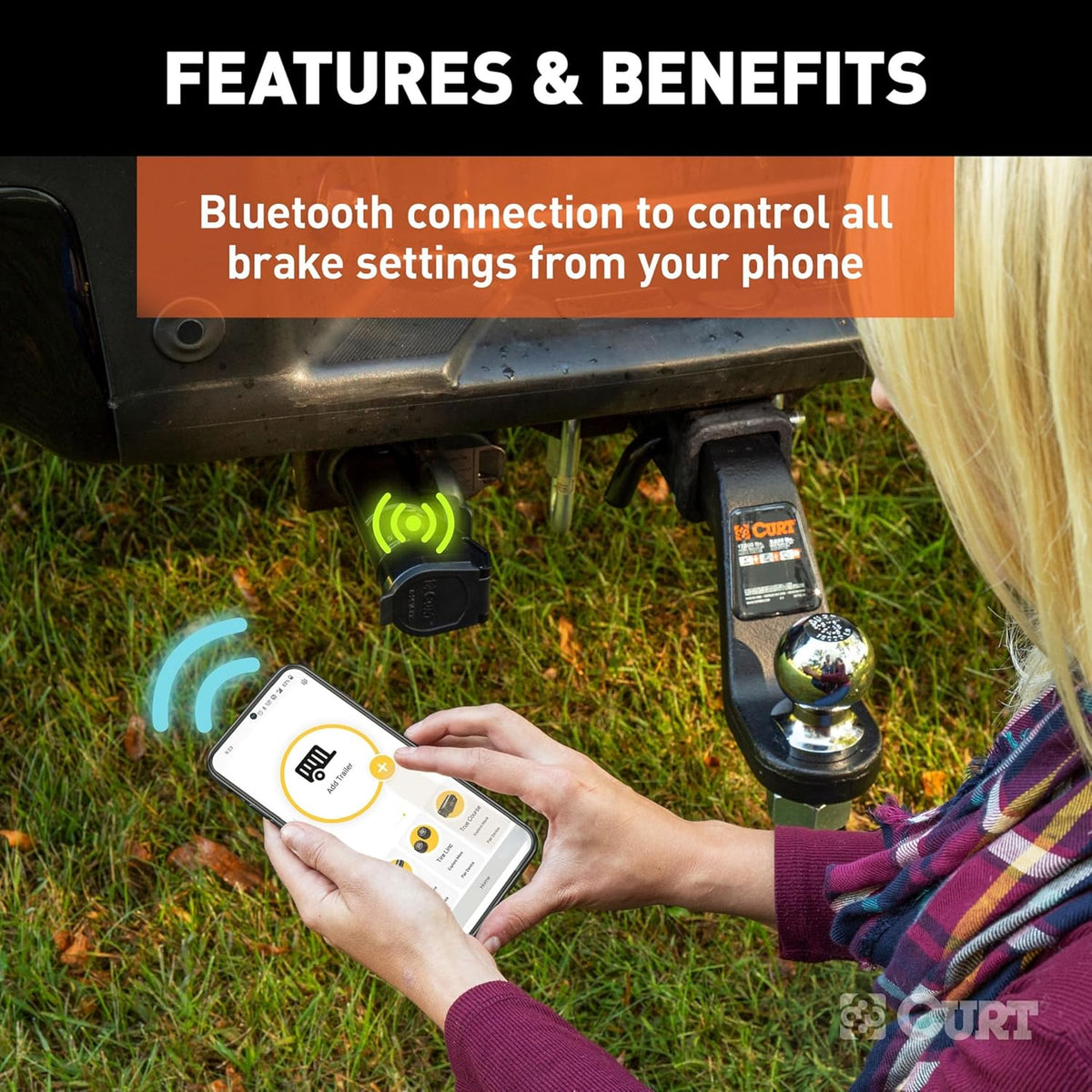

• SMARTPHONE-READY — Use the OneControl Auto app on iOS 14+ or Android 9+. Enable Bluetooth and location permissions, then pair Echo inside the OneControl Auto app, not through your phone's Bluetooth settings. Keep the app in the foreground for prompt manual-override response and only adjust settings while stationary. OneControl Auto 2.2.0 adds improved larger-font support, fixes an Echo-screen crash on smaller Android devices and includes additional bug fixes.

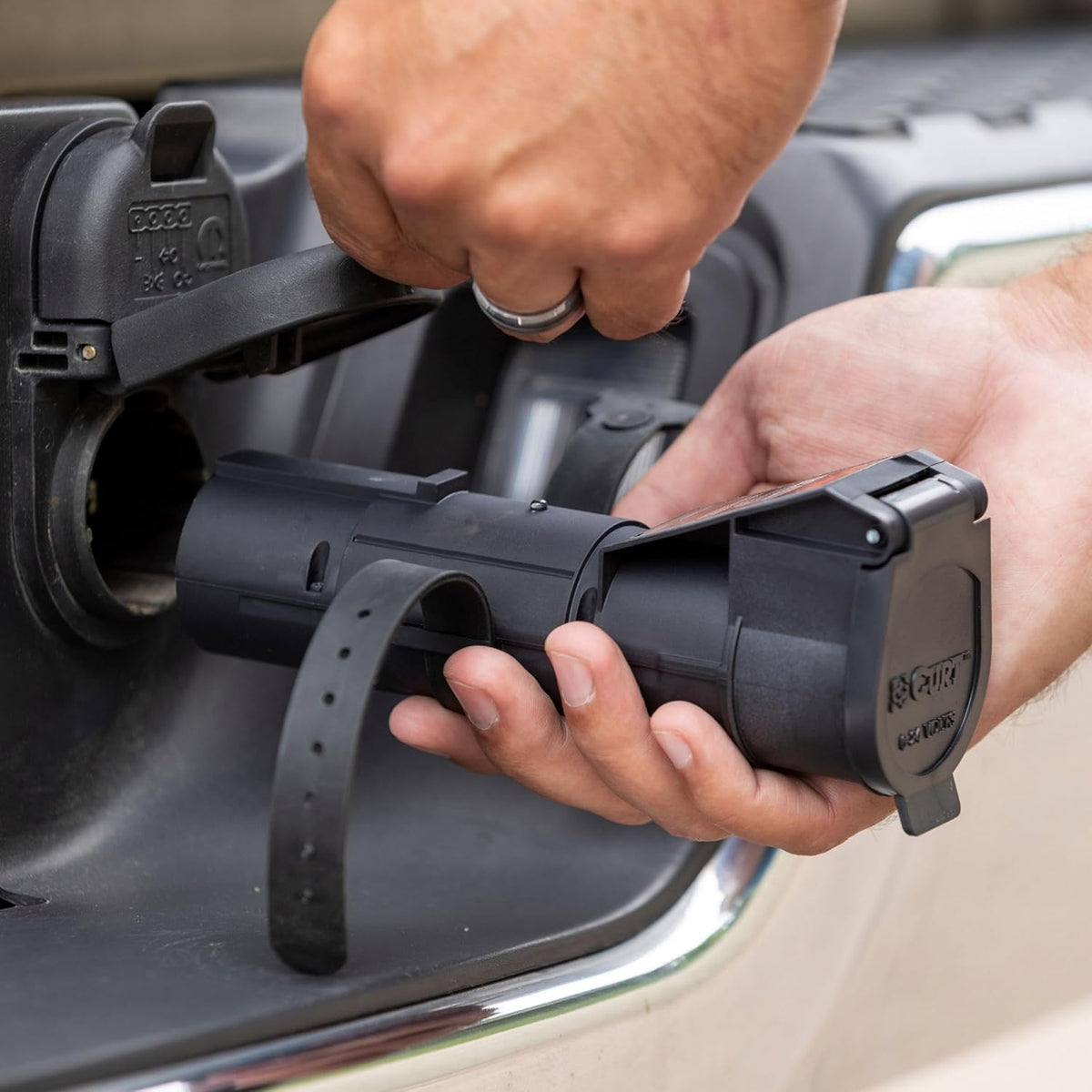

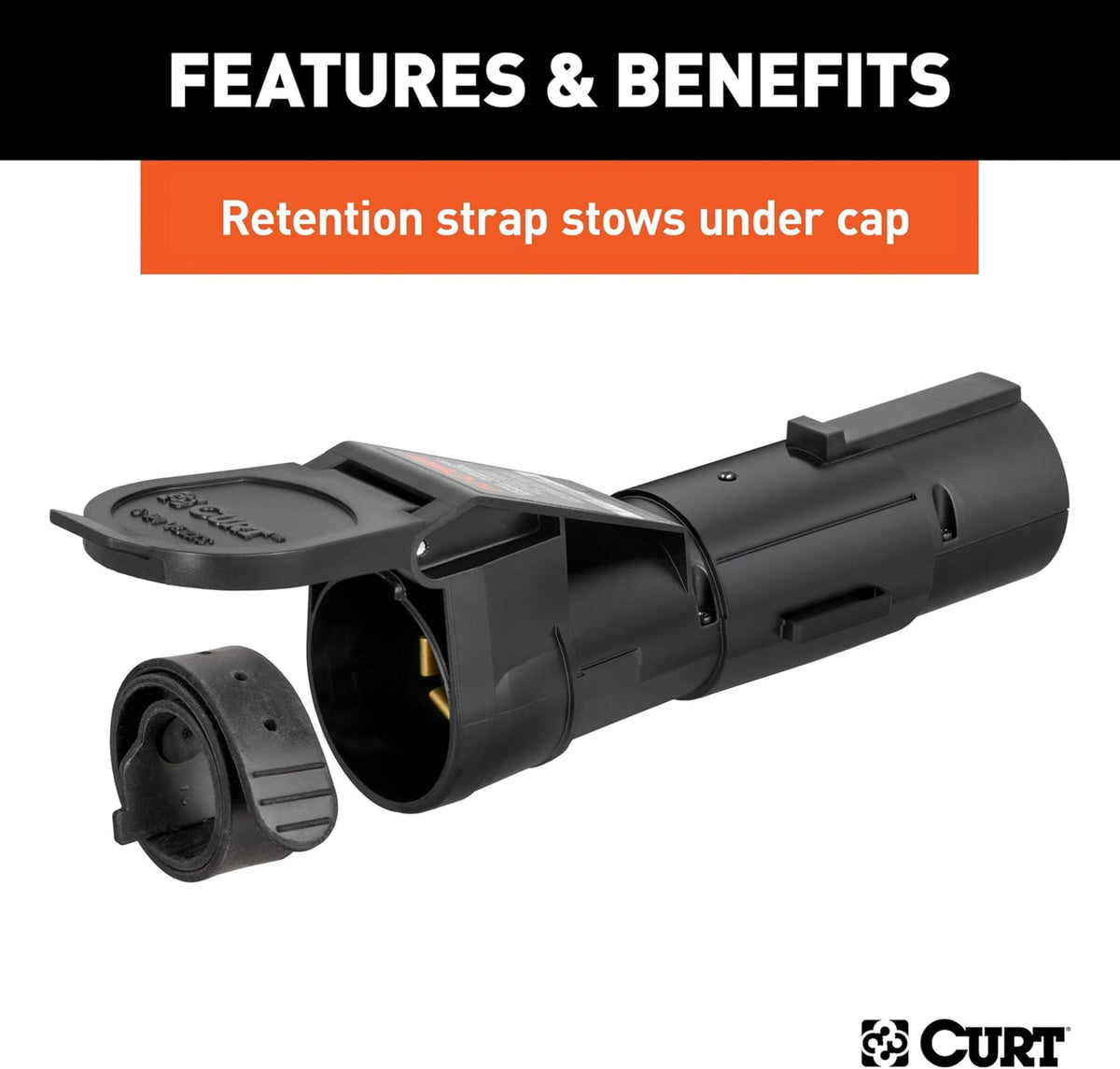

• ZERO-TOOL INSTALL — When your vehicle's 7-way already provides the required power and ground, Echo installs without under-dash wiring or tools. The safety strap is stored inside the Echo cap and should be installed before use. With the vehicle running or ignition ON and in Park, plug Echo into the vehicle 7-way first, pair through OneControl Auto, then connect the trailer on a level surface. Flashing yellow indicates 5-8 second calibration; solid green indicates Echo is paired with the trailer connected.

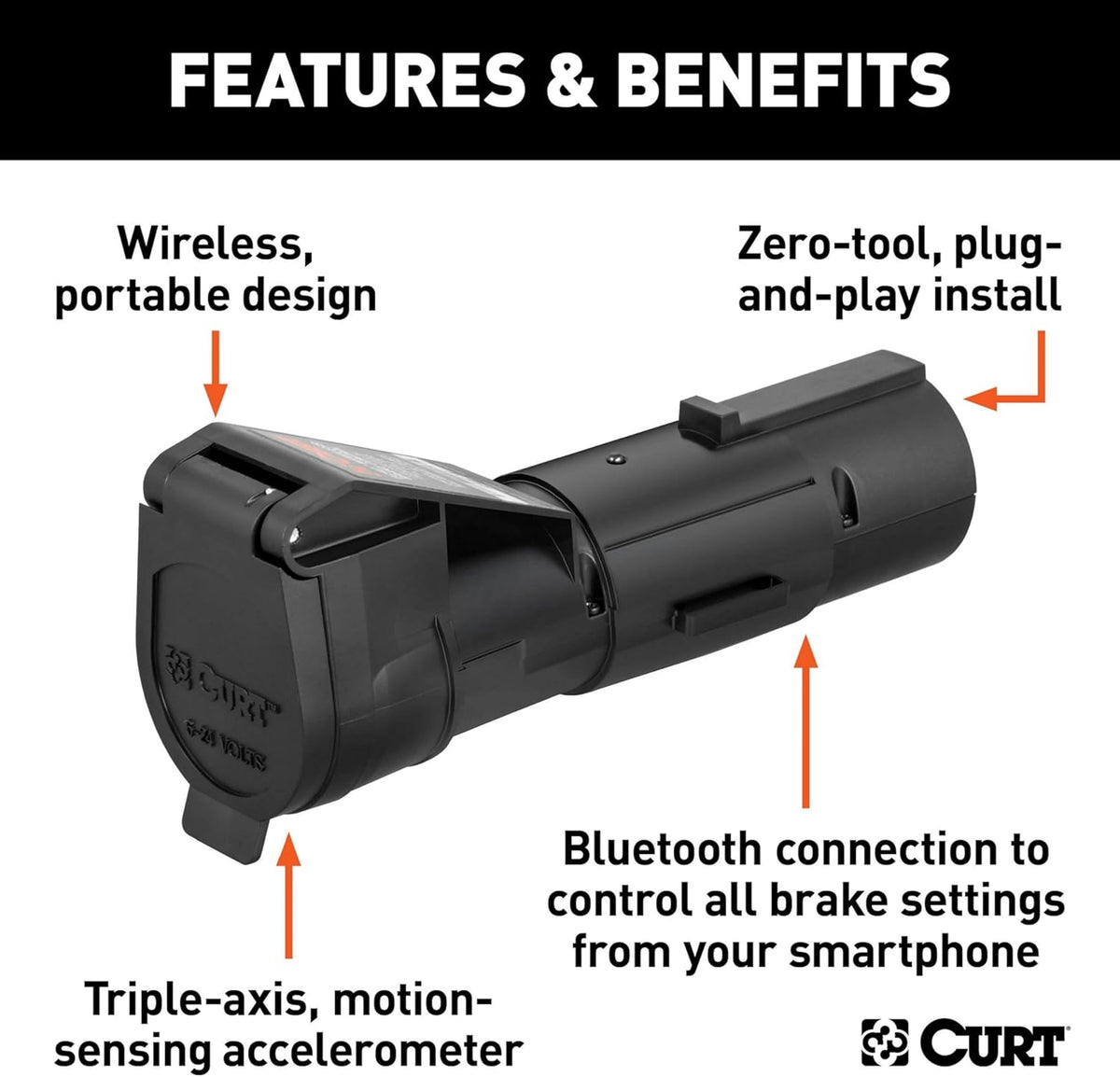

• HIGHLY RESPONSIVE — Echo uses a triple-axis accelerometer for proportional trailer braking and supports trailers with 1-2 axles / 2-4 brakes. Adjust maximum output and sensitivity for your trailer and load. If Bluetooth communication is lost, the brake controller continues operating at the most recently programmed settings; app-based control and controller notifications require app communication. Always test trailer lights and braking before driving.
• VERSATILE — Compatible with cruise control, ABS and low-voltage/PWM systems. An existing factory or aftermarket brake controller will not function while Echo is installed. When vehicle hazard lights are active, use the app's Hazard Lights setting to prevent pulsing trailer-brake output. Echo is designed for Bluetooth communication up to 50 ft unobstructed, though actual range can be limited by the phone, vehicle construction and other obstructions.

The CURT Echo mobile trailer brake controller is a Bluetooth enabled device that wirelessly connects to your smartphone and allows you to control and monitor all trailer brake activity right from your device. It features a simple, plug-and-play installation, a portable design to easily switch between vehicles and a highly durable construction to outlast the elements. The Echo brake controller brings your towing experience into the modern age. Powered by Bluetooth, it wirelessly connects to your smartphone without any extra wiring harnesses or modules required. Simply download the Smart Control app on your Apple iOS or Android OS device, plug the Echo into your vehicle and you're ready to start towing. The app allows you to create multiple vehicle-trailer profiles for different towing situations. Installing the Echo trailer brake controller is truly a plug-and-play experience. It is designed to insert in between the vehicle-trailer wiring connection and is compatible with any industry-standard 7-way RV blade plug. This design also allows the Echo to be easily transferred between vehicles, making it perfect for fleet vehicles or multiple-vehicle owners. The Echo mobile trailer brake
