5840-36ZY DC 24V Worm Gear Metal Reducer Motor,Torque 100KG.CM, Speed 40

Key features

• This robust metal worm gear reducer delivers 100 kg·cm of torque at 40 RPM, making it ideal for heavy-duty automation, lifting, and positioning systems.
• The self-locking worm gear drive prevents reverse drive and maintains load stability during power outages, making it ideal for vertical or tilted applications.
• A wide-range 24V DC input, combined with PWM speed control, allows for smooth speed adjustment from 0 to 40 RPM, enabling flexible control.

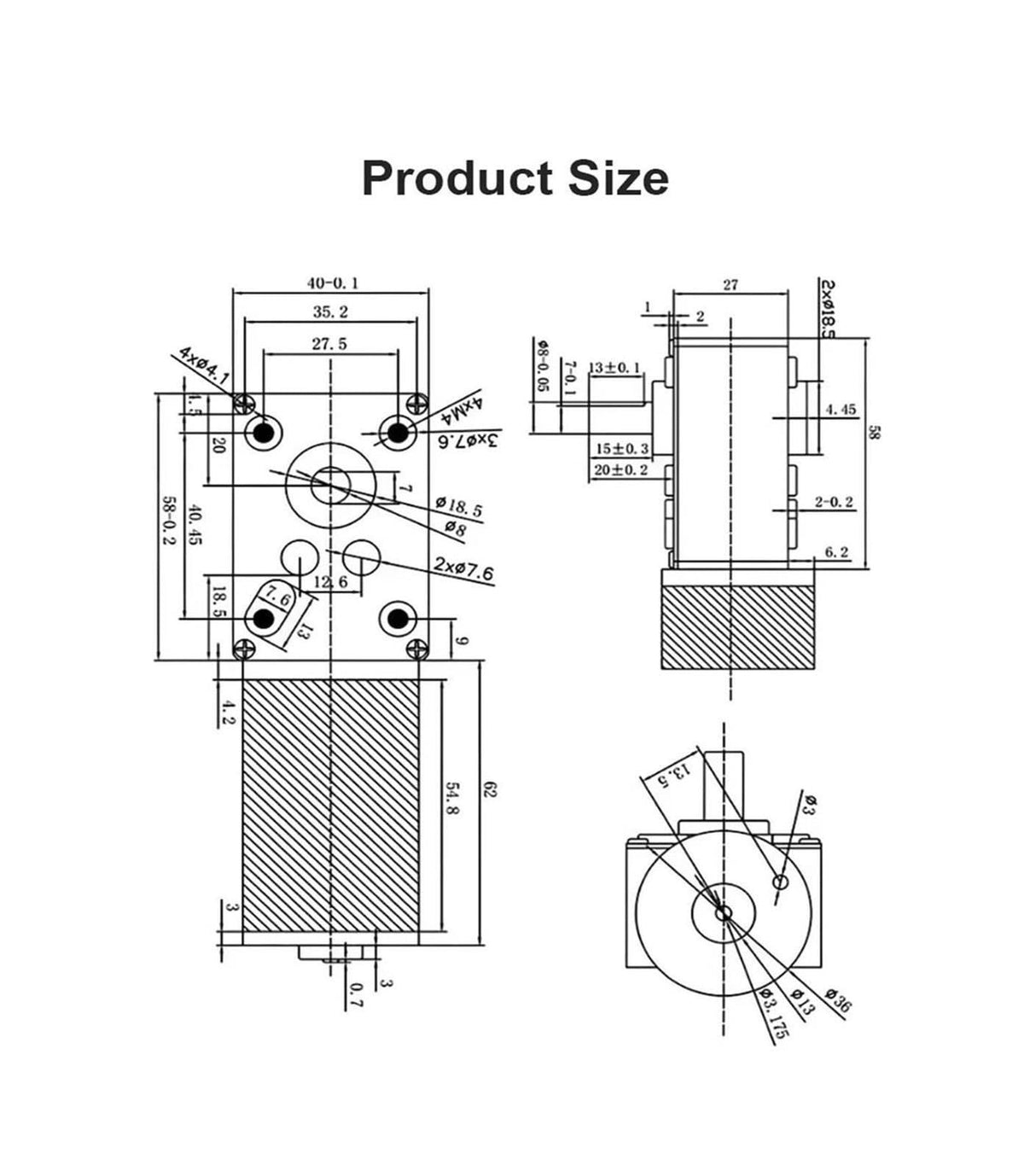

• Standard flange holes and keyways facilitate installation and are compatible with common couplings, pulleys, or sprockets for quick integration.

This 5840-36ZY 24V DC worm geared motor features a robust metal reducer, delivering 100 kg·cm² torque and a constant speed of 40 RPM. The self-locking worm gear design firmly holds the load in the event of power failure, while PWM input enables variable speed control. Designed for continuous industrial applications, this motor is suitable for conveyor drives, rotary tables, and DIY robots. Simple wiring and standard mounting dimensions make it a plug-and-play upgrade solution for existing 24V systems.

Free shipping included. 30-day hassle-free returns.
