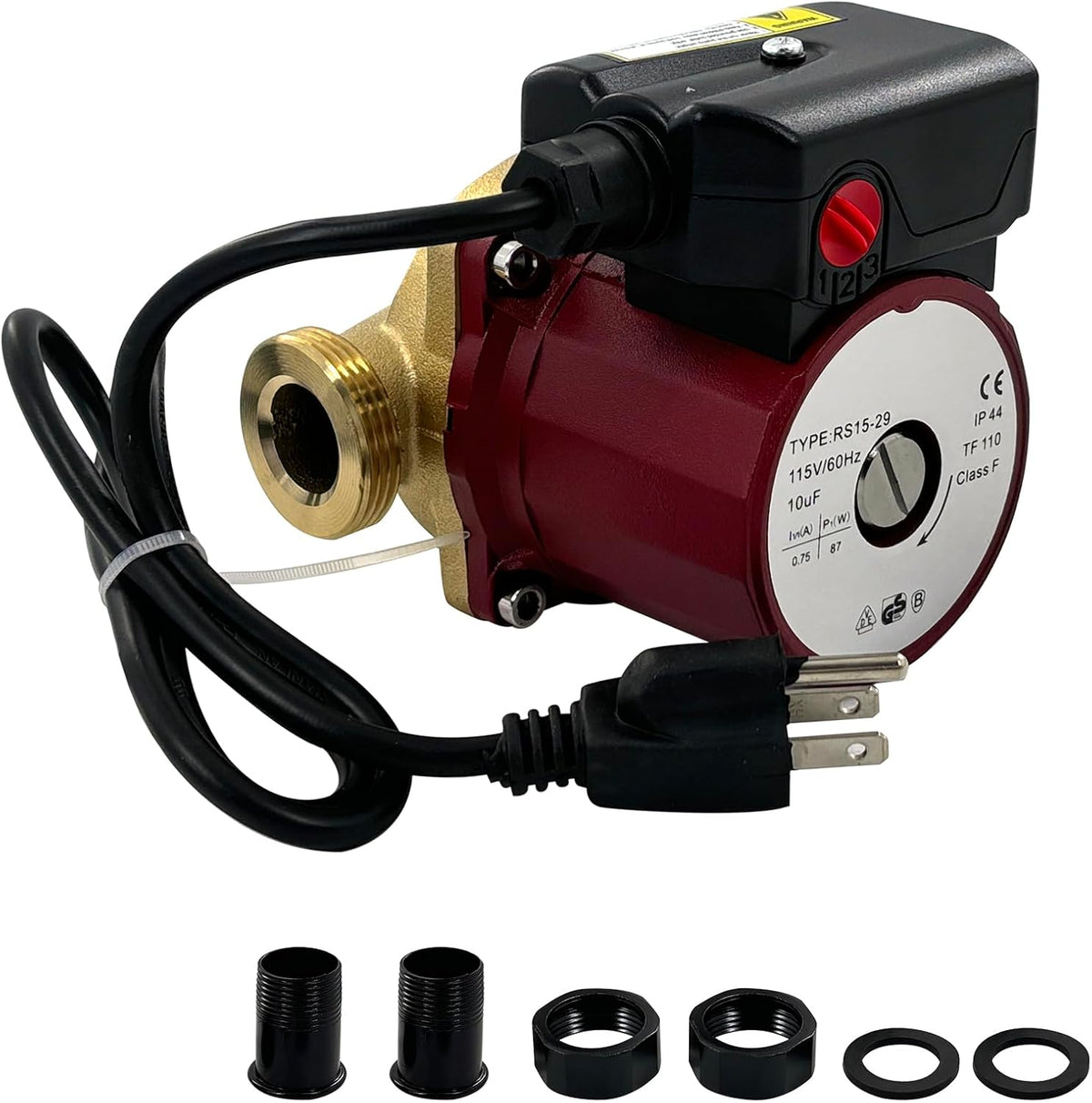

59896776 UP15-29SU Circulator Pump 115V 1/8 HP Compatible with Grundfos

Key features

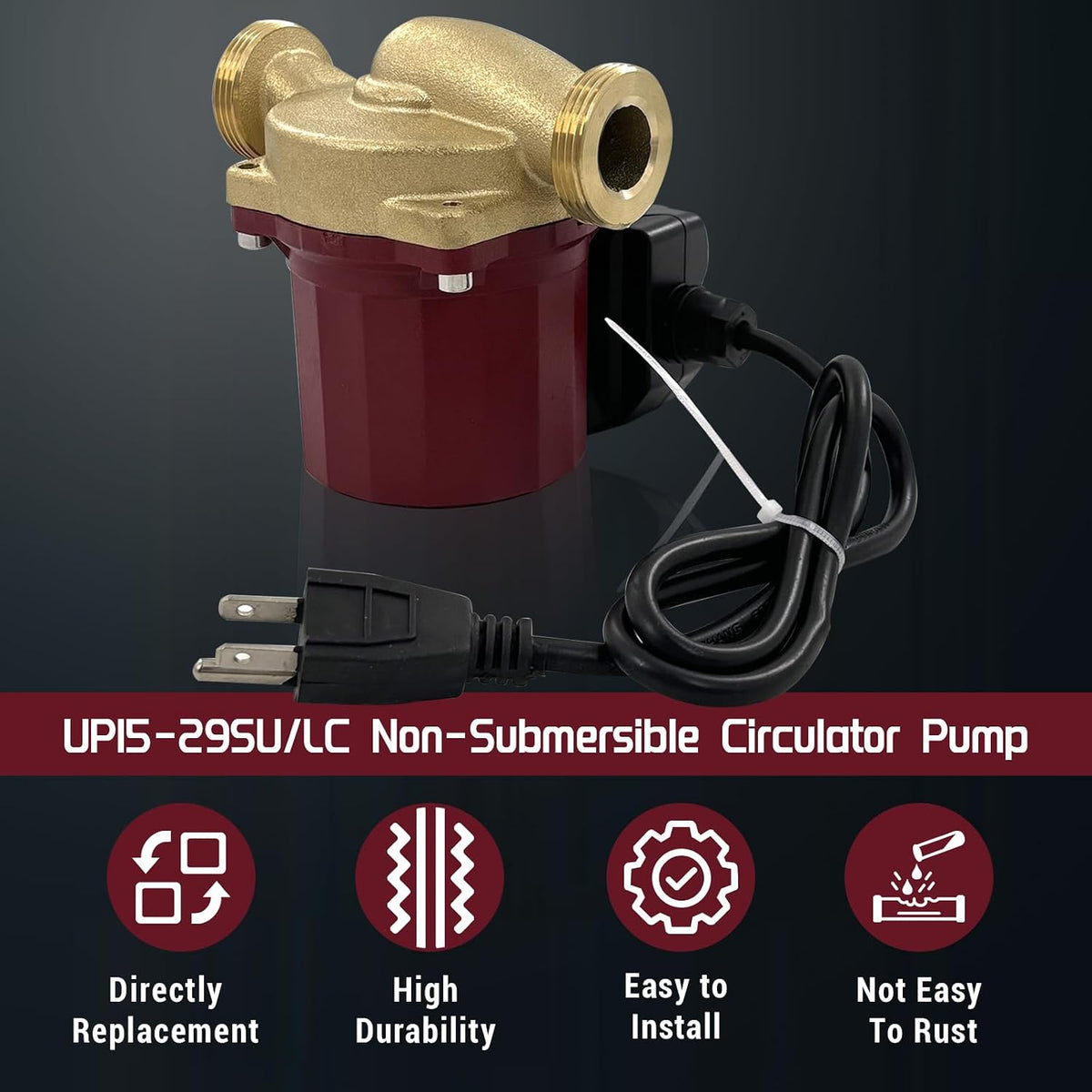

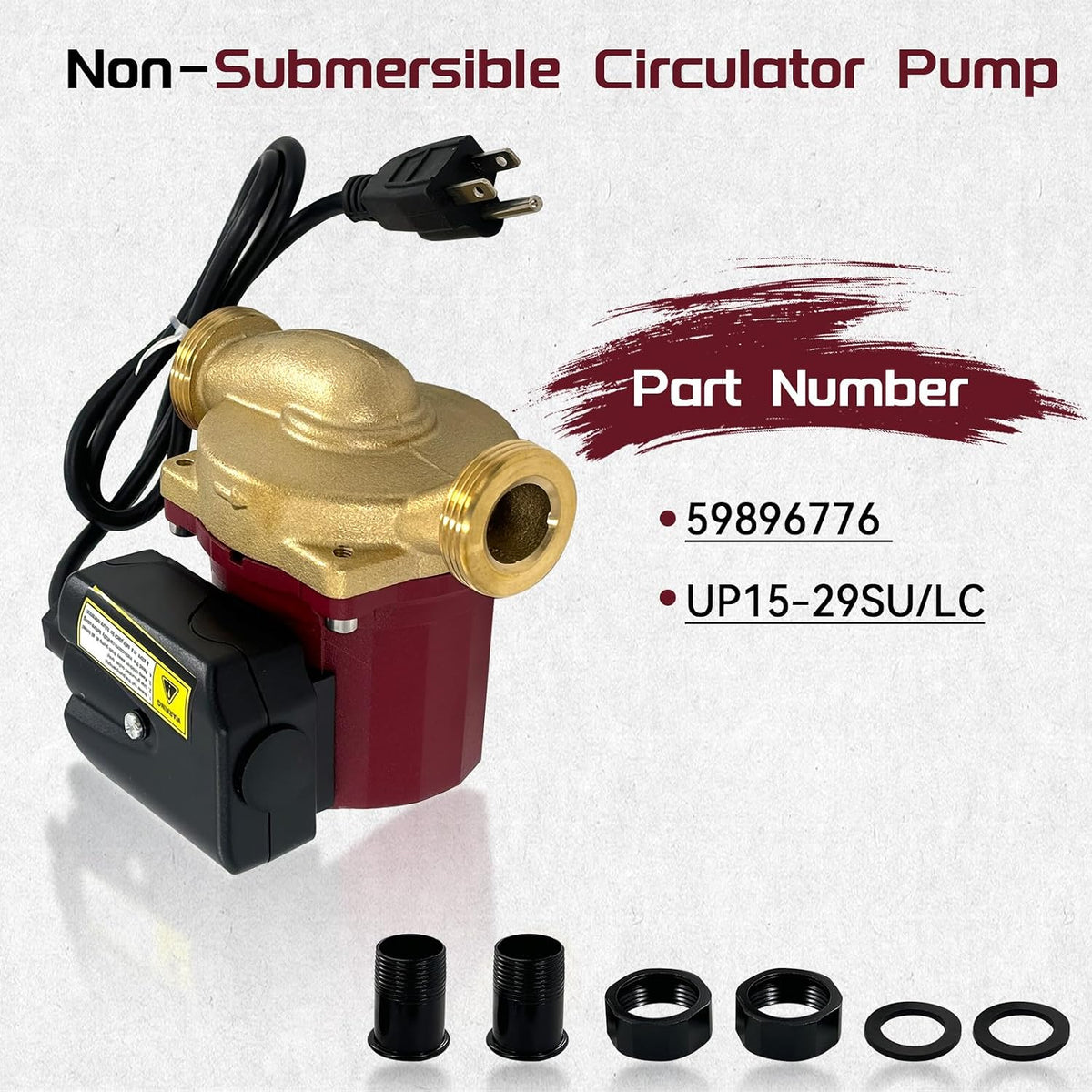

• Replacement Part Number: Non Submersible Circulation Pump Replace 59896776 UP15-29SU/LC.

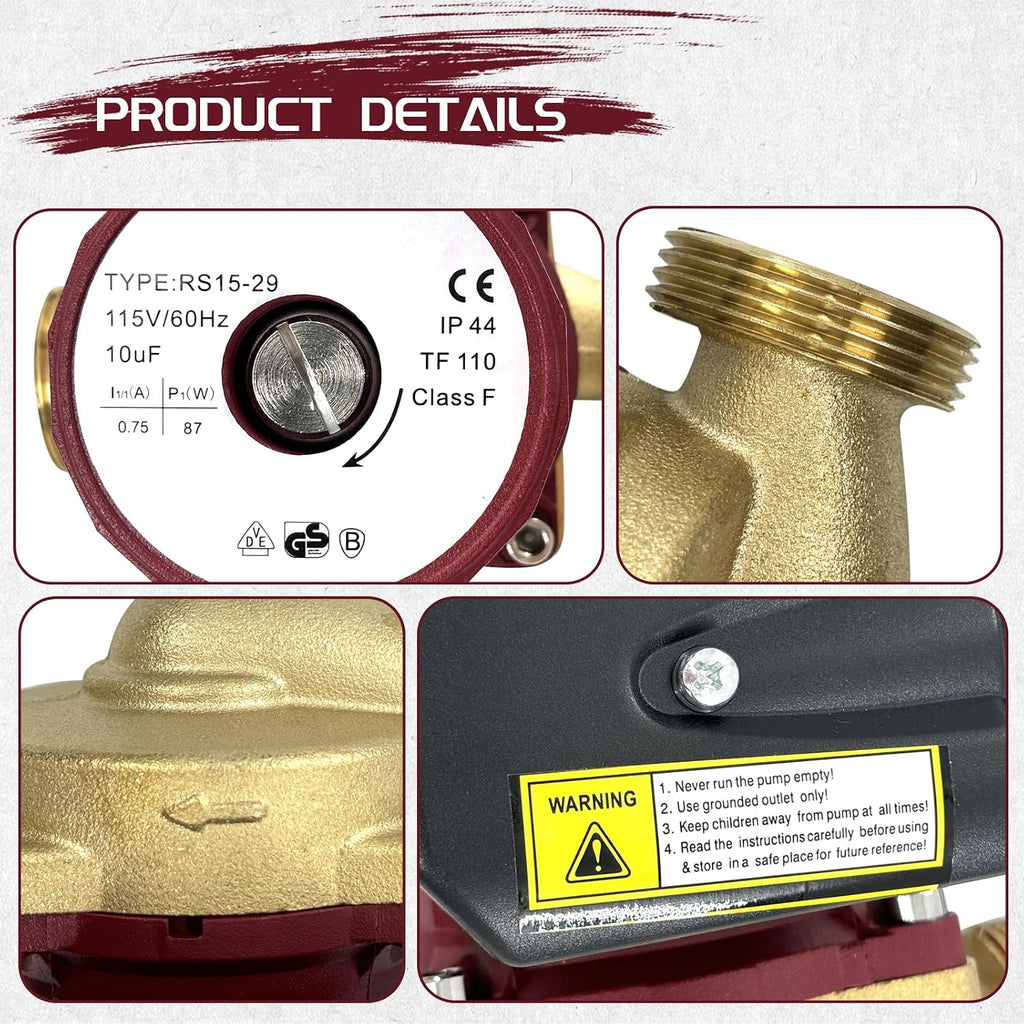

• High Quality: The pump is canned rotor type, pump and motor form an integral unit without shaft seal and with only two gaskets for sealing; Made from copper, it uses carbon axial bearings, ceramic shaft and radial bearings with a corrosion-resistant composite PES impeller. It has a 1-1/4" union connection (NPSM) and a 5.87" port-to-port length.

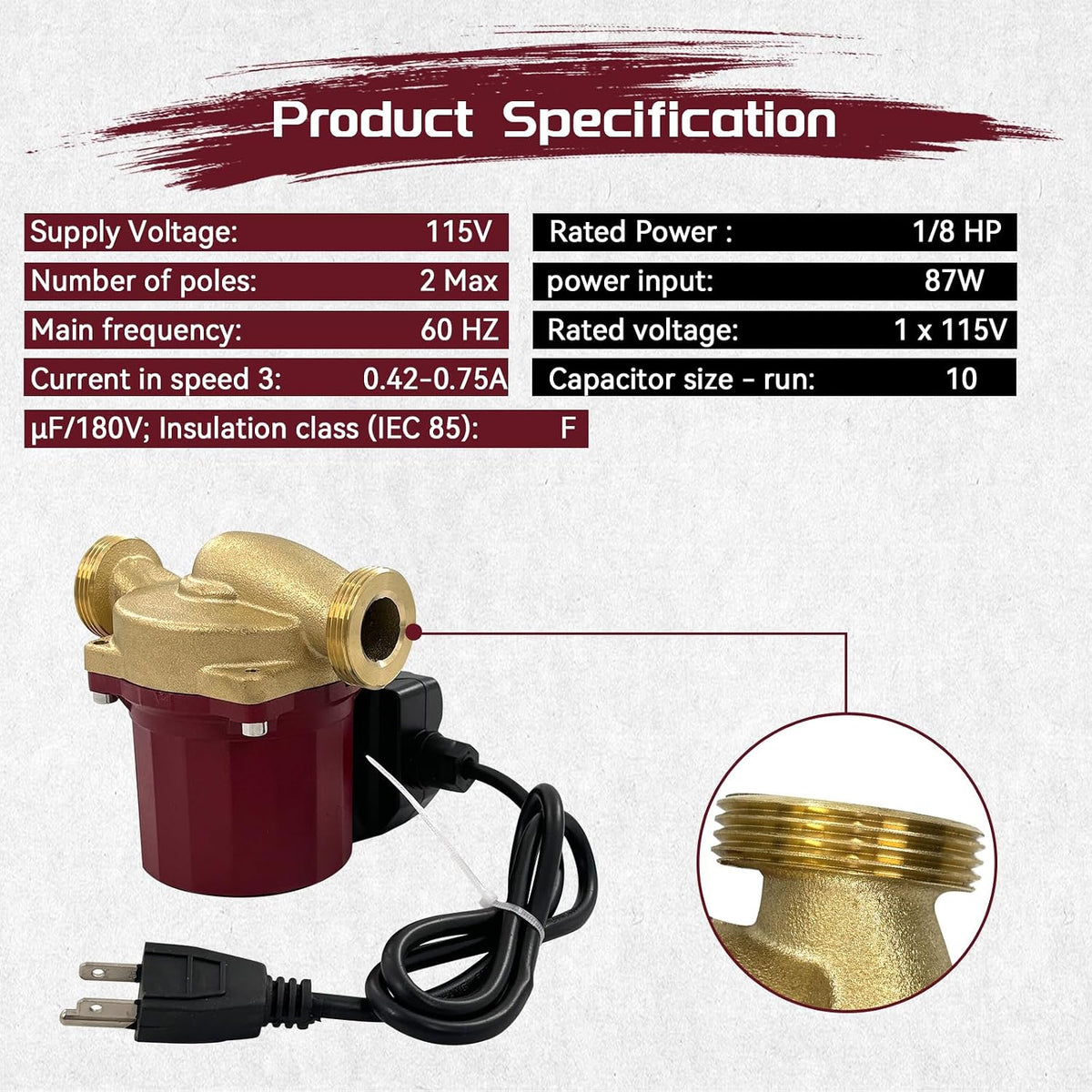

• Specification: Supply Voltage: 115V; Rated Power : 1/8 HP; Number of poles: 2 Max; power input: 87W; Main frequency: 60 HZ; Rated voltage: 1 x 115V; Current in speed 3: 0.42-0.75A; Capacitor size - run: 10 µF/180V; Insulation class (IEC 85): F.

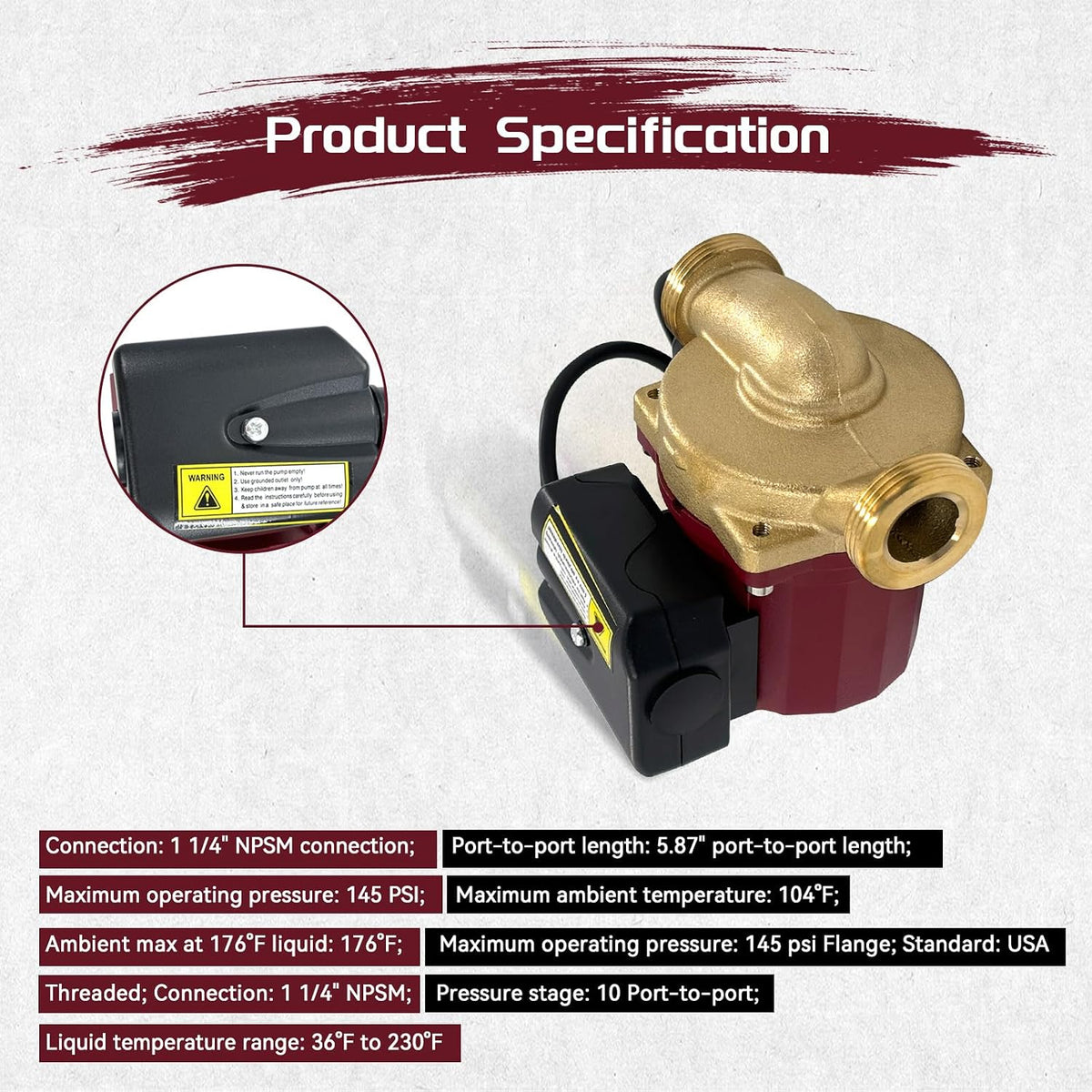

• Specification: Connection: 1 1/4" NPSM connection; Port-to-port length: 5.87" port-to-port length; Maximum operating pressure: 145 PSI; Maximum ambient temperature: 104°F; Ambient max at 176°F liquid: 176°F; Maximum operating pressure: 145 psi Flange; Standard: USA Threaded; Connection: 1 1/4" NPSM; Pressure stage: 10 Port-to-port; Liquid temperature range: 36°F to 230°F.
• Direct replacement: Manufactured to original factory specifications and components tested to meet original specifications, fully adapted, no need to modify, directly replacement.
