5Pcs Dual Row Screw Terminal Block 4 Position 15A 600V
5Pcs Dual Row Screw Terminal Block 4 Position 15A 600V
Key features

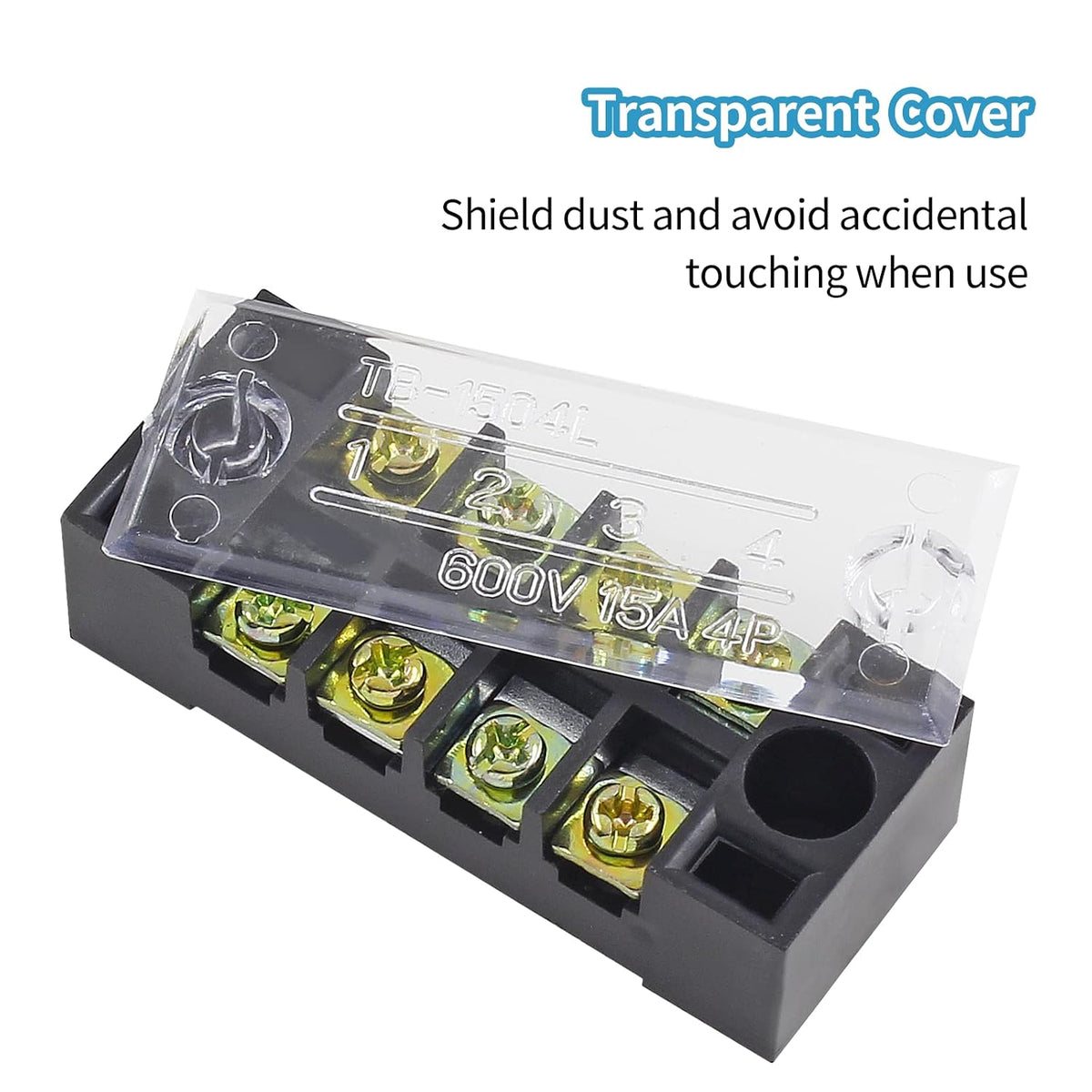

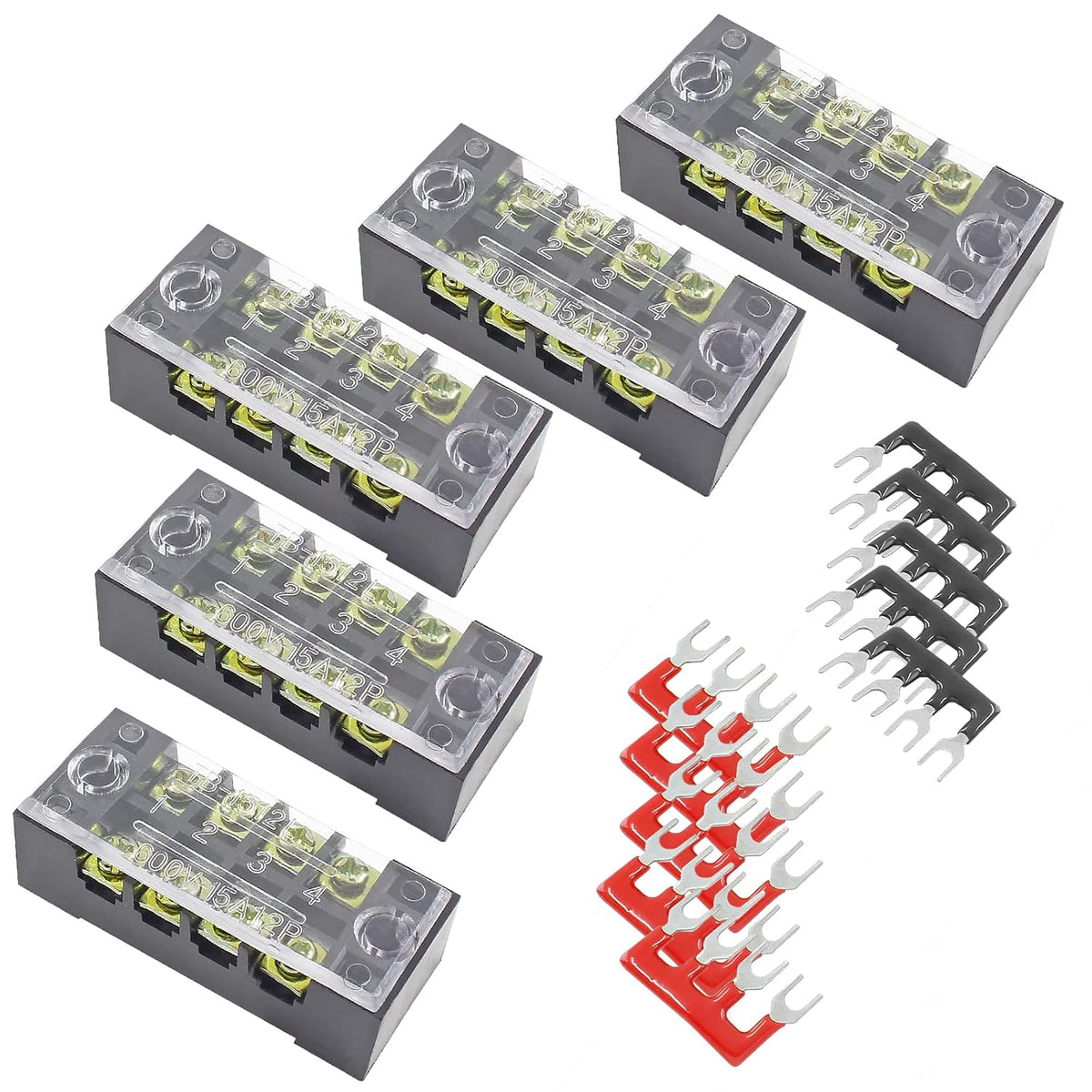

- What You Get: Package includes 5 pcs x dual row 4-position screw terminal blocks + 10 pcs x 4 positions pre-insulated barrier jumpers(black and red). Each unit comes with a clear protective cover to shield against short circuits and accidental contact.
- 15A High-Current Rating: Designed to handle up to 600V and 15 amps, this terminal strip supports demanding circuits found in industrial equipment, solar power systems, and automotive modifications without overheating concerns.

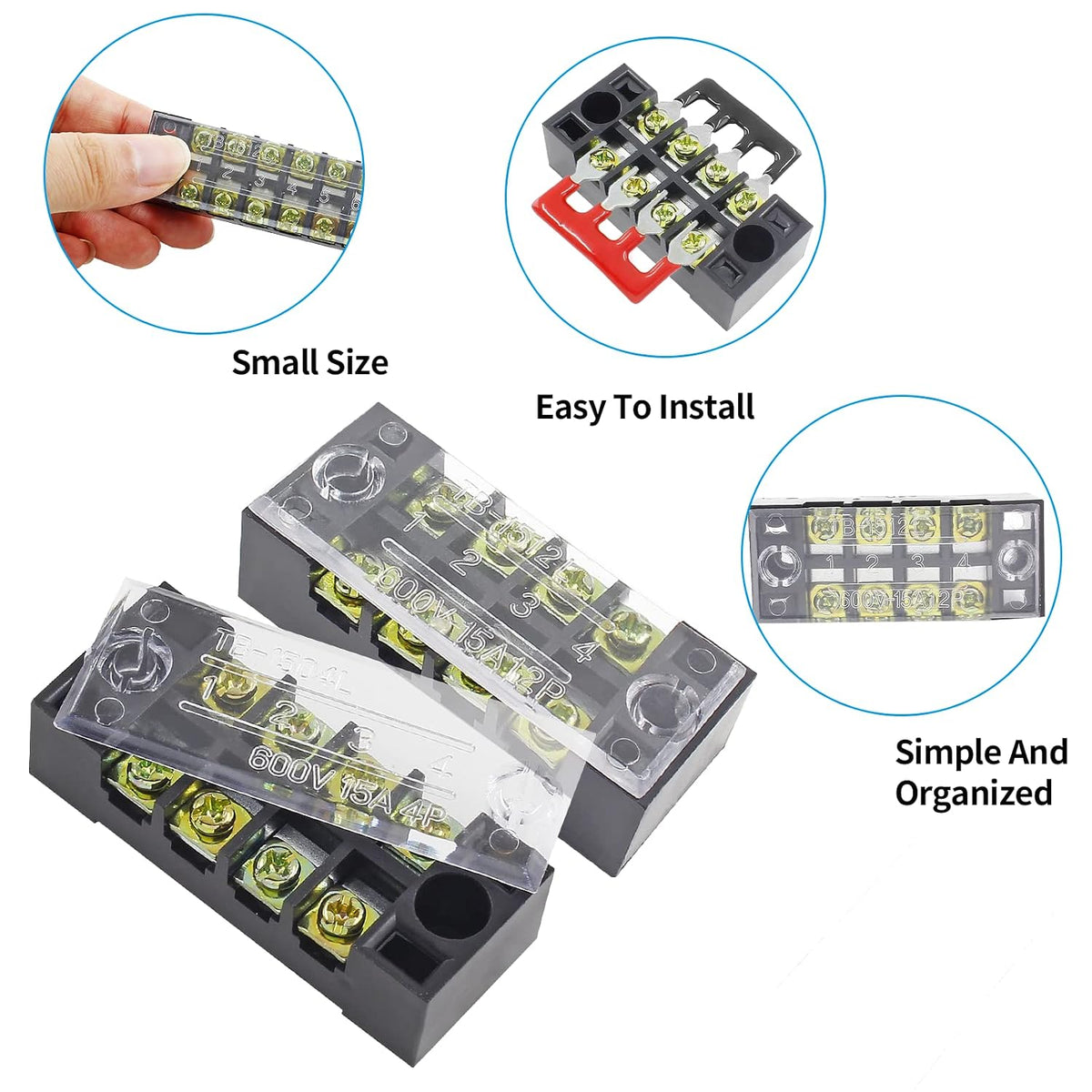

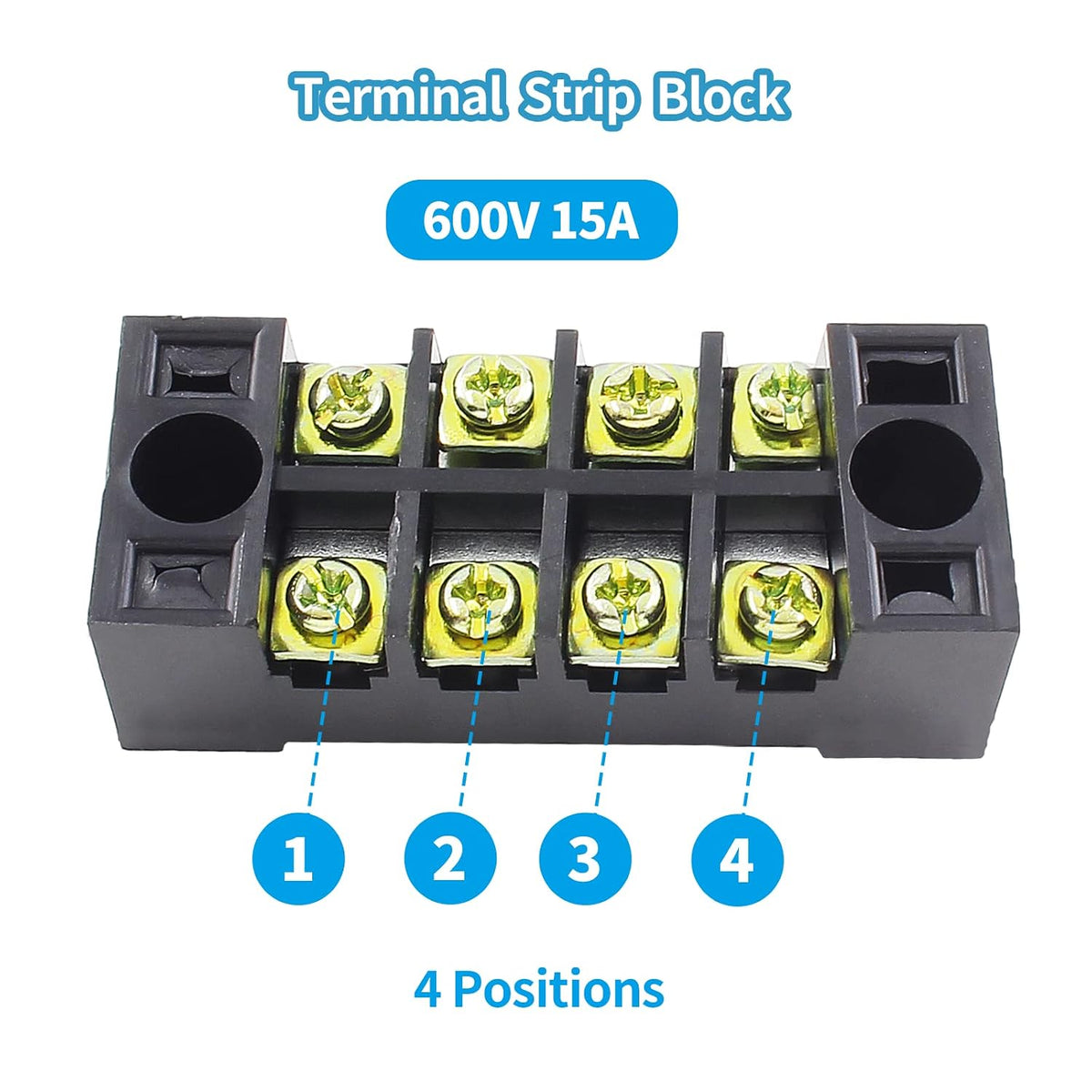

- Dual Row Compact Design: The 4-position barrier layout separates two distinct circuits in one block. This tidy organization keeps your wiring panel clean and simplifies future tracing or modifications.
- Pre-Insulated Jumper Blocks: The red and black jumpers snap into place across adjacent positions for quick parallel connections. Their insulated exterior reduces the risk of bridging and makes reconfiguration fast without exposed metal.

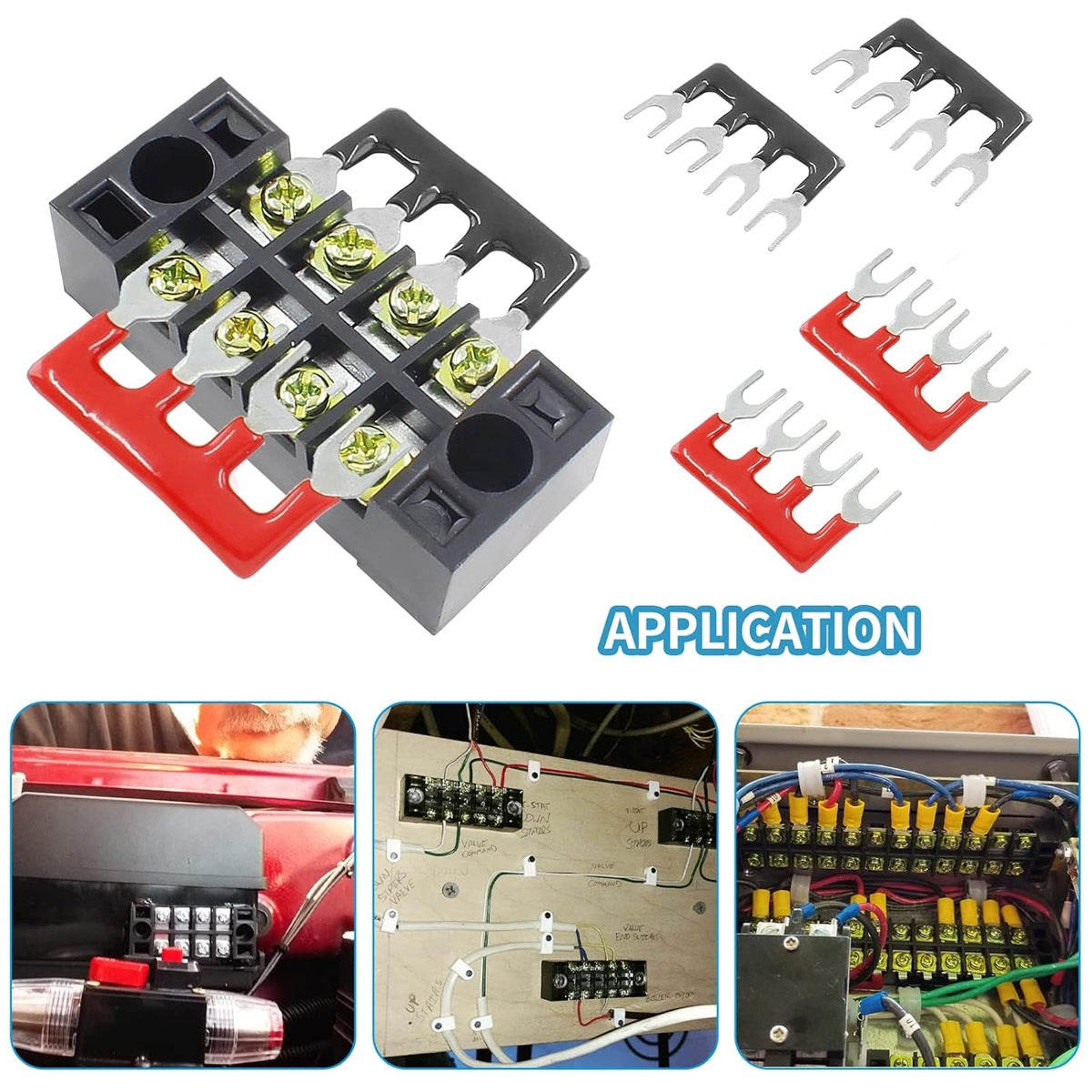

- Wide Application: Suited for marine electrical panels, control cabinets, distribution boxes, and DIY projects. The sturdy PC housing and screw-down terminals provide a secure hold for stranded or solid copper wire in any setup.

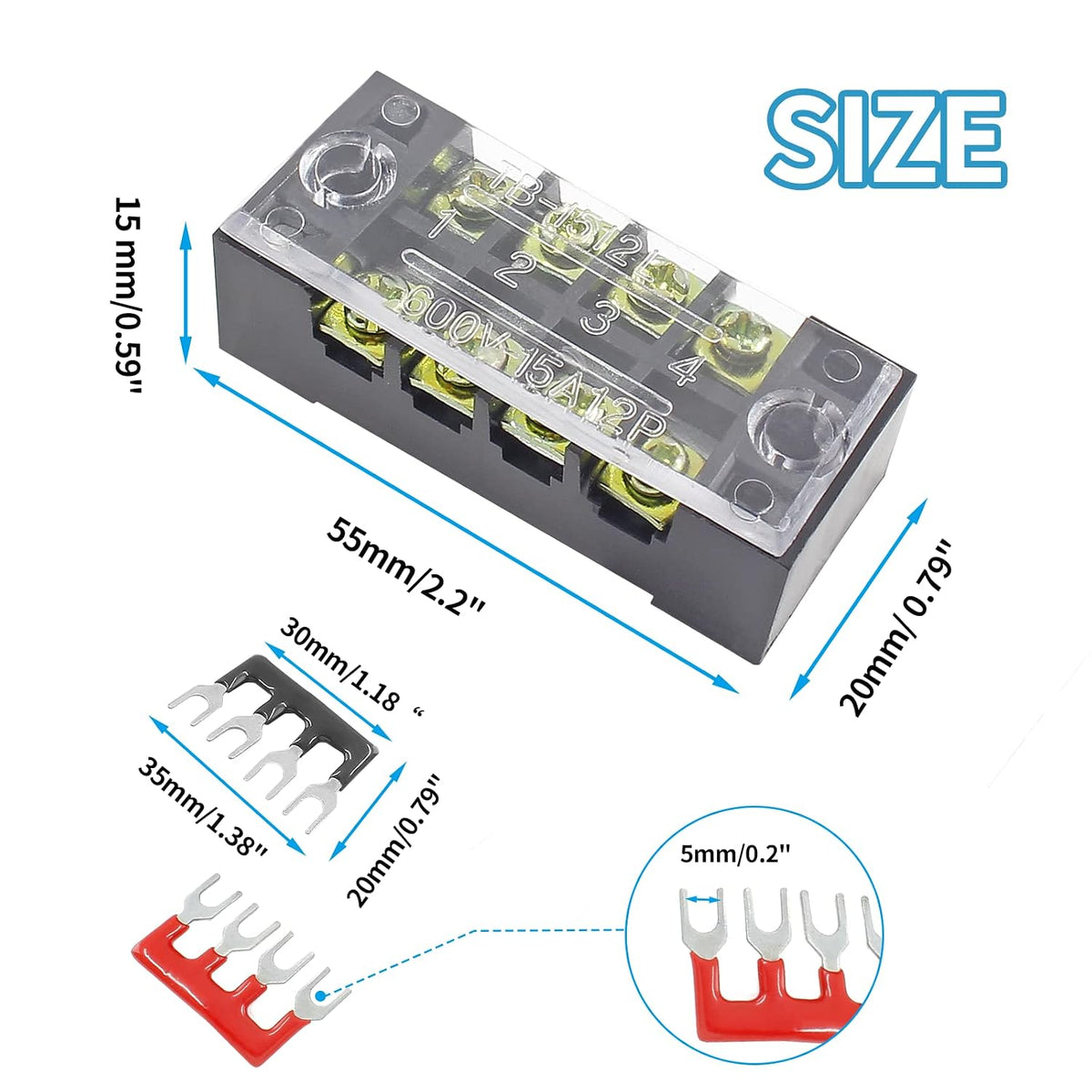

Product Feature: The screw covered strip blocks are equipped with red and black jumpers to help you distinguish positive and negative wire when installation. Use dual row screw terminal strip block to connect bare wires to avoid clutter, while jumpers allow signals or power to be distributed neatly, making wiring connection simpler and more efficient. Specifications: Product Name: Terminal Strip Block + Fork Terminal Strip Jumper Material: Plastic, Metal Main Color: Red, Black Terminal Block Rated Voltage/ Current: 600V/ 15A Position: 4 Positions Terminal Strip Block Dimensions (L x W x H): 55 x 20 x 15 mm/ 2.2" x 0.79" x 0.59" Package Includes: 5 pcs x dual row terminal blocks 5 pcs x black terminal barrier strip jumper 5 pcs x red terminal barrier strip jumper
Free shipping included. 30-day hassle-free returns.
