6 Pack LM2596 DC to DC High Efficiency Voltage Regulator 3.2-35V to 1.25-30V Buck Converter DIY Power Supply Step-Down Module
6 Pack LM2596 DC to DC High Efficiency Voltage Regulator 3.2-35V to 1.25-30V Buck Converter DIY Power Supply Step-Down Module
Key features

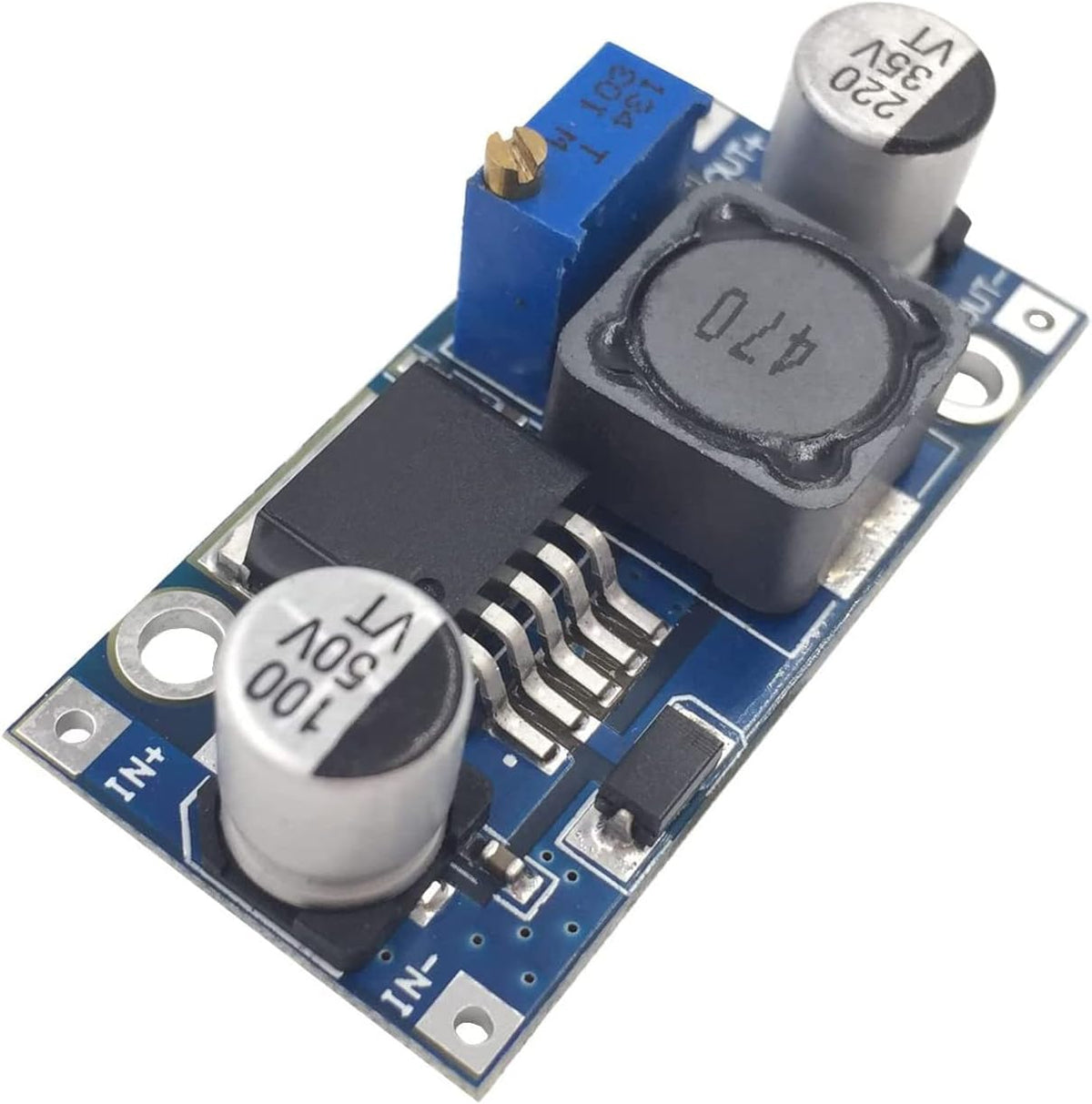

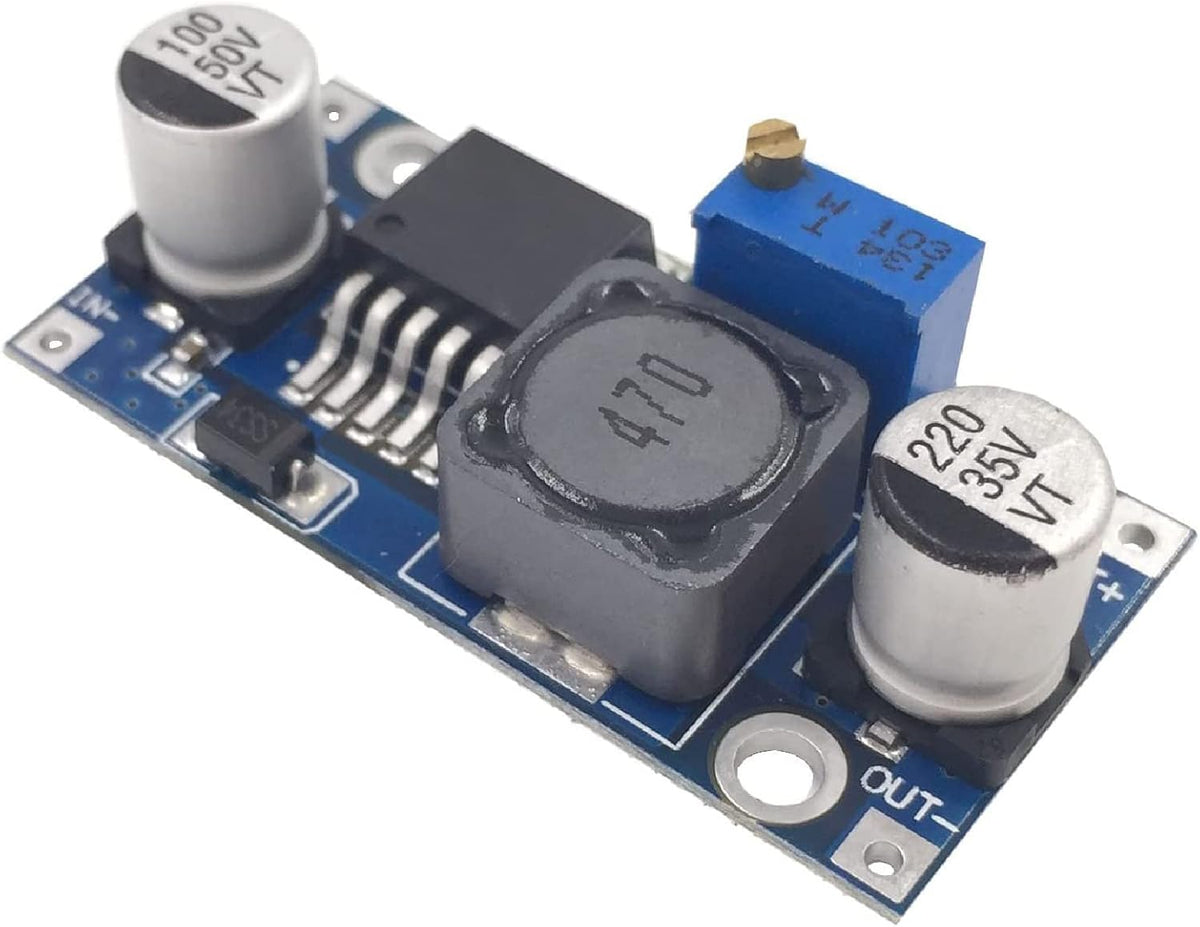

- High PrecisionThe buck converter consists of 36u thickened circuit boards, high-Q inductance with output LED indicator, and superior solid-state capacitors that can effectively filter out high frequency noise. Suitable for various electronic projects.
- Input VoltageDC 3.2V to 35V (input voltage must be 1.5V higher than the output voltage, no boost).
- Output VoltageDC 1.25V to 30V voltage is continuously adjustable, maximum output current is 3A.

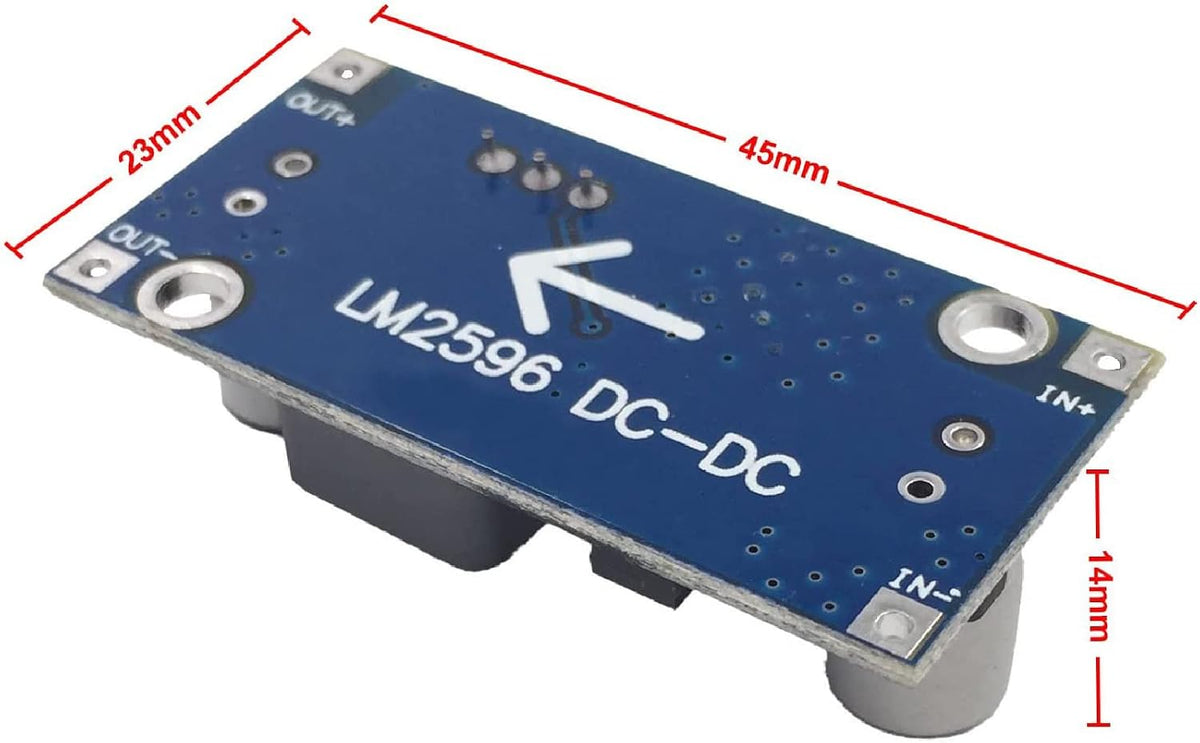

- Mini Size45 * 23 * 14 mm (with potentiometer). 6pcs included.

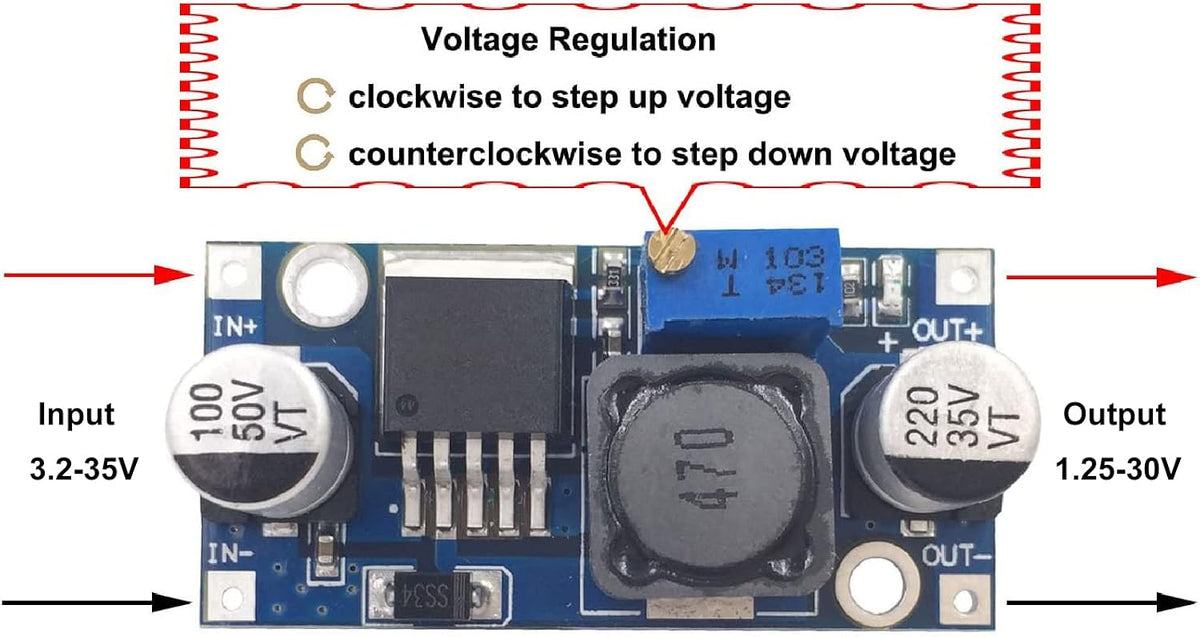

- Easy to DIYConnect to power source, using a mini screwdriver to increase or decrease output voltage by adjusting the screw on the blue potentiometer and monitor voltage with multimeter to get the needed voltage, clockwise to step up voltage and counterclockwise to step-down voltage. (Factory default stays a high voltage, you need to contrarotate about 7-15 circles before the voltage starts ramping down, 1 circle means +/- 1V)

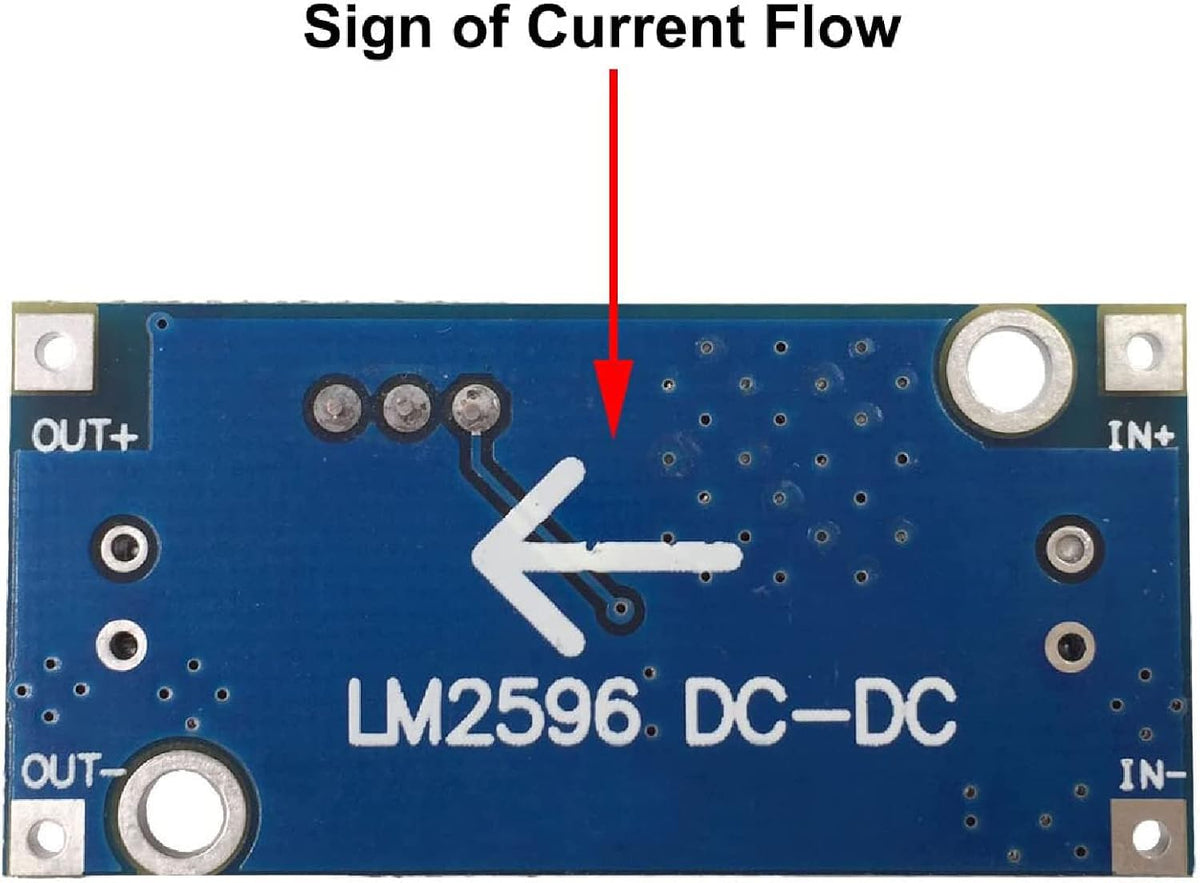

Features: - DC to DC step-down module - Thickened circuit boards - Advanced solid-state capacitor - Short circuit and over-temperature protection - 100% tested, sealed in anti-static packaging Kindly Note: 1. Input voltage must be 1.5 V higher than the output voltage, no boost 2. Do not reverse the input and output interface 3. Keep output under 2.5A (or 10W) and use a heat sink when for a long time working4. The factory settings stay a high voltage, you may need to contrarotate the screw on blue potentiometer about 7-15 circles before the output voltage changes Specifications: - Type: DC-DC buck converter - Input voltage: DC 3.2V - 35V - Output Voltage: DC 1.25V - 30V (adjustable) - Output Current: 3A (max.) - Output Power: 15W (max.) - Conversion Efficiency: 92% (max.) - Switching Frequency : 65KHz - Rectification: non-synchronous rectification - Module property: non-isolated buck module - Operating Temperature: -45℃ to +85℃ - Load Regulation: ± 0.5% - Voltage Regulation: ± 2.5% - Size(L x W x H): 45*23*14mm / 1.77*0.91*0.55inch - Weight: 14g Package List: 6x DC to DC Buck Converter Module
Free shipping included. 30-day hassle-free returns.
