Key features

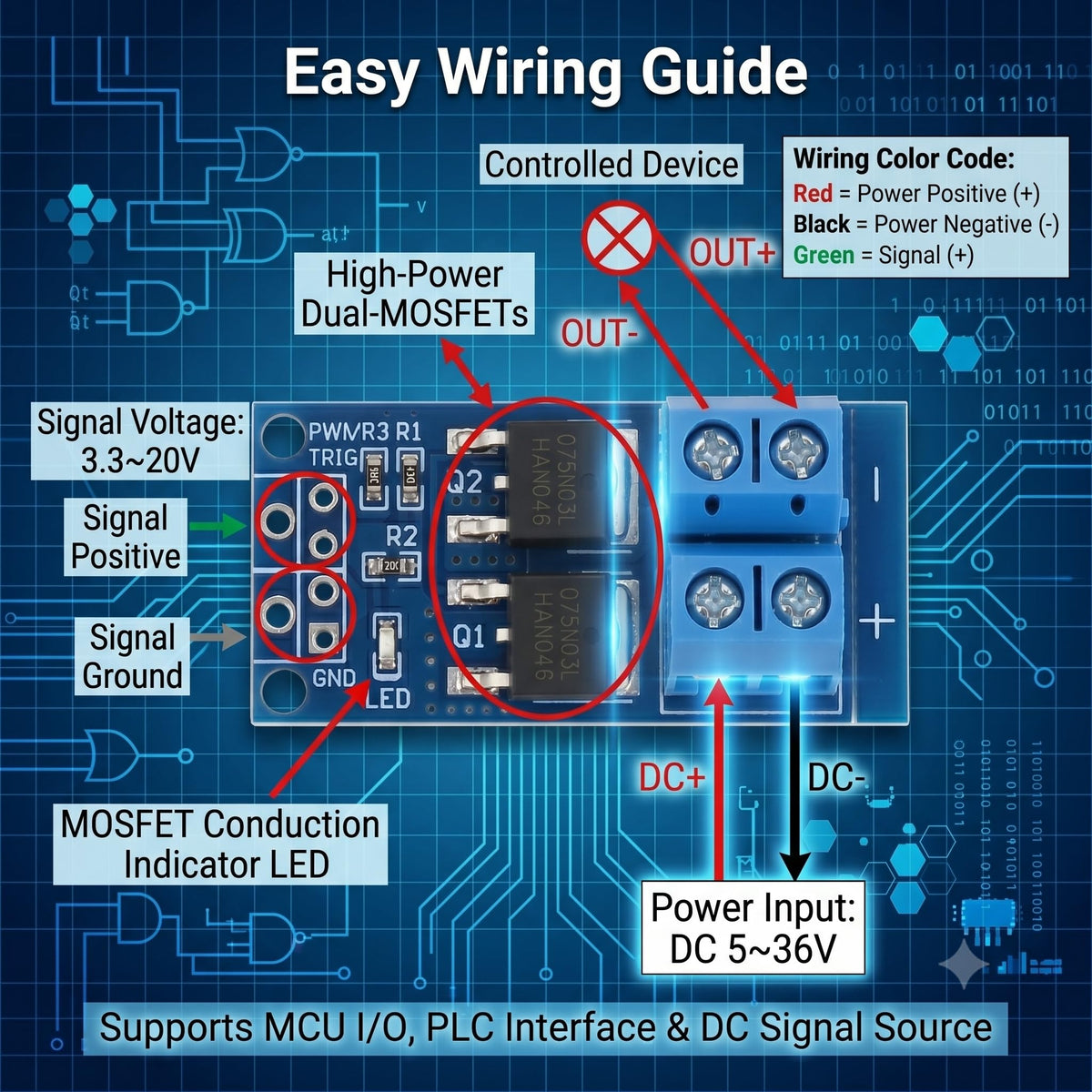

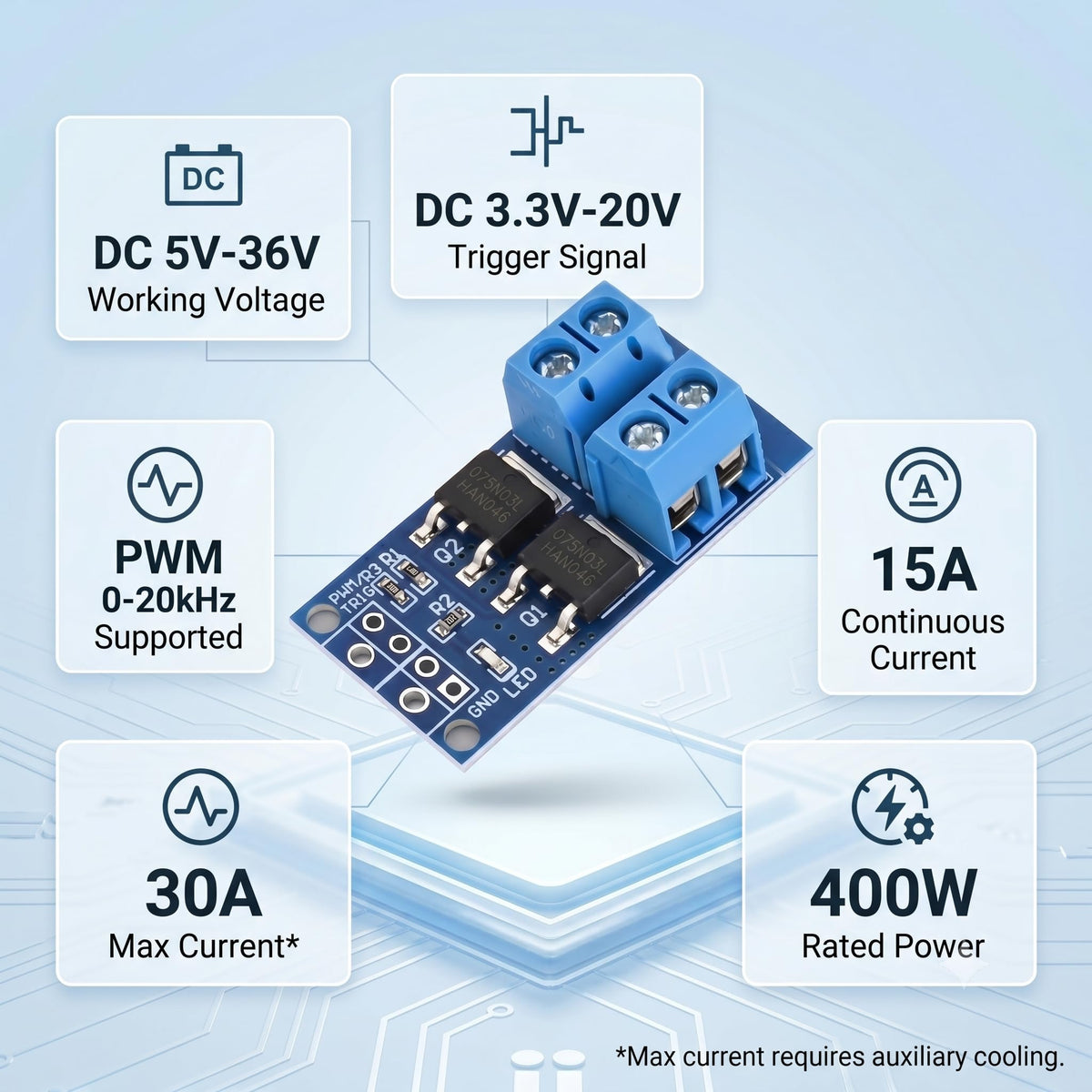

Wide DC Signal Range: Designed for DC 5V to 36V operation, the module accepts DC 3.3V to 20V digital high/low trigger signals for compatible microcontroller I/O, PLC interfaces, and DC signal sources.
PWM Adjustment Ready: Supports 0 to 20kHz PWM input, allowing a compatible controller to adjust DC motor speed, LED strip brightness, or lamp dimming through an electronic switch setup.
Dual MOSFET Output: Parallel MOSFET active output helps reduce internal resistance for higher current handling; rated at 15A continuous, 400W max, and up to 30A peak with enhanced cooling.
Compact Board Size: Measuring 34 x 17 x 12 mm / 1.34 x 0.67 x 0.47 in, the small control board fits project boxes, panels, and space-limited builds; operating temperature range is -40°C to 85°C.
For Common DC Loads: Use with compatible DC motors, LED lights, light bulbs, micro pumps, and solenoid valves in hobby electronics, lab prototypes, equipment control, and repair projects.

Control compatible DC loads with a compact dual MOSFET trigger switch driver module designed for low-voltage DC projects. The board operates from DC 5V to 36V and accepts a DC 3.3V to 20V digital high/low trigger signal. It can also receive a 0 to 20kHz PWM signal, making it useful for motor speed adjustment, LED or lamp brightness control, and electronic switching tasks. The parallel dual MOSFET output design supports higher current handling in a compact board format. Output capacity is 15A continuous, 400W max, and up to 30A peak when enhanced cooling is used. The module measures 34 x 17 x 12 mm / 1.34 x 0.67 x 0.47 in and has an operating temperature range of -40°C to 85°C. Use it with compatible DC motors, LED strips, light bulbs, micro pumps, solenoid valves, and similar DC loads. Match the module to your load requirements and provide proper wiring, heat dissipation, and power supply capacity when operating near high current levels.
