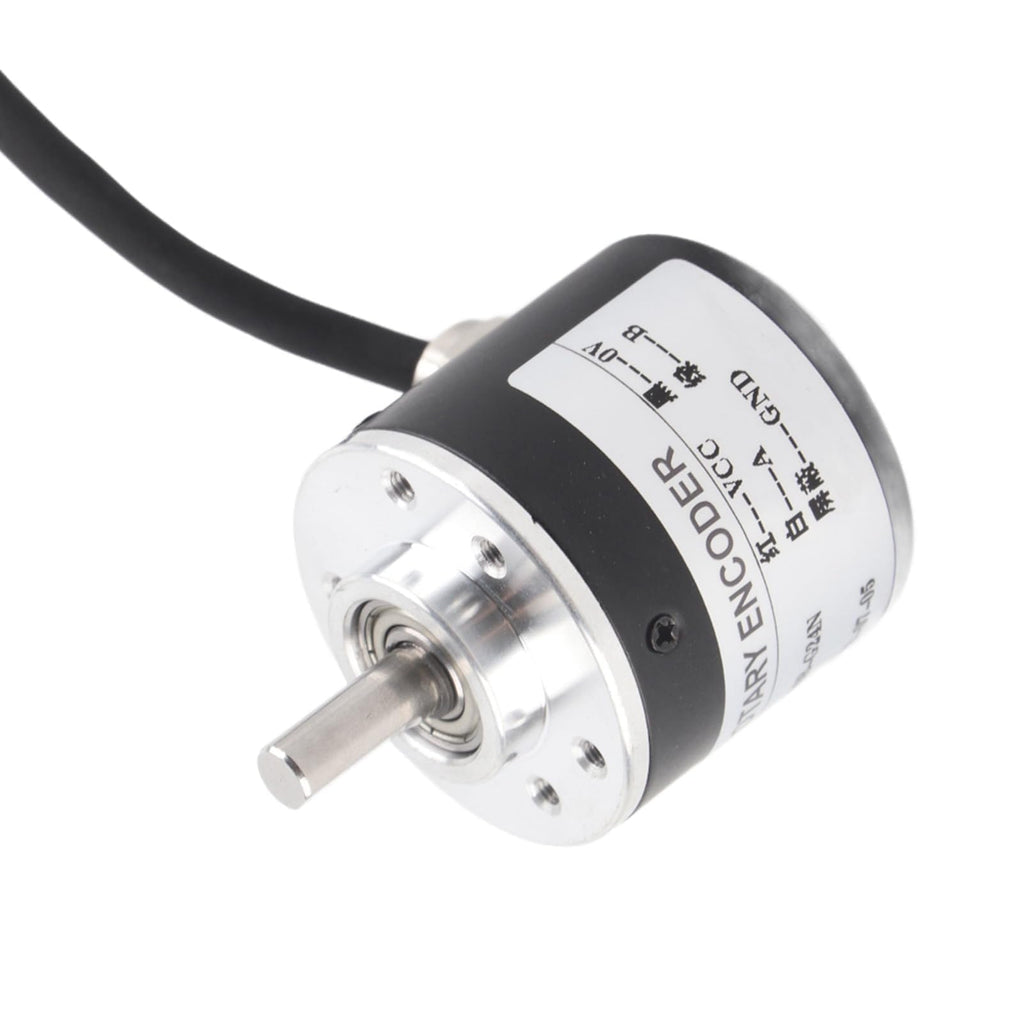

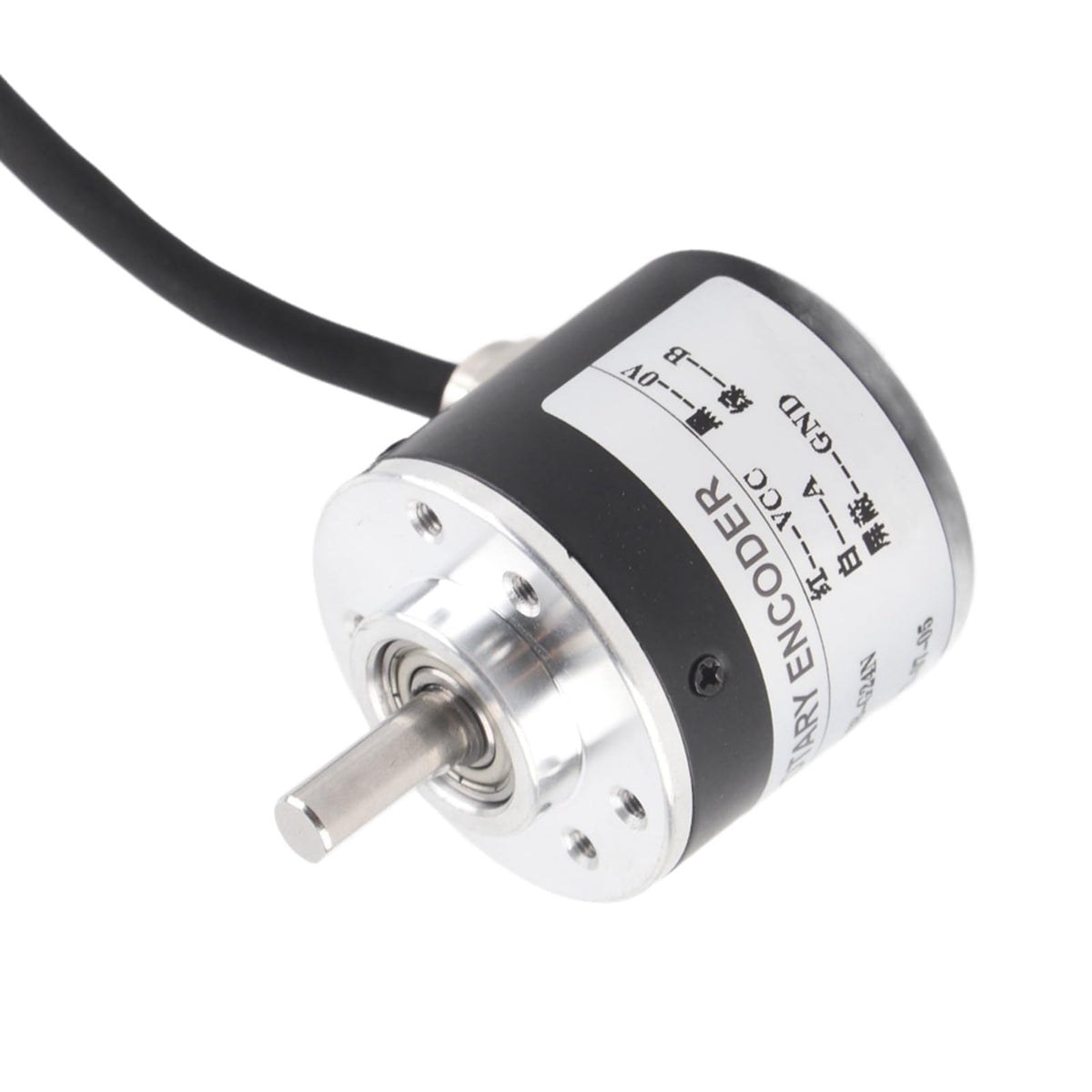

600p R Rotary Encoder, Mini Incremental Rotary Encoder 5v to 24v Ab 2phases Shaft 6mm for Industrial Automation Equipment

Key features

• Sensor Encoder: Incremental rotary encoder has 600 p/r (Single‑phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses)
• Rotary Encoder: Mini incremental rotary encoder Power source is DC5‑24V. Stable working performance and good working condition
• Stable Work Performance: Incremental optical rotary encoder, AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
• Multi-purpose: Supplies magnetoelectric rotation encoder can be used to measure the rotational rate, Angle and acceleration of the object and the length measurement
• Applicable to: Rotary encoder suitable for intelligent control of various displacement measurement, automatic fixed‑length leather automatic guillotine machines, steel cut length control, height and weight scale, students racing robots

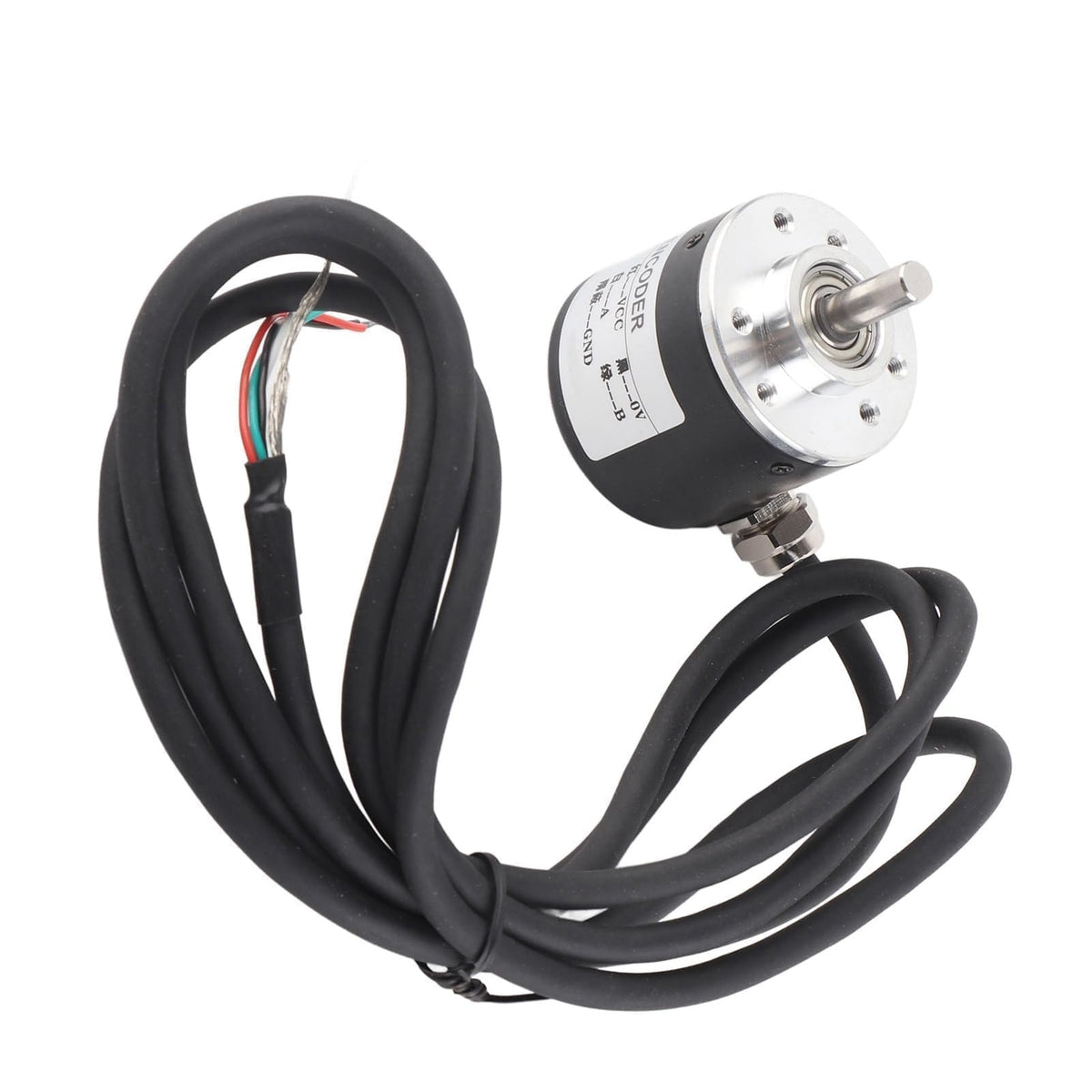

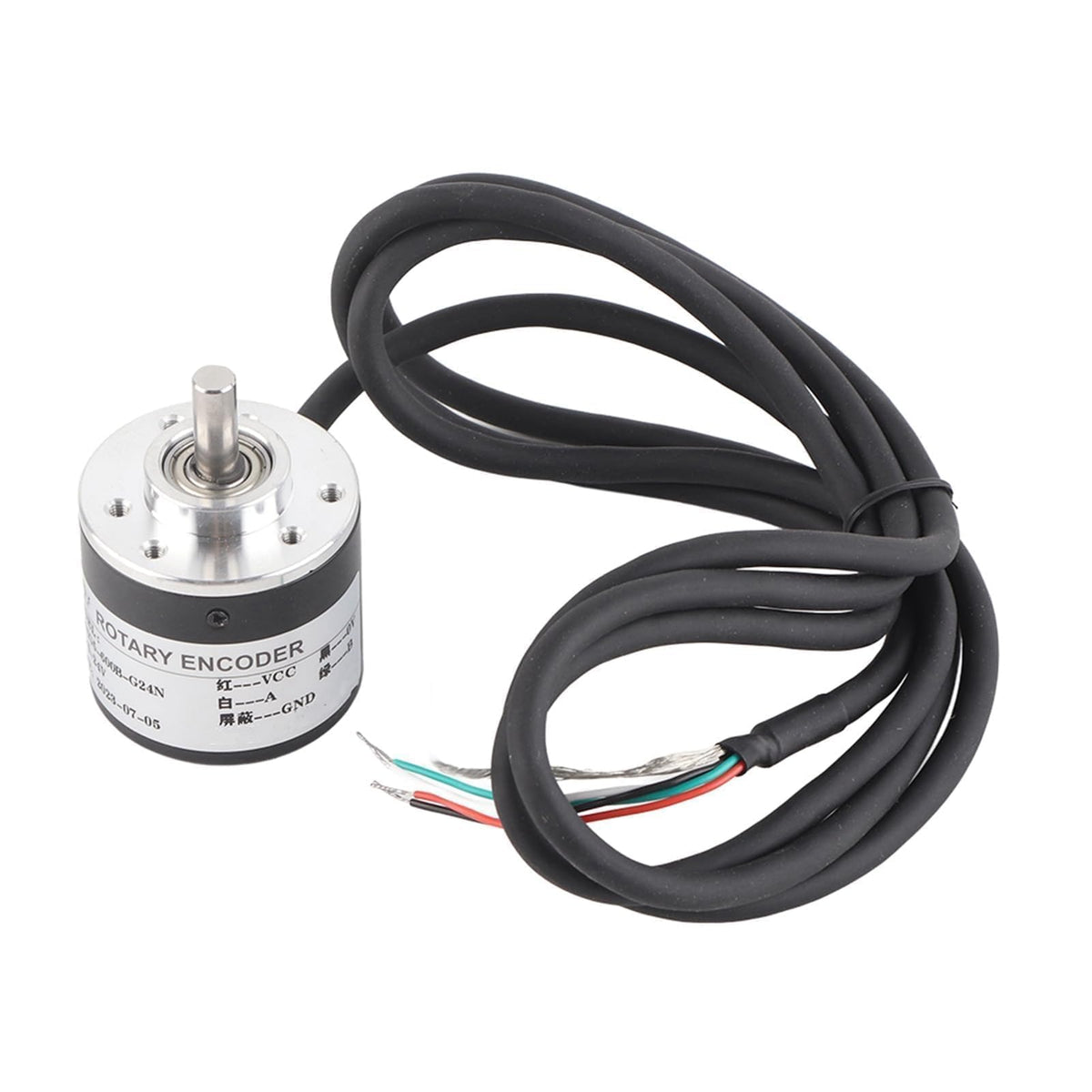

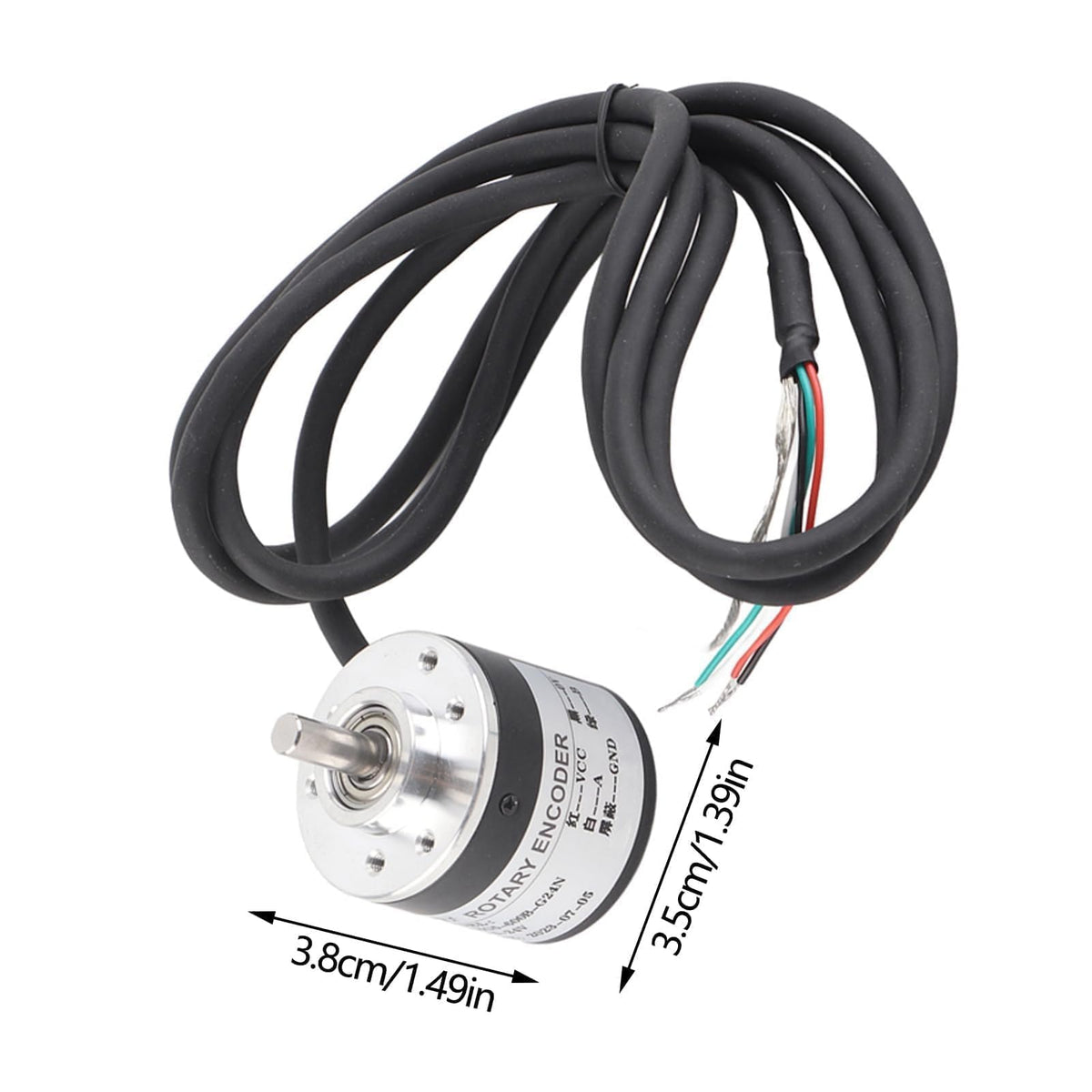

Specifications: Pulses: 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses) Power source: DC5-24V Shaft: 6*13mm/0.23*0.51" Size: 38*35.5mm/1.49*1.39" Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type Maximum mechanical rate: 5000 R / min Response frequency: 0-20KHz Cable length: 1.5 meter Uses: 1. It can be used to measure the rotational rate, Angle and acceleration of the object and the length measurement 2. Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots Notice: AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal.(Green = A phase, white = B phase, red = Vcc power +, black = V0) Package included: 1 x Encoder 600P/R Incremental Rotation Encoder
