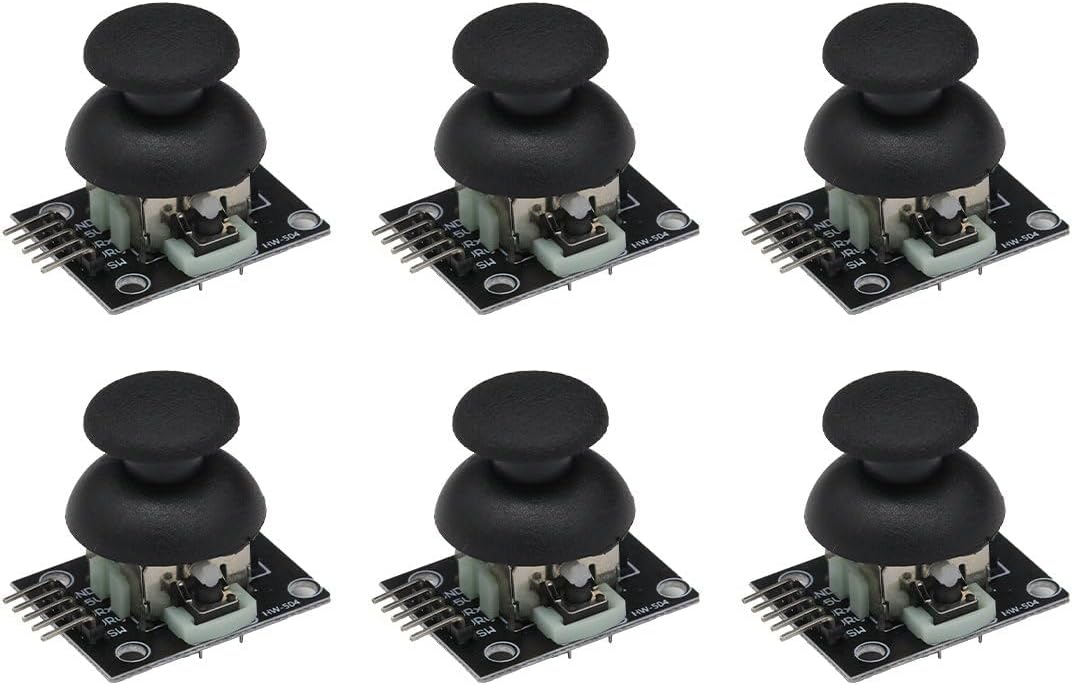

6PCS Game Joystick Control Stick Sensor KY-023 Dual-Axis Button Joystick for PS2 Arduino

Key features

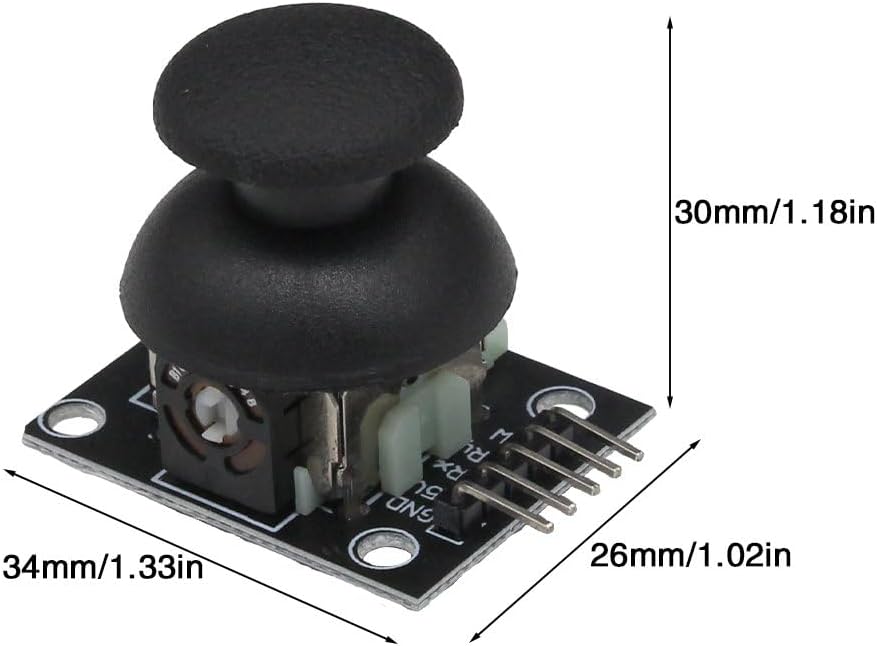

• This module Input Voltage Range: DC 3.3V - 5V；Module Dimensions: 34.0mm × 32.0mm × 26.0mm (L × W × H) / 1.34in × 1.26in × 1.02in.
• This module Output Signal:Two analog output signals and one digital output interface corresponding to the offsets of the (X, Y) dual axes (analog signal)；The button indicates whether the user has pressed on the Z axis (digital switch signal).
• This module can be programmed via a controller and used with a sensor expansion board, allowing for a wide range of creative possibilities in your interactive projects.
• The joystick features a dual-directional 10K resistor, with resistance changing as the joystick is moved in different directions.
• When powered with 5V, the X and Y readout voltage is approximately 2.5V in a neutral state. Moving the joystick in the direction of the arrow increases the readout voltage, with a maximum of 5V; moving it in the opposite direction decreases the readout voltage, with a minimum of 0V.

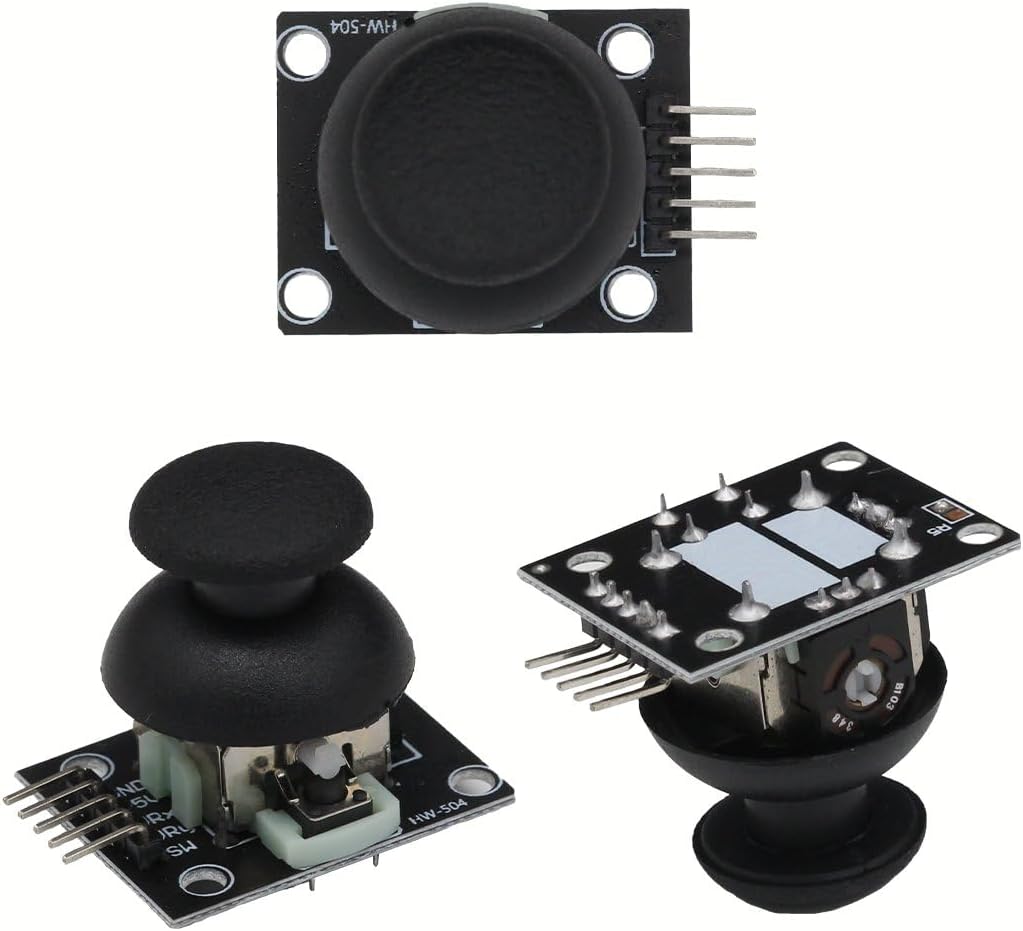

Product Parameters:Product Name: Joystick Module (Dual-Axis Button Joystick)Module Dimensions: 34.0mm × 32.0mm × 26.0mm (L × W × H) / 1.34in × 1.26in × 1.02inColor: BlackModule Weight: 11.0g (including packaging) / 0.39ozProduct Material: FR4 + Electronic ComponentsModule Introduction:The dual-axis button joystick sensor module is made using a PS2 joystick potentiometer, providing (X, Y) analog output for 2 axes and (Z) digital output for 1 button. When combined with a sensor expansion board, it can be used to create remote controls and other interactive projects. To facilitate easier connection with expansion boards and standard interfaces, the X, Y, and Z axis circuits are separately routed, allowing users to connect them using a 3-pin header to the expansion board.
