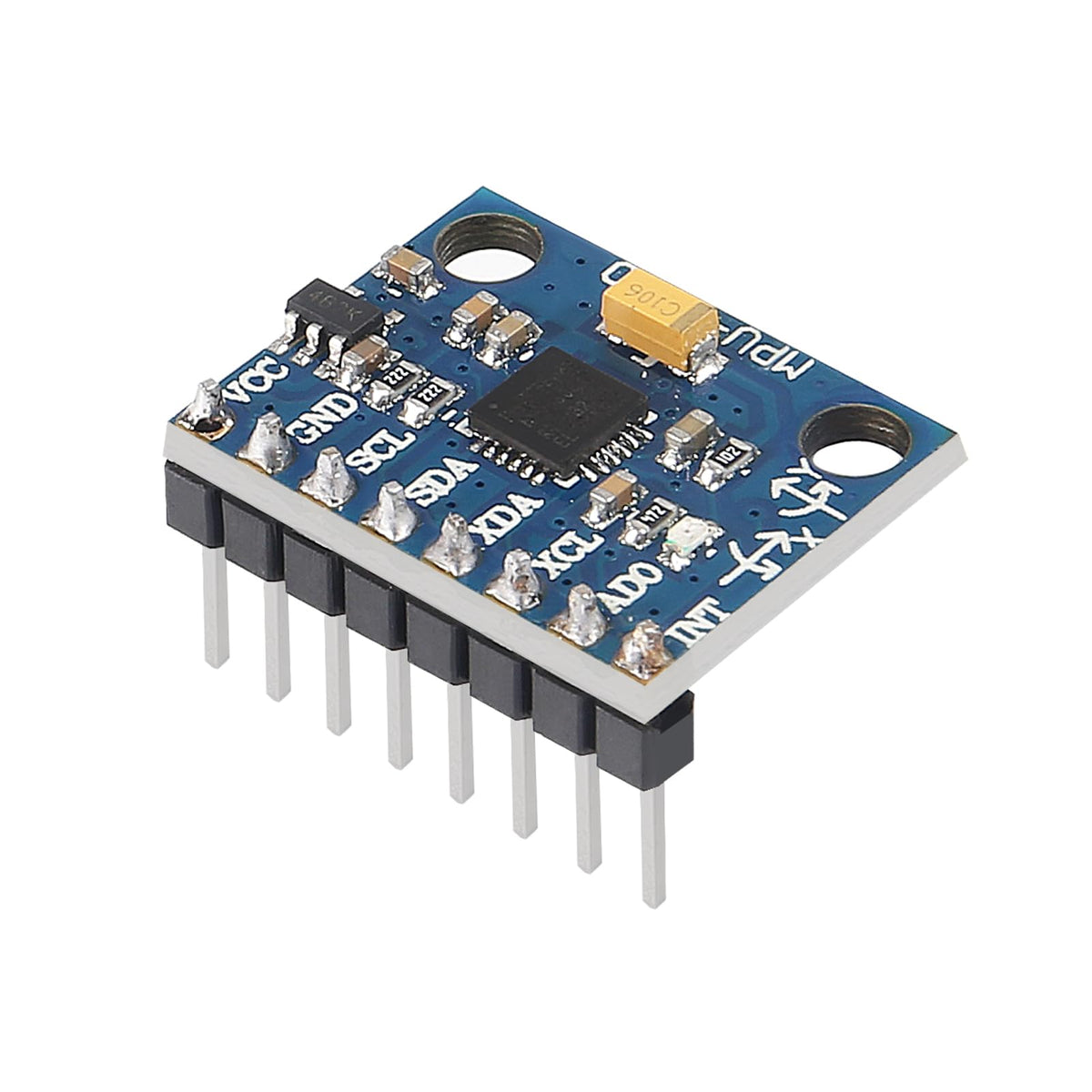

6PCS Pre-Soldered GY-521 MPU-6050 MPU6050 3 Axis Accelerometer Gyroscope Module 6 DOF 6-axis Accelerometer Gyroscope Sensor Module 16 Bit AD Converter Data Output IIC I2C

Key features

• GY-521 MPU-6050 module: Communication mode: standard IIC communication protocol; The accelerometer can be operated at both 3.3V and 5V; Compatible with Raspberry Pi. Pins are already soldered. Ready to plug in and go.
• The MPU-6050 Parameter: Gyroscopes range: +/- 250 500 1000 2000 degree/sec; Acceleration range: ±2 ±4 ±8 ±16g; Transmission can pass I2C up to 400kHz or SPI up to 20MHz
• MPU 6050 Chip built-in: with three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs and another three ones for digitizing the accelerometer outputs.
• Chip built-in: with three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs and another three ones for digitizing the accelerometer outputs
• Universal usable: the sensor can be applied to develop various entertaining applications and systems; Nice for projects with gaming and virtual reality devices, navigation (for drones and RC planes) and DIY robots

Features: 1.The item is set MPU-6050 module 3 axis gyroscope accelerometer module compatible with Raspberry Pi etc. 2.The MPU-6050 module adopts the standard IIC communication for communication and is powered by 3V-5V for sustainable use. 3.The module is nice for experimental and model structures compatible with Raspberry Pi. 4.Even better, this product is ready to be plugged in since it already has soldered pins. Specification: Model: GY-521 Main Chip: MPU-6050 Power supply: 3~5V Pin pitch : 2.54 mm Material: PCB Size: as the pictures shown Gyroscope range: ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16 g Communication mode: standard IIC communication protocol Chip built-in 16bit converter, 16bit data output Pins: VCC: This pin is used for Supply Voltage. Its input voltage is +3 to +5V. GND: This pin is used for ground. SCL: This pin is used for clock pulse for I2C communication. SDA: This pin is used for transferring data through I2C communication. Auxiliary Serial Data (XDA): It can be used for other interfaced other I2C modules with MPU6050. Auxiliary Serial Clock (XCL): It can also be used for other interfaced other I2C modules with MPU6050. ADO: If more than
