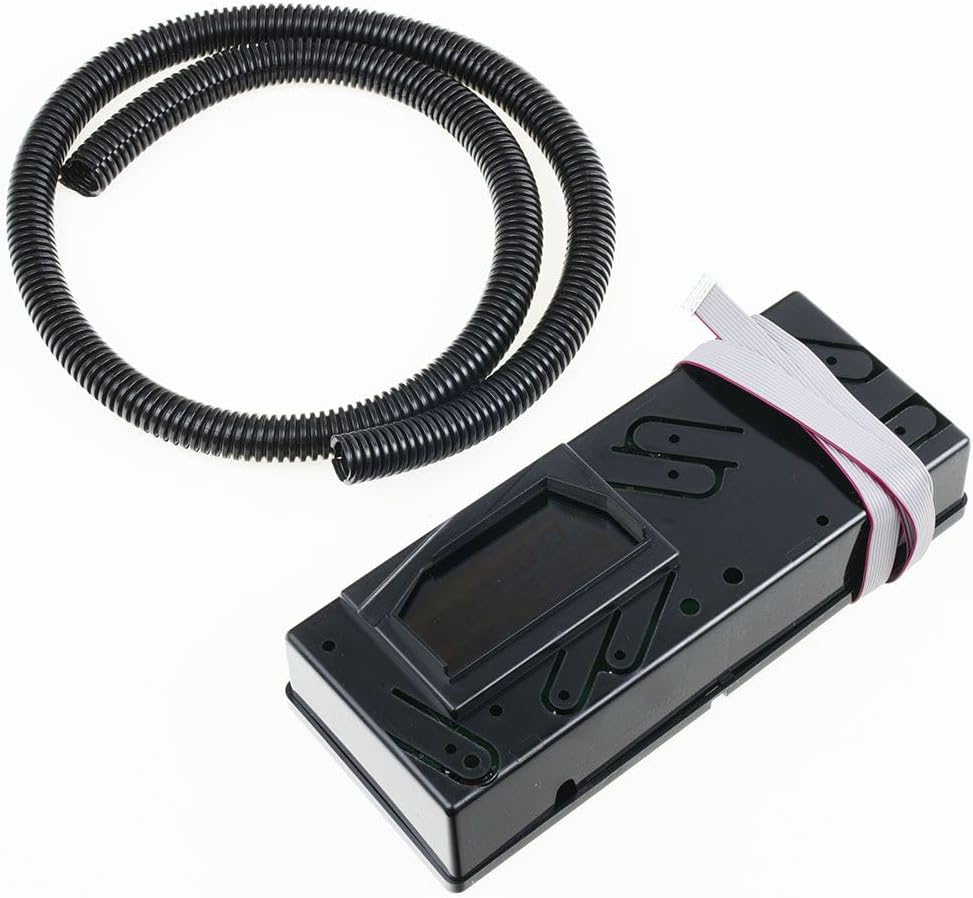

73225 Replacement for Hot Spring Watkins Control Panel Head IQ2020 Works with Main baord 77087

Key features

• Topside control panel control head 73225 for Watkins and Hot Spring spas.
• Control head replacement for Hot Spring IQ2020 control systems from 2001-2009.5.
• 6 Button, No Display w/3' Cord. Plug Type - 10 Pin Ribbon Plug
• This is the electronic part of the control head that is screwed to the front bezel.
• This item replaces Hot Spring Spa control panels: 37887; 38912; 0974401; 37294

This Hot Spring spa control panel (control head) is the replacement for all 2001-2009.5 Hot Spring spa models, this control head is located behind the front side control panel bezel. It is connected to the IQ 2020 spa control system (control box) with what looks like a computer ribbon (included and attached). When a button is pressed on the front side control panel bezel, that button is actually pressing on tabs located in specific areas of this control head. Those tabs in turn press on pressure points on the small circuit board inside the control head to activate a specific function. The control head is also where the thermostat circuitry is located as well as the LED readout of temperature and various icons.
