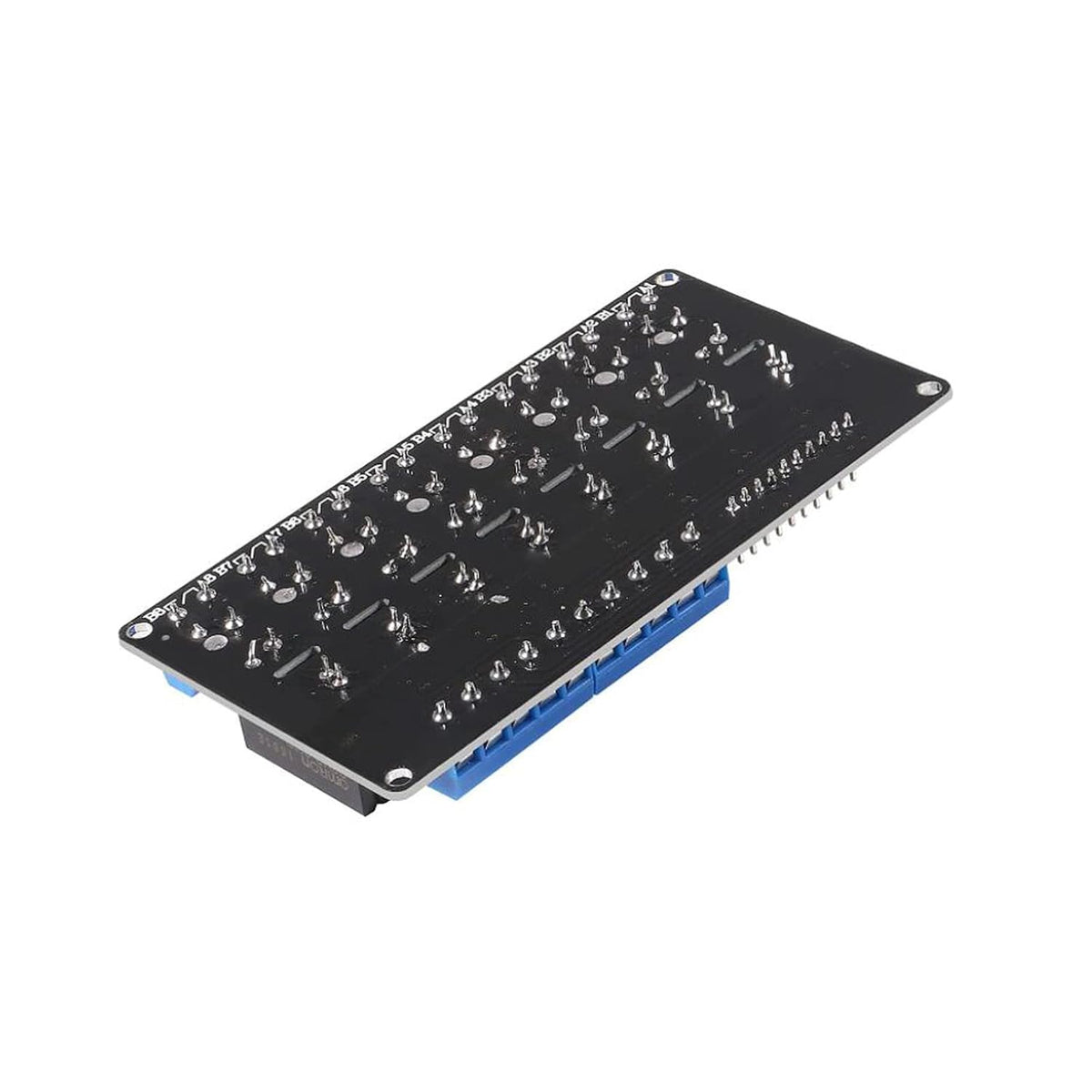

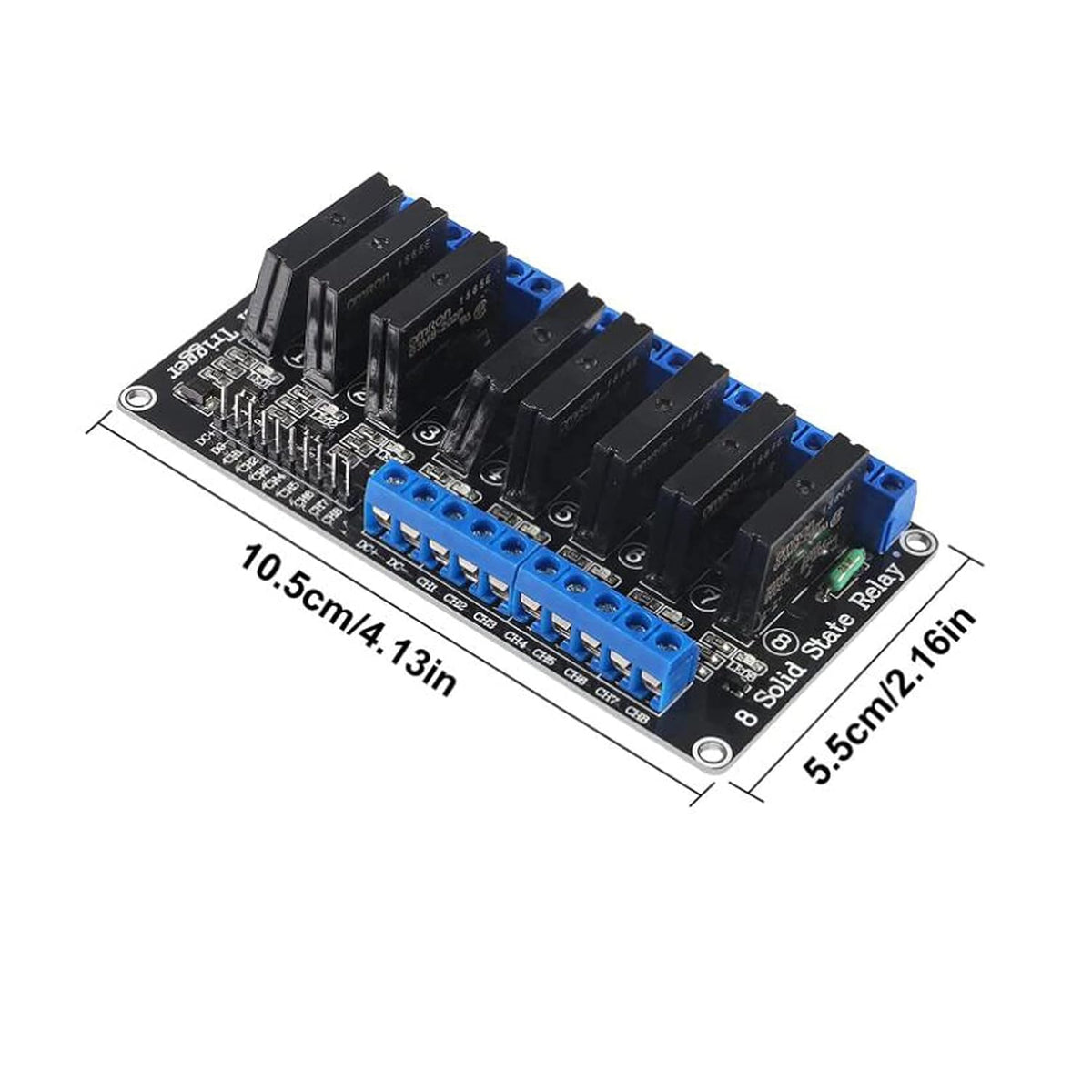

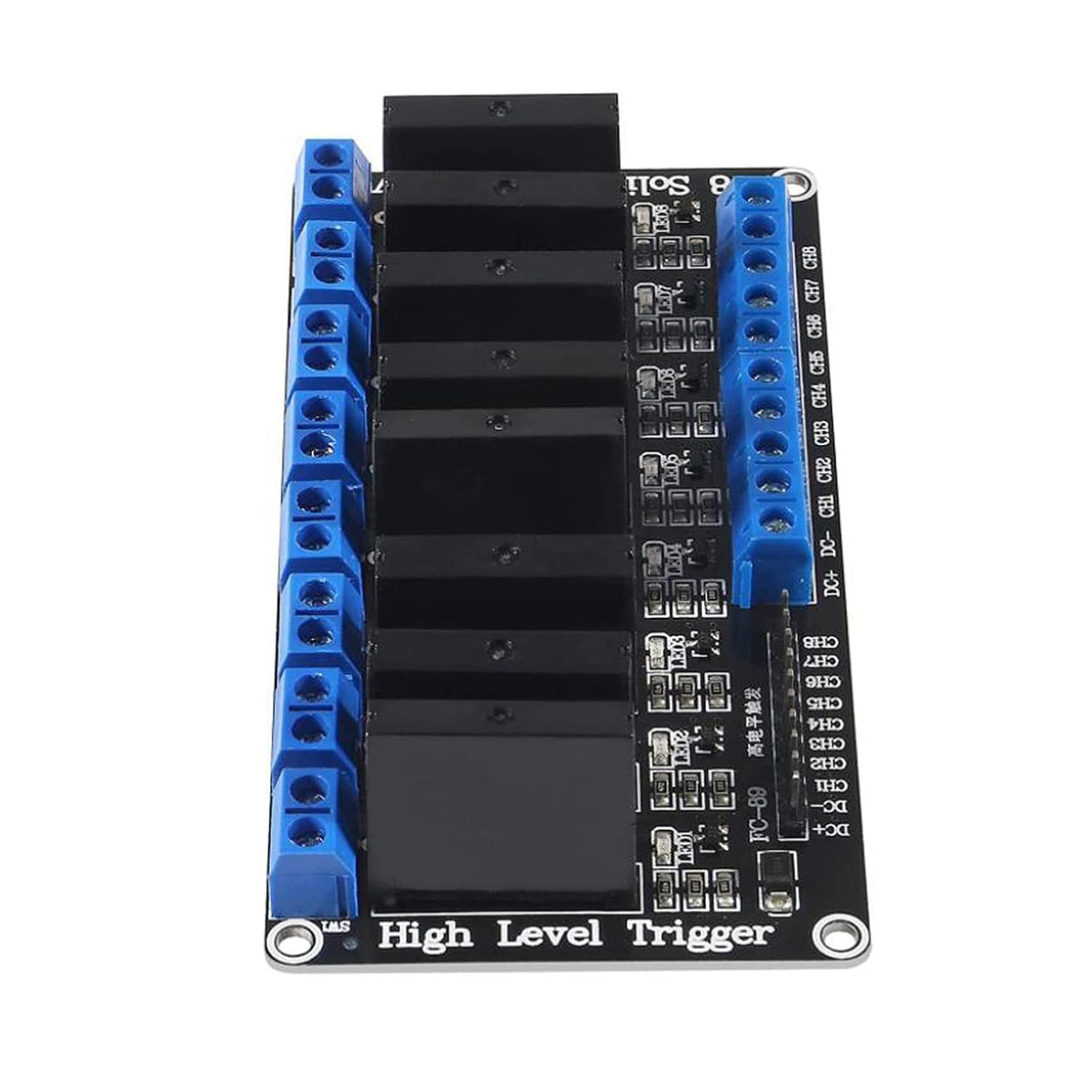

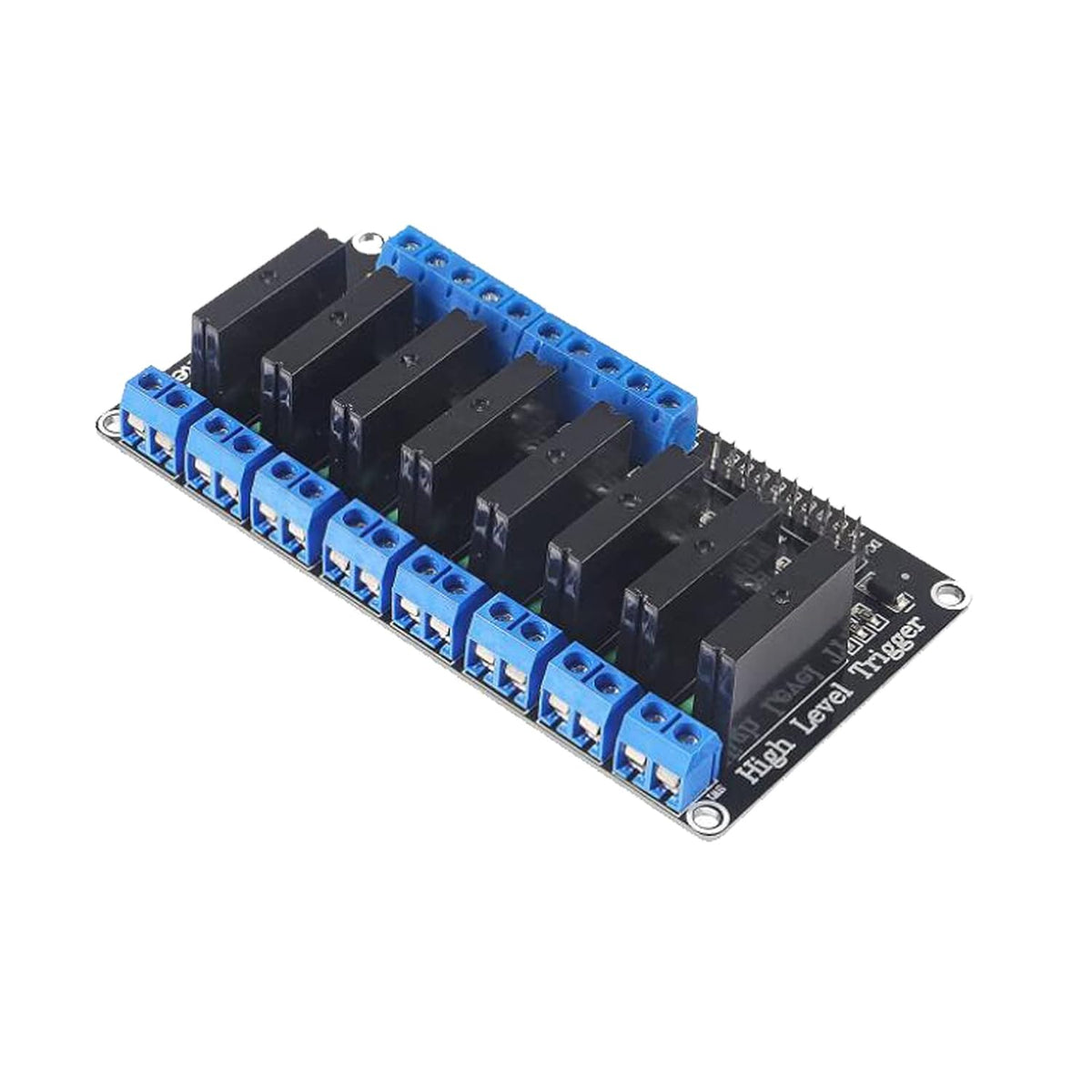

8 Channel Solid State Relay Module Board DC 5V High Level Trigger with Fuse

Key features

• 5V Solid State Relays Per Channel 250V 2A; Output with Resistive Fuse 250V 2A; Stable Performance, Trigger Current only 2mA
• Input Control Signal Voltage: 0V - 0.5V Low Stage (SSR OFF); 0.5V - 2.5V (Unknown State); 2.5V - 20V High State (SSR Active); SSR Output (Each Channel)
• LED Indicator for Each Relay; Standard Interface that Can Be Controlled by the Microcontroller (8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) Directly
• Anti-Reverse Power Function: The 8 Channels Solid State Relay is Closed When the Voltage Between the Trigger Terminal and the Negative Pole of the Power Supply is 0V or Close to 0V
• Applications: 8 Channel Solid State Relay Module widely Used for PLC Automation Equipment Control, Industrial System Control, Internet of Things Control, Electronic Enthusiasts to Develop Experiments, All Kinds of Circuit Modification
