90 Degree Right Angle Bevel Gearbox 1:1 Forward Reverse Double Output Shaft
90 Degree Right Angle Bevel Gearbox 1:1 Forward Reverse Double Output Shaft
Key features
- Provides efficient power transmission and smooth torque transfer with a 1:1 gear ratio and dual output configuration for seamless rotation in mechanical setups.
- Constructed with a lightweight aluminum alloy frame and robust 45 carbon steel gears paired with stainless steel shafts for enhanced durability and long term reliability.

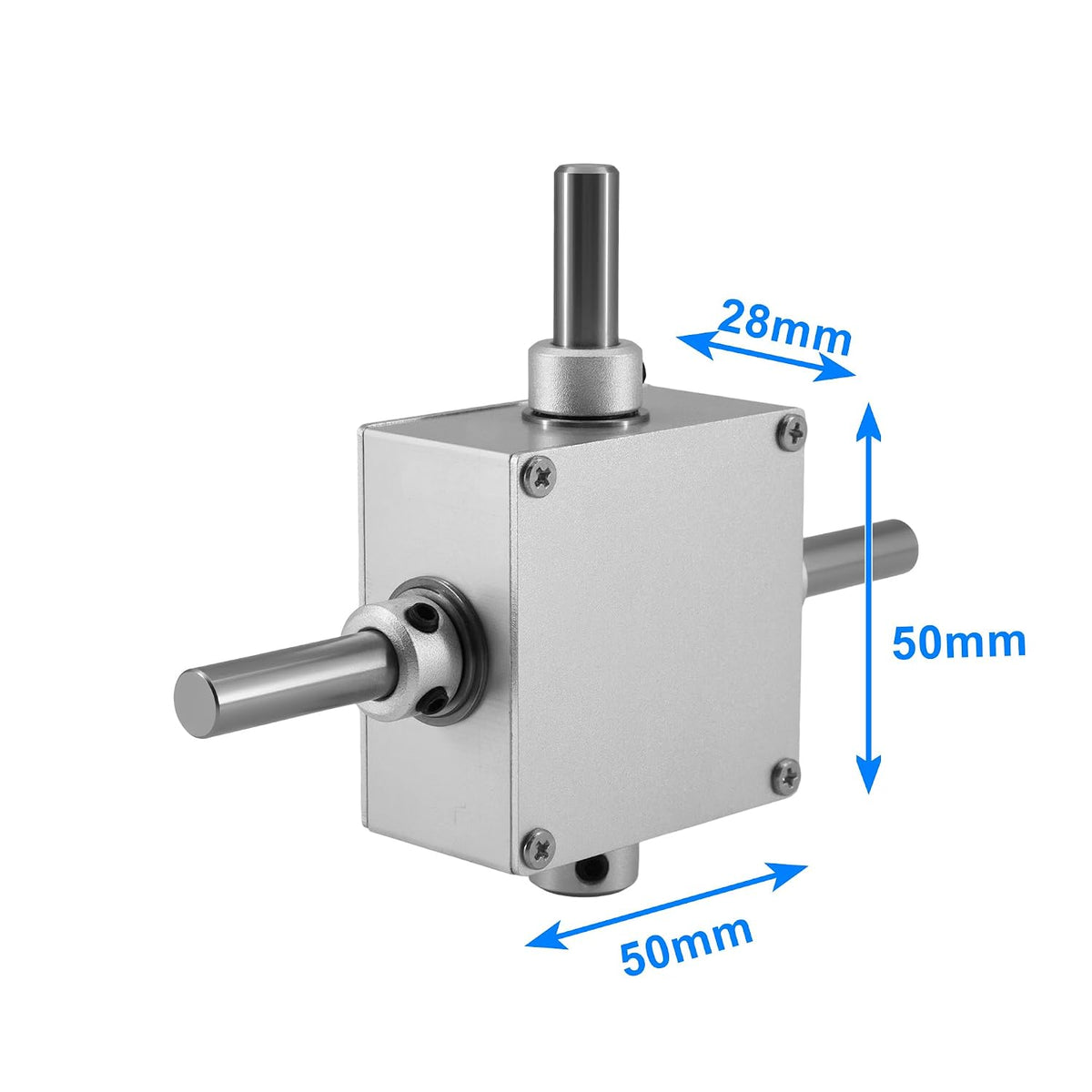

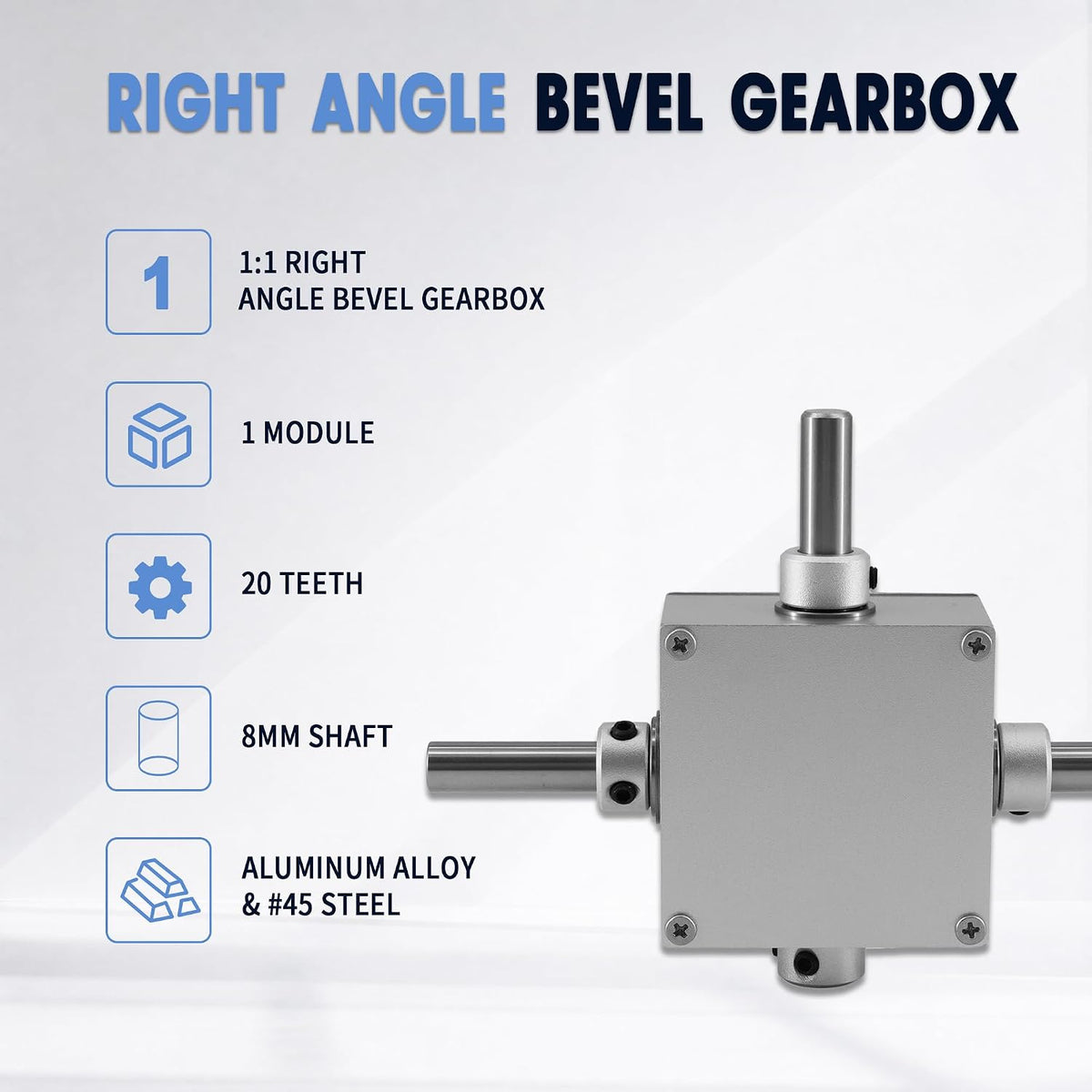

- Engineered as a 1 module 20 teeth forward reversing steering device featuring an 8mm bore diameter and standard dimensions of 118 by 87 by 30 millimeters for precise integration.

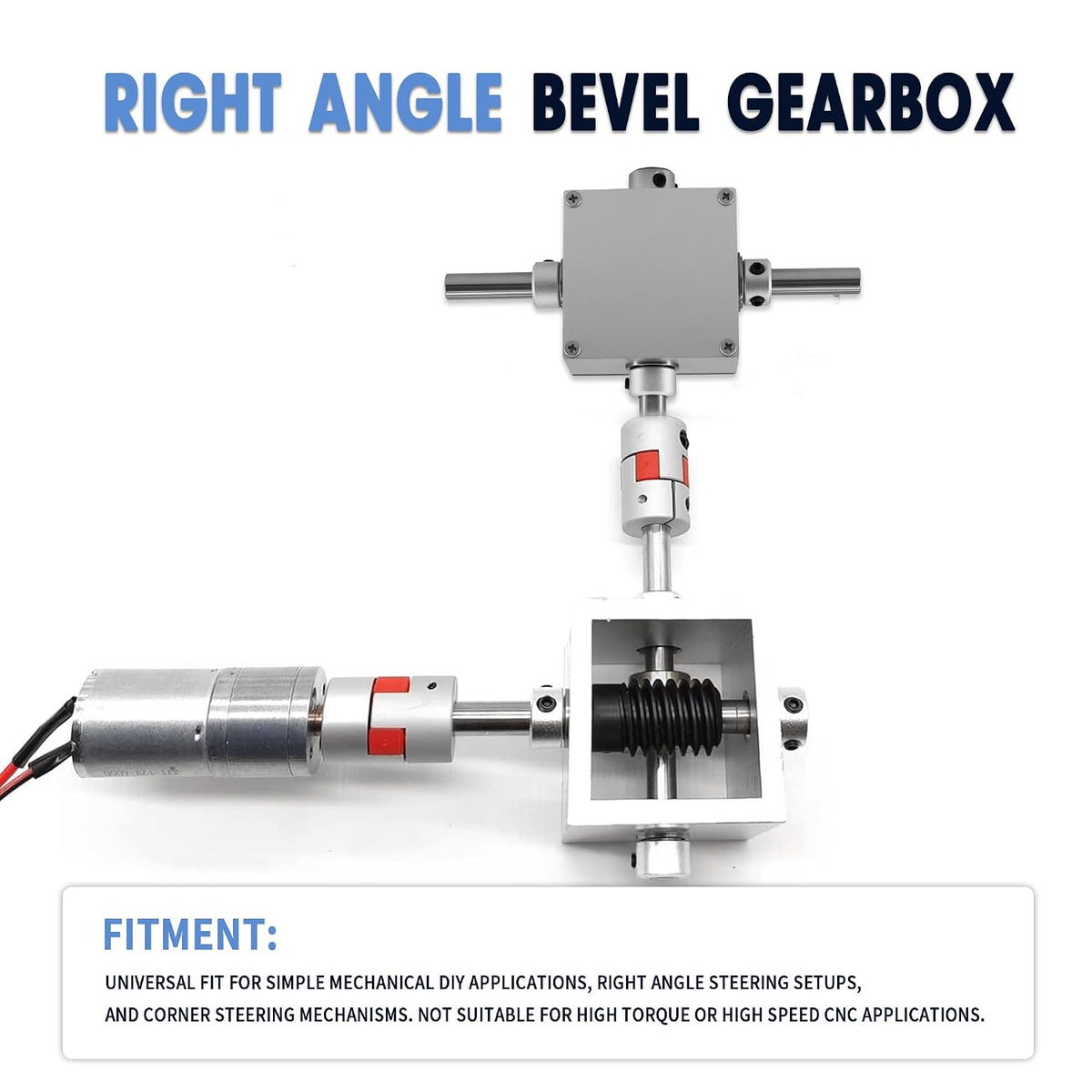

- Designed specifically for implementing right angle turns, corner steering mechanisms, and various simple DIY mechanical equipment setups requiring directional changes.
- Please verify the dimensions, shaft diameter, and gear specifications before purchasing, as this simple steering gear is not intended for high torque or high speed CNC applications.

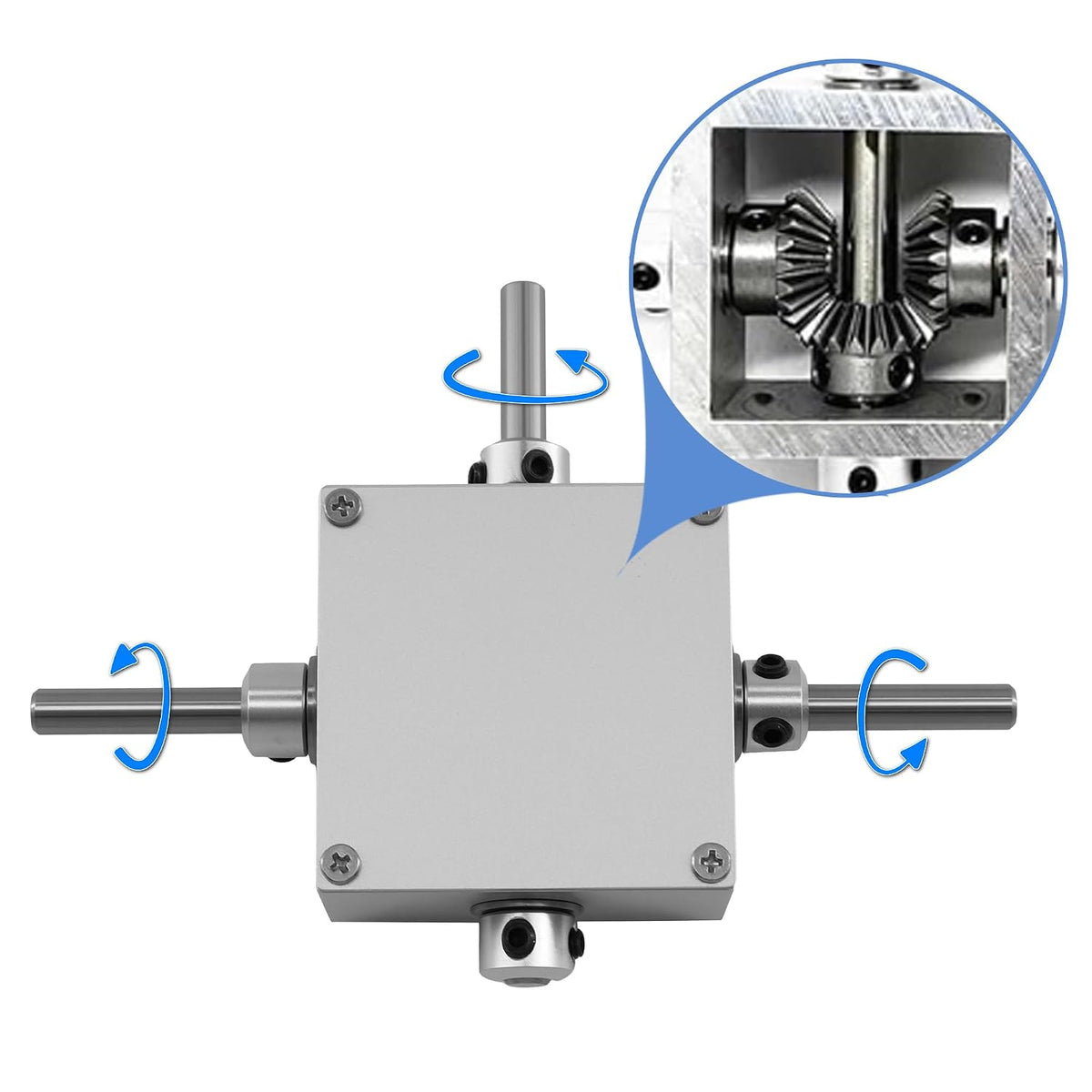

This 90 degree right angle bevel gearbox provides efficient power transmission with a precise 1:1 gear ratio. Designed with one input shaft and two forward reversing output shafts, it enables smooth rotation and reliable torque transfer between your mechanical components. The structural integrity features a lightweight yet durable aluminum alloy frame that simplifies handling and mounting. Inside, the 1 module 20 teeth bevel gears are crafted from rugged 45 carbon steel, while the 8mm shafts are made of stainless steel to provide strength and corrosion resistance. Measuring 118 by 87 by 30 millimeters, this compact unit is ideal for corner steering mechanisms, right angle turns, and custom DIY mechanical projects. Please note that this is a simple steering assembly and is not engineered for high torque or high rotating speed CNC machinery. Module: 1 Module Number of Teeth: 20 Teeth Bore Size: 8mm Output: One Input Two Forward and Reverse Output Shaft Material: Stainless Steel Gear Material: 45 Carbon Steel Frame Material: Aluminum Alloy Gear Ratio: 1:1 Fitment: Universal fit for simple mechanical DIY applications, right angle steering setups, and corner steering mechanisms. Not
Free shipping included. 30-day hassle-free returns.
