90W AC 110V Gear Motor Electric Single-Phase + Variable Speed Adjustable Controller 0-27 RPM, Reduction Ratio 1:50 (50K)

Key features

• [STABLE OPERATION] This is a gear motor with working voltage of 110V AC; the rotor of the speed-regulated motor is equipped with ball bearings at both ends of the rotor, which has low friction, low energy consumption, low temperature, and stronger performance.
• [QUALITY MATERIALS] The shell of this geared reducer motor is made of high quality aluminum alloy, which is strong, durable, wear-resistant, high temperature-resistant, and can well protect the internal parts.

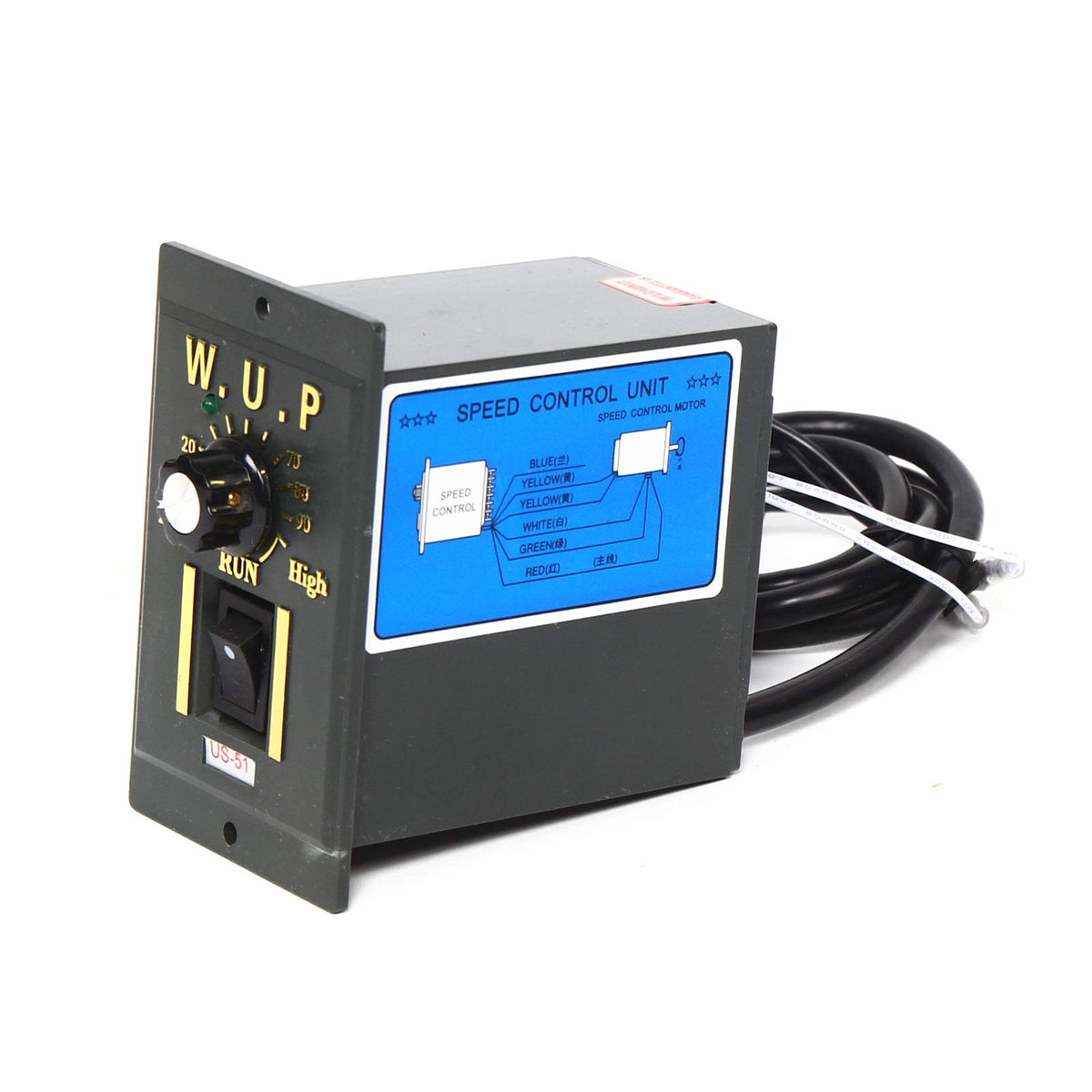

• [ADJUSTABLE SPEED] This single-phase motor is also equipped with a reduction gearbox and speed regulator, you can adjust the speed from 0% to 100% by the stepless speed knob on the speed regulator according to different situations to achieve the desired effect.

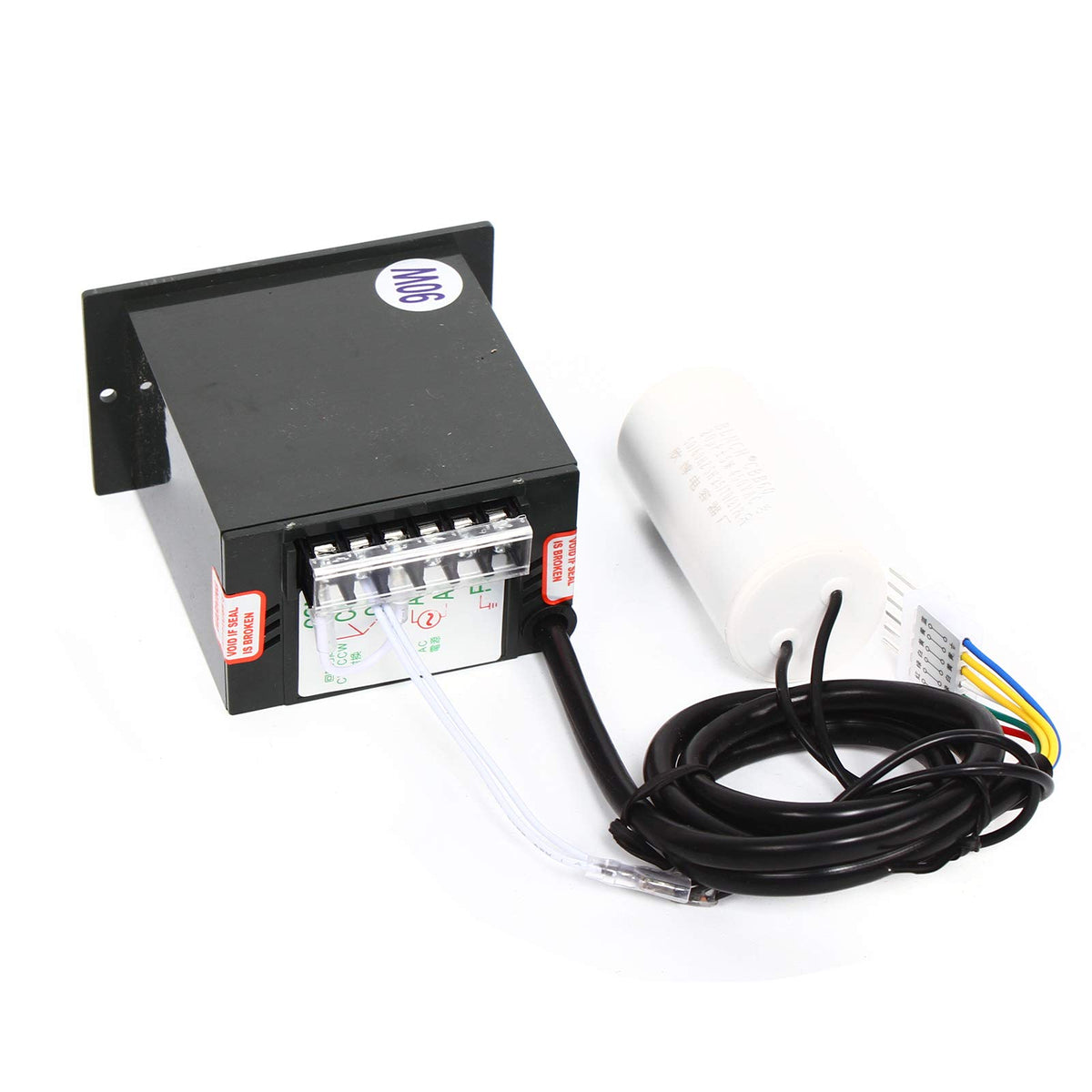

• [EASY INSTALLATION] With the motor and gearbox already installed, you can quickly connect the motor and governor by simply plugging the governor cable into the jack on the motor cable, saving both time and effort.

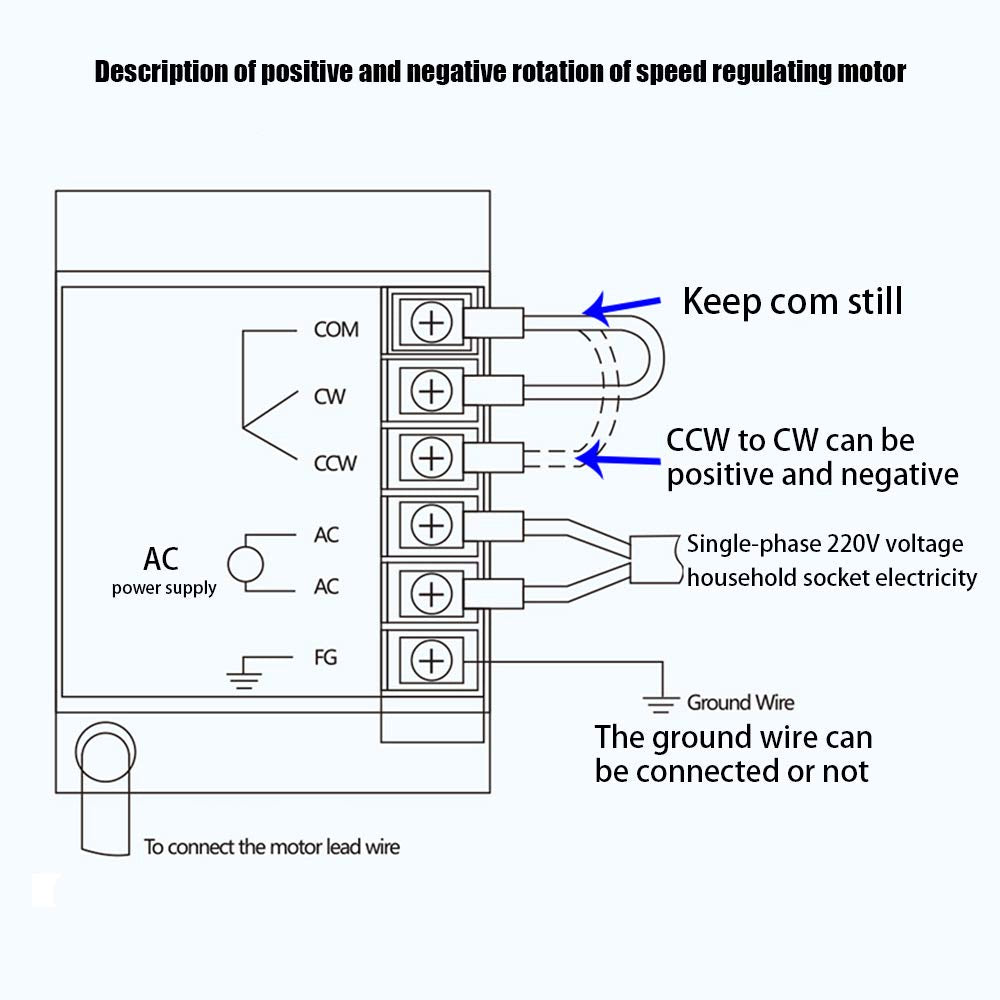

• [FORWARD & REVERSE ROTATABLE] The governor is initially specified for forward rotation, but you can connect the wires on the CCW to the CW and then it can be converted to reverse rotation to suit your different needs.

90W AC 110V Gear Motor Electric Single-Phase + Variable Speed Adjustable Controller 0-27 RPM, Reduction Ratio 1:50 This adjustable gear motor is designed to reduce the speed of a series of gears to produce more power and torque for increased efficiency. Specification: Rated voltage: 110V Rated speed: 0-27RPM Reduction ratio: 1:50 Torque: 21nm Power Phase: single-phase Shaft diameter: 12mm Motor size: 164 * 90 *74mm Reducer size: 61*90*74mm Packing list: 1*motor+1*reducer+1*speed controller How to use: 1. Judge the deceleration range first 1) The speed is within the safe speed range (e.g. 315-450r), choose the wattage according to your actual load 2)The speed is outside the safe range (such as 100-450r), choose 2-3 times of your actual load（For example, if you want to choose 100-450R 15W motor, now you need to choose 30-45w motor） 2. Judge load 1) Load product<1m，If the torque is 10nm, the load is generally≤10kg 2) Load product>1m, please consult cs 3. Continuous working time 1) Continuous working time of motor＞4h, Wattage selection needs to be increased (For example: if you want the motor to Continuous work 5h, you need to choose lager watts than your actual load watts) 2) Continuo
