90W AC Gear Motor Kit with Reversible Speed Controller + Bracket

Key features

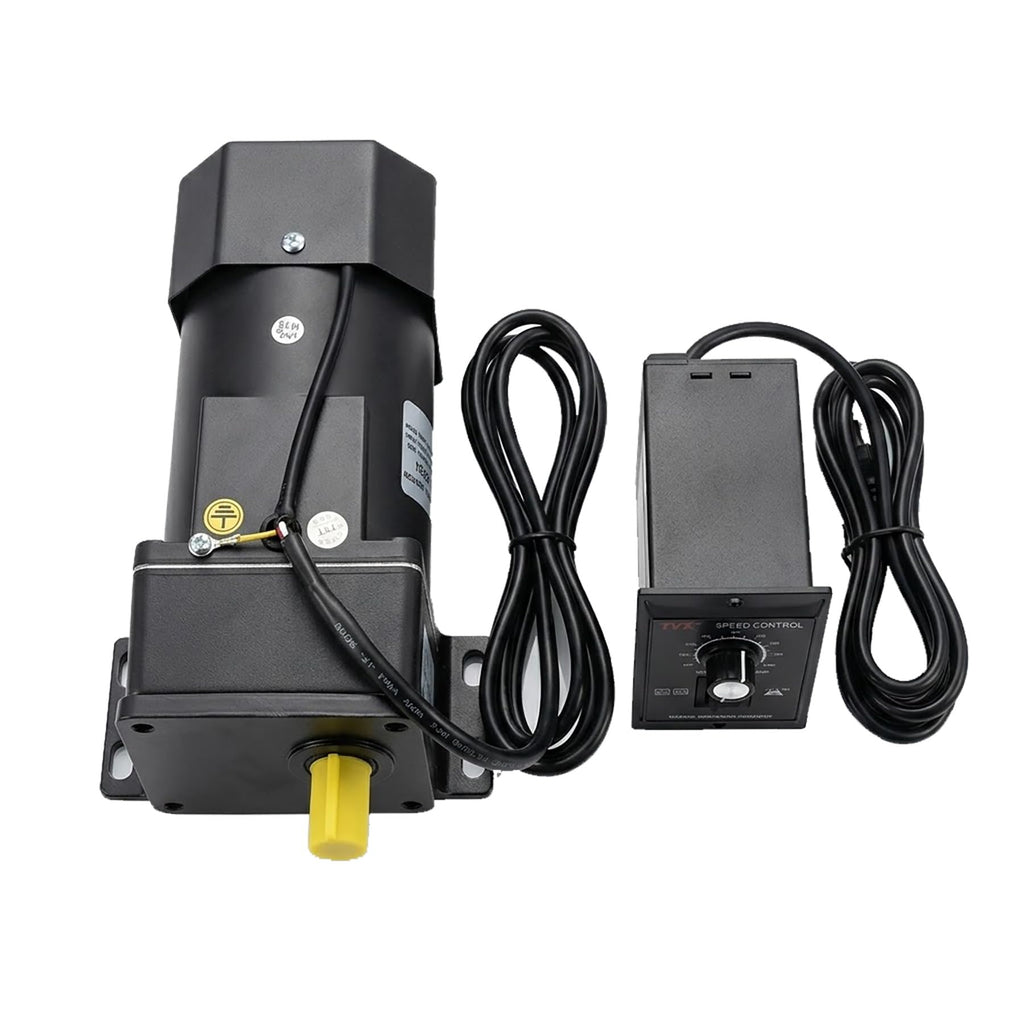

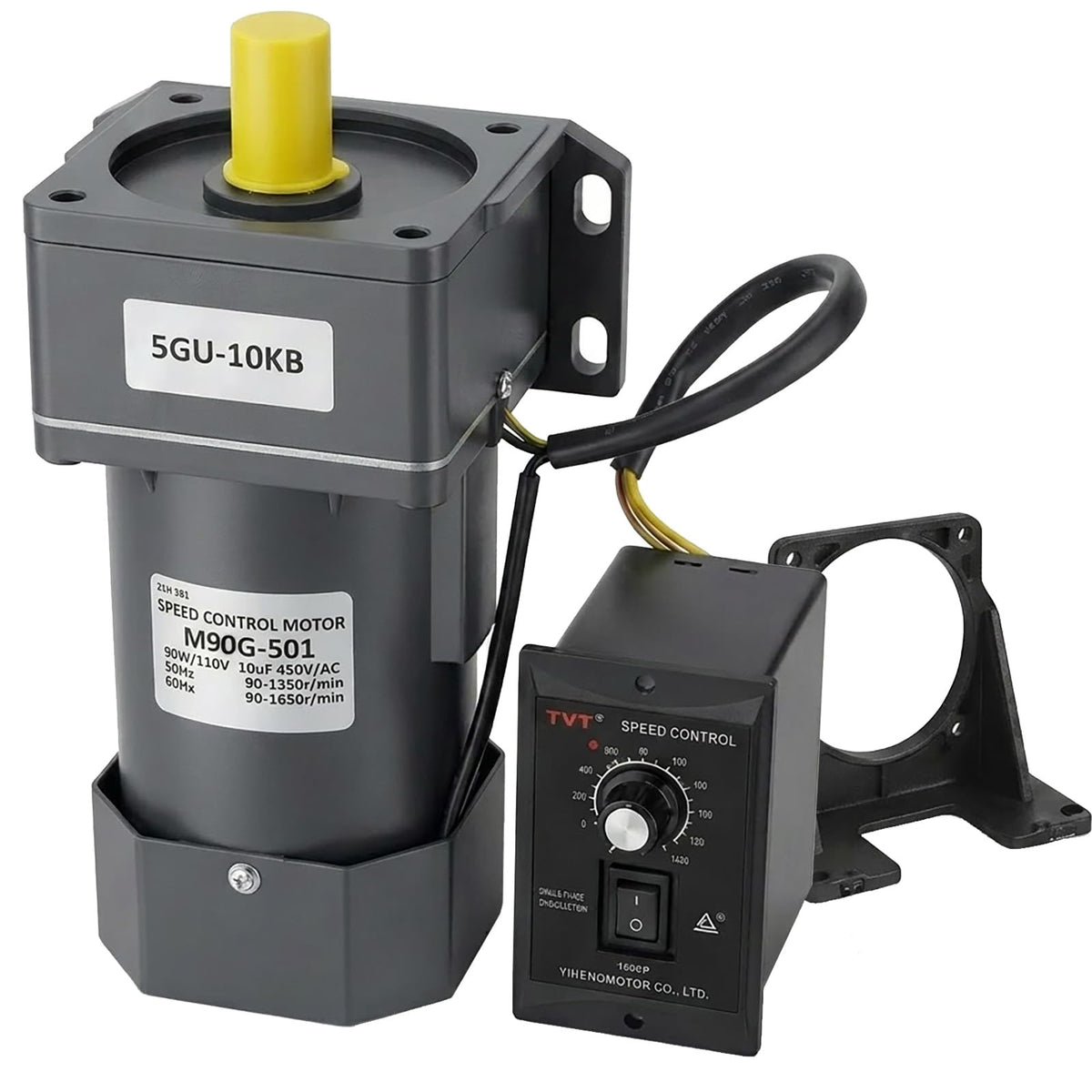

• All-in-One Complete Kit: Includes 1 90W AC 110V gear motor, 1 digital speed controller box with ON/OFF switch, and 1 heavy-duty mounting bracket. Featuring plug-and-play wiring with built-in overload and overheat protection, this kit eliminates hassle for quick installation

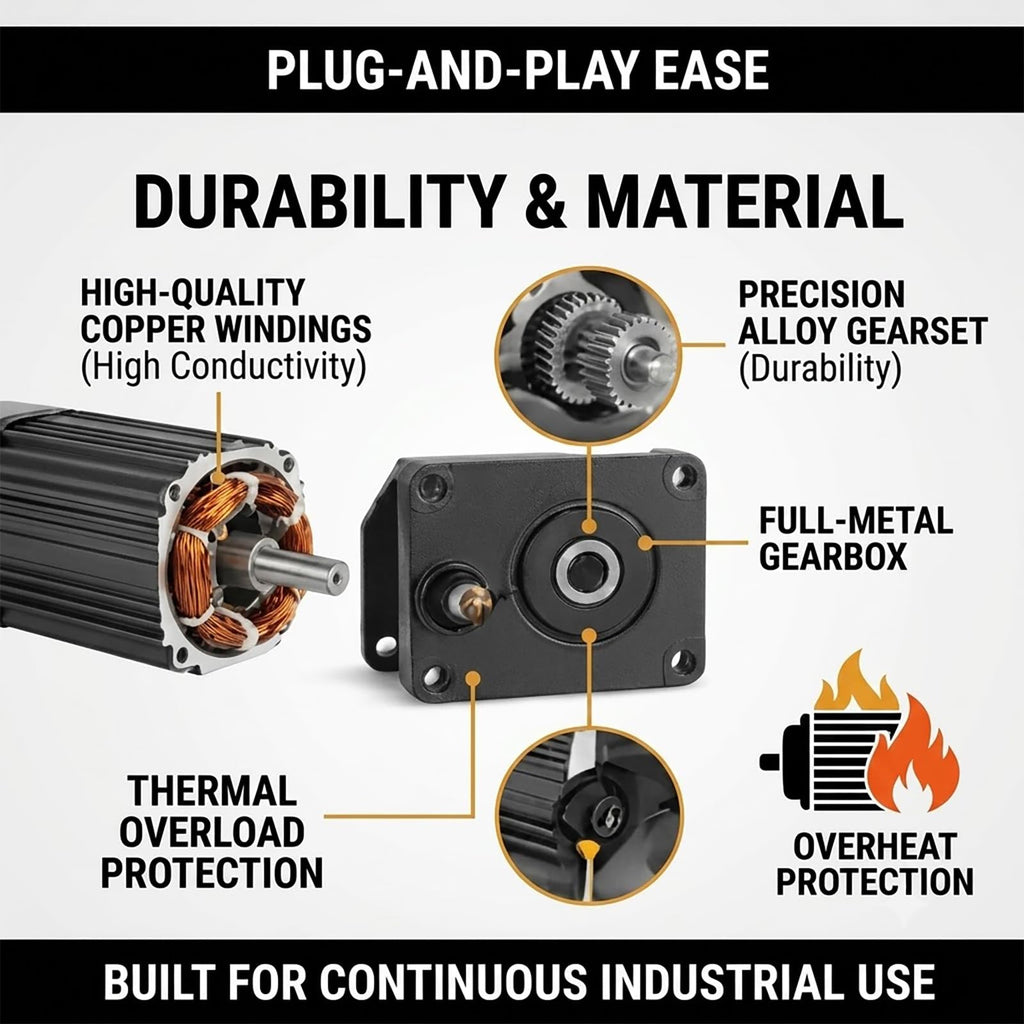

• Heavy-Duty High Torque Motor Kit: Powered by a 90W high-torque AC induction motor paired with a robust 5GU gear reducer, delivering up to 16 N.m output torque. Features high-grade copper windings and precision alloy gears for smooth, low-noise, and continuous operation under heavy loads
• Precision Stepless Speed Control: Equipped with a 10:1 reduction ratio (10K gear ratio), providing seamless stepless speed control from 0 to 135 RPM (at 60Hz). The CW/CCW toggle switch allows instant direction control for automated bidirectional systems and material handling
• Industrial-Grade Durability and Safety Protection: Crafted with a heat-dissipating aluminum alloy casing and high thermal conductivity materials. Built-in thermal overload protection automatically prevents motor burnout during high-stress, continuous industrial usage, ensuring long-term reliability
• Wide Industrial and Commercial Applications: Designed for high-load equipment, including belt conveyor systems, commercial mixers, automatic food packaging machinery, labeling machines, small winches, and automated production lines requiring adjustable speed and high torque
• Single Phase AC Induction Motor: Operates on 110V AC single phase power at 50Hz or 60Hz frequency, with a motor base speed of 1350/1650 RPM before gear reduction, providing reliable and consistent performance for various industrial applications
• Reversible Motor Operation: Features reversible rotation capability with CW and CCW directional control, allowing flexible operation for applications requiring bidirectional movement such as conveyor systems, mixers, and automated machinery

Bass noise reduction,fast heat dissipation Comprehensive upgrade,stable operation, long service life,low heat generation and low operating noise Widely used in automation industry,machinery industry, industrial base, textile industry,grain machinery, chemical machinery,packaging industry, printing machinery and other production equipment SPECIFICATION Rated Voltage / Frequency：110V AC / 50Hz or 60Hz Motor Base Speed：6W/90W/250W - 1350/1650 RPM Gear Reduction Ratio：10:1 (5GU-10K) Final Output Speed ：0 - 135 RPM (Stepless Adjustable) Max Torque：16 N.m PACKAGE -1 x AC Motor -1 x Gearbox -1 x Speed Controller -1 x Mounting Bracket
