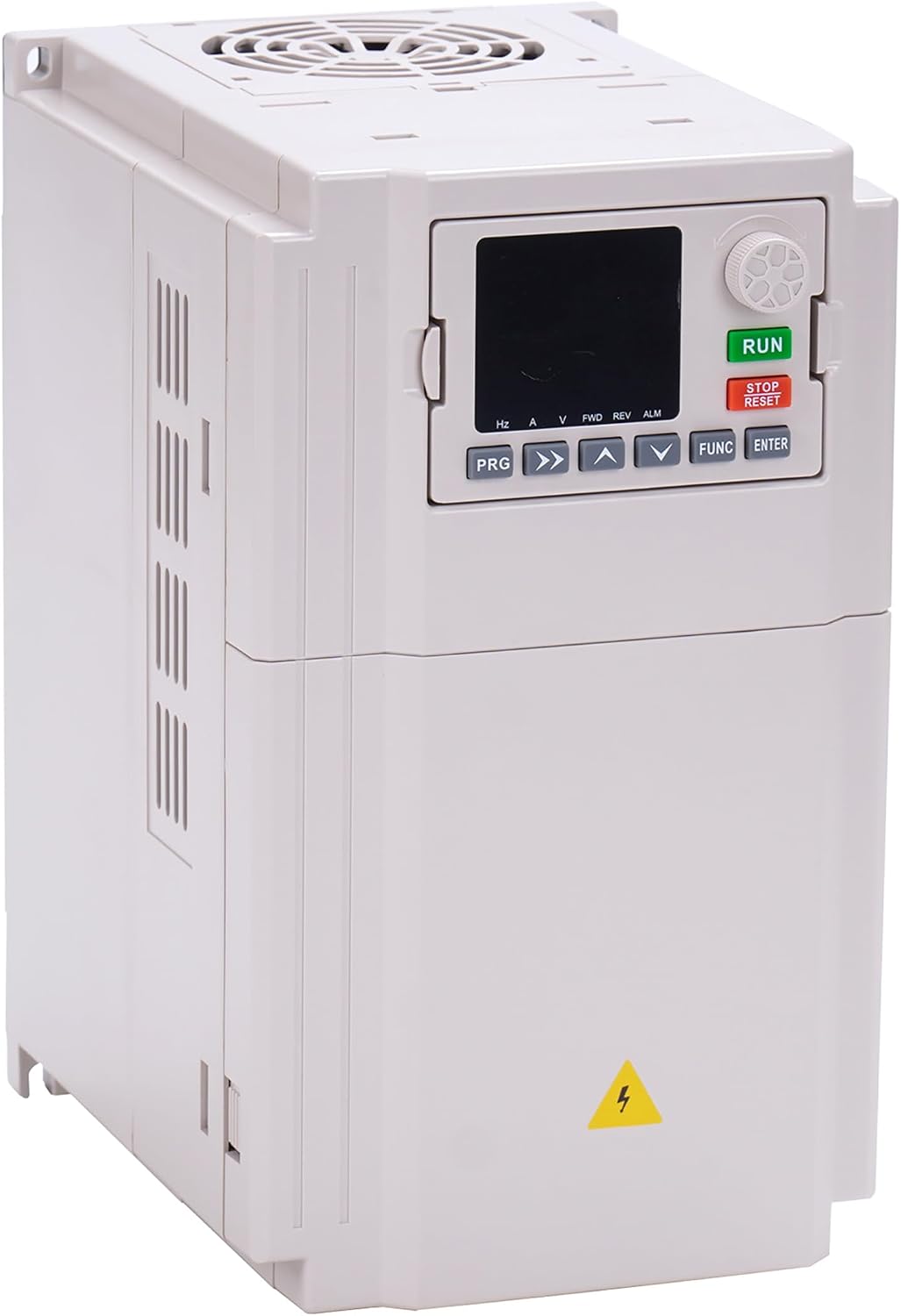

AC 220V/2.2KW 3HP Variable Frequency Drive,10A VFD Inverter Single Phase to 3 Phase Converter,Used on ≤3HP(2.2kW) 10Amps 200-230V 3-Phase Motor

Key features

• 3HP 220V Variable Frequency DriveThis 2.2KW,10A,3HP VFD supports single-phase or three-phase 220VAC input (±15%, 50/60Hz) with three-phase 220VAC output (0–400Hz). Designed for 200–230V three-phase AC motors up to 3HP. VFD dimensions: 7 x 5.9 x 3.7 in (H×W×D).
• Flexible Motor ControlSupports digital/analog control, RS485 communication, remote potentiometer, external control terminals for start/stop, forward/reverse, and programmable control functions, plus braking resistor connection.

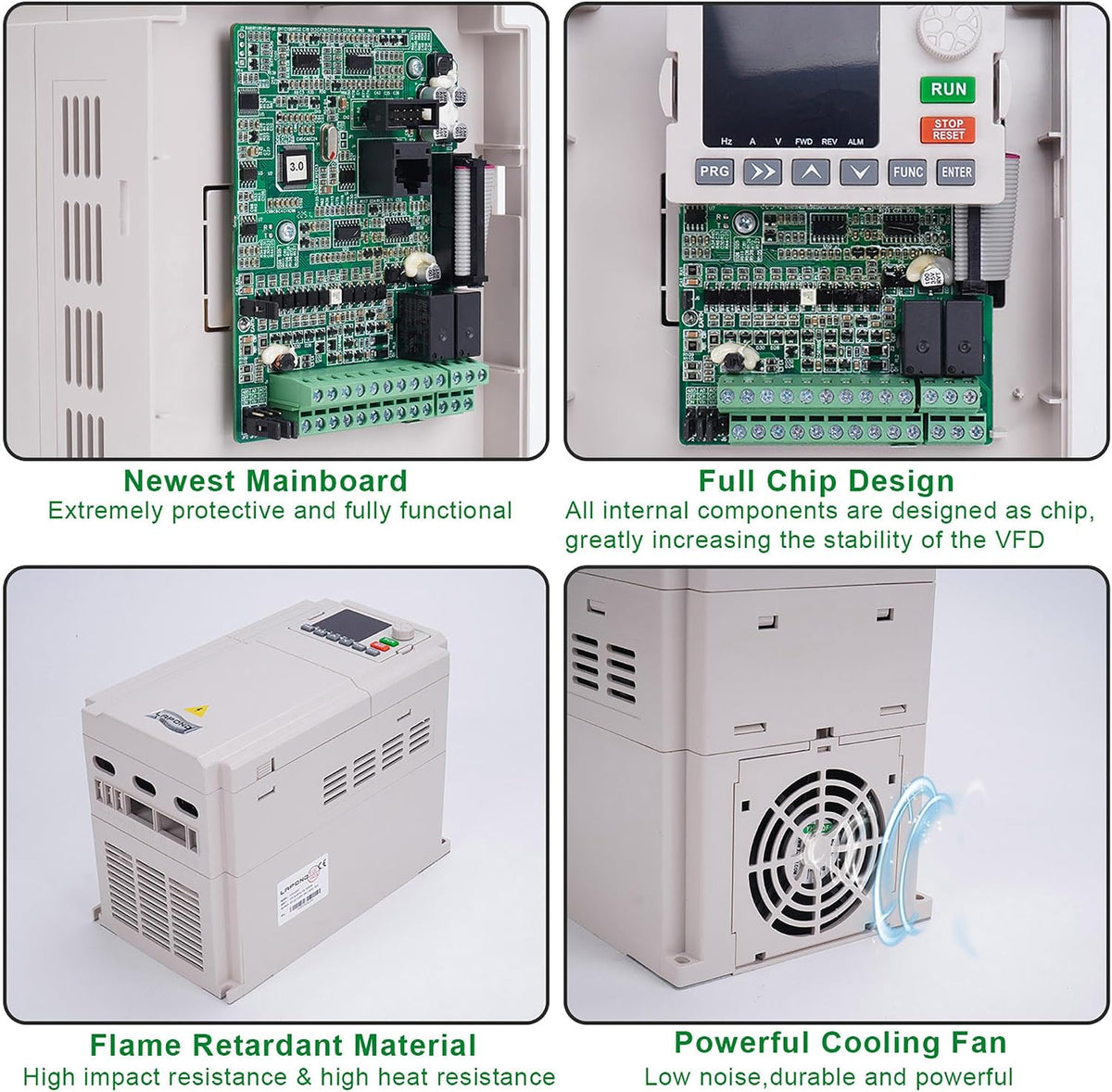

• Reliable Performance & Easy OperationEquipped with an IGBT module for smooth speed control and reliable motor performance. The built-in cooling fan helps improve heat dissipation, while the clear display and intuitive keypad make setup and daily operation simple.
• Comprehensive ProtectionEquipped with over-voltage, under-voltage, overload, over-current, overheating, and short-circuit protection to support safe and reliable operation.
• Easy InstallationDetachable control panel supports remote operation and flexible installation, making wiring, monitoring, and maintenance more convenient.
• Wide Industrial Applications Suitable for compatible 200–230V three-phase motors used in CNC routers, milling machines, lathes, grinders, conveyors, pumps, fans, compressors, mixers, extruders, and other equipment.

Attention 1.This VFD is ONLY applicable to three phase asynchronous motor. 2.If your motor is heavy load, pls choose a higher horsepower vfd than your motor's. 3.The instantaneous starting current of the air compressor is very large,to avoid overcurrent, please choose the motor twice the horsepower of the vfd, for example: 2hp compressor, recommend choose 4hp or 5hp VFD. 4.One of key function of the VFD is to start the motor softly, to avoid huge electric current impact to mains system and mechanical shock occur to machine system ,we strongly recommend NOT to Turn on the Motor after VFD start up. LAPOND 220V 10A 2.2KW 3HP VFD Inverter Specifications Model: K100-2R2G1 Power: 2.2KW(3HP) Input: 1 phase AC 220VAC(+/-15%) 50/60HZ Output: 3 phase AC 0-220V 10A 0-400HZ 2.2KW Control mode: V/F control and Vector control Applicable motor power: Three-phase 220V motor (≤3HP) Dimension:3.7(L)x 5.9(W)x 7(H)inches Package include: 1x VFD drive;1x Manual High Performance Use of IGBT modules with high stability and low failure rate,say goodbye to single tube machines. Cooling fan With the copper coil of good quality,this Vfd drive is safer and more durable.And this vfd adopts the multi-grid de
