ACS712 Current Sensor Module, 5A Range, 2 Pcs

Key features

• Product Name: Current Sensor Module; Model: ACS712; Range Current: 5A; Package Includes: 2 x Current Sensor Module
• Precise ±5A Current Measurement: Based on ACS712ELCTR-05B chip, measures AC/DC current with 185mV/A sensitivity and low output noise for reliable readings
• Easy Analog Output: Simply connect VCC (5V) and GND, then read the analog voltage on OUT pin (2.5V @ 0A) with any microcontroller
• Wide Application Range: Perfect for battery charge/discharge monitoring, over-current protection, DC motor control, solar system current sensing, and DIY power meters

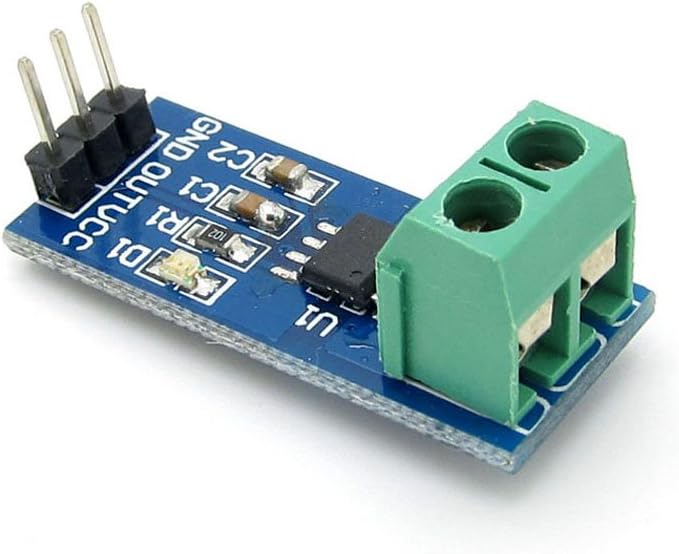

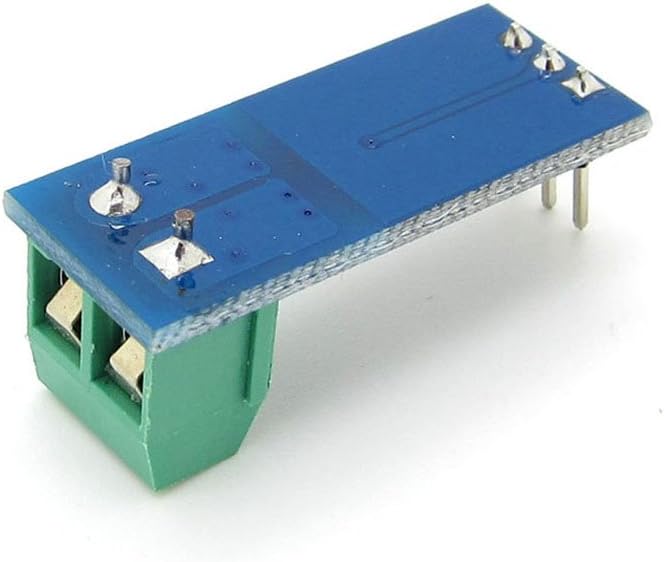

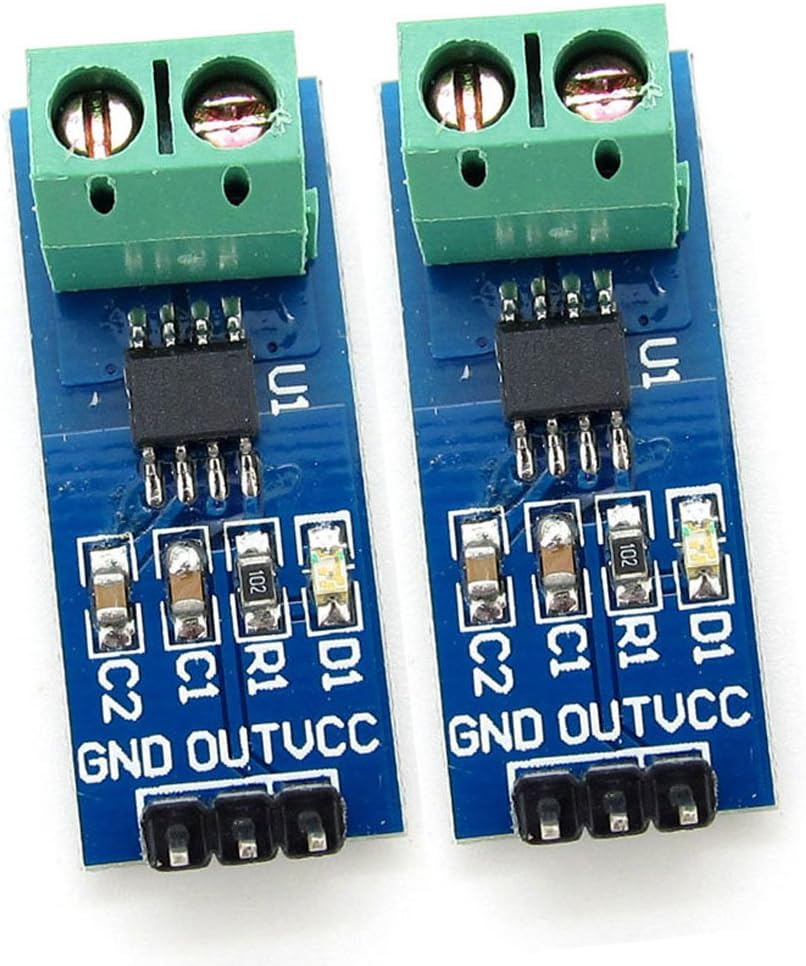

• Compact Module Design: Small PCB size (31x13mm) with 3-pin header and screw terminals for easy wiring in tight spaces, ready for prototyping and embedded projects

Specification:The current sensor chips: ACS712ELC-05B. Pin 5V power supply, on-board power indicator. The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV / A. Built in a potentiometer for sensitivity control. Convenient and easy to install. Package Content : 2 X 5A Current Sensor Module
