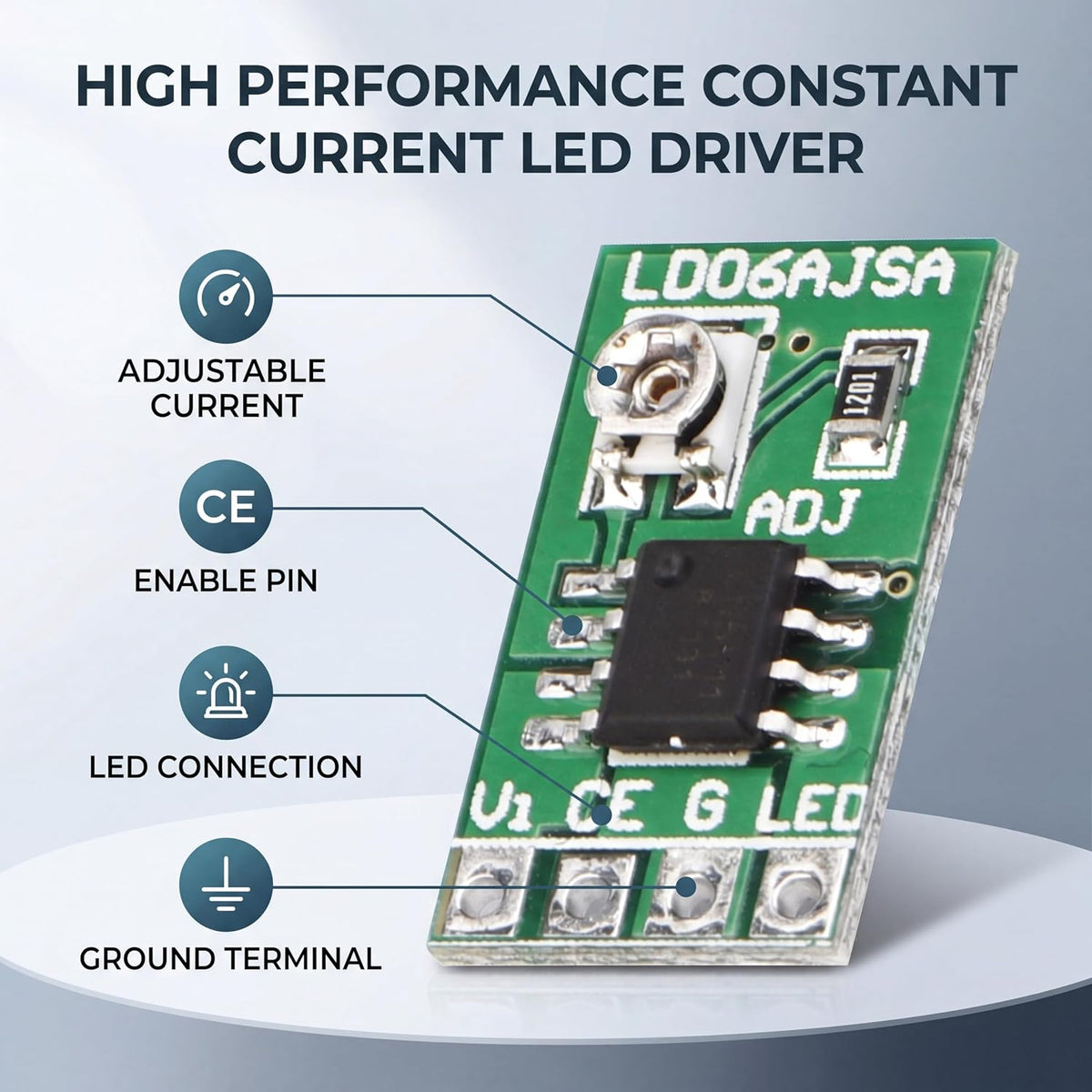

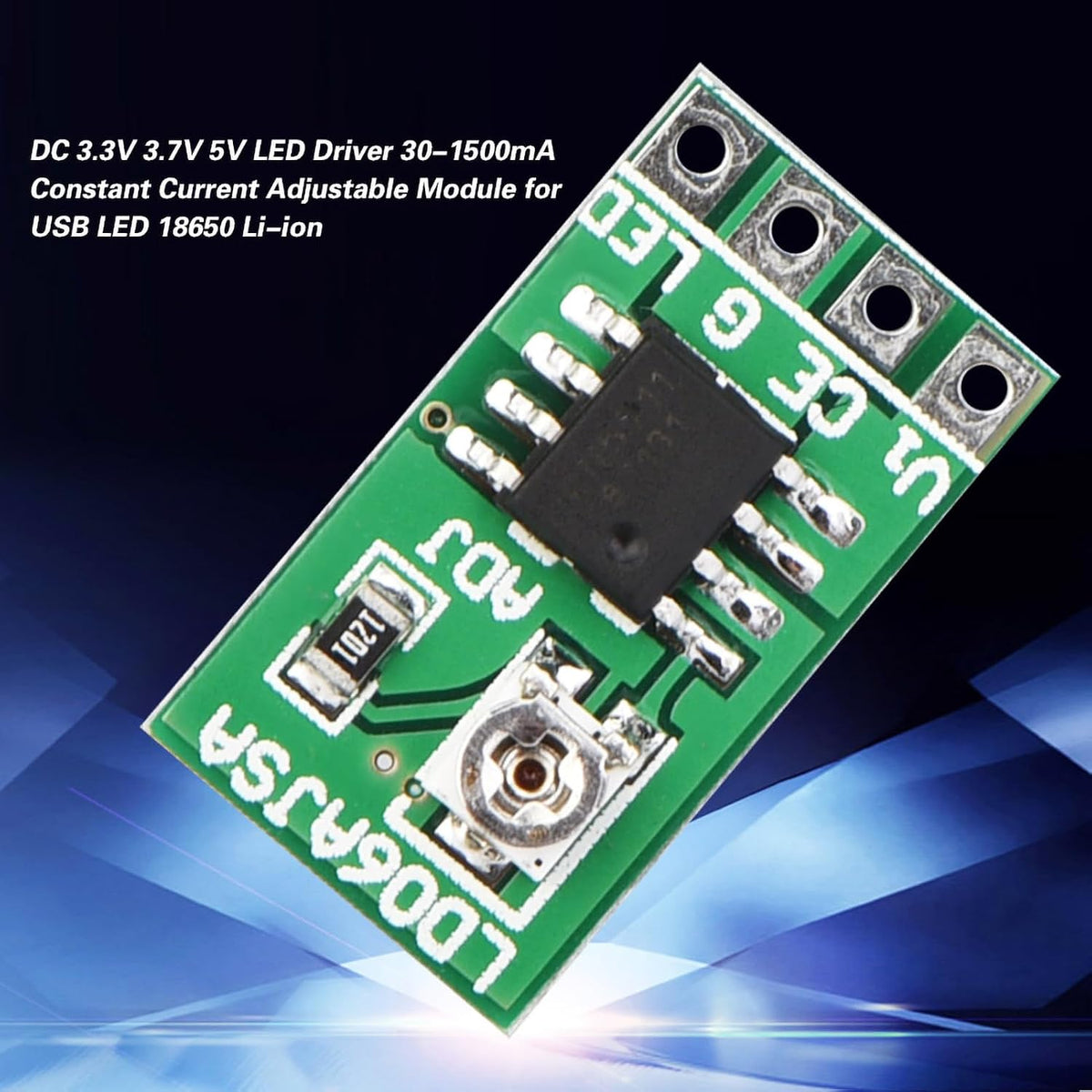

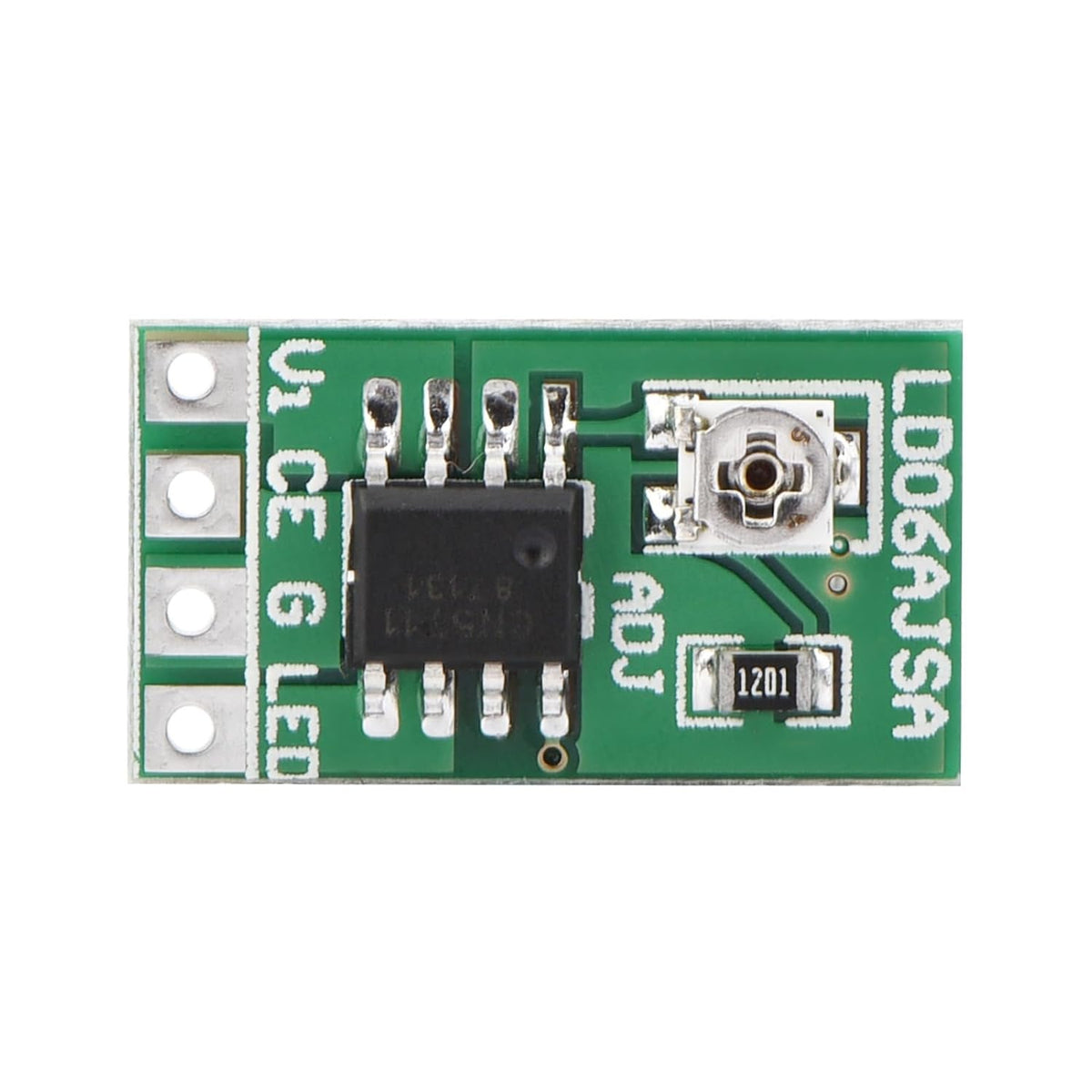

Adjustable Current LED Driver, DC 3.3V 3.7V 5V LED Driver 30-1500mA Constant Current Adjustable Module for LED Li-ion

Key features

• This product is a current regulation integrated circuit operating from an input voltage of 2.8V to 6V, the constant output current can be set up to 1.5A with an external resistor.
• It consists of high reference voltage, amplifier, current mirror, etc. The on-chip power transistor and current sense block greatly reduce the external component count, which makes this product ideal for LED driver.
• When the CE pin is high, the input voltage is greater than 2.8V, and is larger than the LED forward voltage plus the required voltage drop, it functions normally to deliver constant current from the LED pin.
• Adopts the temperature regulation instead of temperature function, the temperature regulation can make the LED being turned on continuously in case of high ambient temperature or high voltage drop. When the junction temperature reaches about 1
• With e chip enable function, which can shutdown the whole chip to limit the current consumption within 1uA. Adopts the over current block. When LED current approaches 1.9A(Typical), the over current block begins to function to prevent the LED current from increasing further.

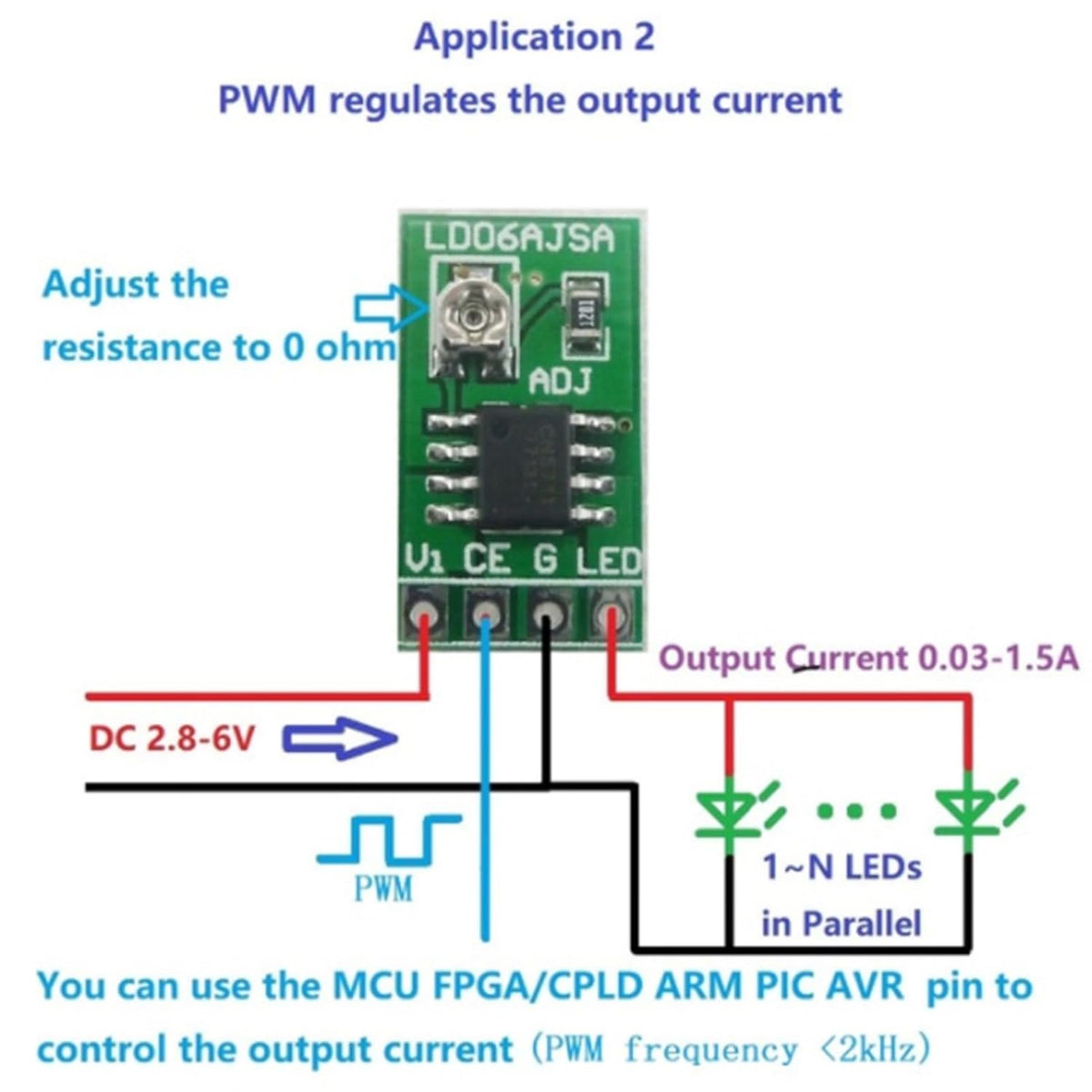

Specification: Working voltage : DC 2.8-6V( for 3V 3.3V 3.7V 4.5V 5V 6V LED Driver) Output current: 30-1500mA Maximum output power: 9W Can drive 1-16pcs 2.8-6V LEDs (maximum current does not exceed 1.5A) Current regulation: 1 through adjustable ; 2 through PWM control Weight: 0.56g Package list: 1 * Adjustable Current LED Driver

Free shipping included. 30-day hassle-free returns.
