Aifeier ET Thrust Needle Roller Bearings NTA1220+2TRA
Aifeier ET Thrust Needle Roller Bearings NTA1220+2TRA
Key features
- Bearing MaterialThrust needle roller bearings are made of high-temperature-resistant bearing steel, sturdy and durable, with good heat resistance and load carrying capacity, reliable for use under heavy load.
- Well MadeExcellent workmanship, good stability, high operating efficiency, working with the machine to improve efficiency. Note: It only bear axial load in one direction.

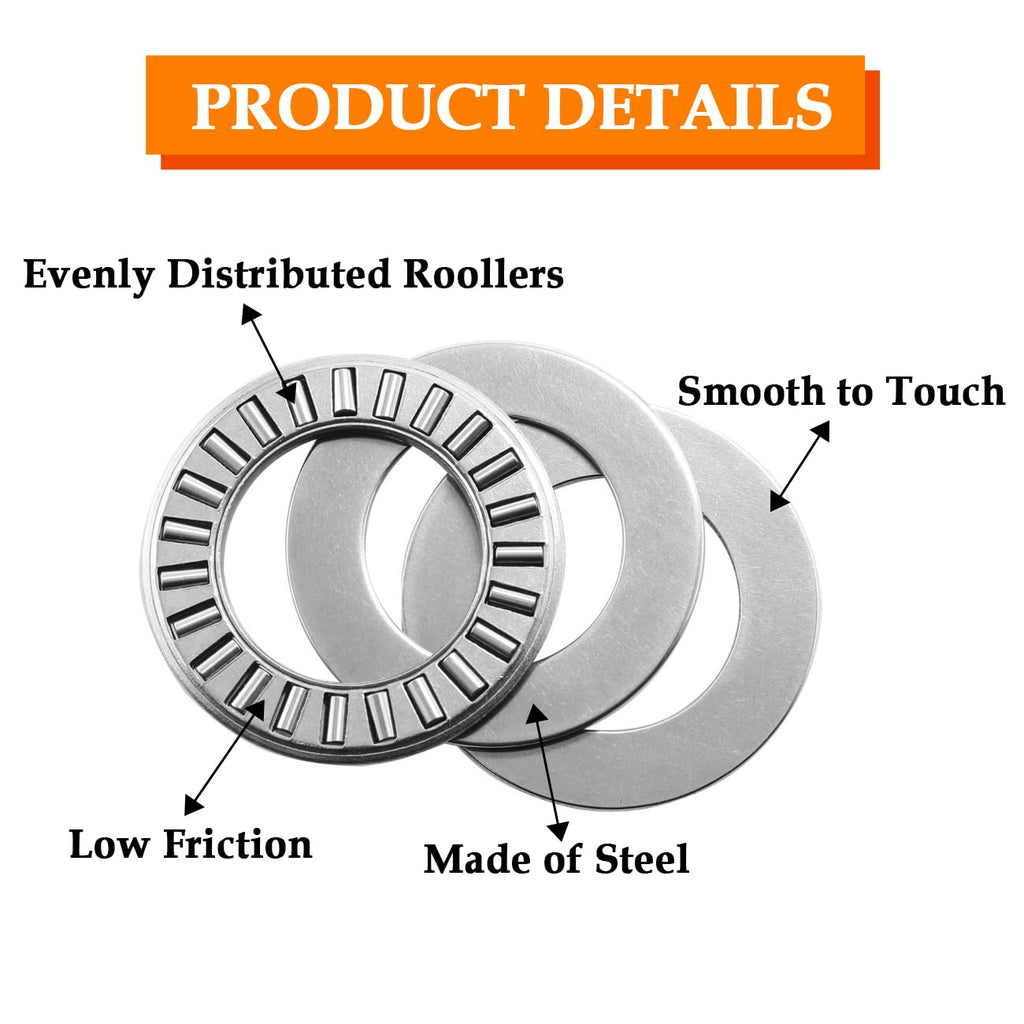

- FunctionThe thrust bearing adopts a steel cage guide rail and a uniformly distributed roller, which occupies less space and is used to reduce friction, vibration and noise on the rotating surface; Used in combination with two thrust washers for applications where adjacent machine components cannot be used as raceways.

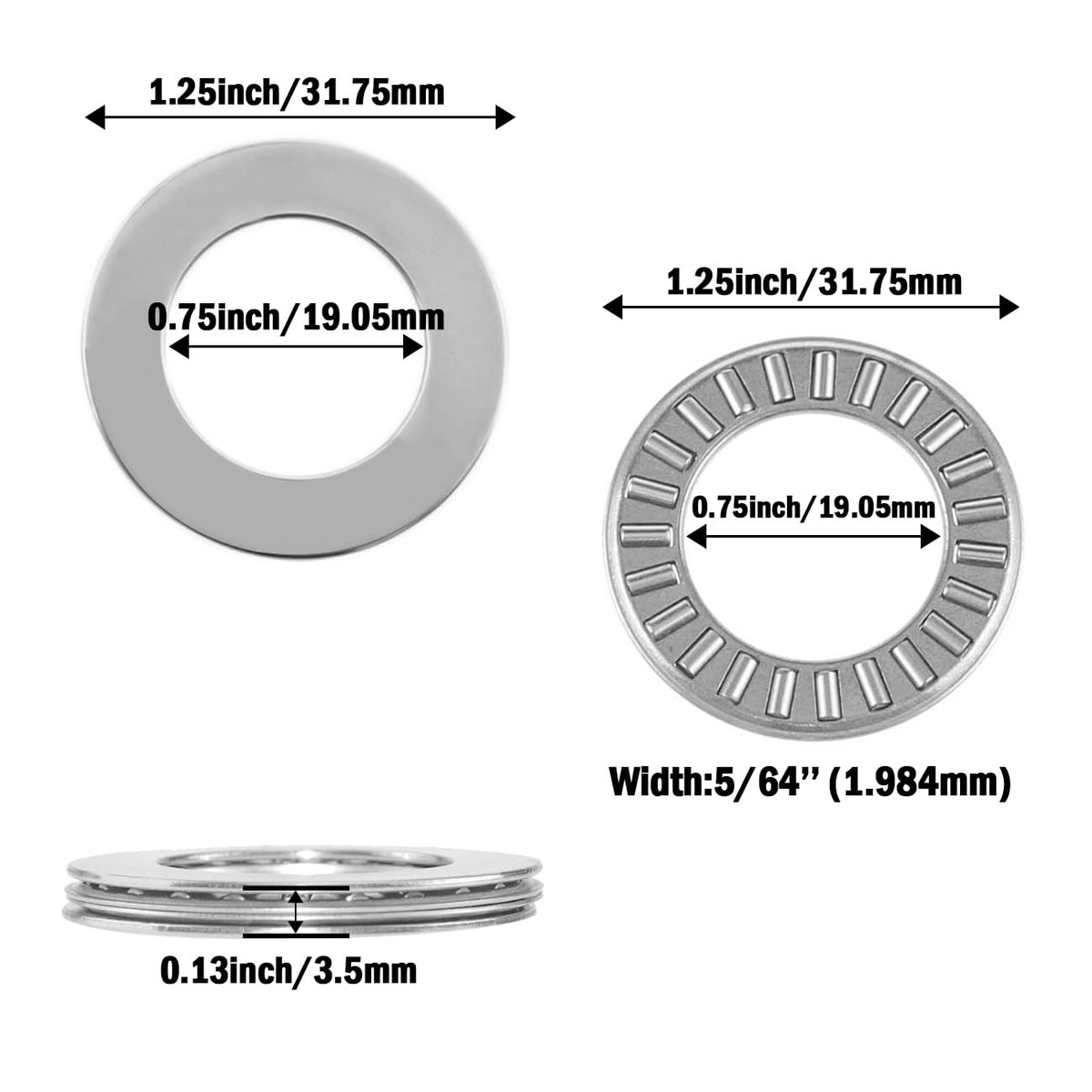

- SizeBore diameter about: 3/4" (19.05mm); OD about: 1-1/4" (31.75mm); Bearing thickness about: 5/64" (1.984mm); Washer thickness about: 0.8mm.
- Wide ApplicationRolling bearings are widely used, such as agricultural machinery, conveying equipment, miniature bicycles, elevators, trailers, robots, rolling mills, rudder shafts, aggregate crushers, etc.
1. Thrust Needle Roller Bearings are made of high temperature resistant bearing steel, durable and heat tolerance. 2. Rolling bearings are ideal for gricultural machinery to conveying equipment, robots, elevators, rolling mills, rudder shafts, aggregate crushers, ect. Specification: Type: Thrust Needle Roller Bearing Bearing number: NTA1220 + 2TRA Material: Steel Inner diameter (d): 3/4" (19.05mm) Outer diameter (D): 1-1/4" (31.75mm) Bearing thickness (T1 ): 5/64" (1.984mm) Washer thickness (T2): 0.8mm Total thickness: 3.584mm Dynamic load capacity (Cr): 7873N Static load capacity (Cor): 27088N Maximum rotational speed (Oil): 14000rpm Package Details. 4 x Thrust Needle Roller Bearings 8 x Bearing Washers Note: Please allow 1-3mm error due to manual measurement. Please allow for slight color difference due to different monitors.
