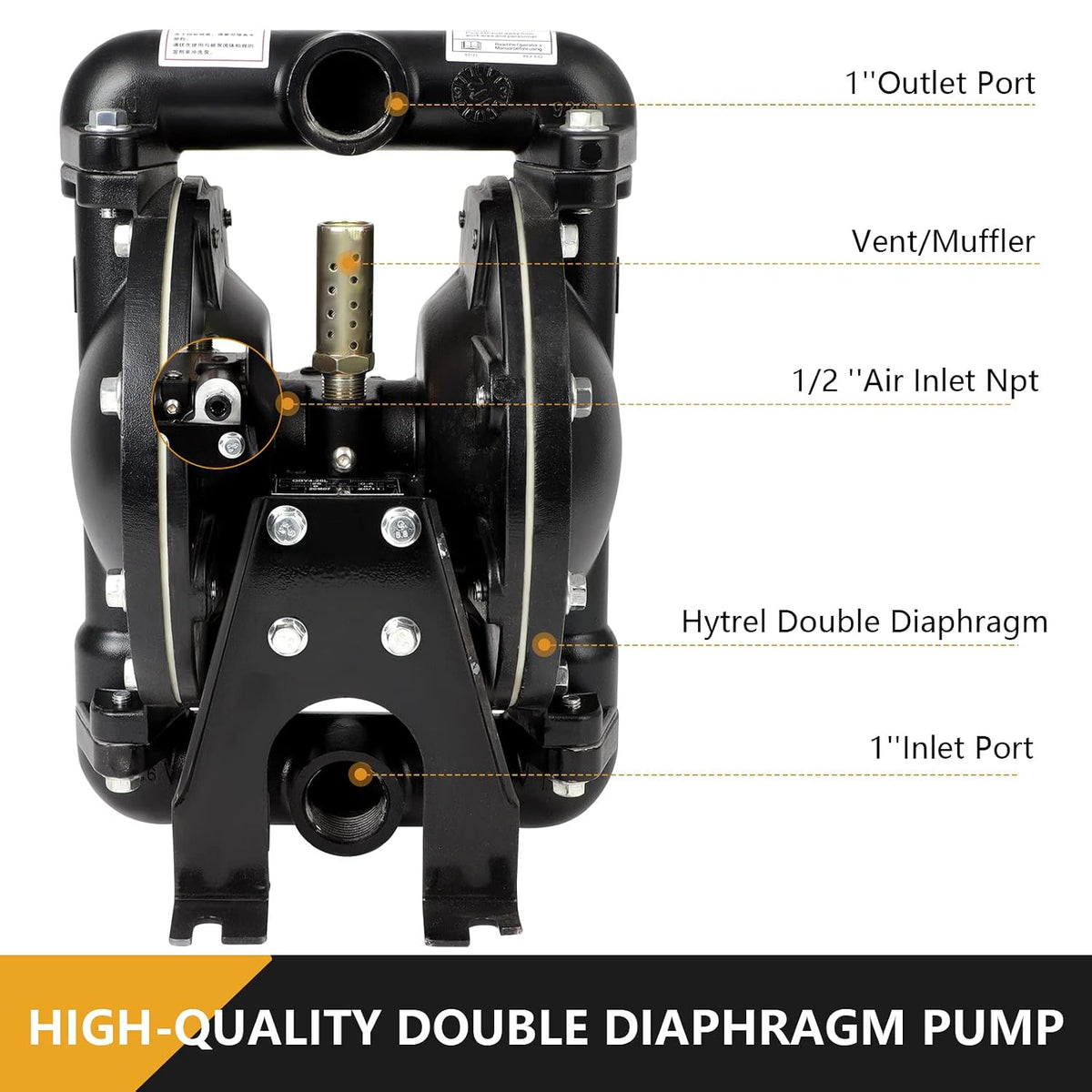

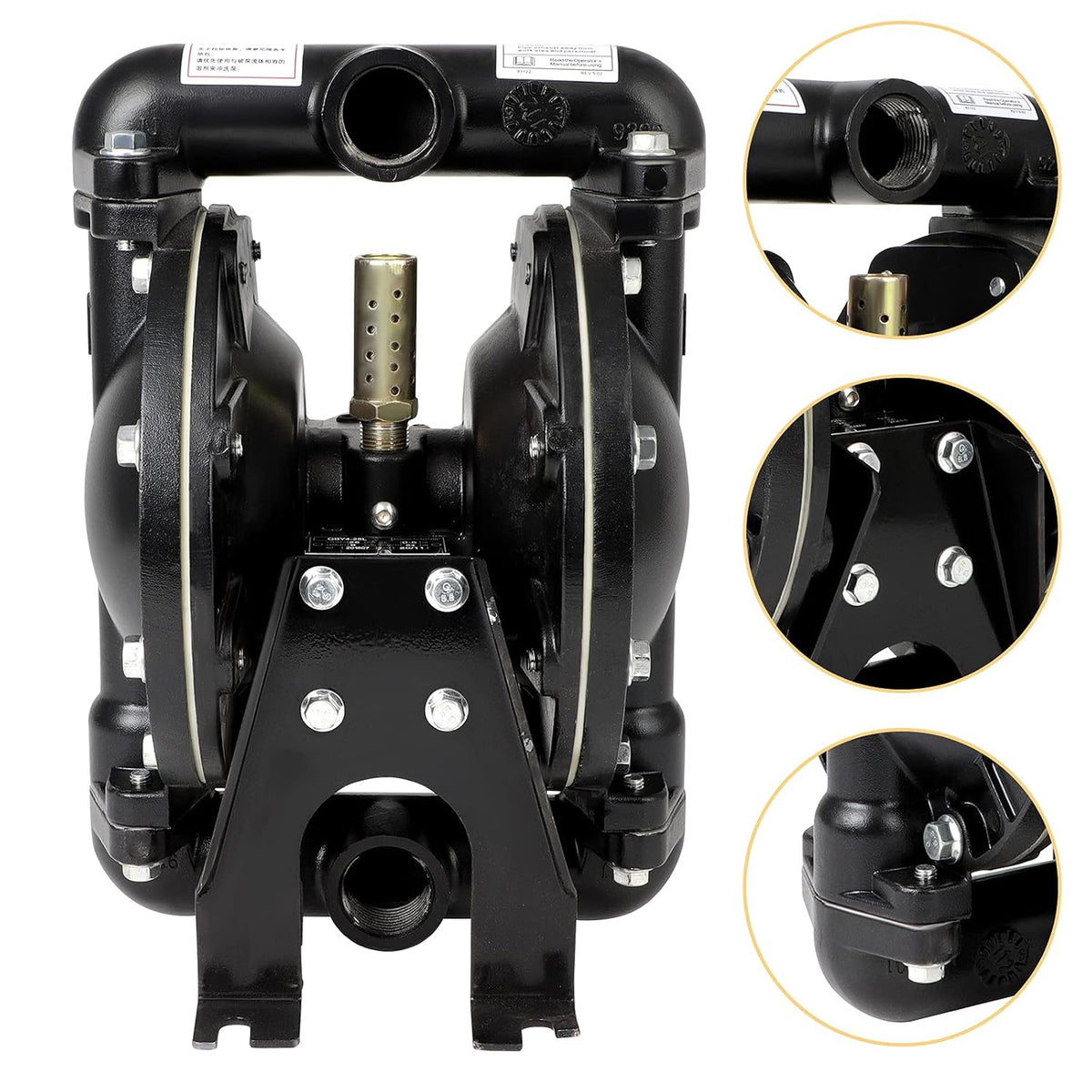

Air Operated Double Diaphragm Pump 1 IN Outlet 35 GPM Pneumatic Transfer

Key features

• INDUSTRIAL QBY4-25LMaterial:aluminum; Dissepiment Material:Nitrile Bubber,Fluorine Rubber,Chloroprene Rubber; Type: double diaphragm; Operation Type: Air-operated; Inlet/Outlet Port Size: 1 inch (25mm); Air Inlet Size: NPT 1/2 inch (12.7mm); Flow Rate: 35 GPM; Max Head Lift: 275 ft(84 M); Suction: 23 ft(7M).Can not use for corrosive liquid.
• MAXIMUM HEADAir-Operated Double Diaphragm Pump have top quality, a double-acting seal that delivers better performance. 1/2 inch air inlet with NPT fitting uses standard shop air for easy operation.275.59FT/84M, Max Temp : 150 ℉, Max Pressure: 120 PSI.
• EXCELLENT PERFORMANCEDouble Diaphragm Pump features an externally serviceable air distribution system and all-bolted construction. Modular air valve is stall-free, this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time.
• RUGGED CONSTRUCTION Diaphragm Pump resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling.
• WIDELY USEThe diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, paint, printing, paper making, water treatment, automotive etc.
