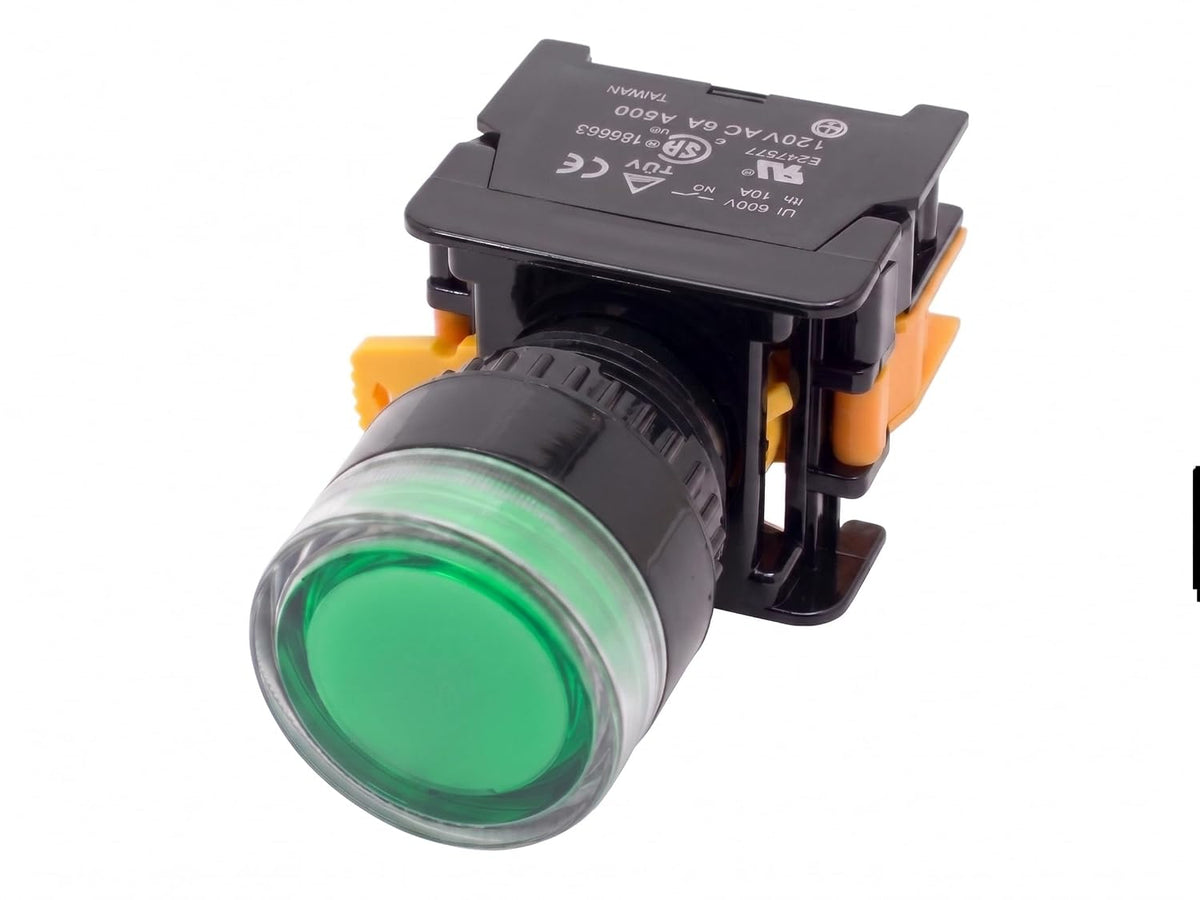

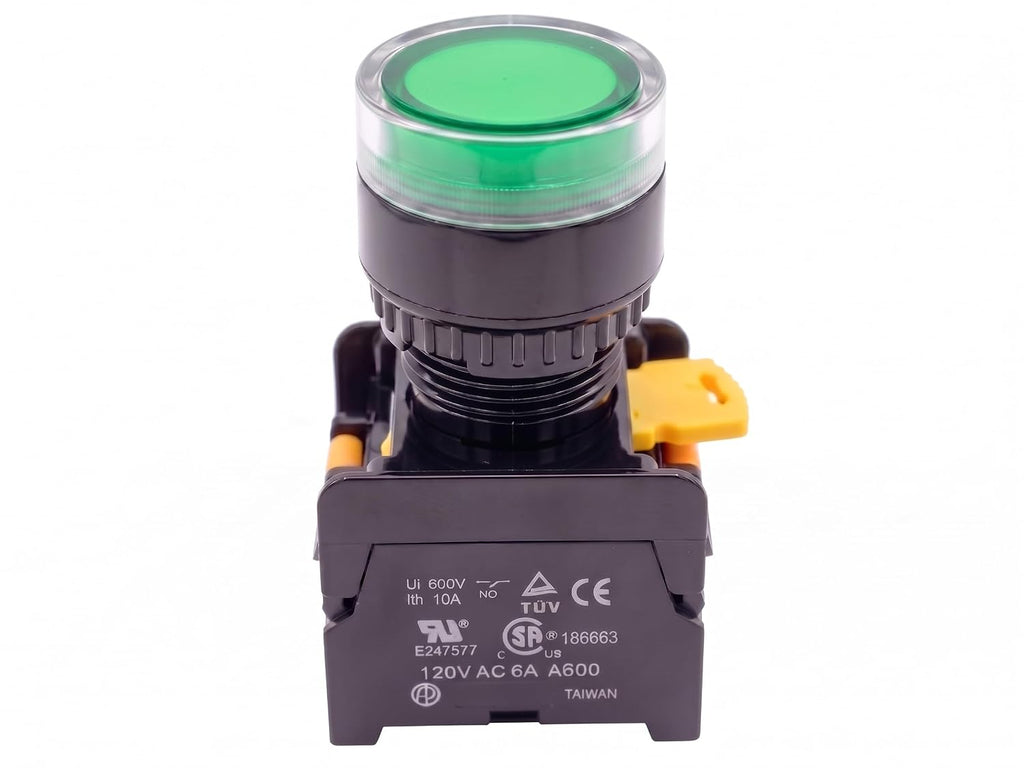

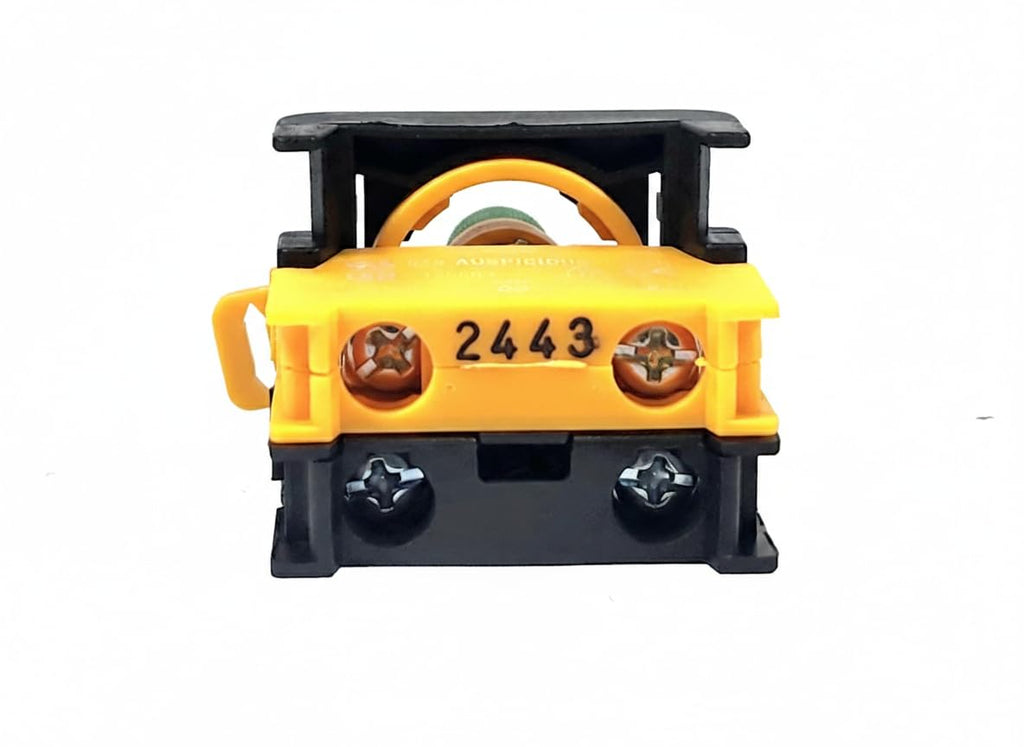

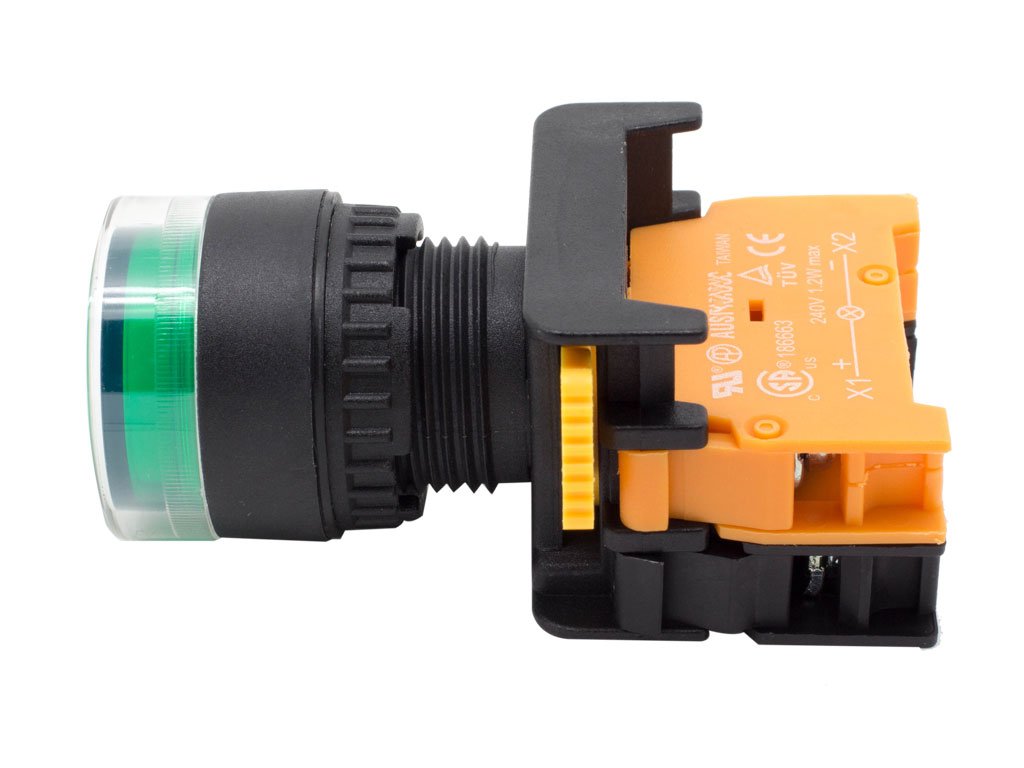

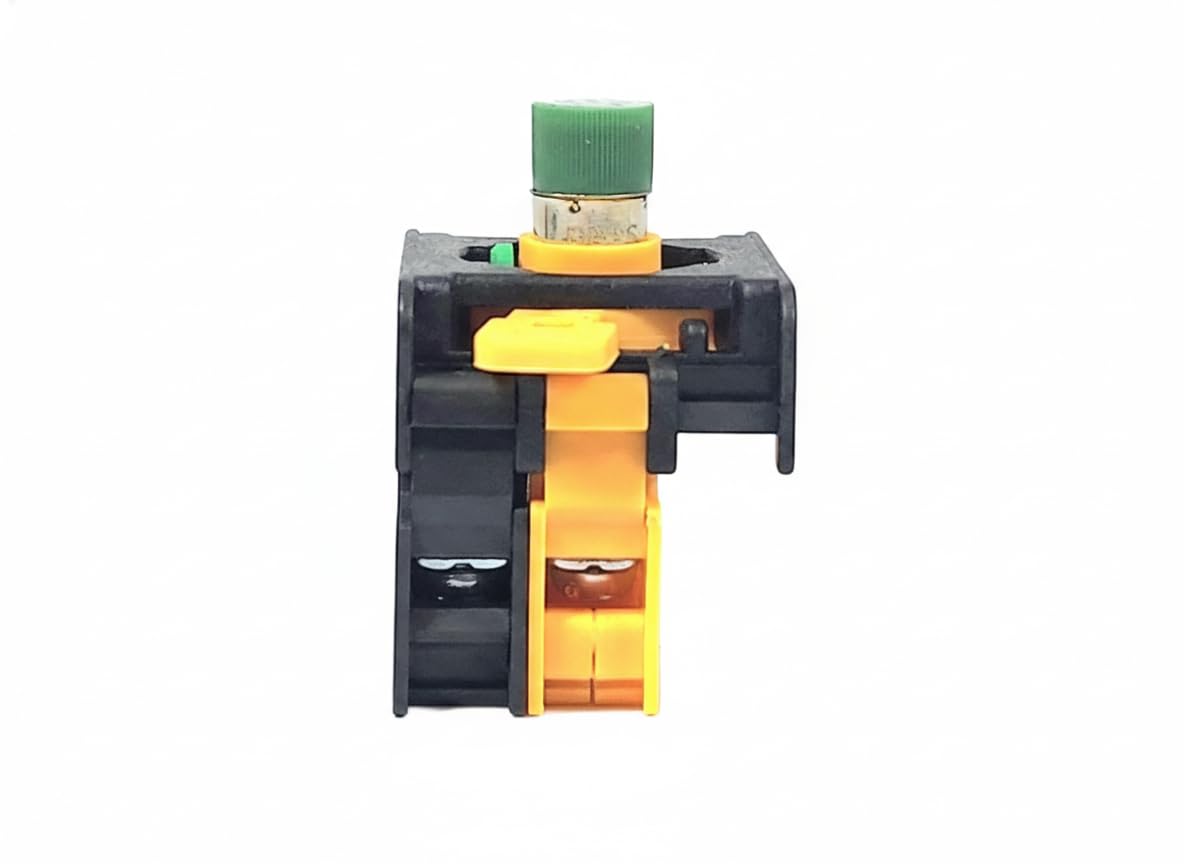

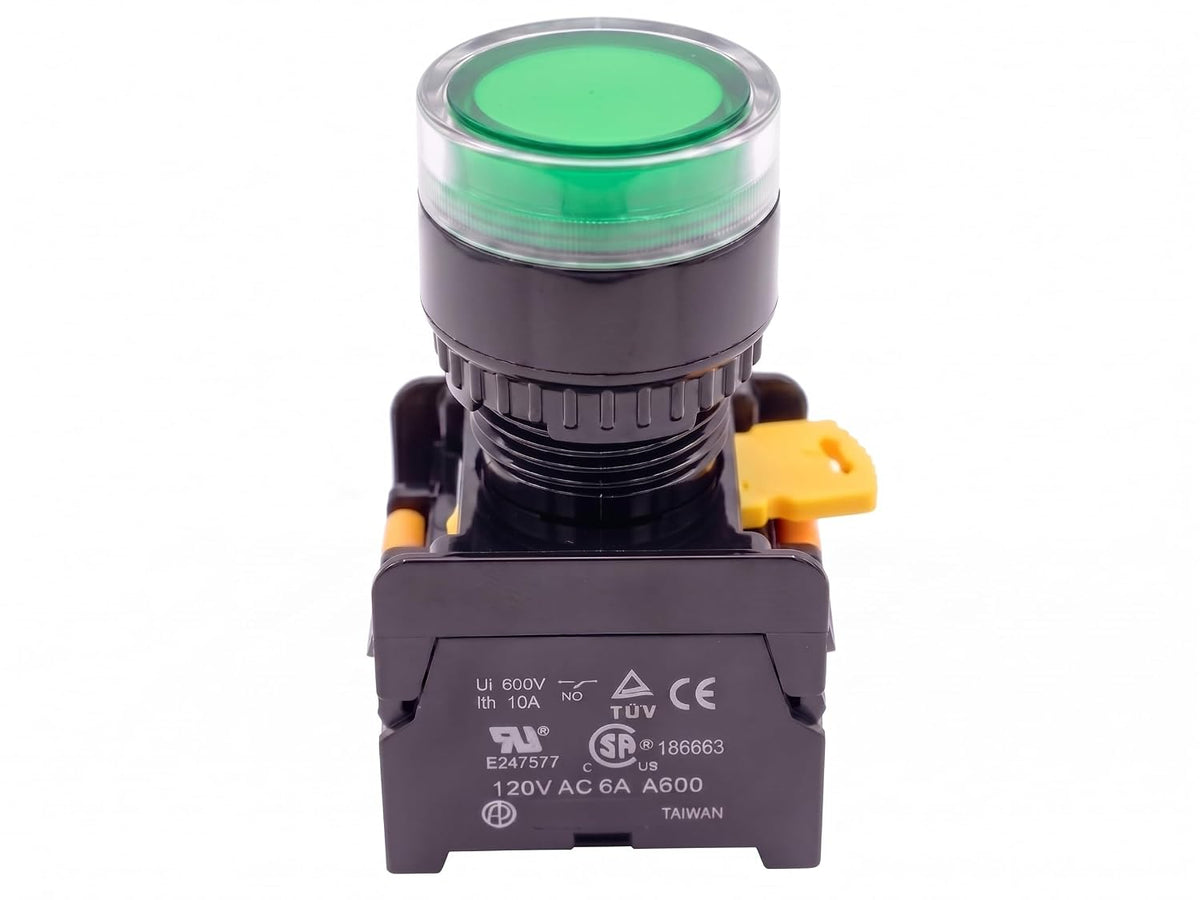

Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)

Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)

$23.99
$23.99 $38.99
Skip to product information
Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
  • Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)
Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)

Alpinetech LXG-22 22mm 1NO Momentary Push Button Switch 24V AC DC LED Illuminated (Green)

$23.99
$23.99 $38.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Panel Cutout Hole Diameter - 22mm; Button Diameter - 1" inch (w/ Clear Push Button Guard)
  • Bulb Type - LED; LED Color - Red, Green, Blue or Yellow
  • LED Lamp Voltage - 24V DC
  • Contact Type : 1NO, 1NC (optional); Action Type : Momentary; Insulation Voltage: Ui 600V; Thermal Current: 1th 10A; Short-Circuit current: 1000A; Contact resistance: 50 mΩ max.
  • (Rating) AC-15: 120V 6A, 240V 3A; AC-12: 480V 1.5A, 600V 1.2A; DC-12: 120V 2.2A, 240V 0.6A, 480V 0.4A
  • Safety Standards: UL listed, CSA Certified and TUV Approved; Made in Taiwan
  • Industrial Grade for Tough Environment. (Life) Push button: 1 million operations; (Life) Contact blocks: 1 million operations; IP Enclosure: IP65
  • Modular Design for Easy Installation and Wiring

Mounting Hole Size: 22mm Button Type: Recessed/Round Button Color: Green Head Diameter: 29mm Operation Type:Momentary Switch Contact: 1NO (Normally Open) Lamp Type: LED Lamp Voltage:24V AC/DC Terminal Type: Screw Ui 600V ITH 10A Voltage rating: 120VAC 6A 240 3A Protection Rating: IP65 Mechanical Life: 1,000,000 Panel Thickness: 1-10mm Depth Behind Panel: 2"

Free shipping included. 30-day hassle-free returns.
