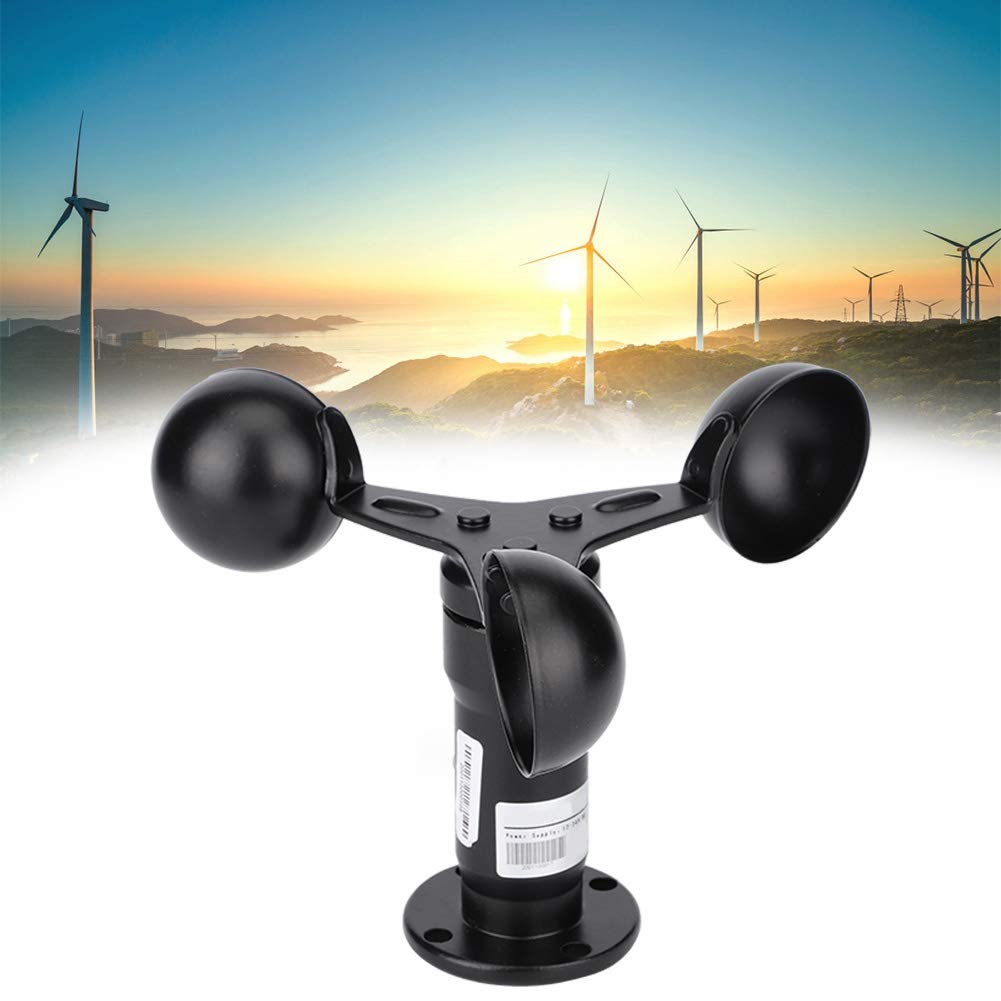

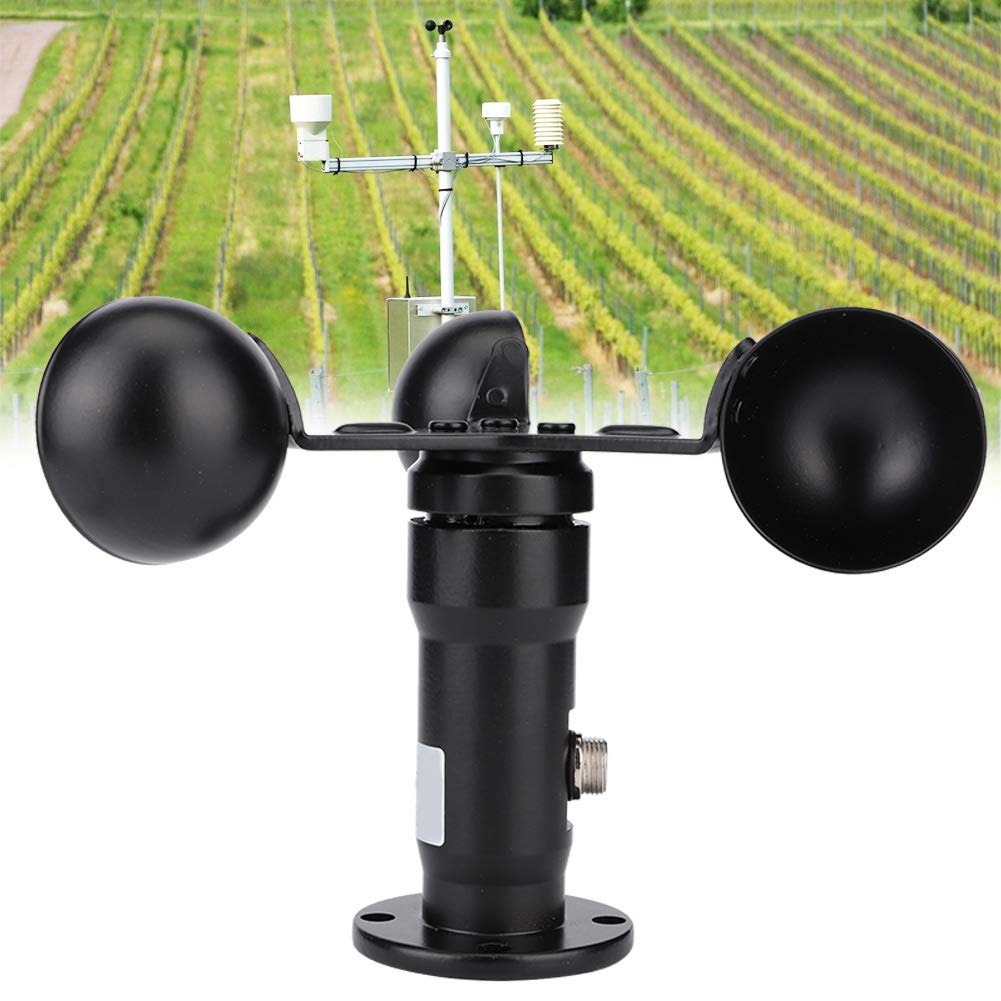

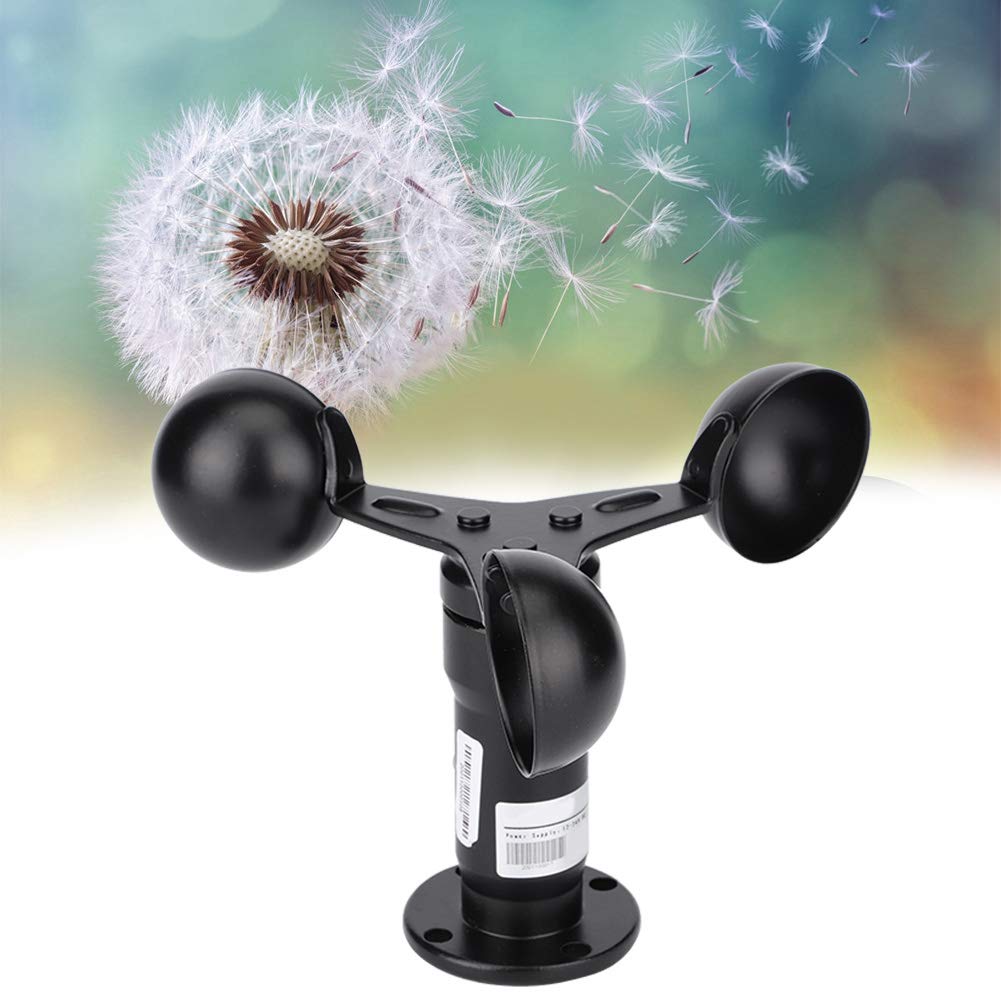

Anemometer Wind Cup 0-10V 3 Cups Wind Speed Sensor Air Flowing Cup

Key features

• HIGH QUALITY MATERIAL - The Wind Speeds Cup is made of aluminum alloy material, with high strength, weather resistance, and water resistance, can be used for a long time.
• THREE CUP DESIGN - This anemometer uses a three cup wind cup, measuring 360 degree wind speed with high accuracy. Lightweight, can reduce friction, improve sensitivity, and ensure measurement accuracy.

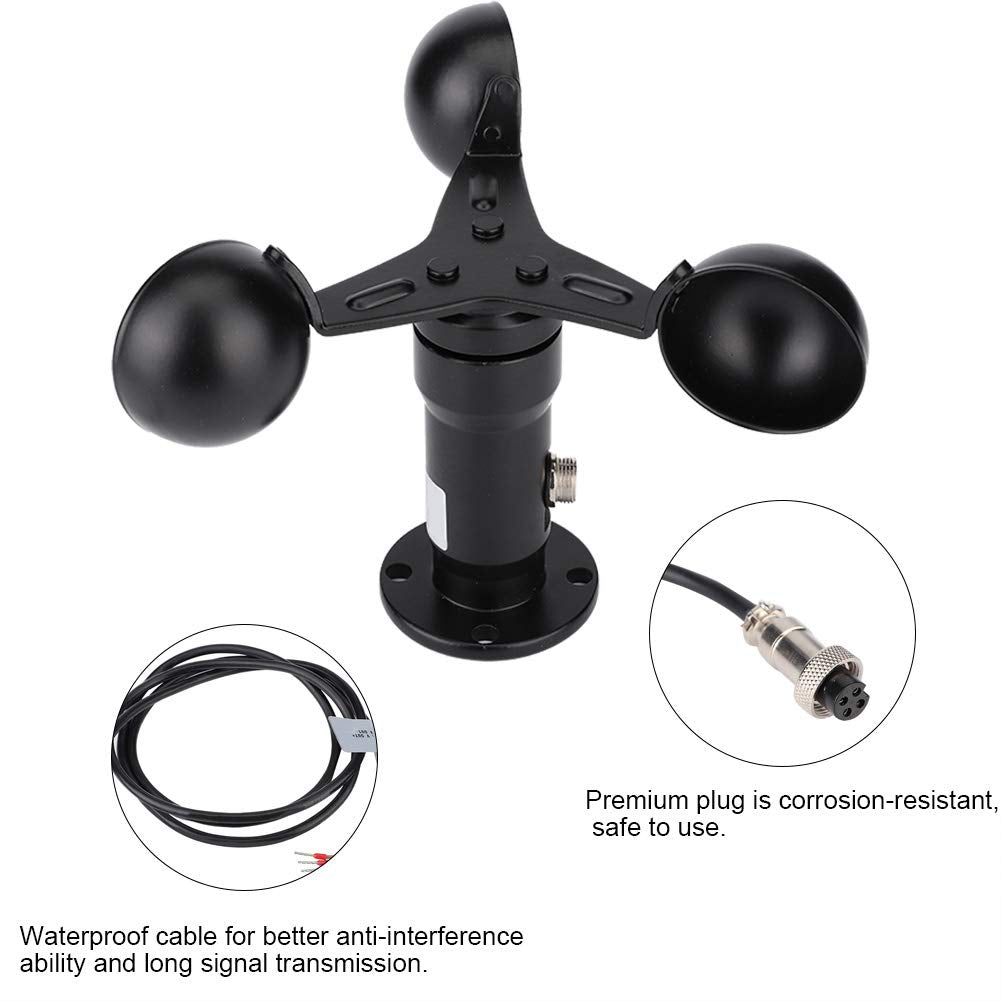

• STABLE TRANSMISSION - Equipped with a cable, which is waterproof, oil resistant, and has strong anti interference capabilities, ensuring the long-term use of the instrument, in conjunction with internal bearings system to ensure the accuracy of the wind speed acquisition.

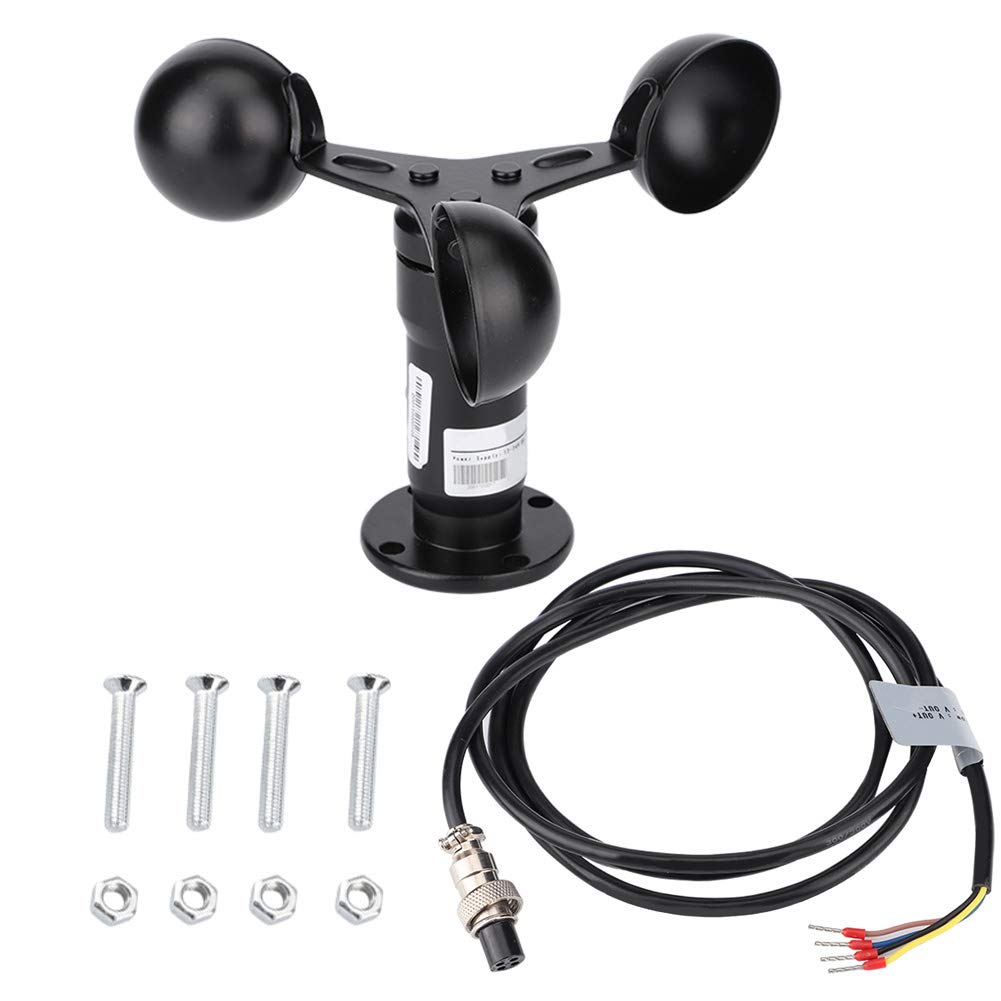

• EASY TO INSTALL - The Wind Speed Detector comes with a cable and a set of screws. Thoughtful mounting kit will help you to install easily.The simple operations and easy setup of this sensor make it the perfect tool for all your wind measurement needs.
• WIDE APPLICATION - The Aluminium Alloy Anemometer is widely applicable for wind speed measurement in power plants, meteorological monitoring, wind speed and direction measurement, etc.

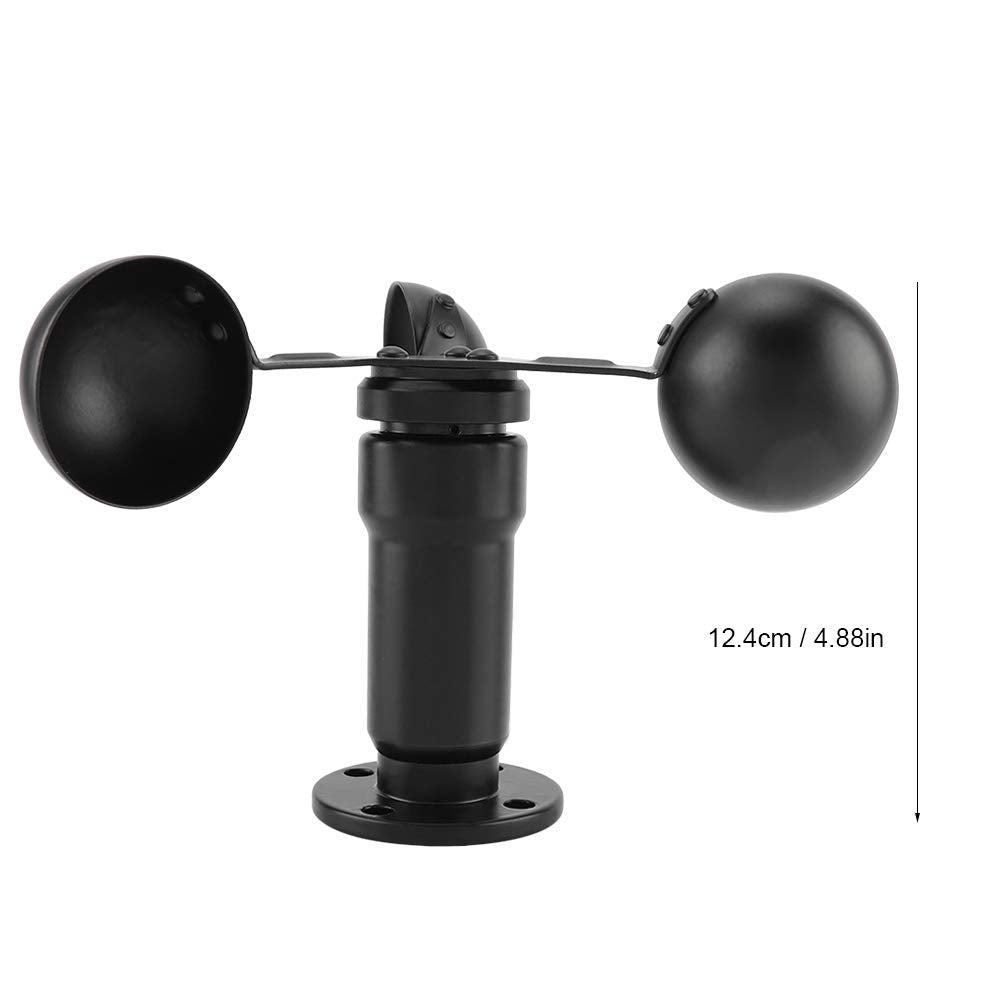

Specification: Item Type: Wind Speed Sensor Material: Aluminum Alloy Color: Black Height: Approx.12.4cm / 4.9inch Measuring Range: 0 to 30 m/s Accuracy: ±(0.3 + 0.03V)m/s Resolution: 0.1m/s Start Wind Speed: ≤0.5m/s Power Supply: DC 12 - 24V Output Form: 0 - 10V Load capacity: Current output impedance: ≤600Ω Voltage output impedance: ≥1KΩ Working environment: Temperature: -40℃- 50℃ Humidity: ≤100 percent RH Protection level: IP45 Temperature: 80℃ Rated Voltage: 300V Product Power Consumption: 50mW Wind Speed Measurement Range: 0-30m/s Wind Speed Measurement Accuracy: ±1m/s Response Time: ＜5 seconds Baud Rate:9600 Communication port: 0 - 10V Power Supply: 12V-24V DC Power Consumption: <1W Operating temperature: -30-80℃ Working humidity environment:0-100 percent RH (15-95% RH) Weight: Approx.518g/18.3oz Application: Aluminum alloy wind speed detector Package list: 1 x Wind Speed Sensor 1 x Cable 1 x User Manual1 x Set of Screw Notes: 1. The actual product color may deviate from the photo due to light. 2. There may be a slight deviation in the measurement of product.

Free shipping included. 30-day hassle-free returns.
