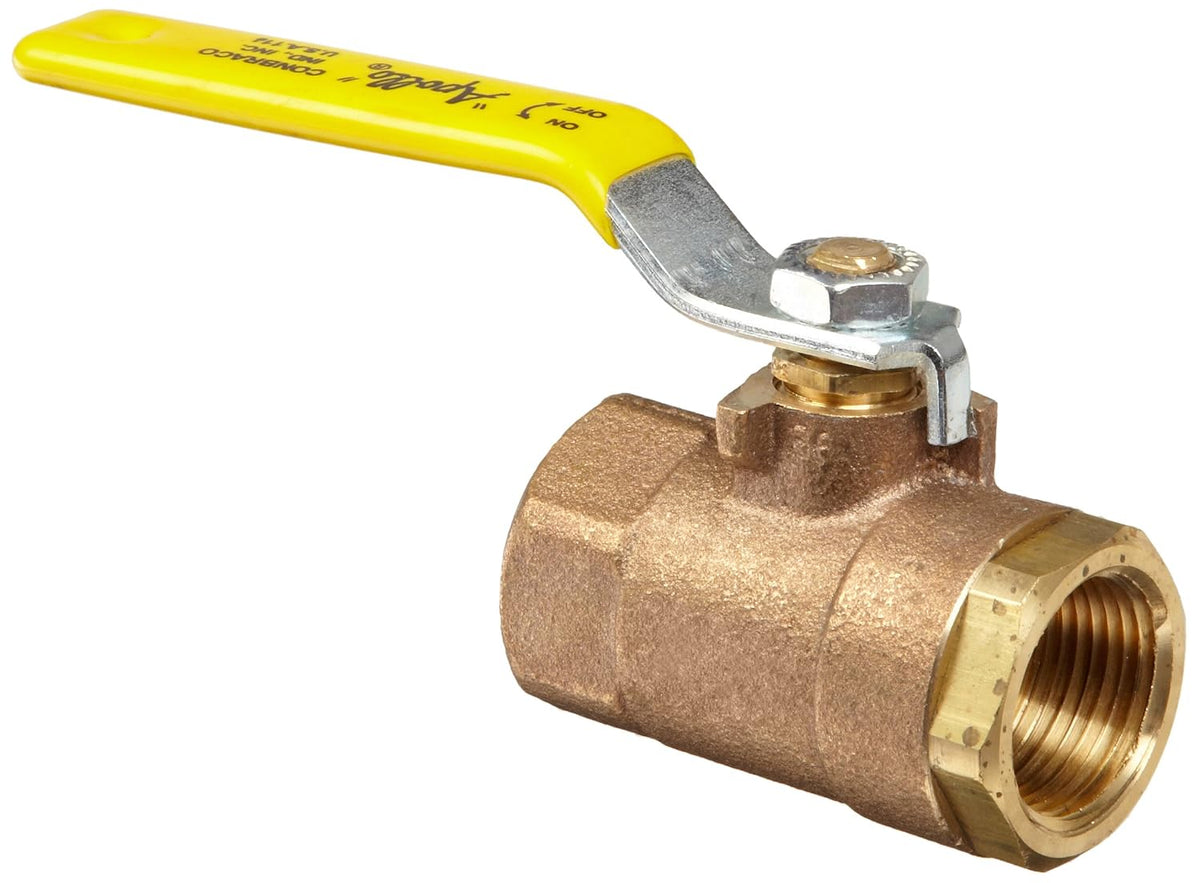

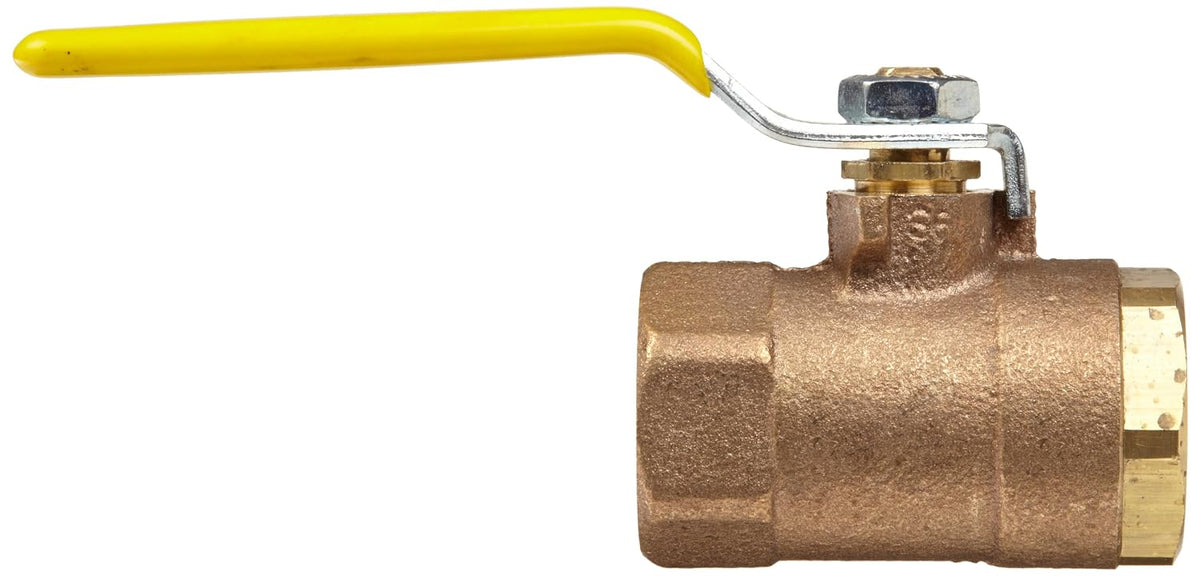

Apollo 32-100 Series Bronze Ball Valve, Two Piece, Inline, Lever, 1" NPT Female

Key features

• Made of bronze for higher strength and corrosion resistance than brass
• Zinc-plated steel lever handle with vinyl sleeve for manual on/off control
• Standard port flow for smaller valve size and reduced cost
• Pounds per square inch (psi) rating of 400 for cold working pressure (CWP) and 125 for steam working pressure (SWP)
• Female National Pipe Taper (NPT) threads for use with male threaded pipes

The Apollo 32-100 series two-piece inline ball valve is made of bronze and has a lever handle and female National Pipe Taper (NPT) threaded connections on both ends. This valve is made of bronze for higher strength and corrosion resistance than brass. It has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control. This ball valve is standard (or regular) port for reduced valve size and cost. The maximum pressure is 400 pounds per square inch (psi) for cold working pressure (CWP) and 125 psi for steam working pressure (SWP), and the maximum temperature is 400 degrees Fahrenheit. The valve is inline for connecting two pipes going in the same direction and has NPT threads on both ends for creating tighter seals than straight threads. Polytetrafluoroethylene (PTFE) seats and reinforced polytetraflouroethylene (RPTFE) stem packing reduce the risk of valve leakage. This valve is for use in water lines, processing plants, and agricultural applications and meets standards MSS SP-110 and CRN: OC10908.5 for quality assurance.Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped di
