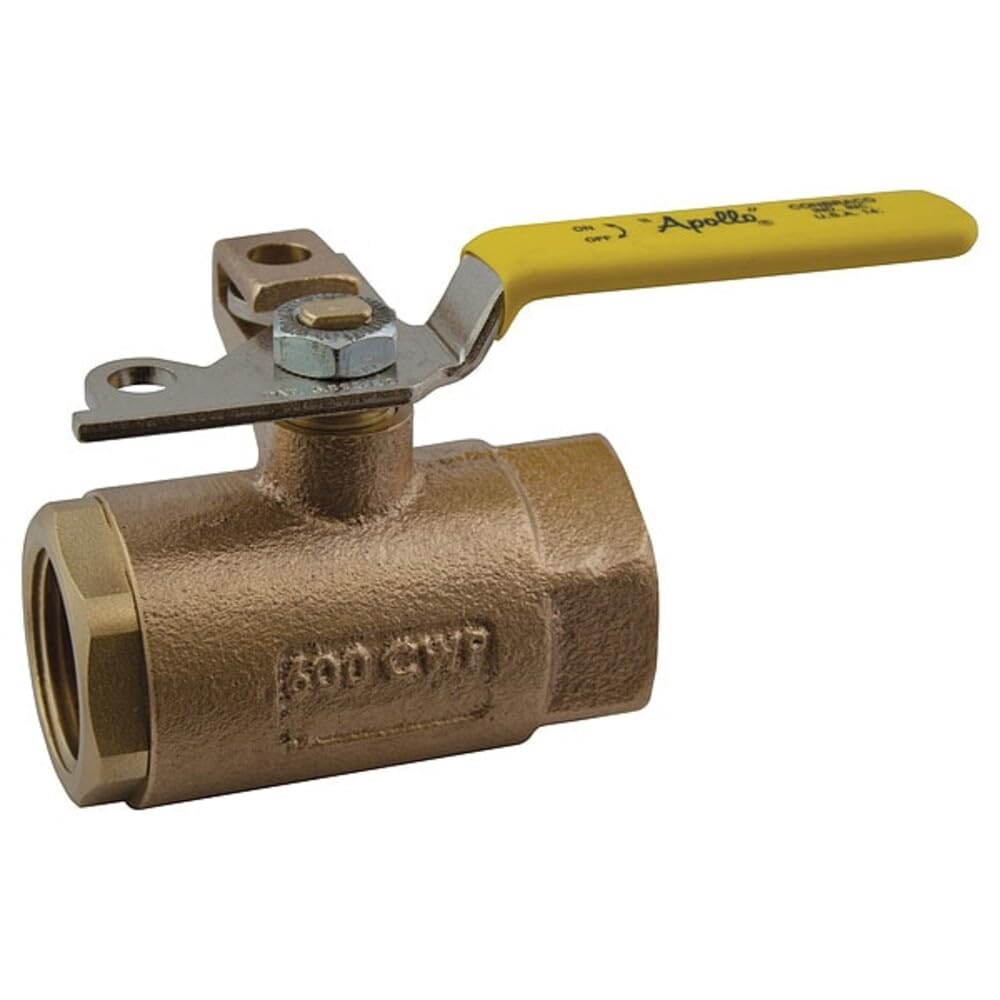

Apollo 75-100 Series Bronze Ball Valve, Two Piece, Inline, Lockable Lever, 1/4" NPT Female

Key features

• Made of bronze for higher strength and corrosion resistance than brass
• Lockable lever handle can be locked into position using a portable lock
• Pounds per square inch (gauge) (psig) rating of 600 for water, oil, and gas (WOG) and 150 for saturated steam
• Female National Pipe Taper (NPT) threads on both ends for use with male threaded connections
• Reinforced polytetrafluoroethylene (RPTFE) seats and PTFE seal reduce the risk of valve leakage

The Apollo 75-100 series two-piece inline ball valve is made of bronze and has a lockable lever-handle and female National Pipe Taper (NPT) threaded connections on both ends. This valve is made of bronze for higher strength and corrosion resistance than brass. This valve has a zinc-plated steel, lockable lever handle that can be locked in the open or closed position using a portable lock (not included). The maximum pressure is 600 pounds per square inch (gauge) (psig) for use with water, oil, and gas (WOG) and 150 for saturated steam. The valve is inline for connecting two pipes going in the same direction and has NPT threads on both ends for creating tighter seals than straight threads. Reinforced polytetrafluoroethylene (RPTFE) seats and a PTFE seal reduce the risk of valve leakage. This ball valve is standard (or regular) port for reduced valve size and cost and has a working temperature range of -20 to 450 degrees Fahrenheit. This valve is for use in water lines, processing plants, and agricultural applications and meets standard MSS SP-110 for quality assurance.Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole th
