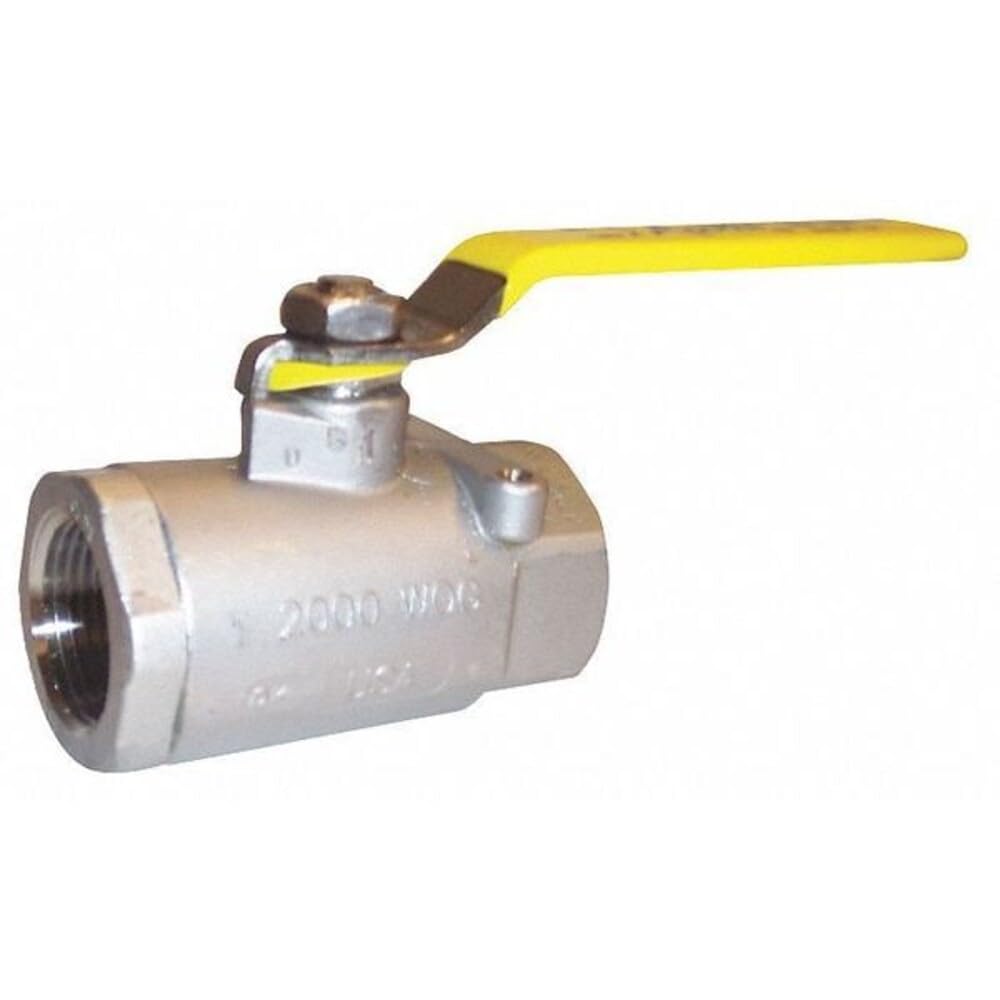

Apollo 76-100 Series Stainless Steel Ball Valve, Two Piece, Inline, Latch-Lock Lever with Nut, 1-1/4" NPT Female

Key features

• Made of stainless steel for resistance to corrosion
• Stainless steel latch-lock lever handle with a stainless steel nut and vinyl sleeve for manual on/off control
• Pounds per square inch (gauge) (psig) rating of 2,000 for water, oil, and gas (WOG) for 1/4” to 1” valves; 1,500 for 1-1/4” to 2”, 1,000 for 2-1/2” to 3”; and 150 for all for saturated steam
• Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes
• Reinforced polytetrafluoroethylene (RPTFE) seats and multifill polytetrafluoroethylene (MPTFE) stem packing reduce the risk of valve leakage

The Apollo 76-100 series two-piece inline ball valve is made of stainless steel and has a latch-lock lever handle and female National Pipe Taper (NPT) threaded connections on both ends. This valve is made of stainless steel for resistance to corrosion and has a stainless steel latch-lock lever handle with a stainless steel nut and vinyl sleeve for manual on/off control. The lever handle can be locked in either the open or closed position. The maximum pressure is 2,000 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) for 1/4” to 1” valves, 1,500 psig for 1-1/4” to 2”, 1,000 psig for 2-1/2” to 3”, and 150 psig for all valves for saturated steam, and the temperature range is -20 to 450 degrees Fahrenheit. The valve is inline for connecting two pipes going in the same direction and has NPT threads on both ends for creating tighter seals than straight threads. Reinforced polytetrafluoroethylene (RPTFE) seats and multifill polytetrafluoroethylene (MPTFE) stem packing reduce the risk of valve leakage and this ball valve is standard (or regular) port for reduced valve size and cost. This valve is for use with water lines, processing plants, and agricultural applications
