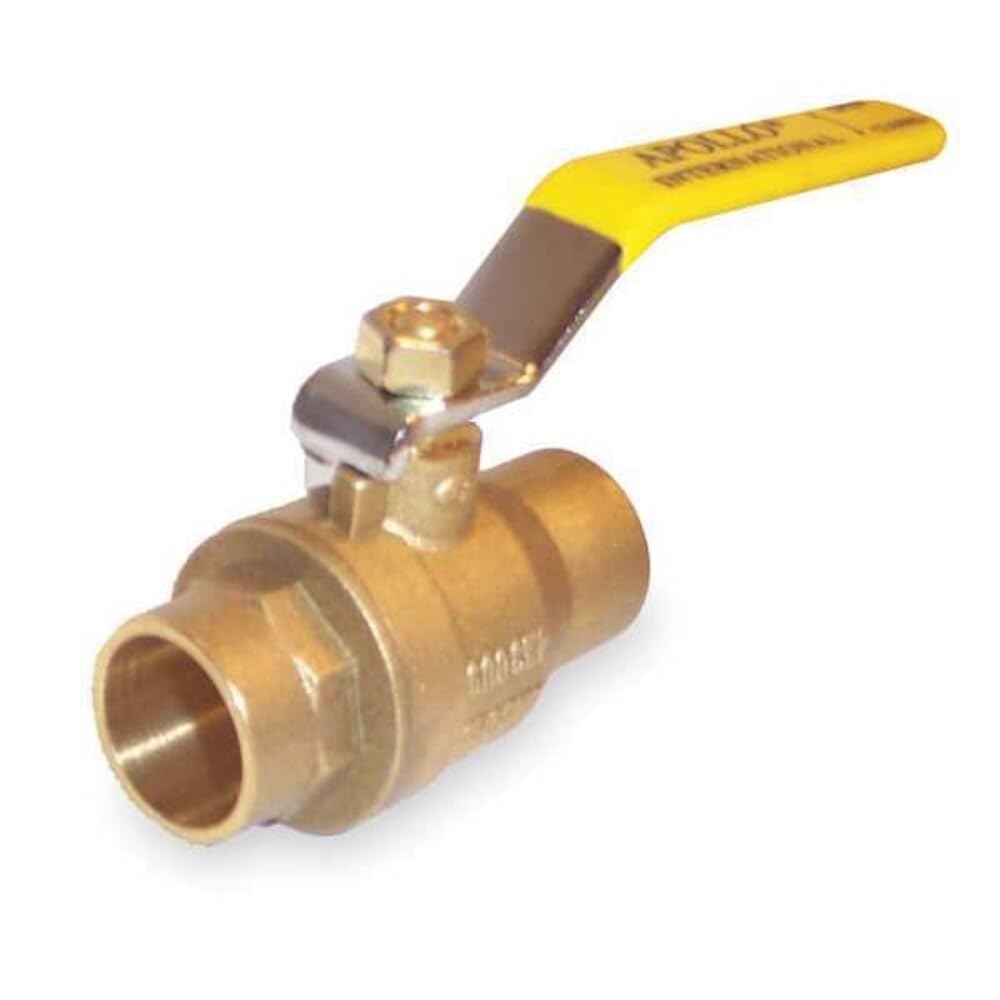

Apollo 94A Series Brass Ball Valve, Two Piece, Inline, Lever, 1" Solder End

Key features

• Made from brass for higher corrosion resistance than steel
• Steel lever handle with corrosion resistant plating and a vinyl sleeve for manual on/off control
• Full port flow for higher operating efficiency than standard port
• Pounds per square inch (psi) rating of 600 for cold working pressure (CWP) for 1/4” to 2” valves; 400 CWP for 2-1/2” to 4” valves
• Solder connections on both ends for semi-permanent connections to tubing

The Apollo 94A series two-piece full port inline ball valve is made of brass and has a lever handle and solder end connections on both ends. This valve is made of brass for higher corrosion resistance than steel and has a steel lever handle with corrosion resistant plating and a vinyl sleeve for manual on/off control. The ball valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to enable maximum operating efficiency. The maximum pressure is 600 pounds per square inch (psi) for cold working pressure (CWP) for 1/4” to 2” valves and 400 psi CWP for 2-1/2” to 4” valves. The maximum temperature is 400 degrees Fahrenheit. The valve is inline for connecting two pipes going in the same direction and has solder end connections for semi-permanent yet reversible connection to tubing. Polytetrafluoroethylene (PTFE) seats and stem packing reduce the risk of valve leakage. This valve is for use with water lines, processing plants, and agricultural applications and meets standard ANSI/NSF 61 for quality assurance.Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that
