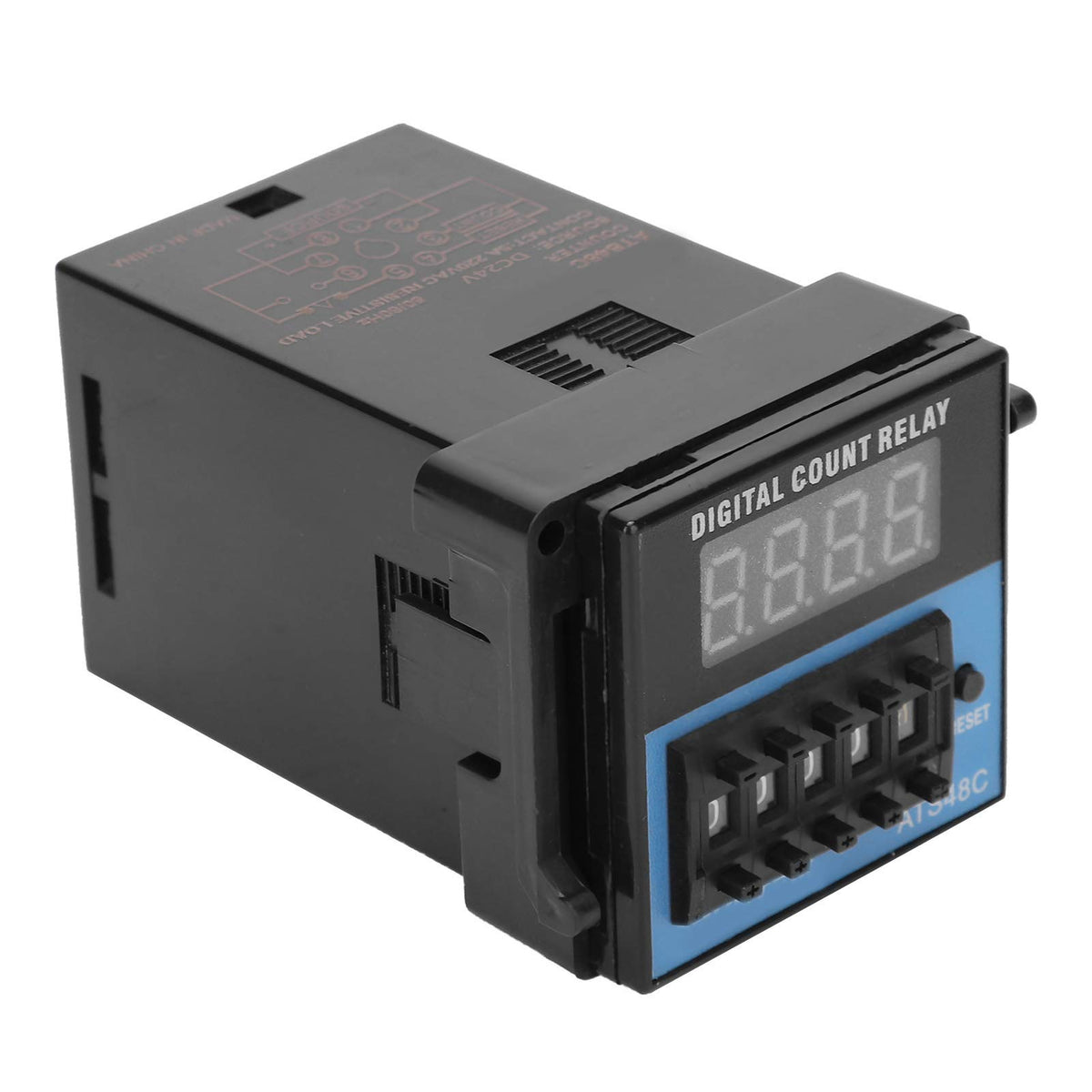

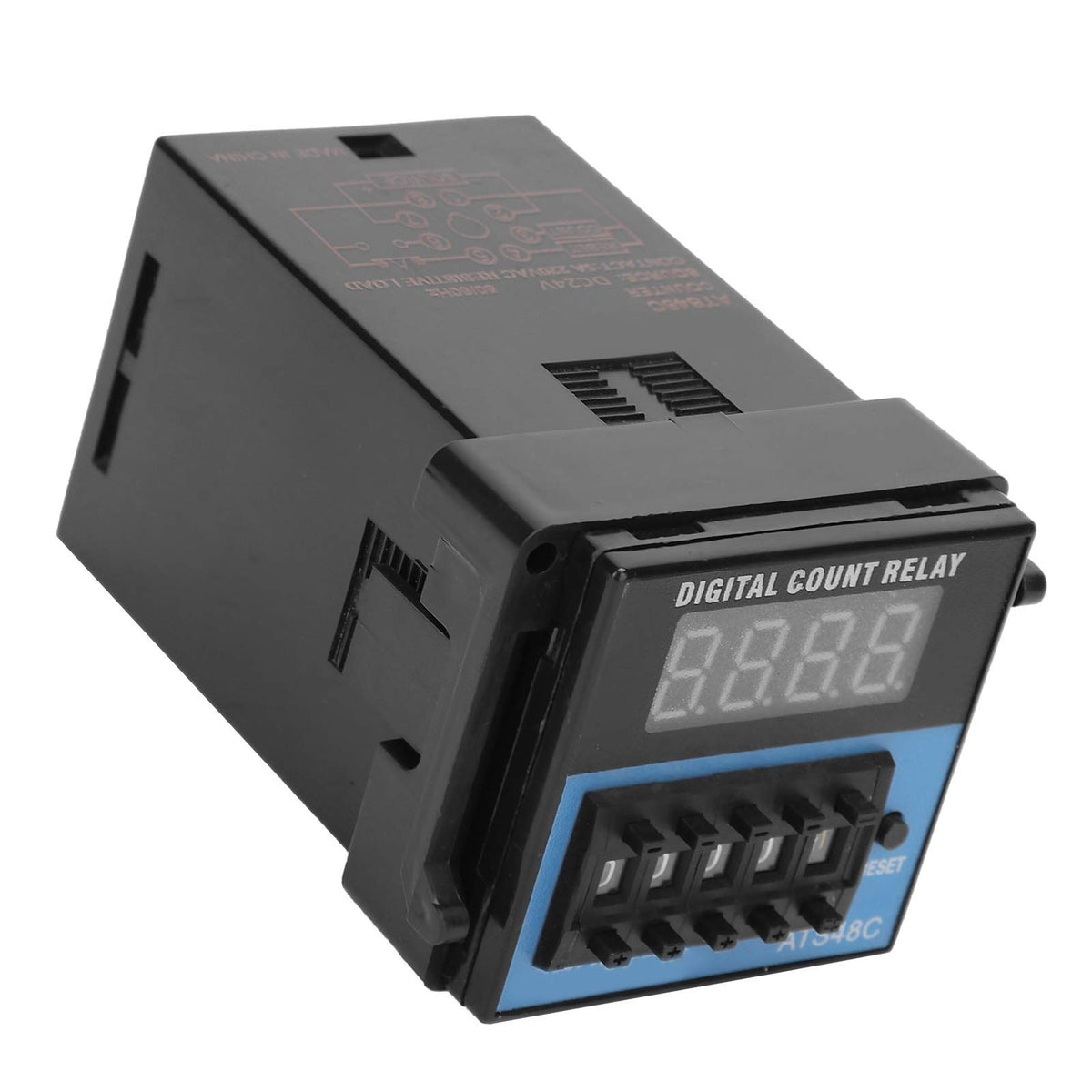

Badafaci Cycle Delay Timer Relay, Plastic ATS48C Time Relay with LED

Key features

• Reliable Contact OutputBuilt with plastic housing and high conductivity contacts, this time relay provides 5A AC220V and DC30V 5A resistive capacity, with mechanical and electrical life of 100000 times.
• Flexible InstallationDesigned for panel mounting with 45 x 45mm cut out, 35mm rail installation, or device type mounting with 33mm hole distance. Suitable for different electrical equipment layouts.

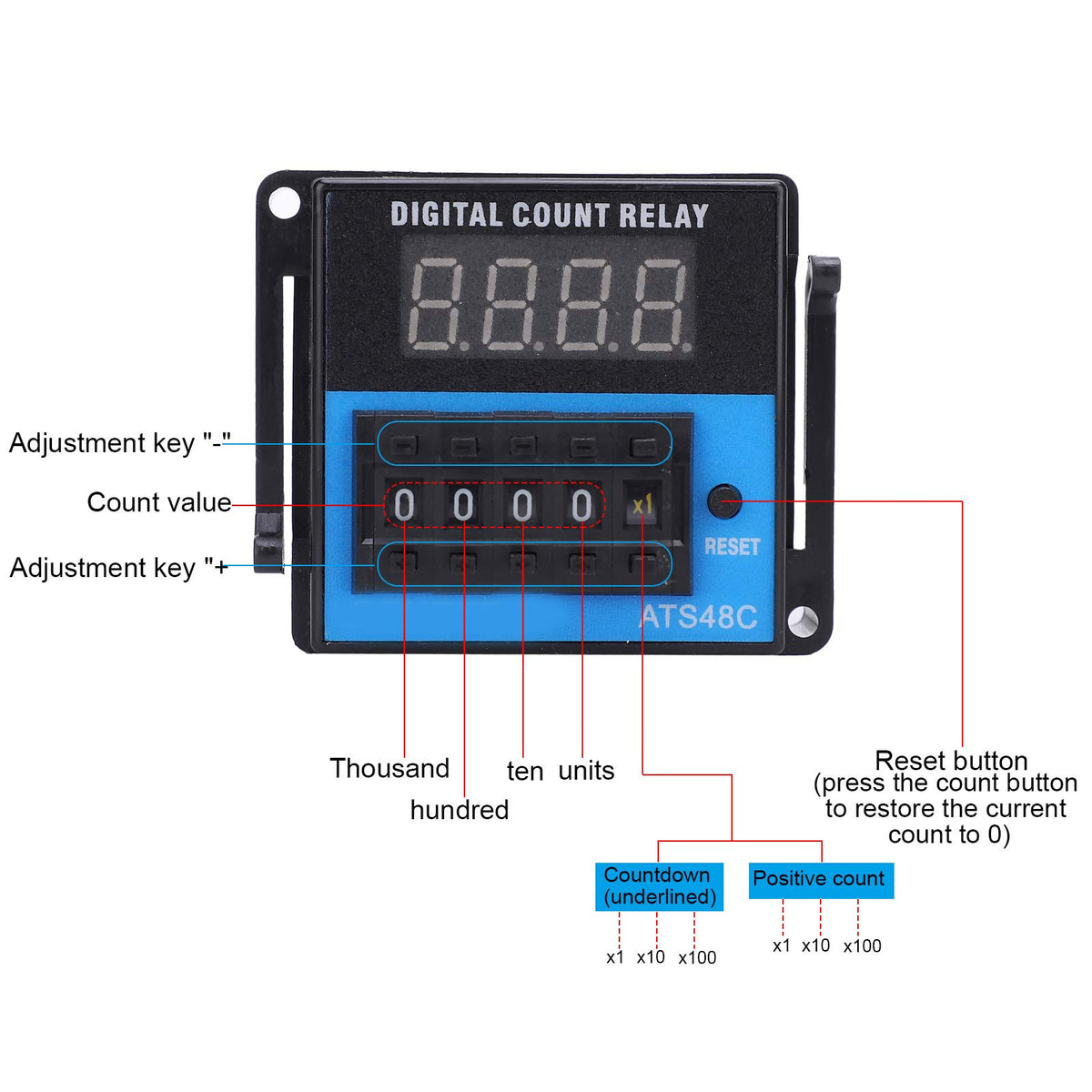

• LED Digital DisplayThis cycle delay timer relay features a 0.36 inch red LED digital tube display for clear count reading. ATS48C time relay supports count up and count down operation in control systems.
• Industrial Use SceneUsed as delay control parts in industrial automation control systems, machinery equipment, roadside billboards, factory workshops, and highway street lights. Working temperature is 14°F to 122°F.
• Wide Timing RangeDelay timing module relay offers adjustable counting ranges from 1 to 9999 up to 100 to 999900. Digital panel setting helps match different cycle delay timer relay control tasks.
