BAOMAIN 10-Function Time Relay 12-240V AC/DC 16A Universal DIN Rail Timer

Key features

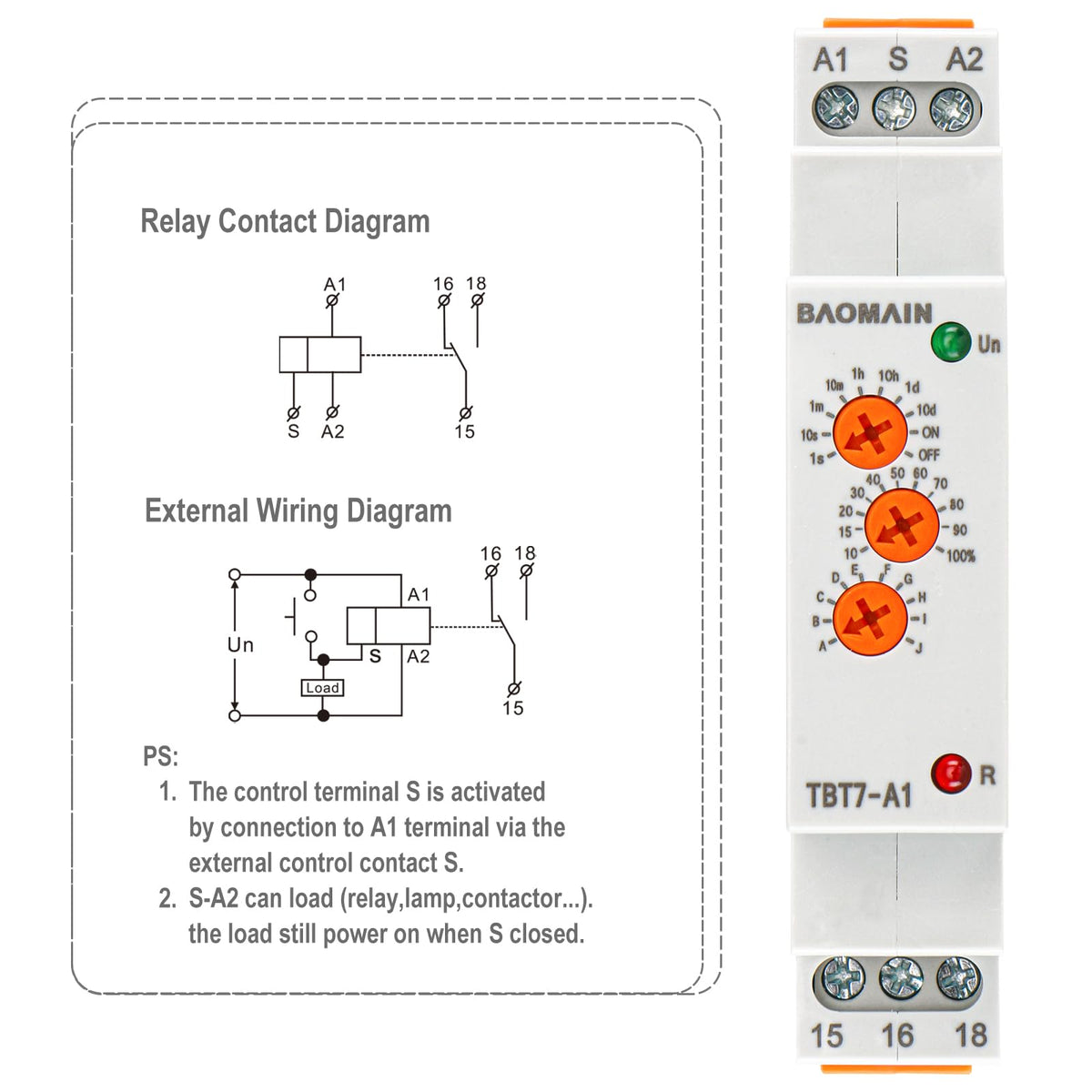

• UNIVERSAL VOLTAGE AND HEAVY DUTY LOAD: Supports an ultra-wide power supply range from AC/DC 12V to 240V (50/60Hz), making it compatible with 12V/24V DC battery setups and 110V/220V AC mains. Equipped with a high-capacity 1-SPDT (1NO+1NC) output contact rated at 16A 250VAC / 24VDC to directly switch heavy-duty motors, pumps, and lighting systems without requiring extra contactors.

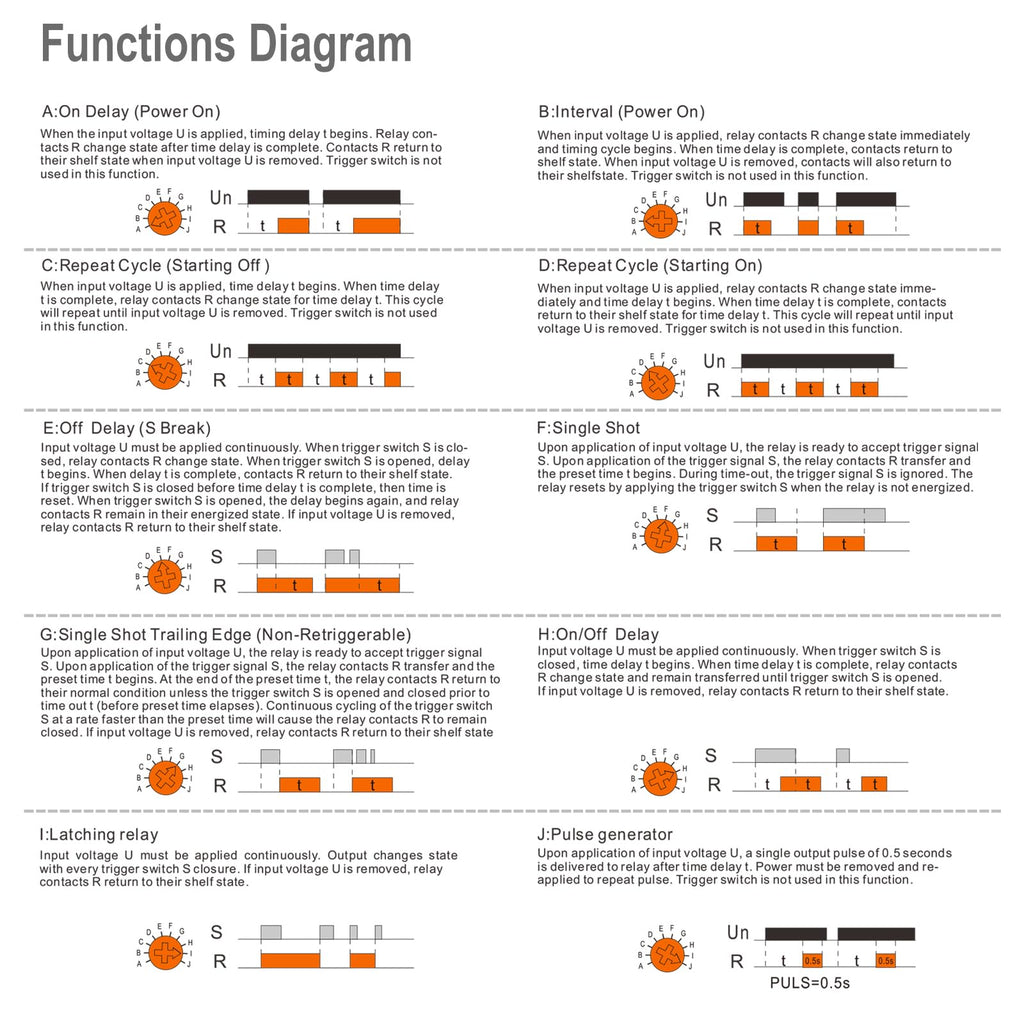

• TEN VERSATILE OPERATIONAL TIMING MODES: Features 10 operational modes from A to J, including Delay ON, Delay OFF, Repeat Cycle starting with ON or OFF, Pulse Generator, and Latching Relay. Replaces multiple single-function relays with one flexible modular unit, reducing panel complexity and inventory requirements for industrial control projects.
• BROAD TIME RANGE AND PRECISION ADJUSTMENTS: Offers timing coverage from 0.1 seconds to 10 days across 10 selectable range scales. Dual front rotary potentiometers enable straightforward adjustment of time scales and operational logic, maintaining high repeat accuracy of under 0.2 percent for stable timing performance.

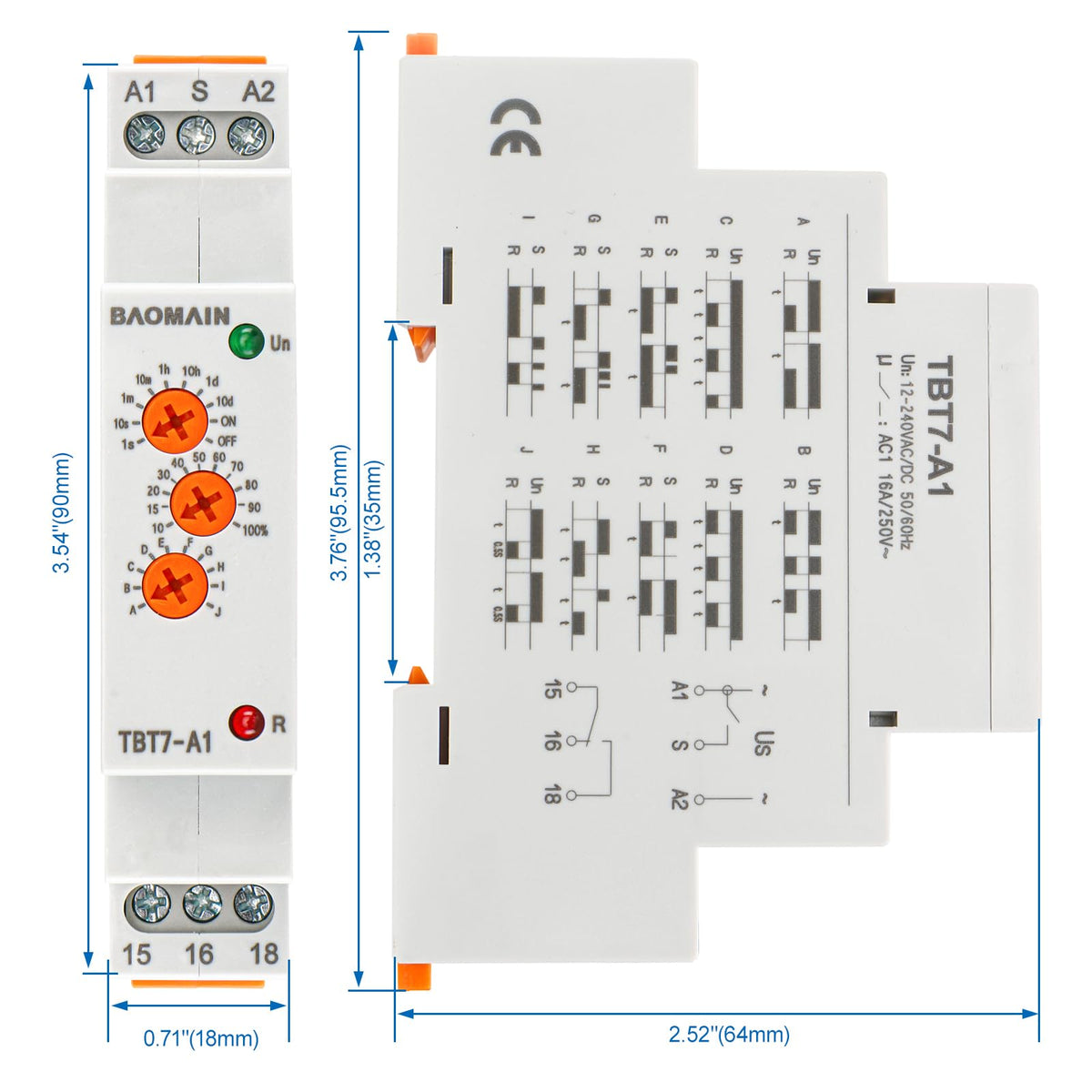

• SLIM DIN RAIL MOUNT WITH LED STATUS: Designed with a compact 18mm single-module width that optimizes panel space inside standard 35mm DIN rail control cabinets. Includes dual LED diagnostic indicators with green displaying power input status (Un) and red displaying output relay status (R) for easy visual troubleshooting.
• INDUSTRIAL DURABILITY AND WIDE APPLICATIONS: Built with a flame-retardant housing and high-grade electrical components engineered for a mechanical lifespan of up to 10 million operations. Suitable for OEM machinery, HVAC control systems, motor startup sequencing, conveyor control, and custom control panel automation.
