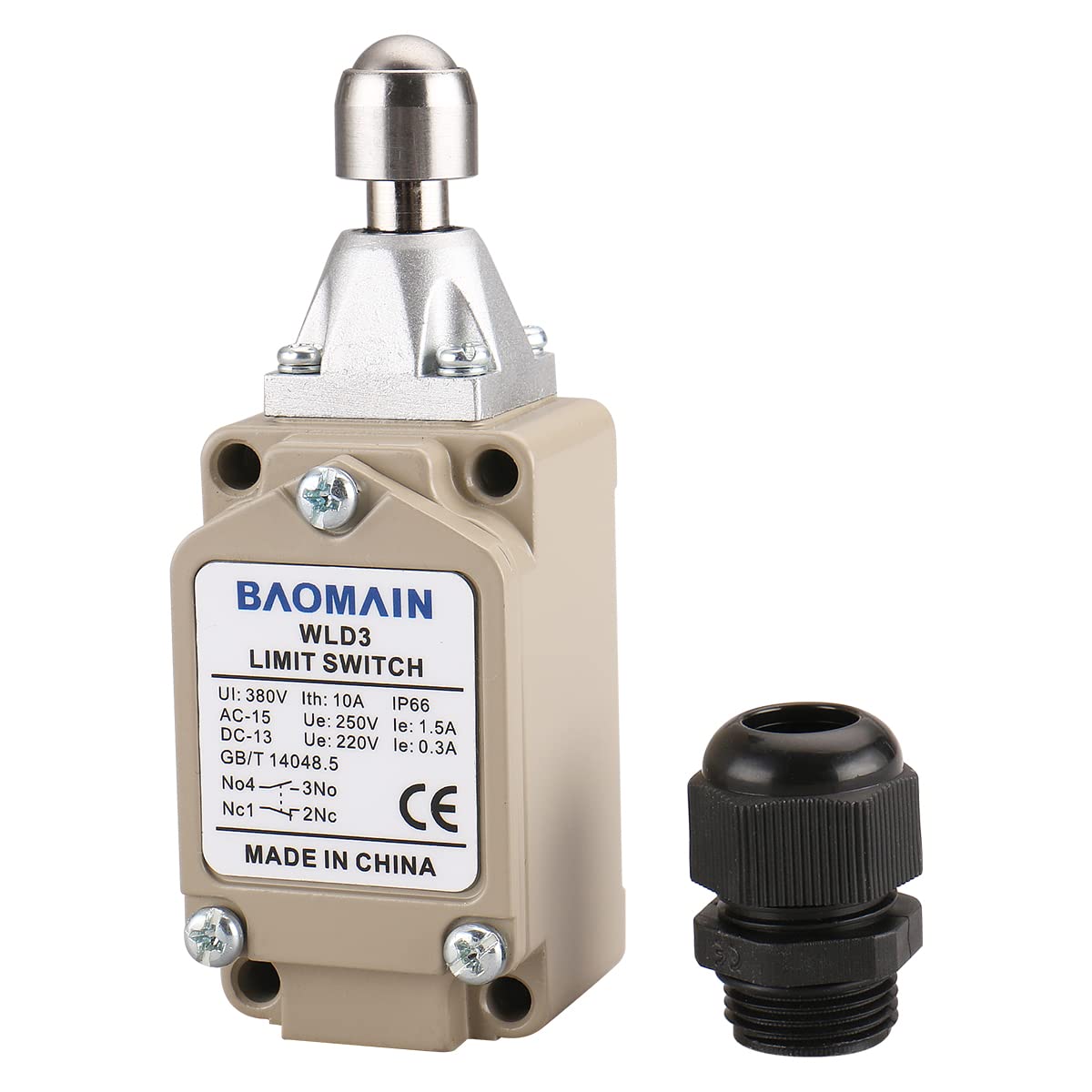

BAOMAIN WLD3 Limit Switch,Sealed Top Ball Plunger Momentary Actuator,IP66
BAOMAIN WLD3 Limit Switch,Sealed Top Ball Plunger Momentary Actuator,IP66
Key features
- Sealed Top Ball Plunger: Ball-top plunger with a highly flexible rubber sealing boot. Ideal for high-precision position monitoring and automated limit protection
- Momentary Snap Action: Engineered for reliability, the momentary mechanism ensures immediate contact reset, perfect for position monitoring and safety interlocking

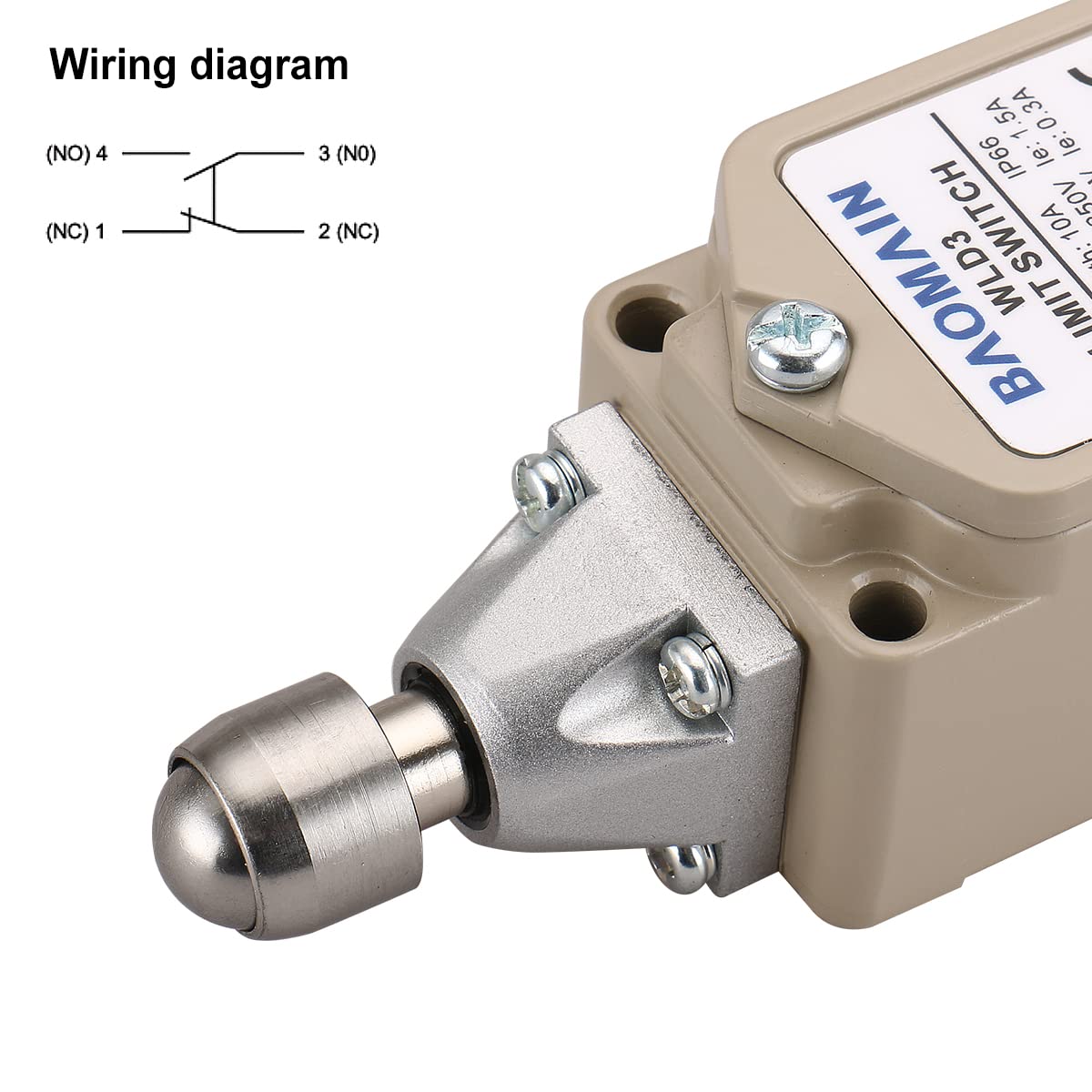

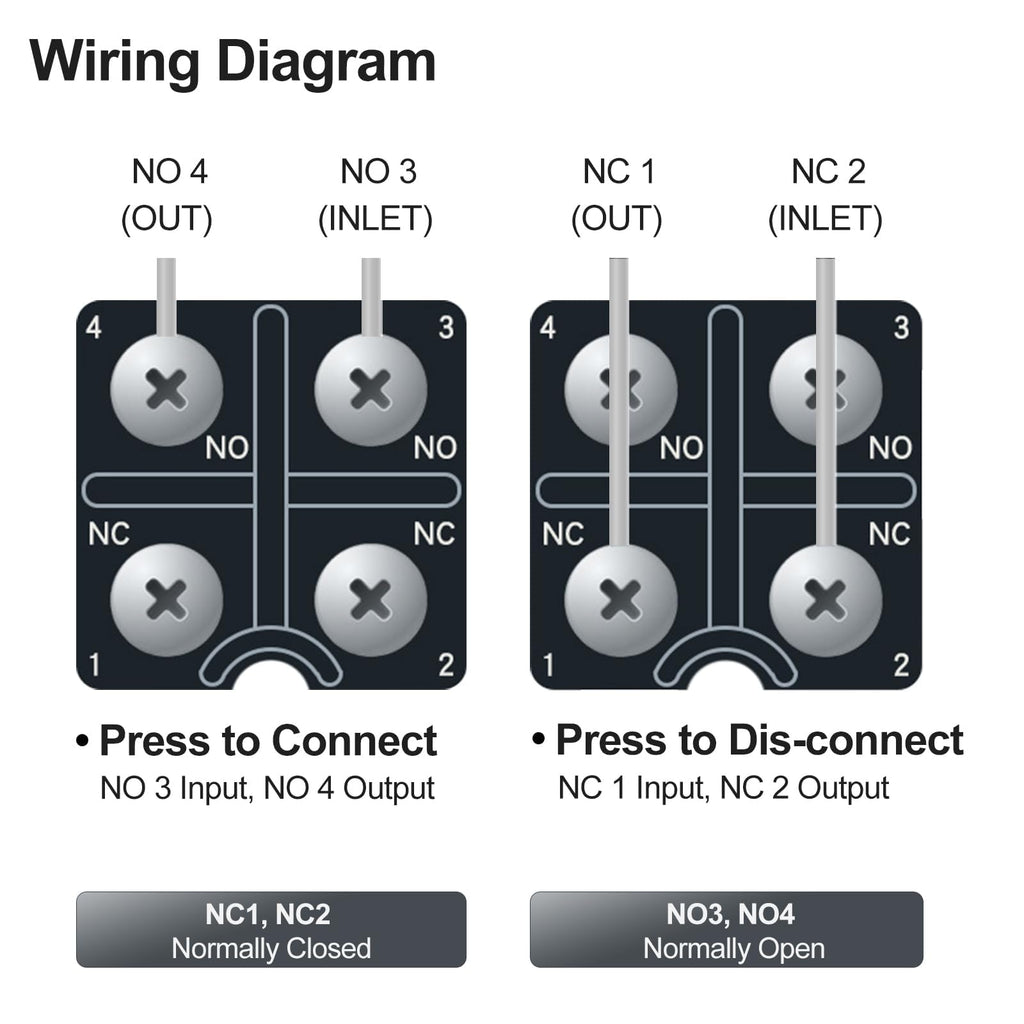

- Reliable 1NO + 1NC Circuit: Features a 4-terminal, 1NO + 1NC double-break configuration with silver contacts for versatile wiring. Electrical ratings: Ui: 380V, Ith: 10A; AC-15 (Ue: 250V, Ie: 1.5A)

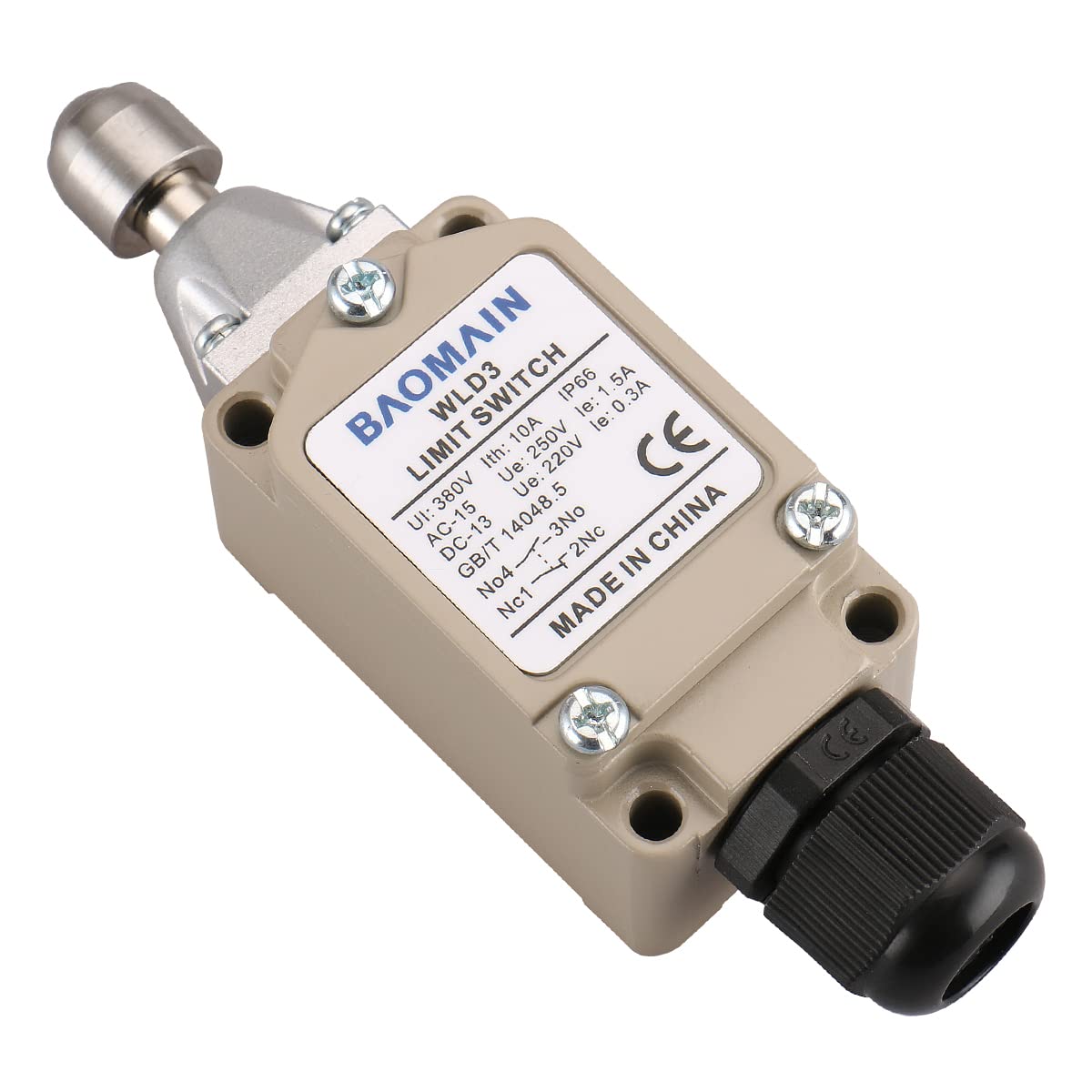

- Heavy-Duty IP66 Housing: Robust die-cast aluminum alloy enclosure with IP66 waterproof rating. Provides superior protection against heavy dust, oil, and high-pressure water in harsh environments

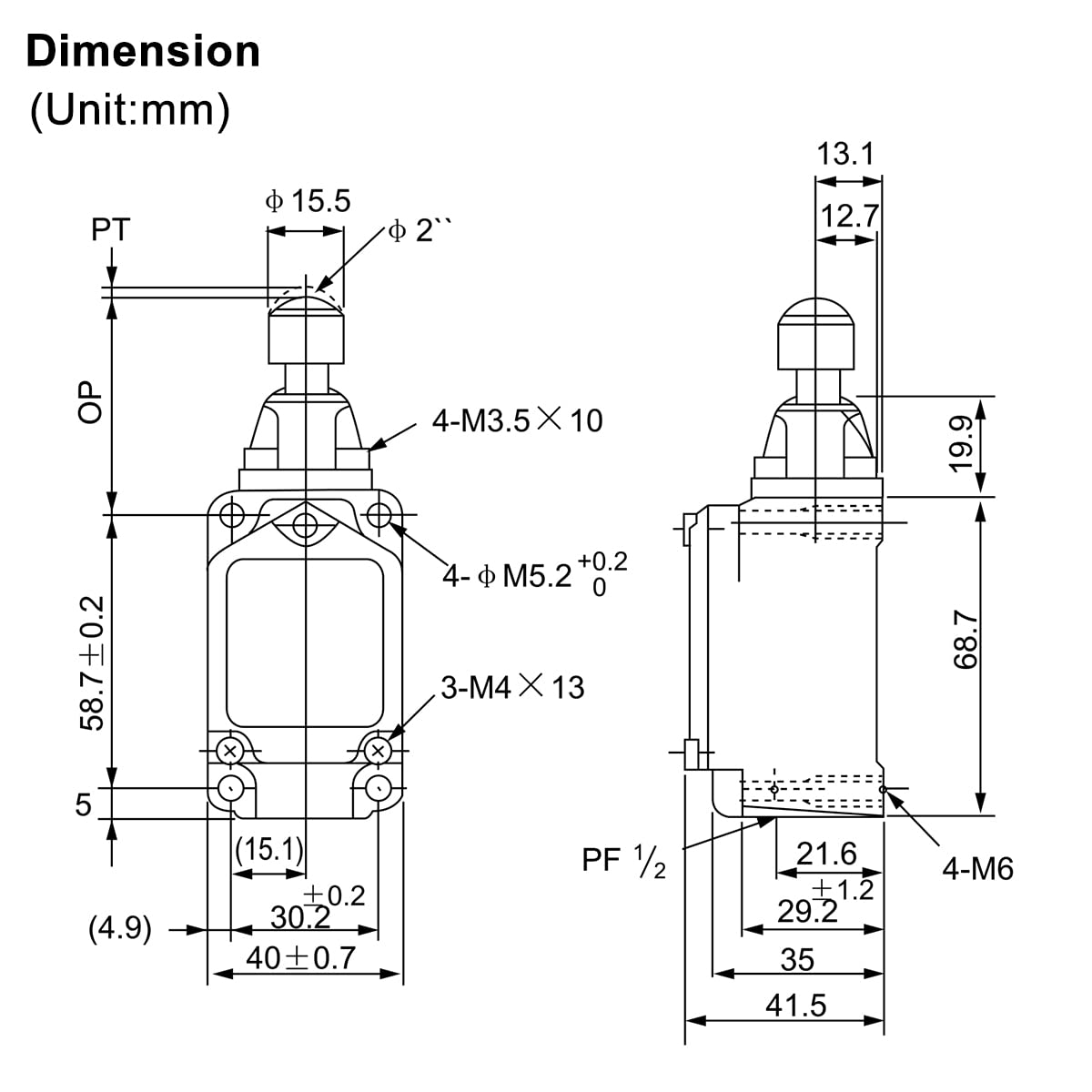

- Universal Integration: Standard mounting footprint with a secure, sealed cable gland. Ideal replacement switch for CNC machines, packaging equipment, and industrial automation
Product Description Sealed Top Ball Plunger: Features a ball top with a flexible rubber boot. Perfect for high-precision position monitoring and limit control. Momentary Snap Action: High-sensitivity internal mechanism ensures immediate contact reset upon release, minimizing arcing and maximizing lifespan. Heavy-Duty IP66 Enclosure: Housed in a robust die-cast aluminum alloy casing resistant to dust, oil, moisture, and high-pressure water jets. Reliable Double-Break Circuit: Configured with a 4-terminal, 1NO + 1NC layout featuring silver alloy contacts for stable conductivity. Universal Integration: Built with standard industrial mounting dimensions and a sealed cable gland for seamless installation or direct replacement. Technical Specifications Model: WLD3 Actuator Type: Sealed Top Ball Plunger Actuator Contact Configuration: 1NO + 1NC (Double-Break, 4 Terminals) Action Type: Momentary / Snap Action Insulation Voltage (Ui): 380V Thermal Current (Ith): 10A Utilization Category: AC-15 (Ue: 250V, Ie: 1.5A) Ingress Protection Rating: IP66 (Waterproof & Dustproof) Housing Material: Die-Cast Aluminum Alloy Applications CNC & Metalworking: Perfect for cam-driven limits, slide motion tra
Free shipping on orders $50+. 30-day hassle-free returns.
