BGD Q3400A1024 24V Igniter Flame Rod for Honeywell SmartValve Systems

Key features

• PART NUMBER CHECK: BGD igniter and flame-rod assembly for applications using Q3400A1024/U. Confirm the installed part number, 24V rating, lead length and keyed connector before ordering.

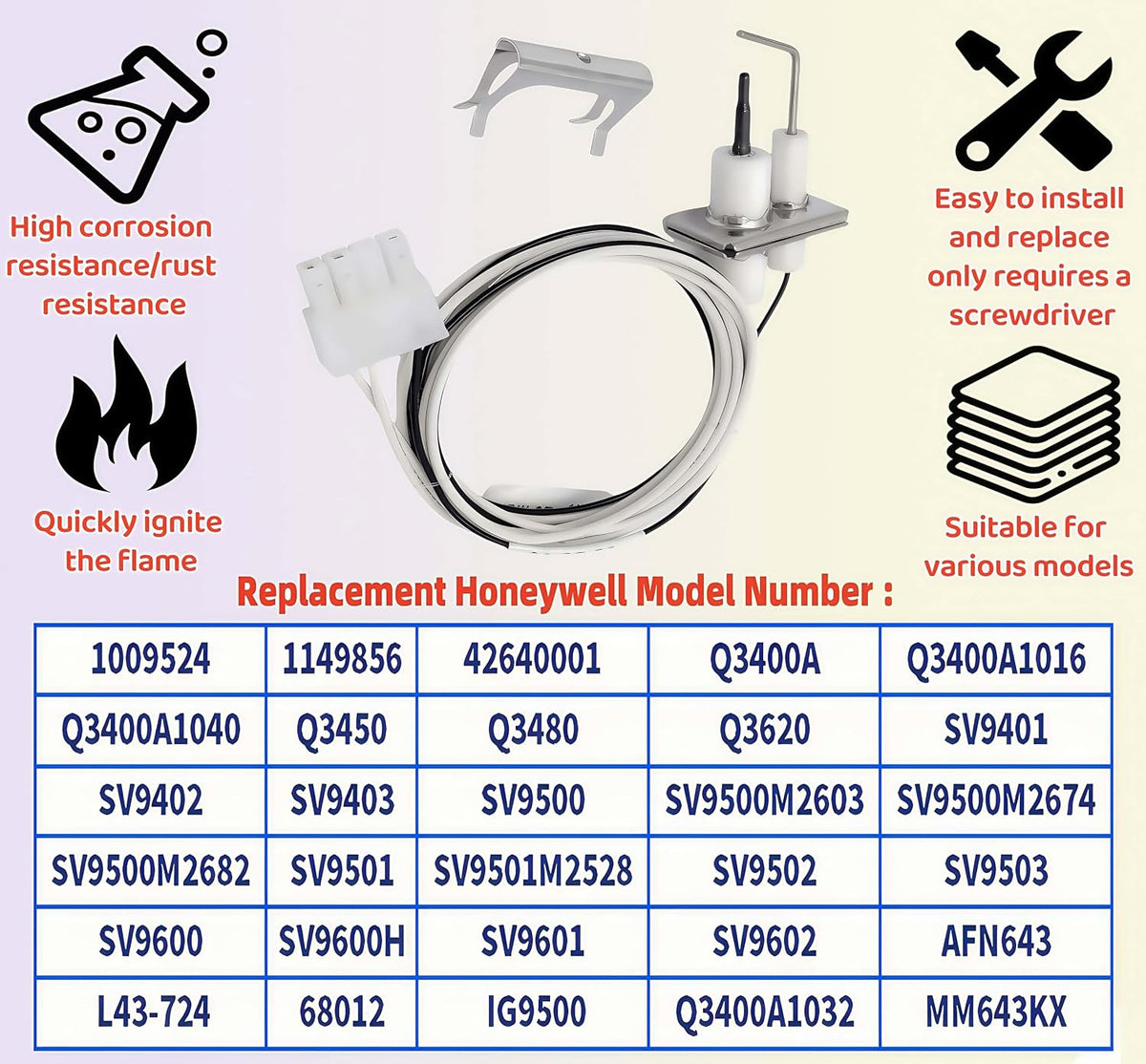

• SMARTVALVE COMPATIBILITY: Designed for select Honeywell Home and Resideo Q3450 and Q3480 hot-surface pilot burners using compatible SV9500 or SV9600 SmartValve controls.

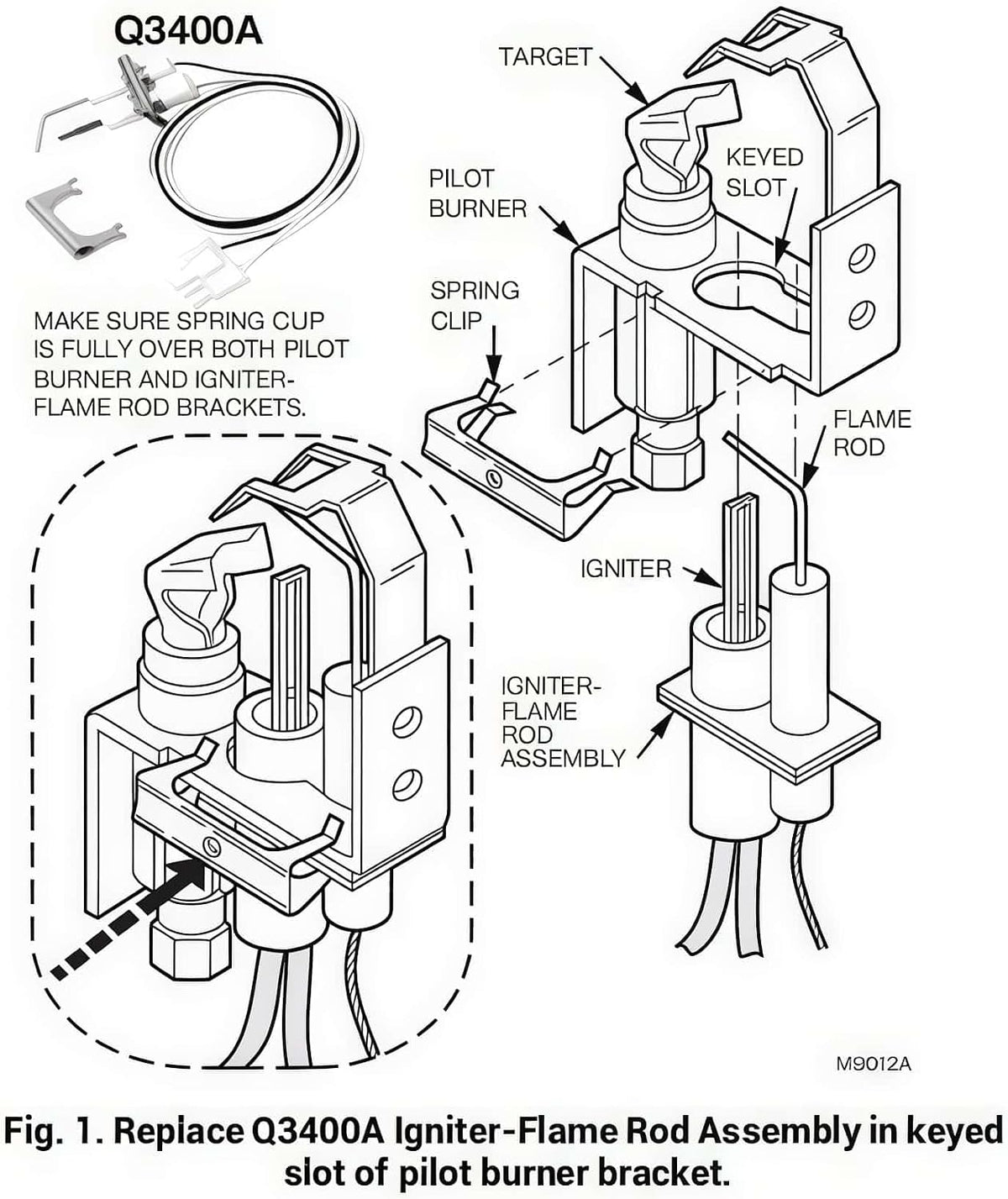

• IGNITION AND FLAME SENSING: The hot-surface element lights the pilot burner, while the flame rod verifies the pilot flame before the control allows the main burner ignition sequence.

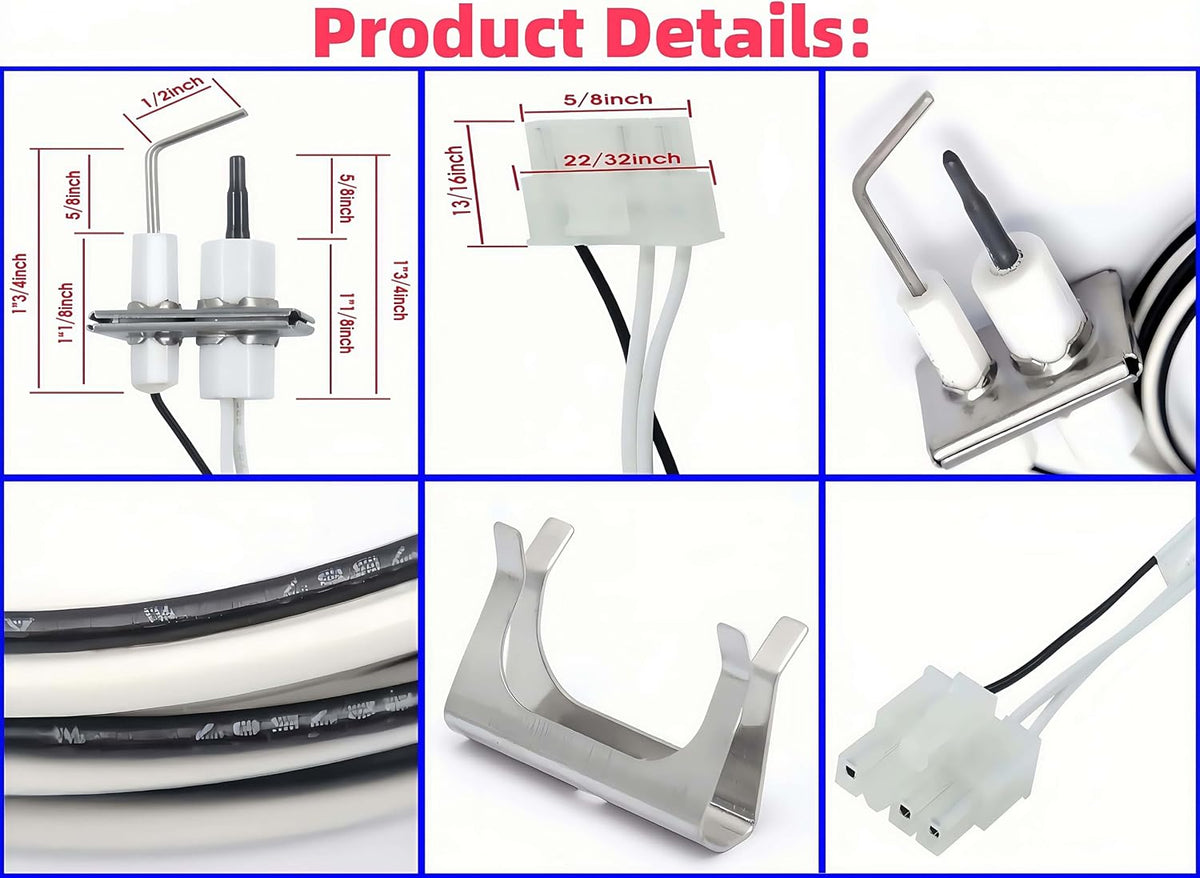

• CHECK LEAD LENGTH AND PLUG: Features an approximately 30-inch lead with a keyed SmartValve connector. Do not replace an 18-inch or 24-inch Q3400A assembly without confirming routing space, plug style and installation position.

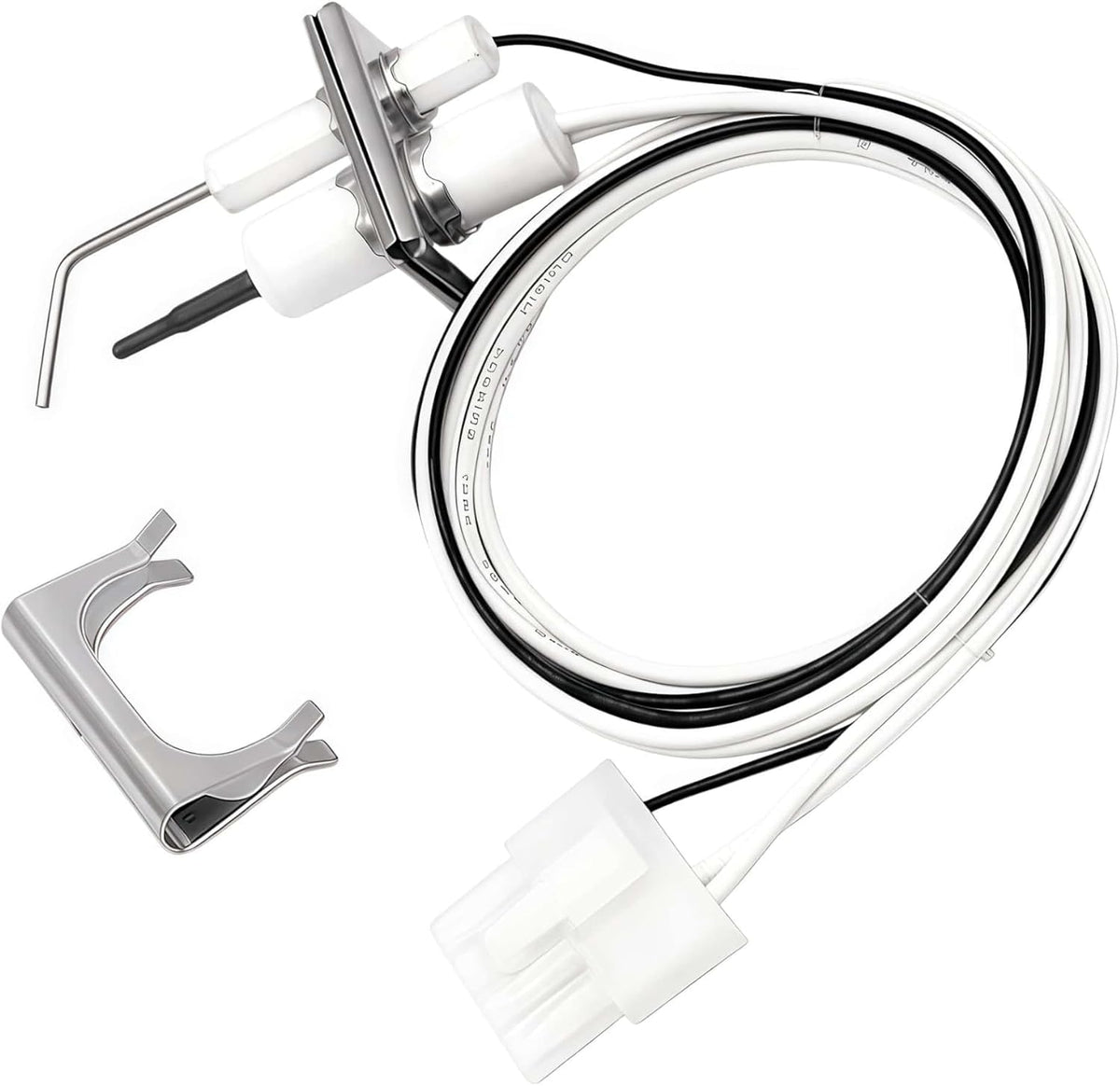

• PACKAGE CONTENTS: Includes 1 BGD igniter flame-rod assembly with attached lead and keyed plug, plus mounting clip and hardware as shown. (Pilot burner, gas orifice, pilot tubing, gas valve, control board and appliance are not included.)

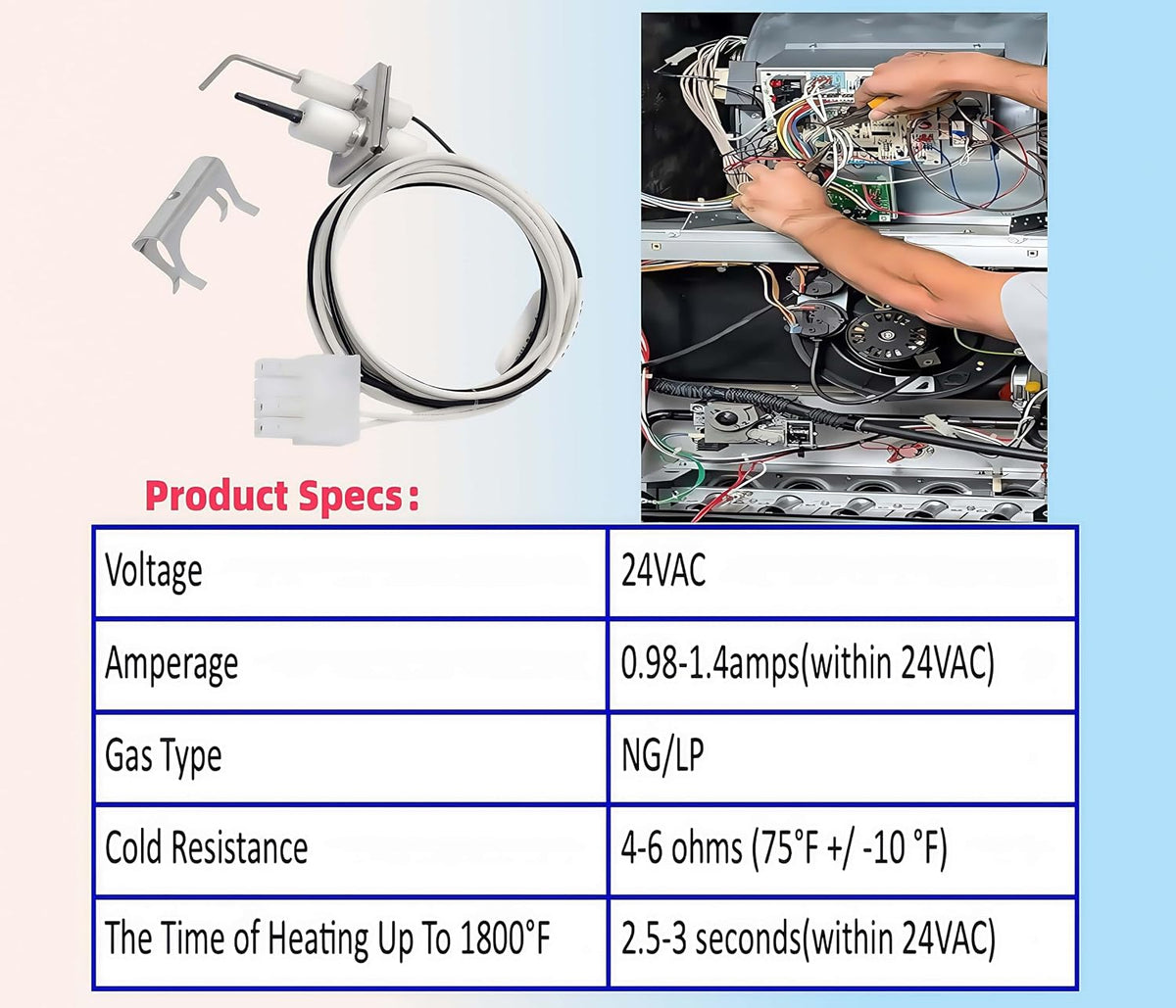

Products Include:1 x flame rod,1 x mounting clip,1 x hardware Characteristics: Time to temperature (1800°F): 2.5 - 3 seconds Voltage: 24 VAC. Amperage: 0.98 - 1.4 amps Cold resistance: 4-6 Ohms 75°F +/- 10°F. 18 gauge copper high-temperature fiberglass insulated lead wires. This BGD Q3400A1024 igniter flame-rod assembly is designed for select compatible Honeywell Home and Resideo SmartValve pilot systems. The assembly is intended for applications using Q3400A1024/U with select Q3450 and Q3480 hot-surface pilot burners controlled by compatible SV9500 or SV9600 SmartValve systems. The hot-surface igniter lights the pilot burner during the ignition sequence. The integrated flame rod senses the established pilot flame before the system proceeds with main-burner ignition. The assembly features an approximately 30-inch lead and a keyed electrical plug designed for the matching SmartValve connector. Other Q3400A versions may use 18-inch, 24-inch, high-temperature or different-length leads. Confirm the installed part number, lead routing and connector before ordering. This product is the replaceable igniter flame-rod component only. It is not a complete pilot burner or gas-valve asse
