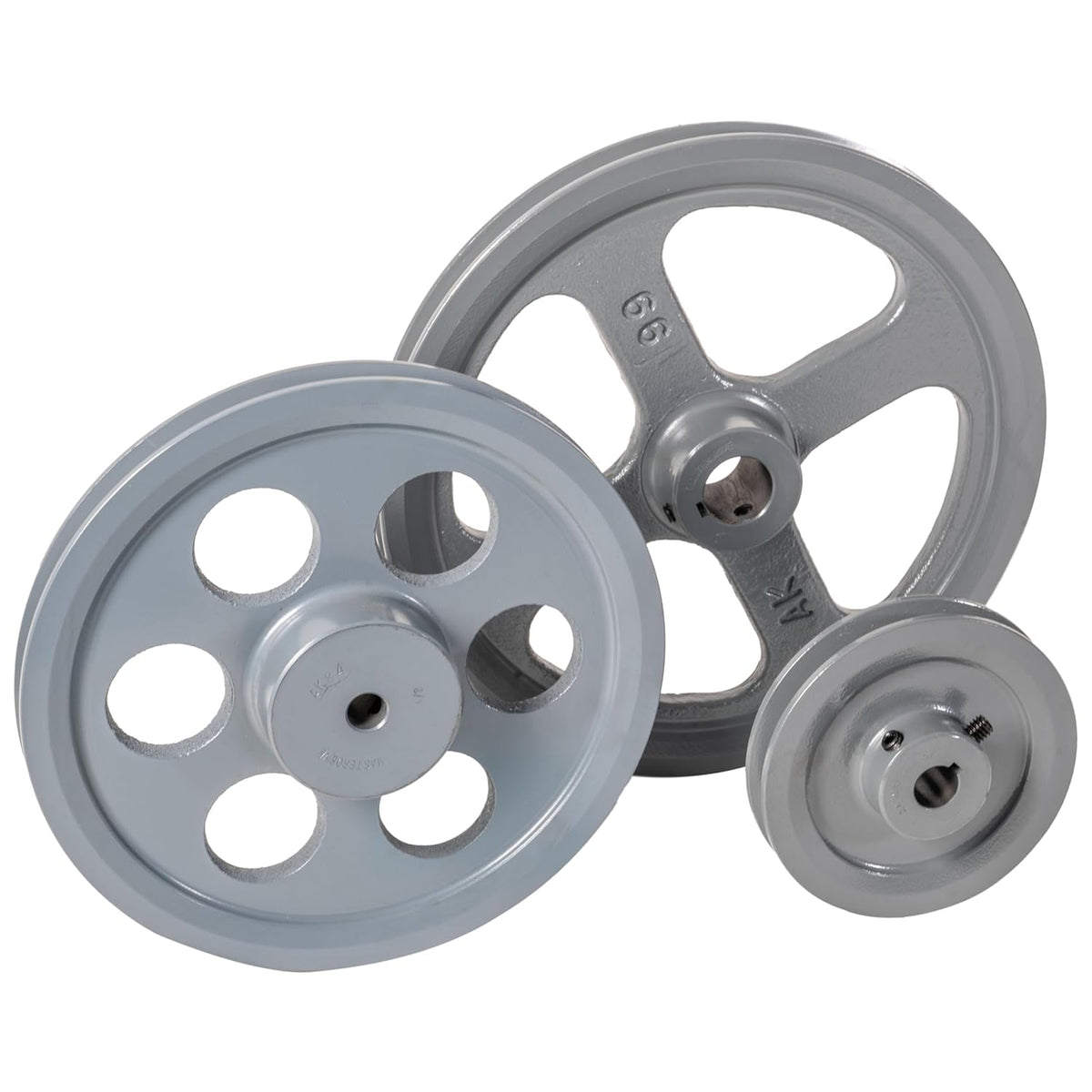

BK65-1-1/8 | V-Belt Sheave, 1.125 in Bore, 4L, A, 5L, B Belt, 6.25 in OD

Key features

• Light Duty V-Belt Sheave, 4L, A, 5L, B Belt Section, 1 Groove, 1.125 in Finished Bore, 5.5 in (A) Pitch Dia., 6.25 in OD, Gray Cast Iron Material

The BK65-1-1/8 is a v-belt sheave for v-belt power transmission drives in industrial, agricultural and HVAC equipment. Precision-machined for accurate belt tracking, smooth operation and long service life. Specifications: - Manufacturer Part Number: BK65-1-1/8 - Product Type: V-Belt Sheave - Material: Cast Iron - Belt Section Size: 4L, A, 5L, B - Pitch Diameter for 3L Belts: 5.5 in - Pitch Diameter for 4L or A Belts: 5.9 in - Pitch Diameter for 5L or B Belts: 5.9 in - Number of Grooves: 1 - Bore Diameter: 1.125 in - Bore Type: Finished Bore with Keyway and 2 Set Screws - Outer Diameter: 6.25 in - Overall Width: 1.15625 in - Overall Length: 6.25 in - Overall Height: 6.25 in - Length Through Bore: 1.1575 in - Hub Diameter: 2.047 in - Hub Length: 0.4094 in - Face Width: 0.874 in - Side Face Offset: 0.126 in - Sheave Construction: Solid - Keyway Size: 1/4 X 1/8 - Set Screw Size: 5/16/2018 - Set Screw Quantity: 2 - Finish/Coating: Grey Paint - Recommended Tightening Torque (Lb-In): 110 in-lbs - Part Weight: 3.53 lb Stocked and shipped fast from offroadbelts.com. Industrial-grade replacement part for OEM, MRO and maintenance buyers — order with confidence.
