Blue Sea Systems ST Blade Fuse Block, 12 Circuits with Cover

Key features

• Blue Sea Systems Fuse Block ST Blade 12 Circuit with Cover, part number 5029, can be used for 24-hour circuits

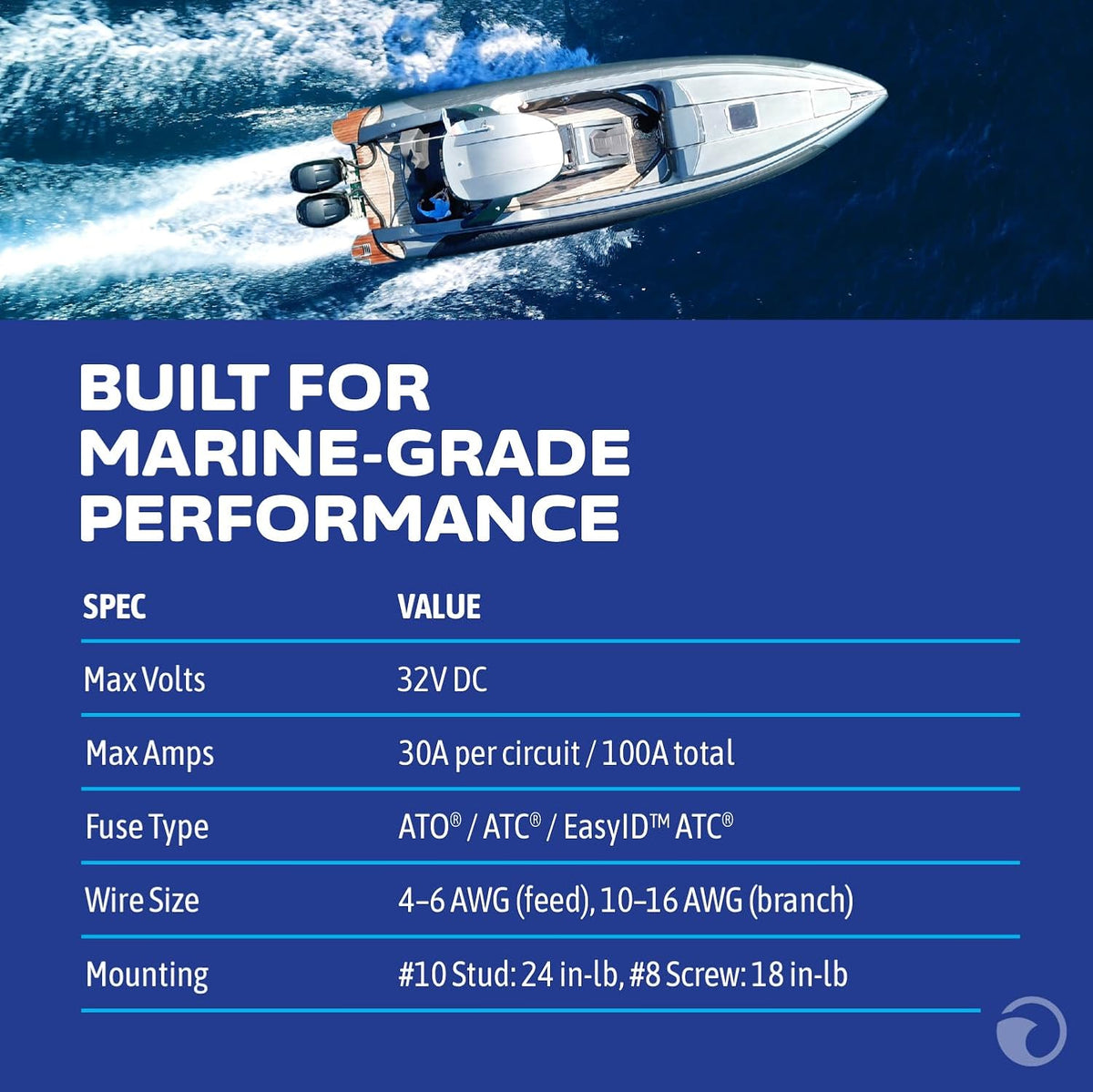

• Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer
• Positive distribution bus with #10-32 stud

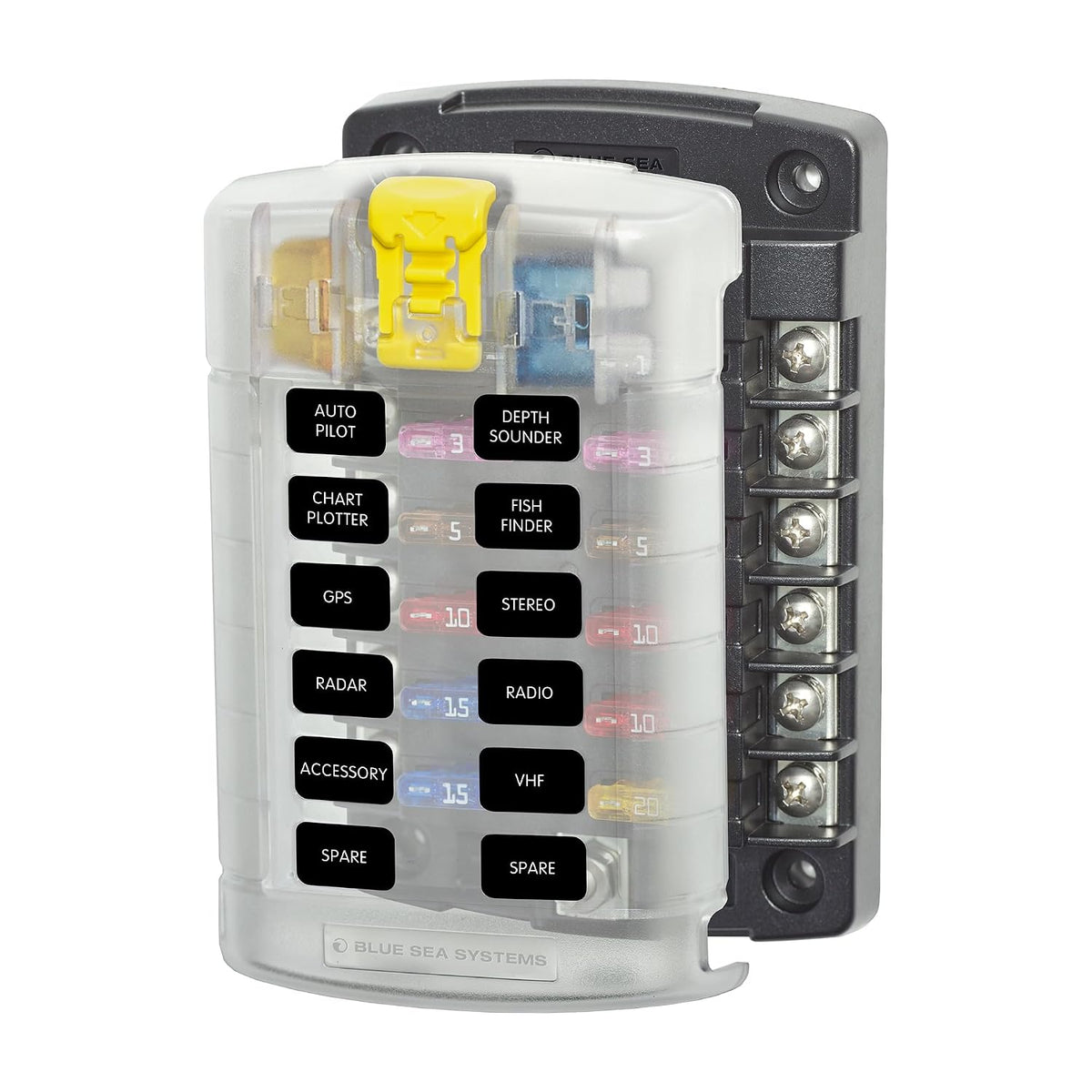

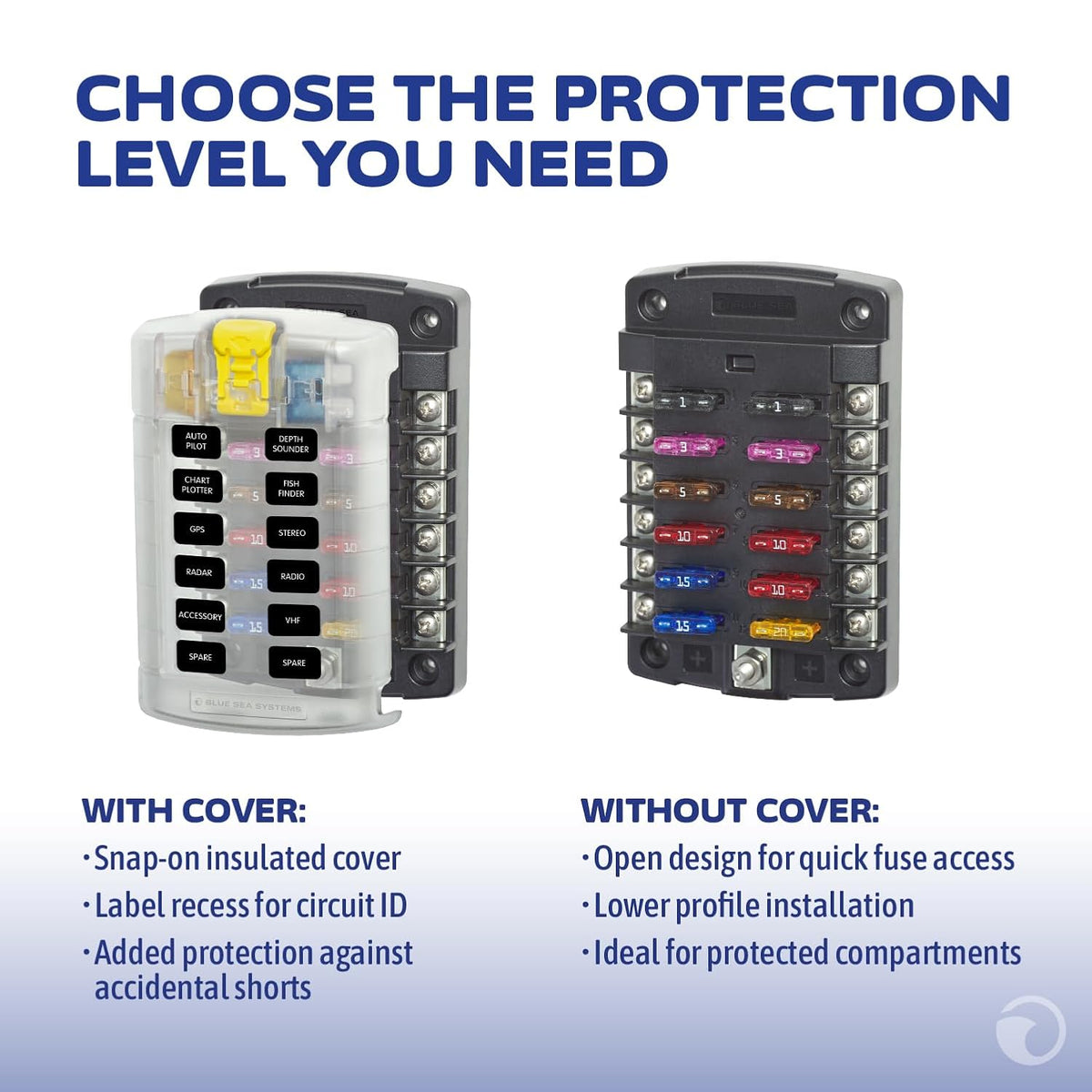

• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open

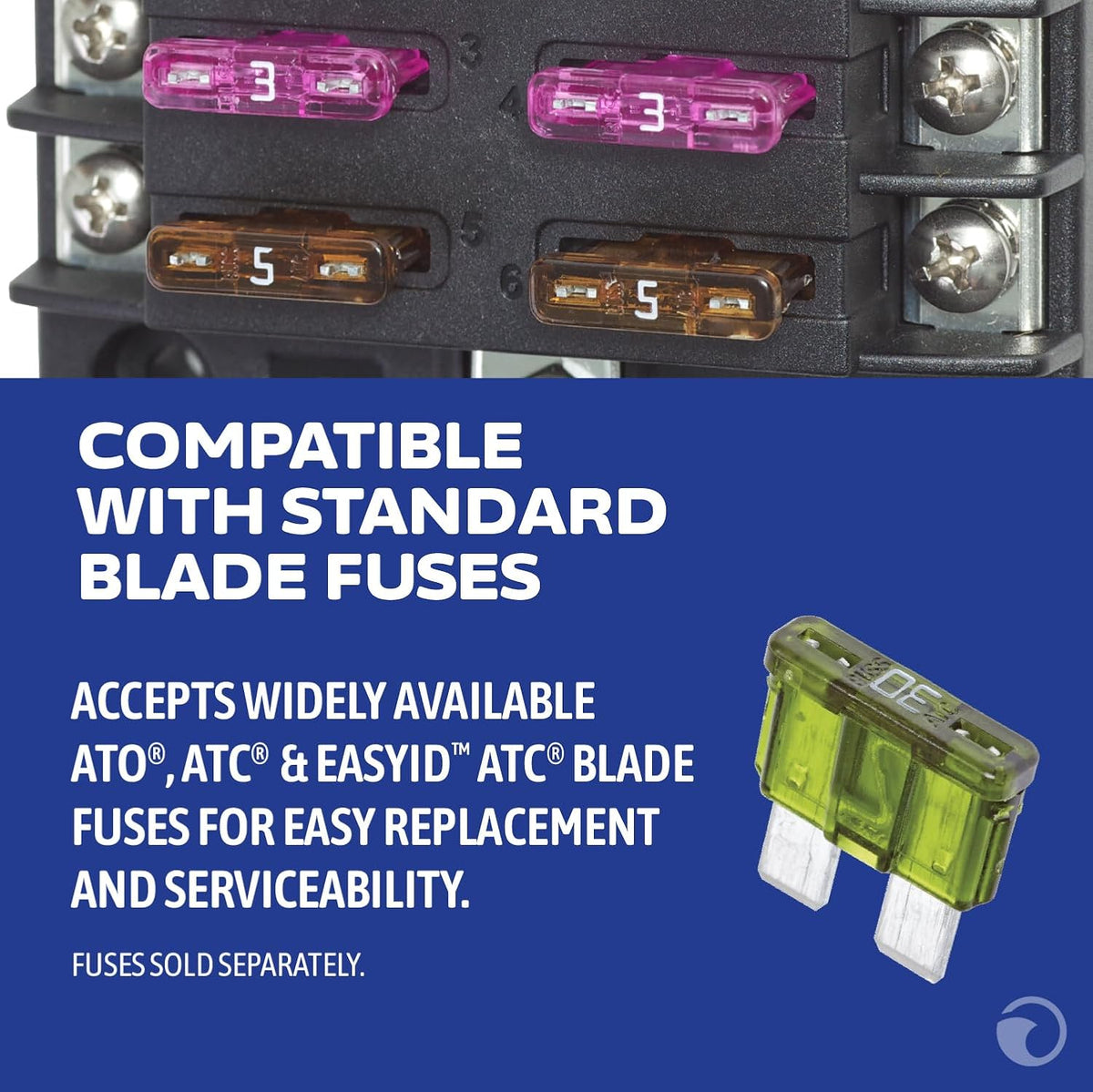

• Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses - fuses sold separately. Includes 20 write on circuit labels

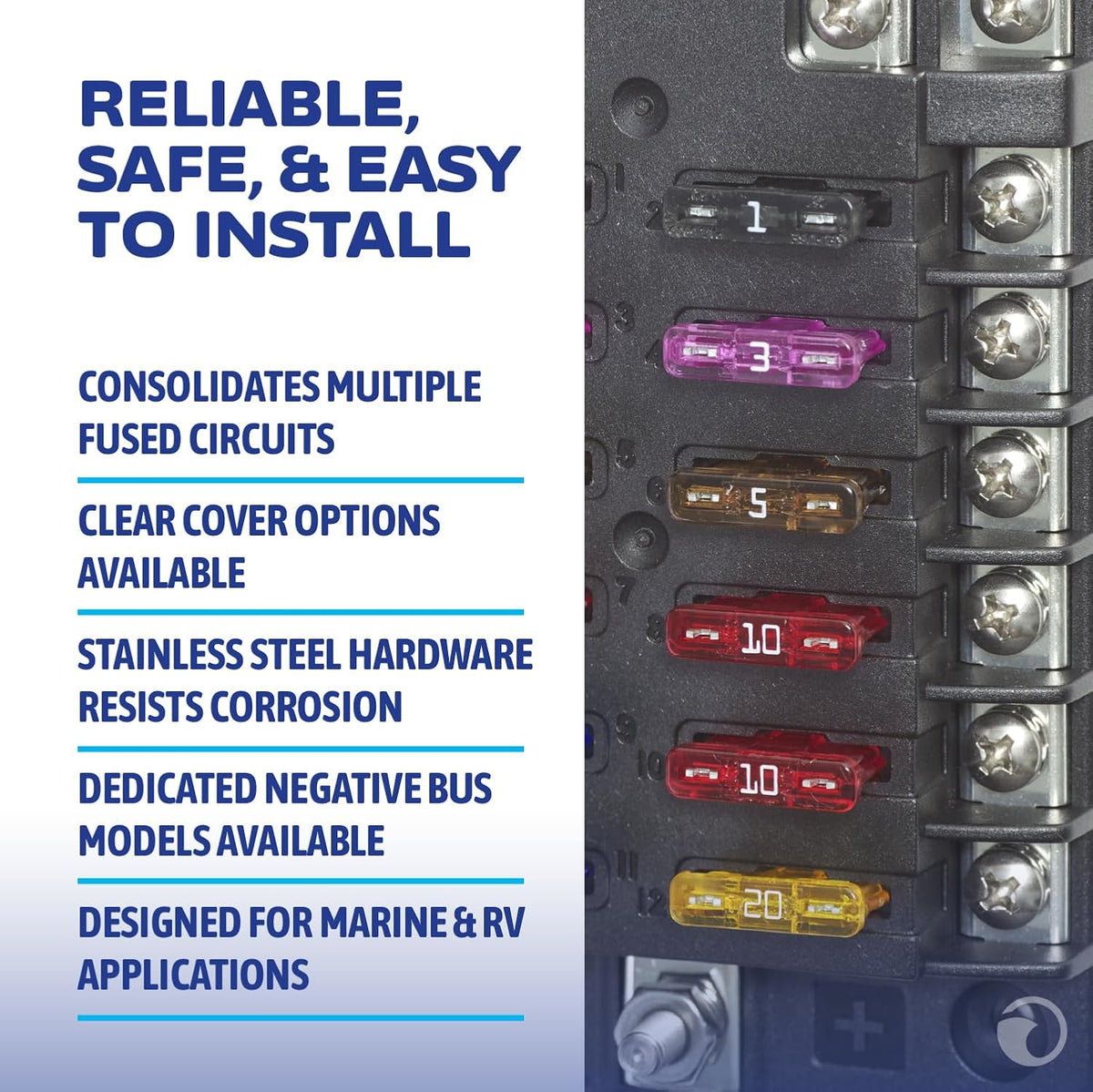

The Blue Sea Systems 5029 ST Blade Fuse Block is a professional‑grade DC power distribution solution designed to provide clean, organized, and reliable circuit protection across a wide range of applications. Featuring twelve individual fused circuits, this fuse block uses durable screw terminal connections to ensure secure wire termination and long‑term electrical stability. It is rated for a total capacity of 100 amps, with support for up to 30 amps per circuit at 32 volts DC when paired with standard ATO or ATC blade fuses. Engineered for demanding environments, the Blue Sea 5029 is ideal for marine electrical systems, RV electrical panels, off‑road vehicles, work trucks, and custom automotive builds. High‑quality tin‑plated copper buses and fuse clips deliver excellent conductivity while resisting corrosion, vibration, and heat. A clear, snap‑on insulating cover protects terminals from accidental short circuits and debris, while also providing convenient spare fuse storage and recessed labeling areas for fast circuit identification and troubleshooting. The Blue Sea Systems 5029 ST Blade Fuse Block is a trusted choice for organized, high‑capacity DC fuse distribution where safety
