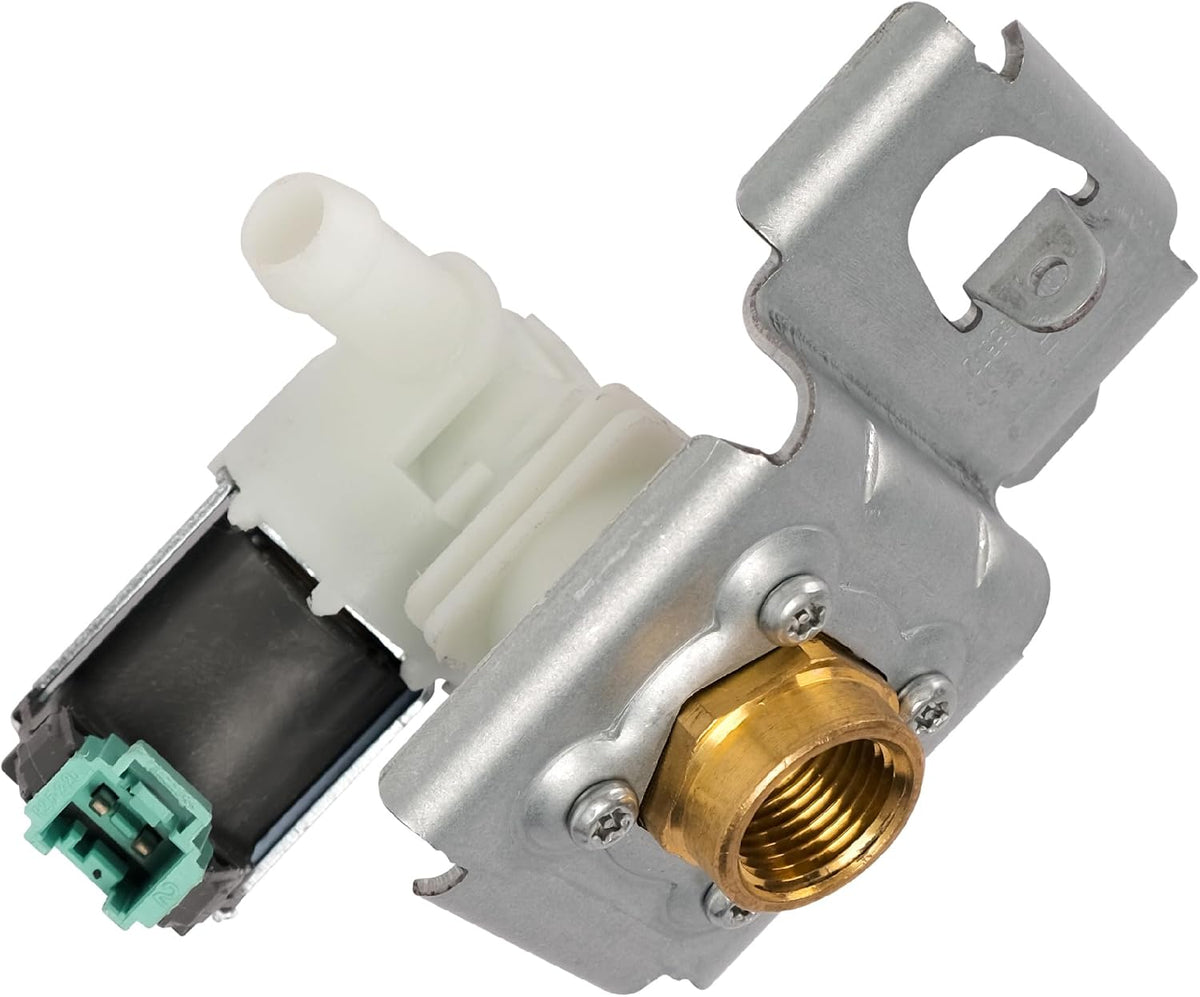

BlueStars W10158389 Dishwasher Water Inlet Valve Replacement

Key features

• EFFORTLESS INSTALLATION: Please disconnect the power & water supply and wear work gloves before repair. Remove the lower kickplate panel. Reach in and disconnect the electrical wire from the valve solenoid. Use a 1/4in nut driver to remove the screws holding the valve onto the frame. Use the plier to move the clamp up then pull the hose off the valve. Use an adjustable wrench to loosen and release the water line. Also, remove the old elbow fitting from the water line. Then reinstall with the our part.

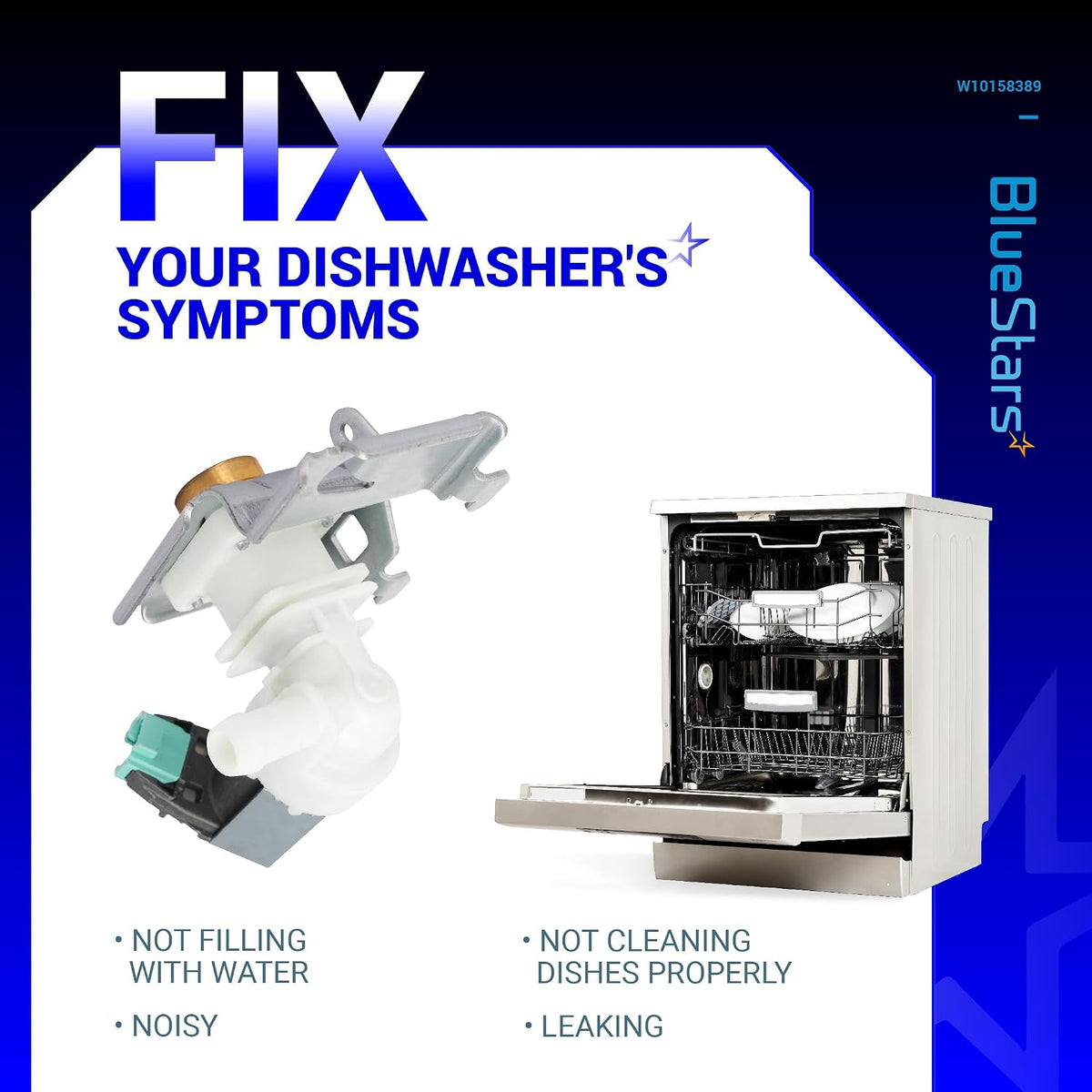

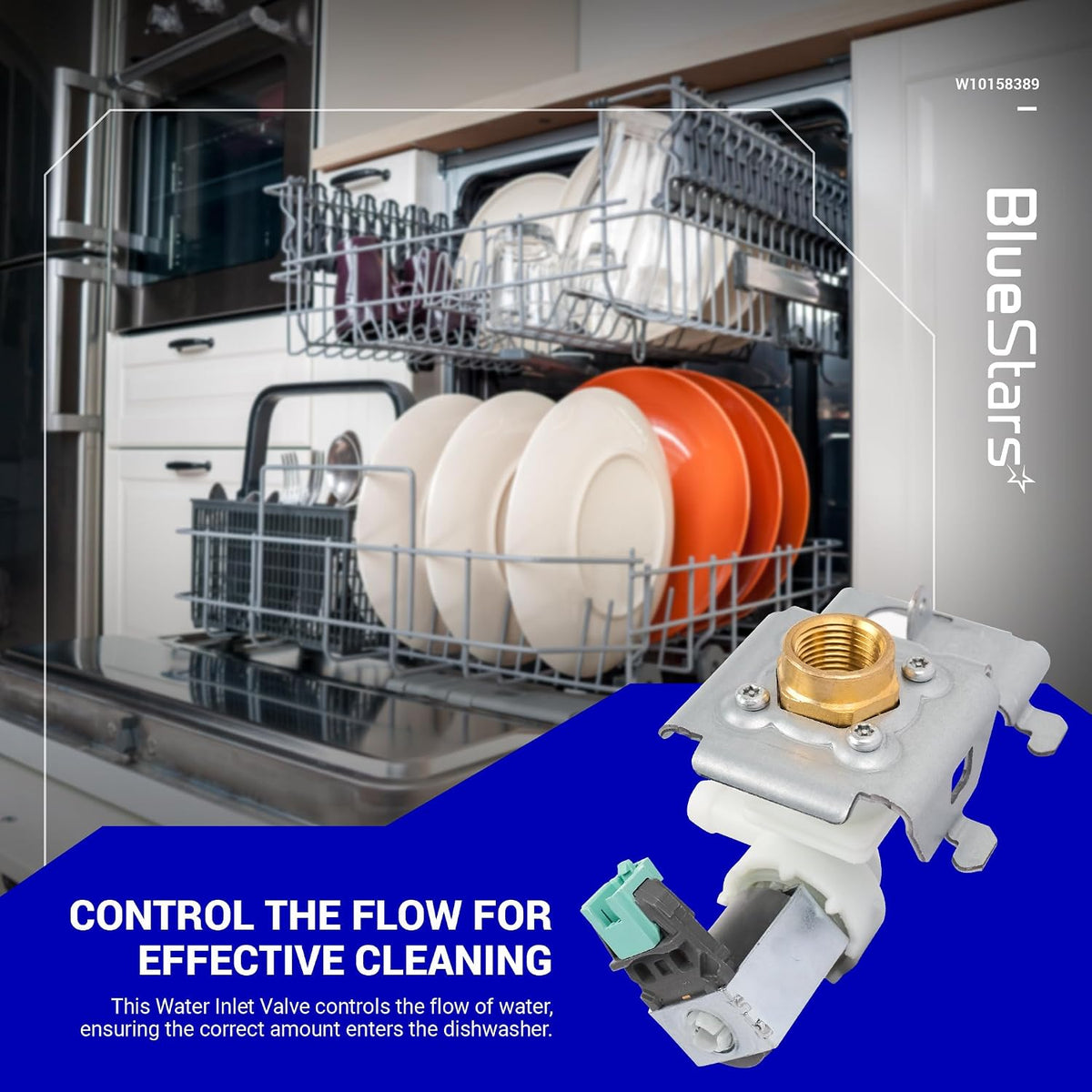

• RELIABLE WATER SUPPLY: W10158389 Water Inlet Valve is typically located in the left/ right corner of the dishwasher behind the lower kickplate panel. This valve will ensure a consistent and reliable flow of water into the dishwasher at the appropriate times with no leakage. If your valve is cracked, clogged, rusted, or worn out, replace it to fix the following symptoms: Leaking | Will not fill with water or Not enough water supply | Overflowed water supply | Not cleaning dishes properly.

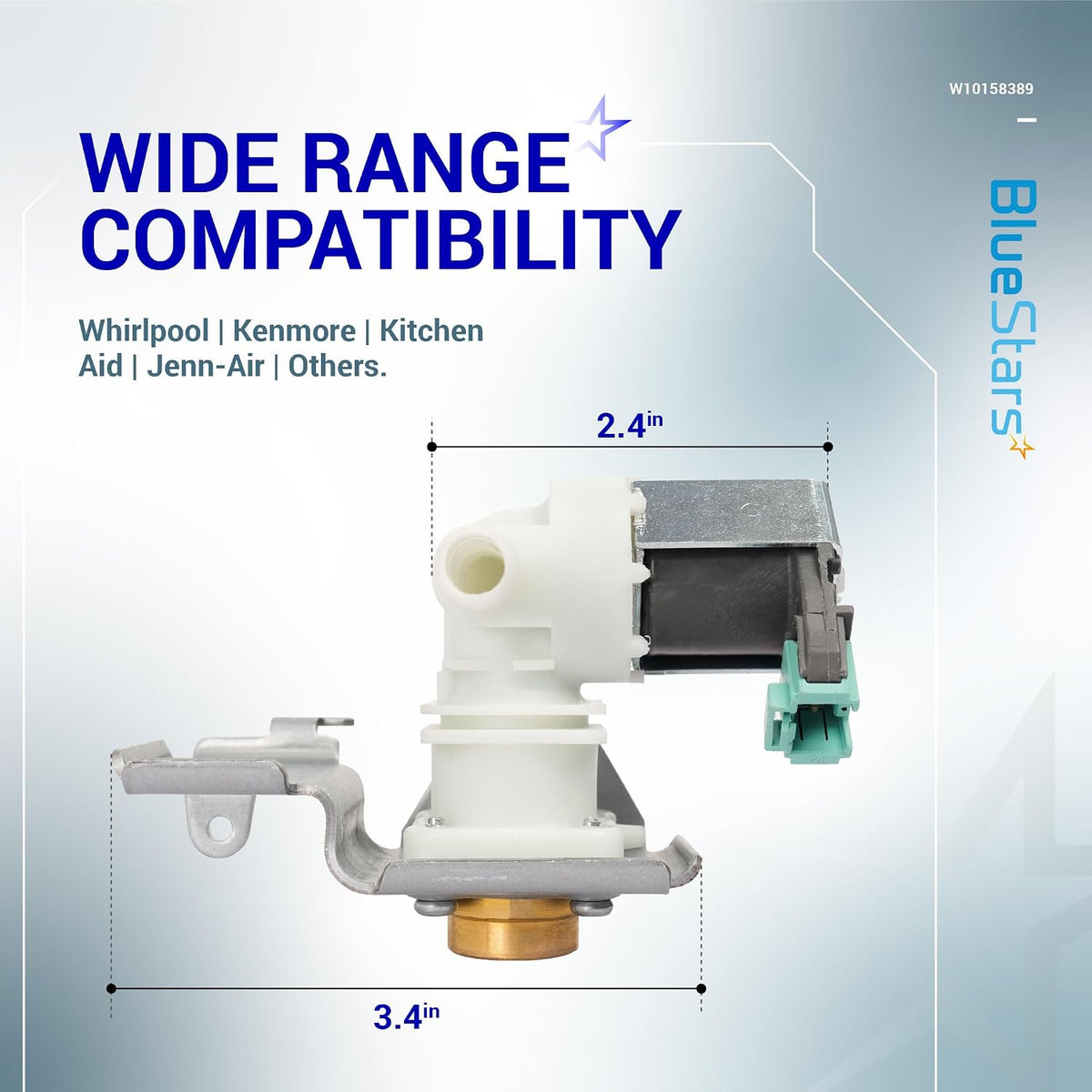

• PERFECT MATCH: The electrical specification of W10158389 Water Inlet Valve is 120V Rated Voltage, 60Hz Frequency. It has a 3/8" Inlet female pipe thread, a 1/4" Push on tube outlet. The valve replaces part numbers: #AP6015932, 8558986, 8558987, 8558988, 8563405, 8563406, 8563407, W10158387, WPW10158389VP, PS11749213. It is made exactly fit for several models of top-name brands (KitchenAid, Kenmore, Whirlpool, Jenn-Air).
• FIT MODELS: [Whirlpool] - 7DU1100XTSQ0, 7GU2300XTVQ0, 7GU2455XTSQ0, 7GU3200XTSS0, 7GU3600XTSY0, DU1048XTPQ4, DU1050XTPB7, DU1065XTPB1, DU1100XTPS8, DW324K1ABL0, DW324K1ASS0, DW524L1AWH0, DW724M1ASS0, GU2200XTSB0, GU2400XTPB7, GU2451XTSB0, etc. [Jenn-Air] - JDB3600AWP0, JDB3600AWX1, JDB3650AWF0, JDB3650AWR0, JDB3650AWY1, etc. [KitchenAid] - KUDC03FVSS0, KUDE03FTBL0, KUDE03FTWH1, KUDE60FVBL0, KUDE60FVSS0, KUDE60FVWH0, KUDE70CVSS0, KUDE70FVPA0, KUDI02FRSS1, etc. (detailed list below)

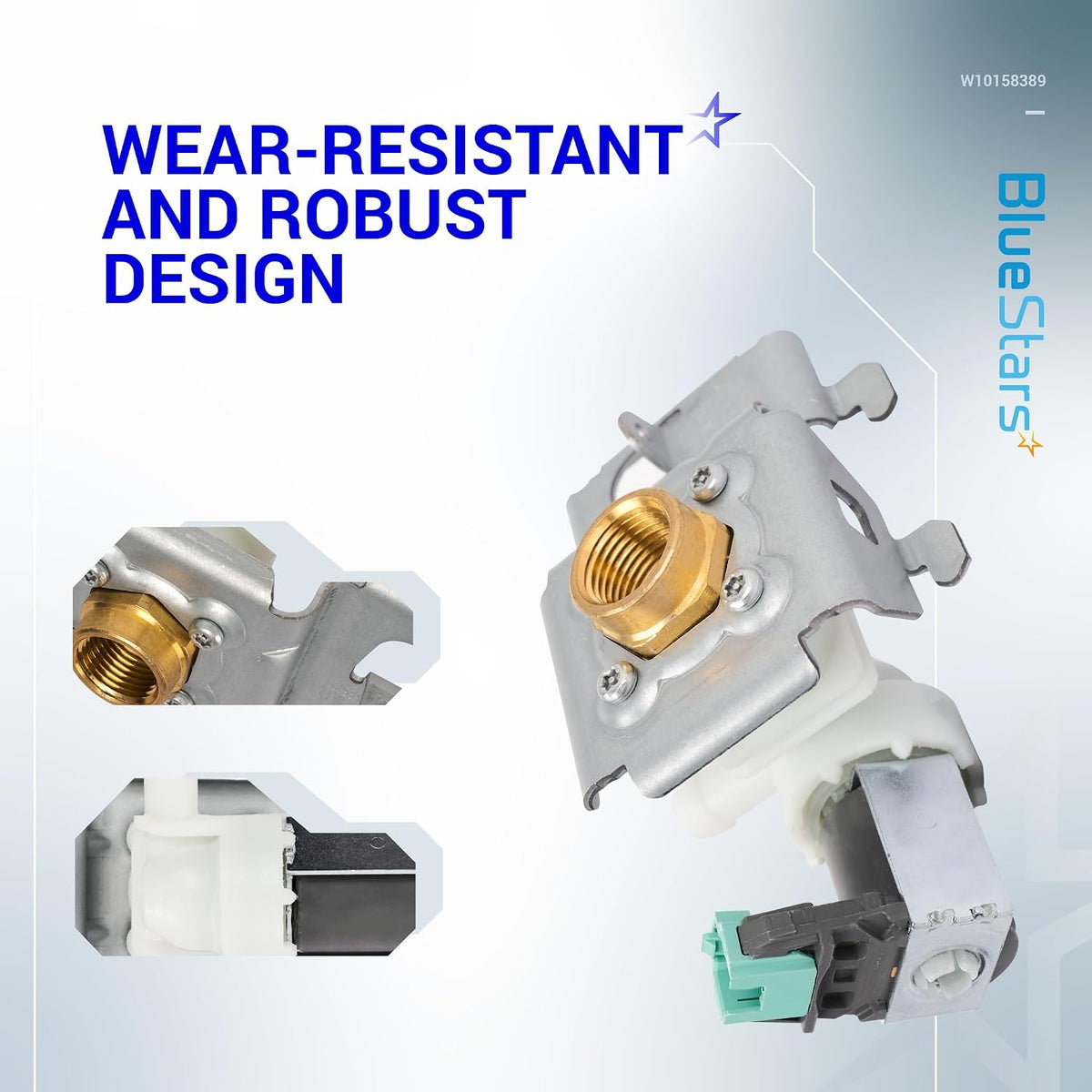

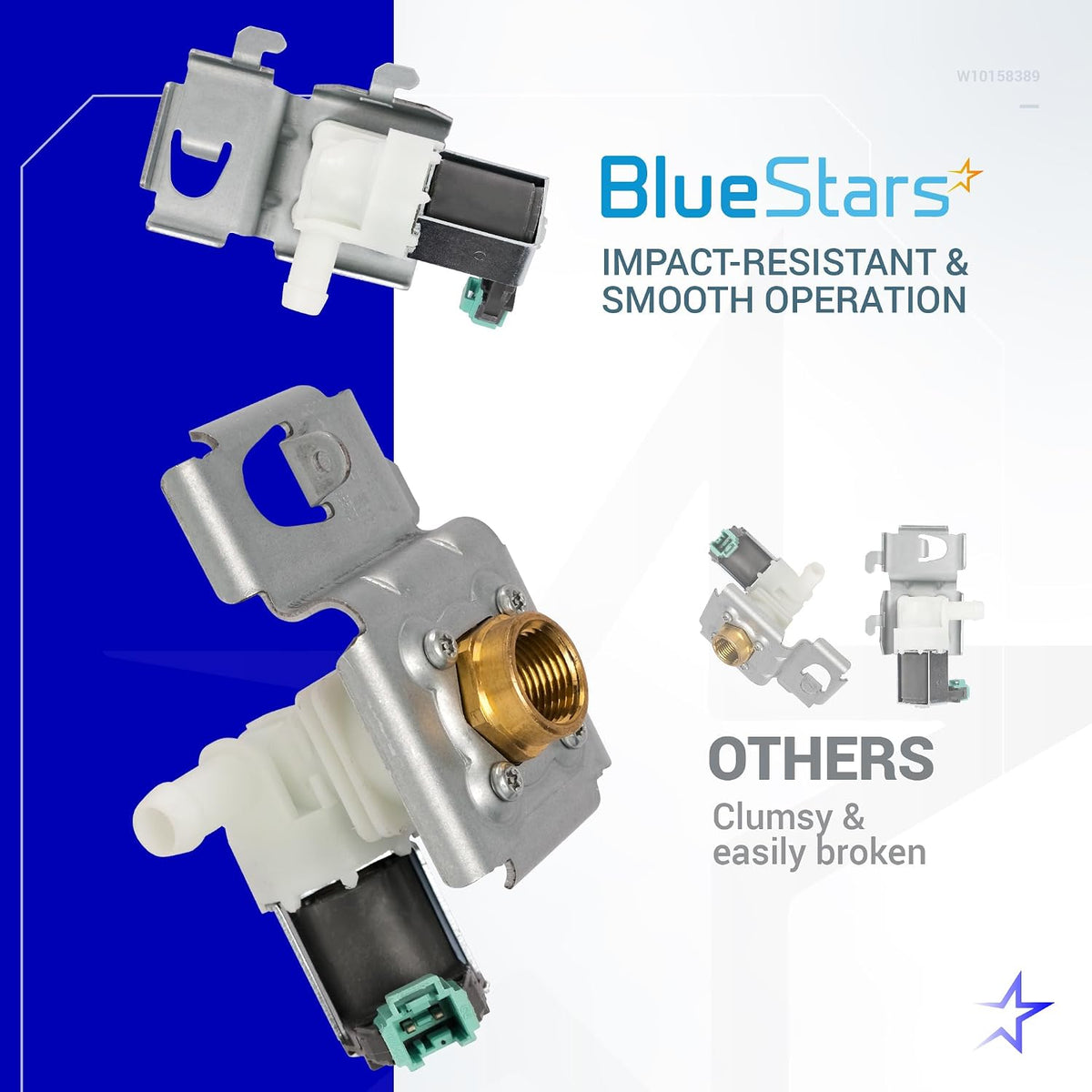

• SUPERIOR QUALITY: W10158389 Water Inlet Valve has a solid and reliable design with high-grade wear-resistant materials - Ensures long-lasting and effective performance - Meets OEM standards. The metal parts are well-crafted and stainless to resist rust caused by water and air. The sturdy ABS plastic parts have better coating and contain no BPA material to ensure safe & leakproof sealing under high pressure and high temperature of the water supply.
