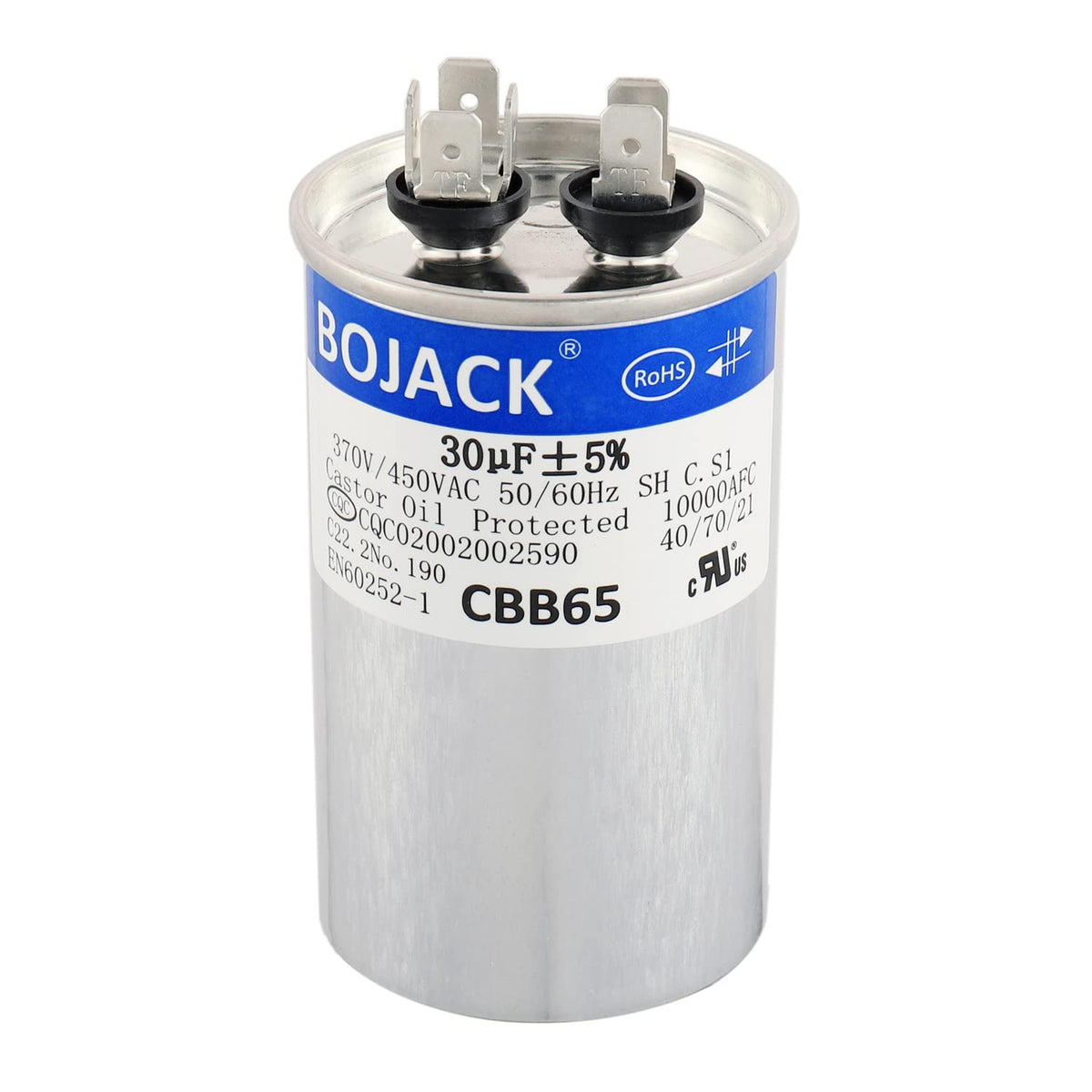

BOJACK 30 uf MFD 370V 450V AC Motor and Fan Starting Round Capacitor 50/60 Hz CBB65 10000 AFC
BOJACK 30 uf MFD 370V 450V AC Motor and Fan Starting Round Capacitor 50/60 Hz CBB65 10000 AFC
Key features
- BOJACK Product 30 uf MFD 450VAC Capacitor. Replaceable 370 VAC & 450 VAC Capacitors
- Operating Temperature Range -40 ℃ to +70 ℃/ -104℉ to +158℉
- This Capacitor Will Run Compressor And Fan Motor
- Engineered For Safety 10000 AFC Anti Explosion Pressure Switch

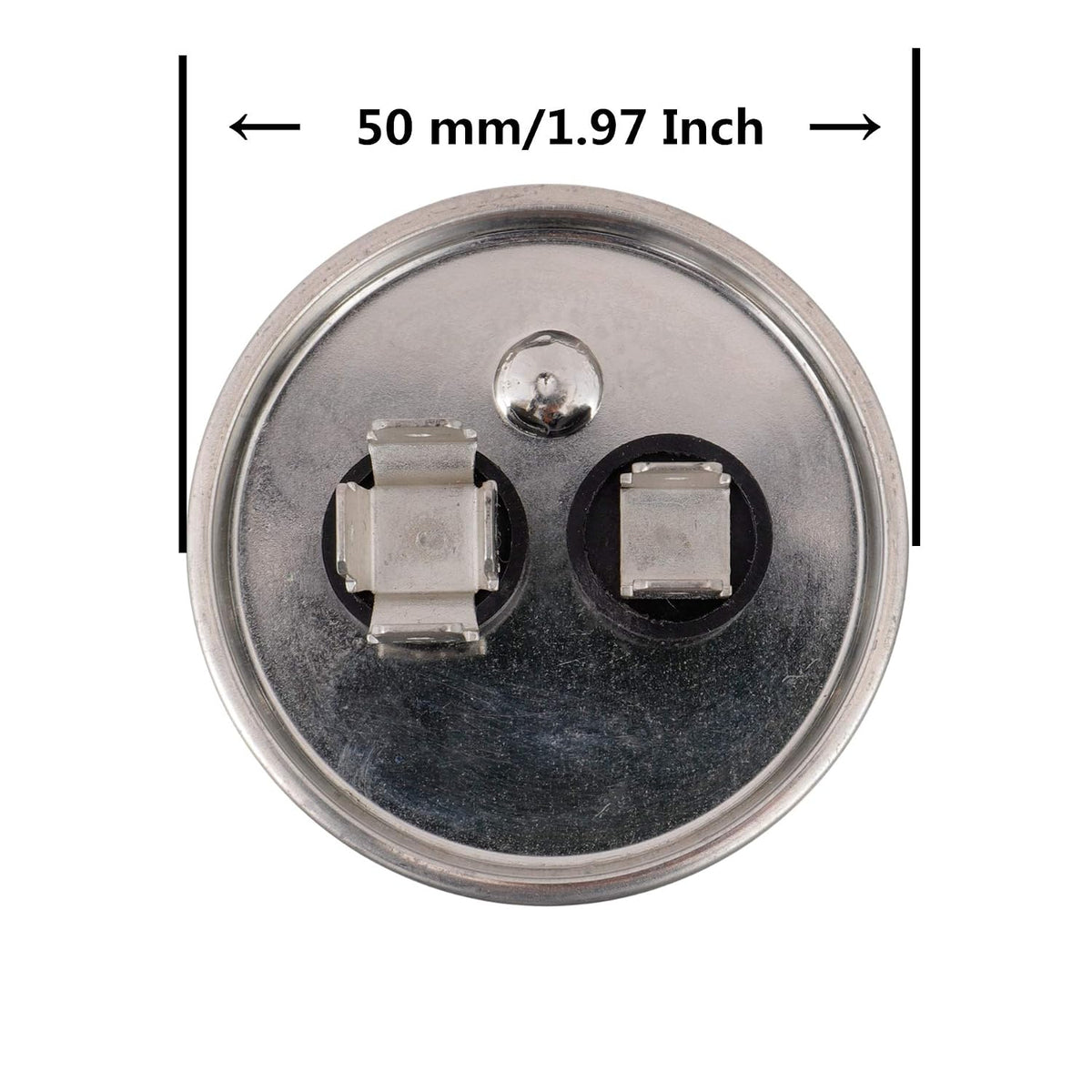

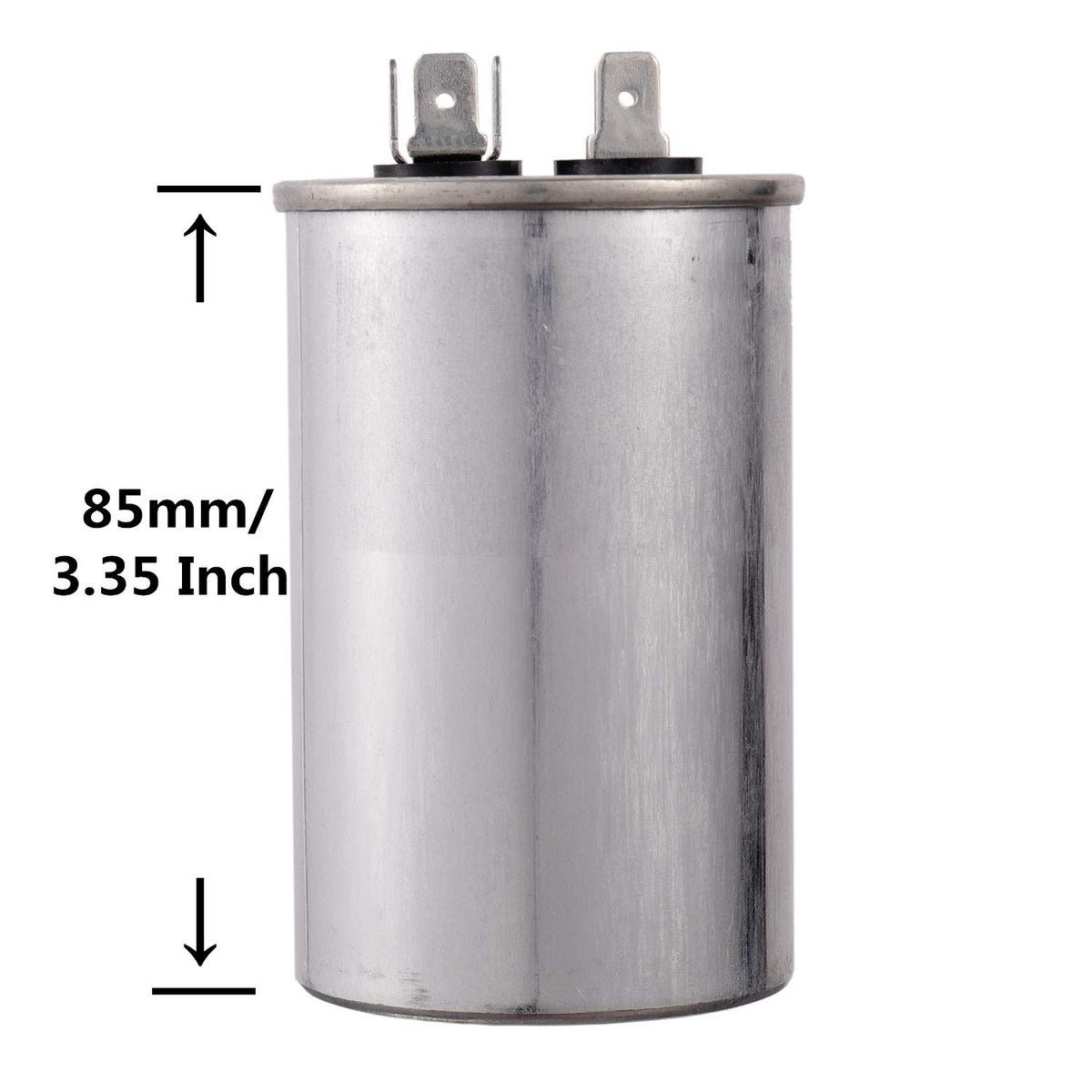

- This Product Used PBH Oil，Size: 1.97x3.35 in / 50x85 mm(Diameter x Height)
This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as air conditioners, compressors and motors. It is small in size, lightweight, heat resisting and anti-explosion. Round capacitor can be used to substitute oval shape one with the same MFD AND Volt specs. A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can’t be used in place of a 440 volt. Model: CBB65（Universal model） Shell material: metal Dielectric Material: metallized polypropylene film Capacity: 30uf Tolerance: ±5% Rated voltage: 450 VAC Frequency: 50 / 60HzSize: 1.97x3.35 in / 50x85 mm(Diameter x Height)
Free shipping included. 30-day hassle-free returns.
