BOJACK 35+5uF 35 5 MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

Key features

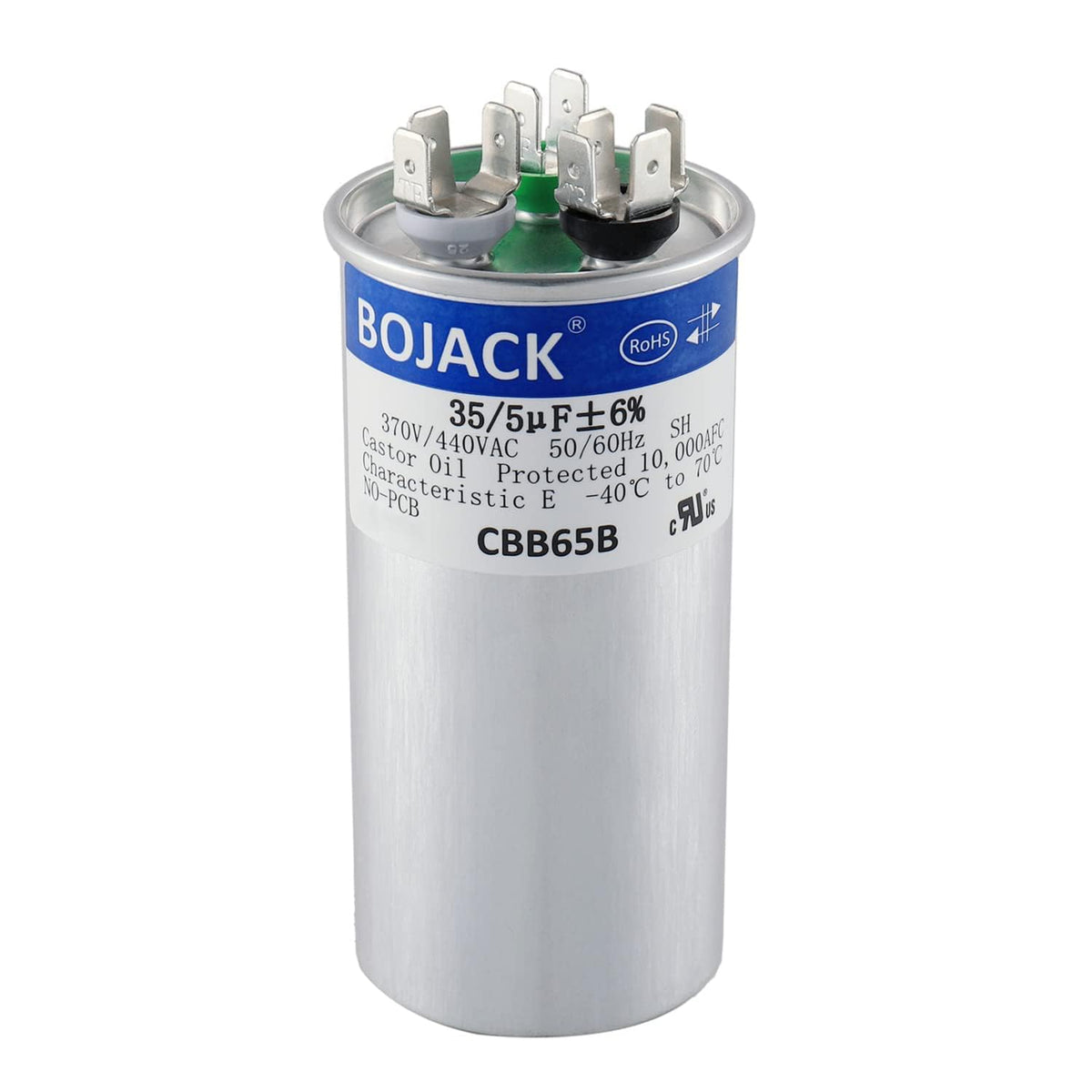

• BOJACK 35+5uF ±6% 370V/440V CBB65 Dual run circular start capacitor

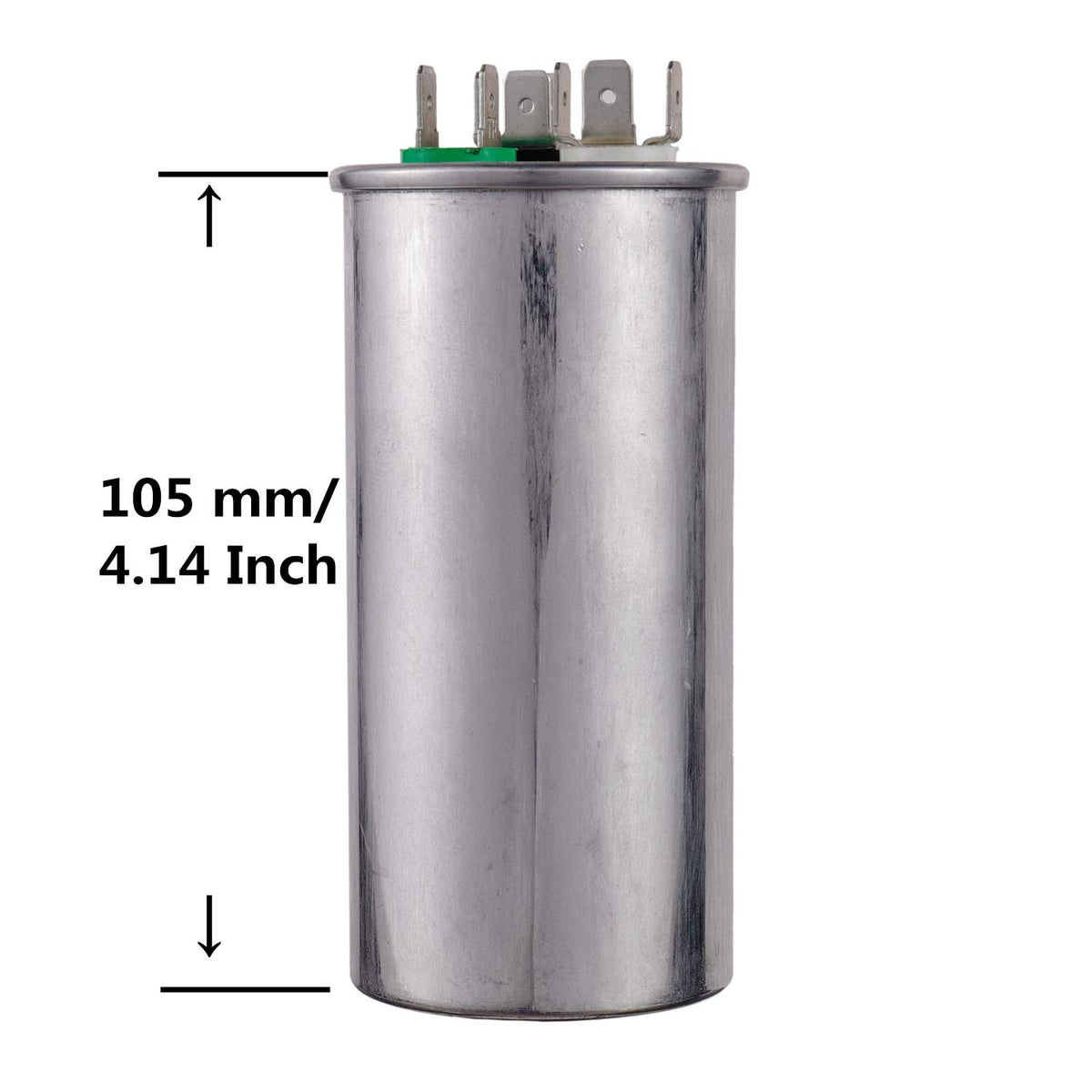

• Capacitor dimension: Diameter<1.97 inch>, Height <4.14 inch>
• Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
• Safety rated: 10,000 AFC

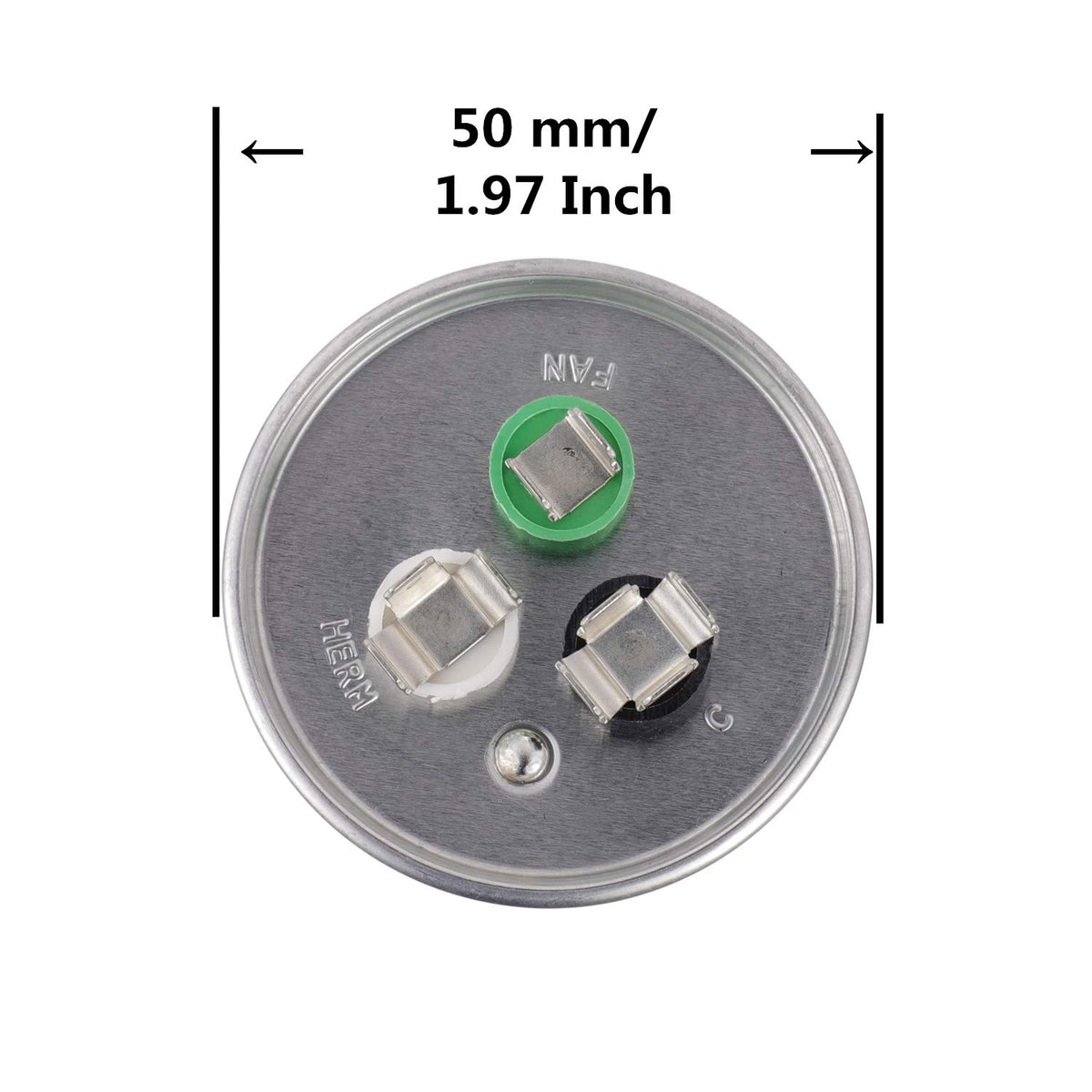

• Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.

BOJACK Dual run circular start capacitor ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor. Model: CBB65（Universal model） Shell material: Metal Dielectric Material: Metallized polypropylene film Capacity: 35+5uf Tolerance: ±6% Rated voltage: 370V/440V AC Frequency: 50 / 60Hz Safety rated: 10,000 AFC Capacitor dimension: Diameter<1.97 inch> Height <4.14 inch> Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement forCentral Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion.Round capacitor can be used to substitute oval shape one with the same MFD and Volt specs.A 440 volt capacitor can be used in placeof a 370 volt, as it is build better, but the 370 volt can’t be used in place of a 440 volt.
