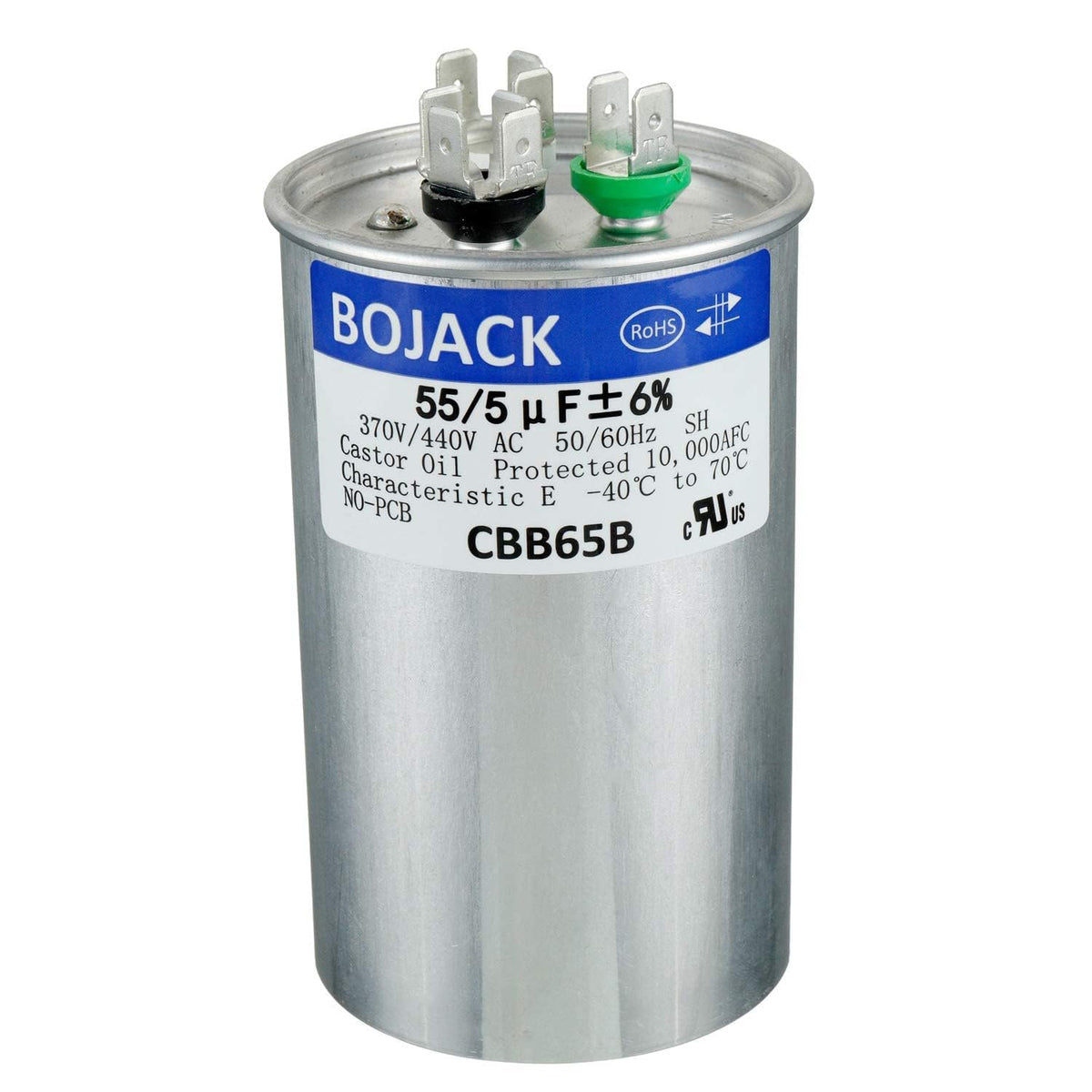

BOJACK 55+5uF 55/5MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

Key features

• BOJACK 55+5uF ±6% 370V/440V CBB65 Dual run circular start capacitor

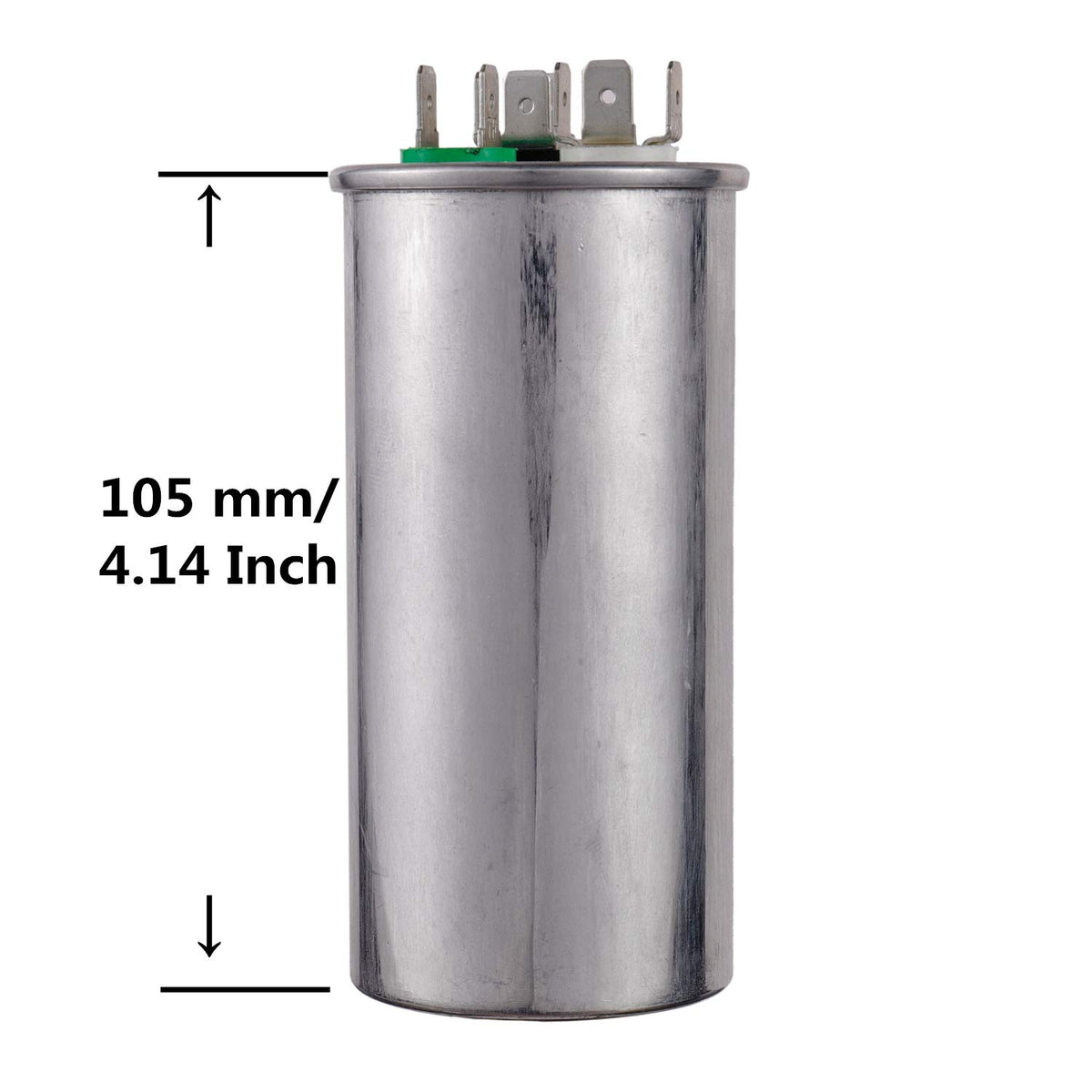

• Capacitor dimension: Diameter<2.56 inch> Height <4.14 inch>
• Operating temperature: -40 ℃ to +70℃/-104℉to+158℉,Safety rated: 10,000 AFC

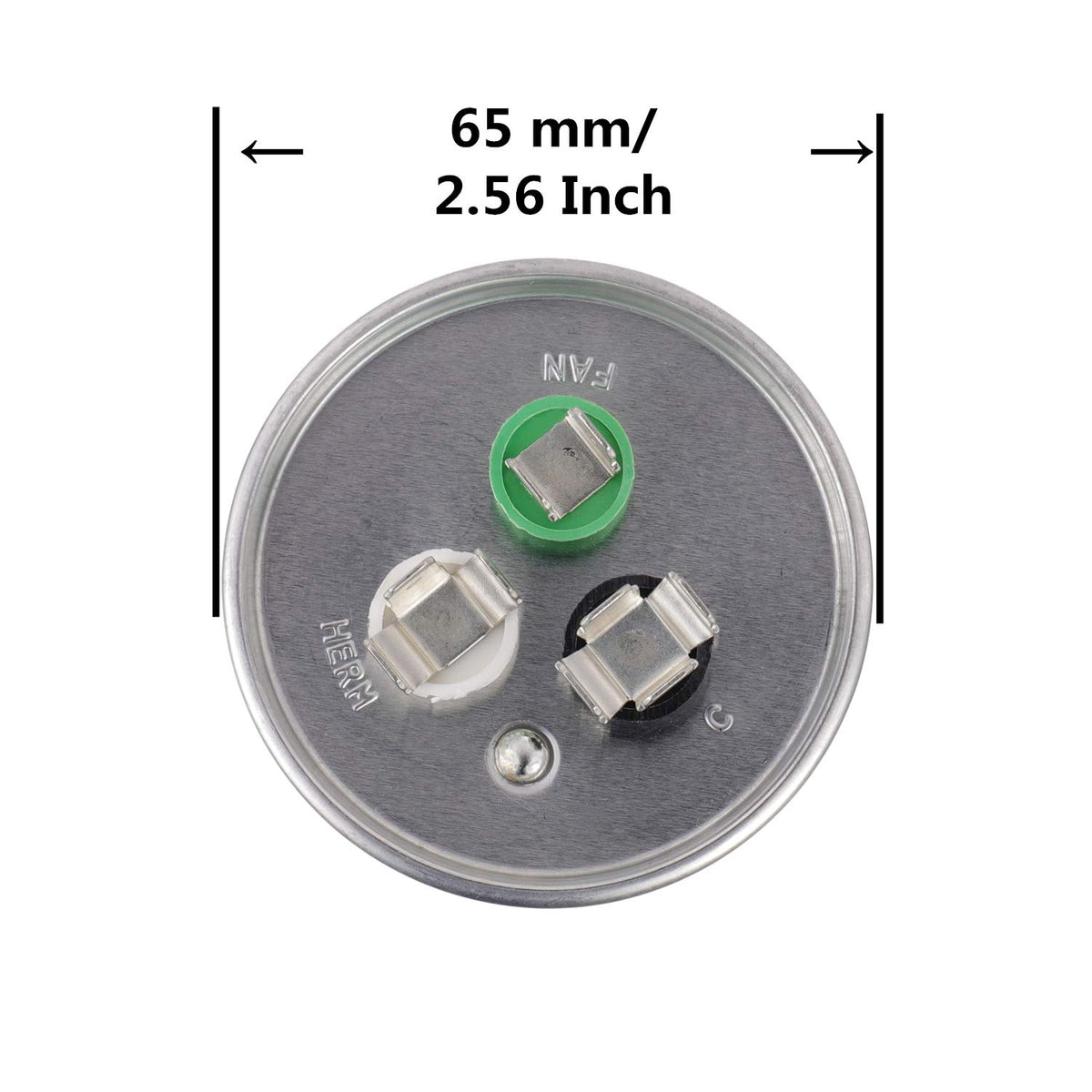

• Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
• Replacement for P291-5554RS , P291-5553R , TT-CAP-55/5/440 , cap050550440rtp , cap050550440rt , TRCFD555 , 97Z9839BZ3 , Z97F9839 , 97F9839 , 97F9839BX , CPT00670 , P2915554RS , HCKS550D050R440Z , TP-CAP-55/5/440R .

BOJACK Dual run circular start capacitor Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor Model: CBB65（Universal model） Shell material: metal Dielectric Material: metallized polypropylene film Capacity: 55+5uf Tolerance: ±6% Rated voltage: 370V/440V AC Frequency: 50 / 60Hz Safety rated: 10,000 AFC Capacitor dimension: Diameter<2.56 inch> Height <4.14 inch> Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion. Round capacitor can be used to substitute oval shape one with the same MFD AND Volt specs.A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can’t be used in place of a 440 volt.
